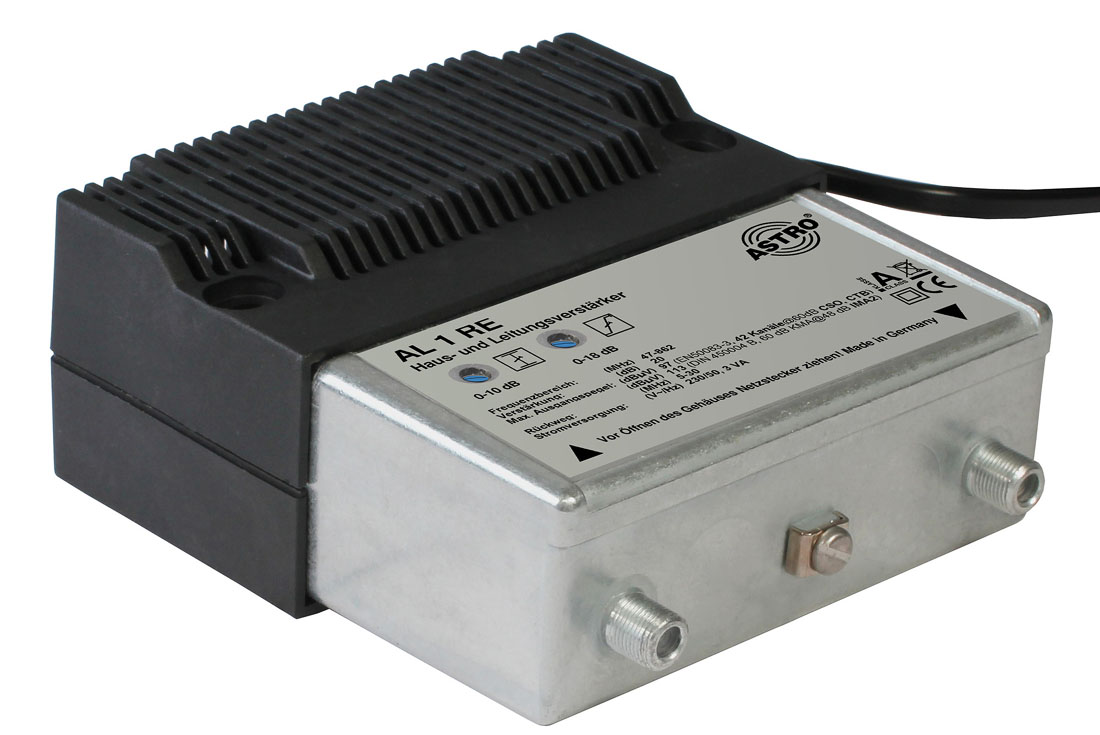

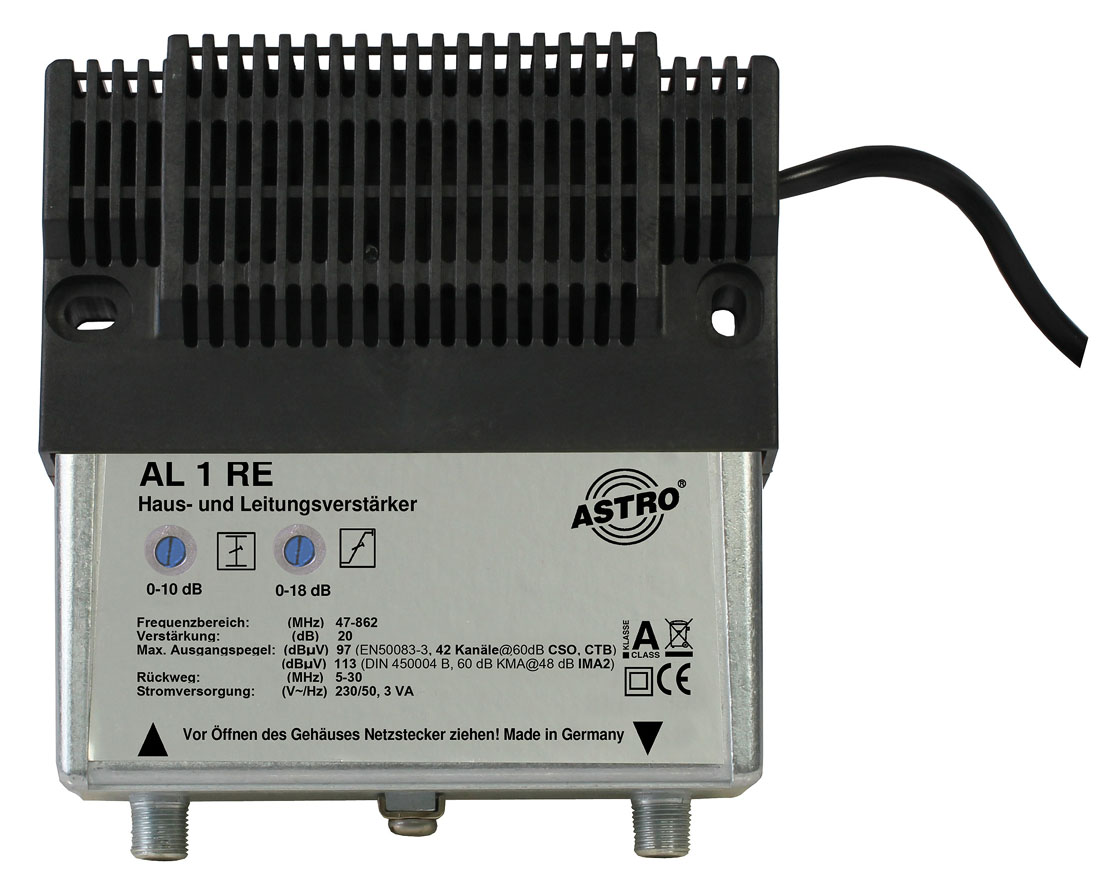

Amplifier

for inhouse distribution

AL 1 RE

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 862 MHz
Forward path gain

20-24 dB
Order number

00214060

EAN-Code

4026187150389

No longer available

Product Details
  • In-house amplifier with 30 MHz return path
  • 20 dB forward gain
  • output level forward path 97 dBµV
  • gain return path -2 dB (passive)
  • attenualtor forward path 0 - 10 dB
  • equalizer forward path 0 - 20 dB
Download Details

Product is combinable with

Grounding bracket

ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring
