Premium stand-alone multiswitch
4 SAT levels + terrestrial, 12 user outputs

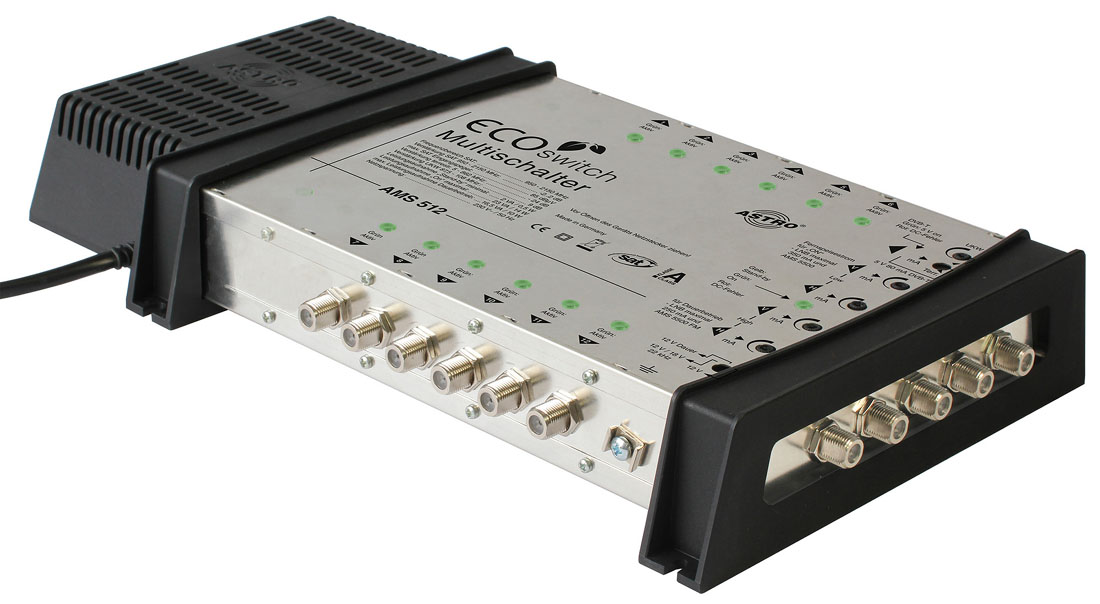

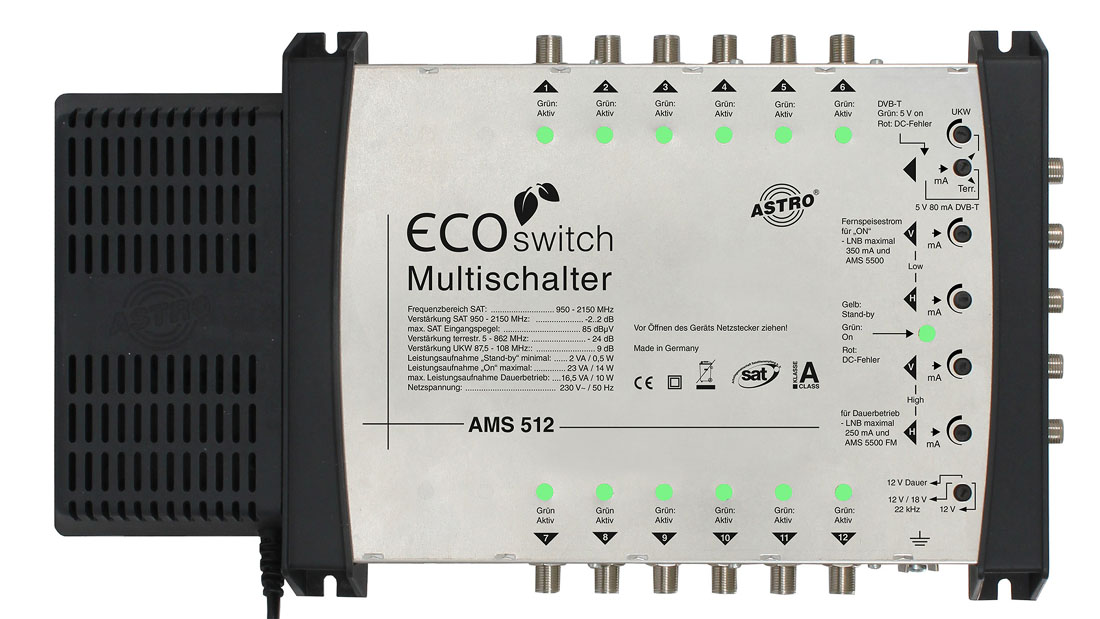

AMS 512 ECOswitch
Specification
| Model | High Quality |
|---|---|
| SAT inputs | 1 |
| Outputs | 12 |
| Device type | Stand-alone device |
| Order number | 00360121 |
|---|---|
| EAN-Code | 4026187131159 |
Product Details
- Stand-alone device with 4 SAT levels + terrestrial
- 12 user outputs
- terrestrial input passive (5 - 862 MHz), or switchable FM active (87.5 - 108 MHz) for direct connection of an antenna
- separate level control for each SAT input
- LNB supply selectable 12 V / 18 V / 22 kHz
- energy-saving switching power supply, in stand-by only 0.5 W power consumption
- LED indicator lamp per participant and for output current monitoring (short-circuit-proof)
- 5 V DVB-T supply voltage
- Professional multi-switch
- 5 V supply voltage for active DVB-T(2) antenna can be switched on
- Operation with Quatro-Universal or Quad-Switch LNB
- Switch mode power supply with standby function
Download Details
-
Anleitung AMS 5... DE pdf · 2mb
