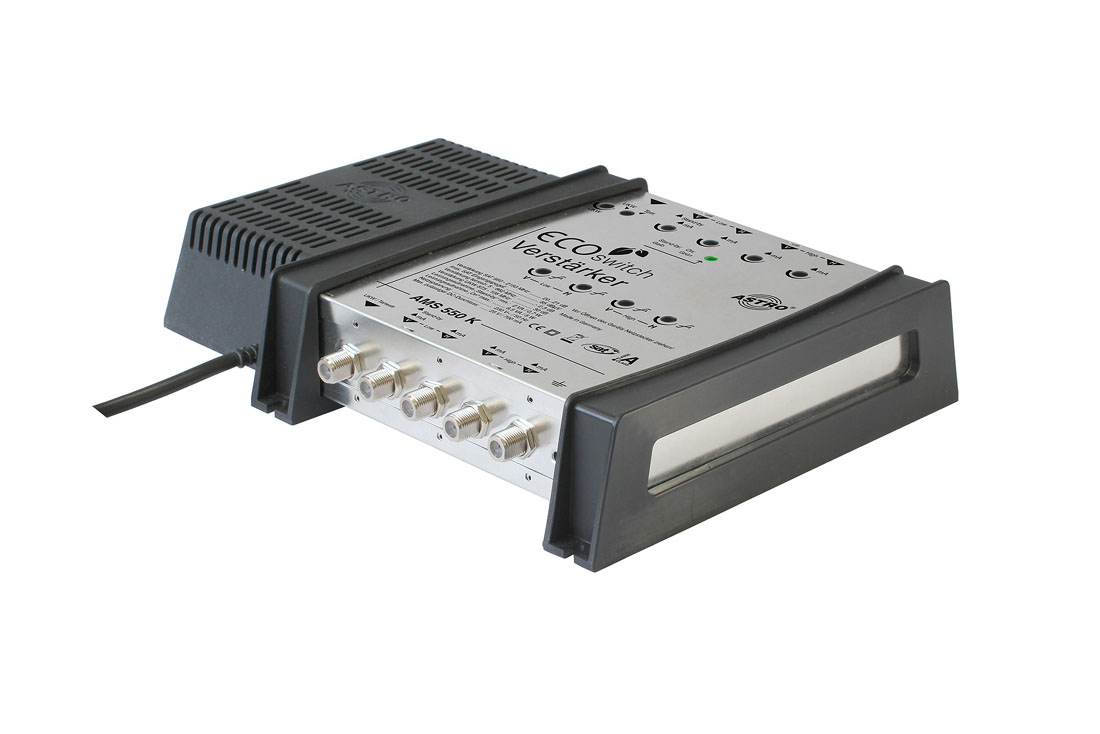

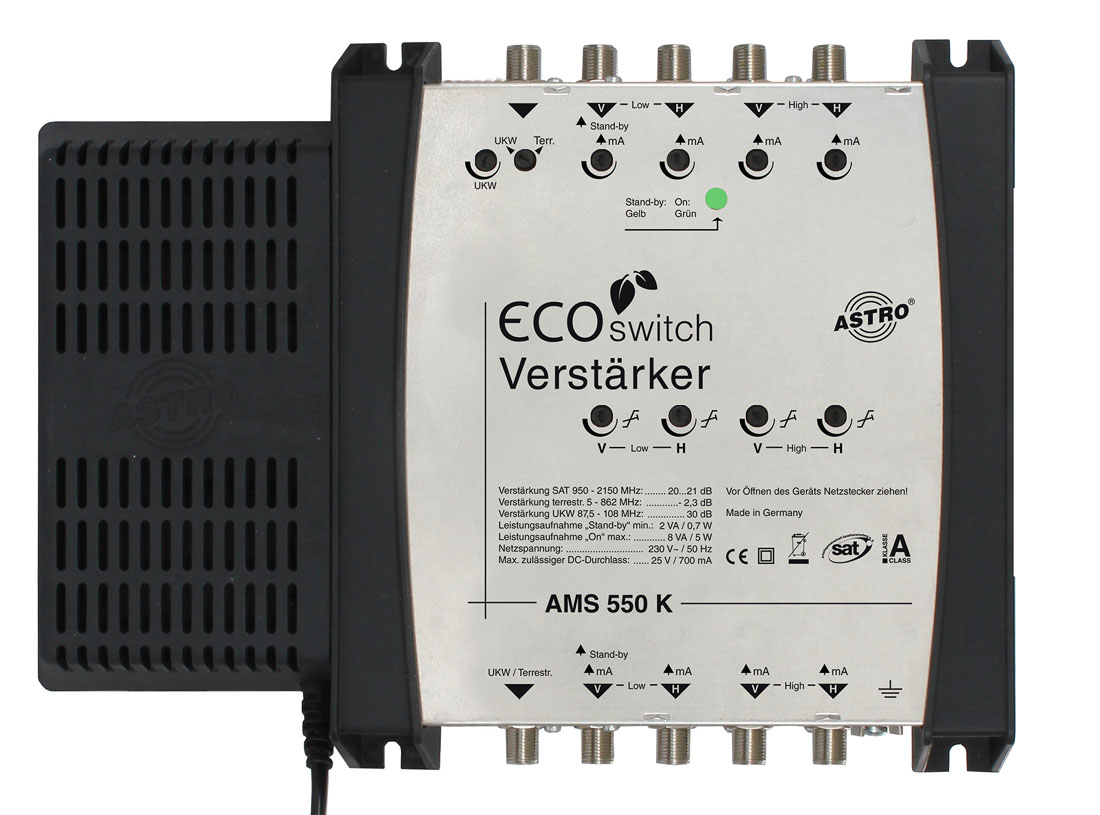

Premium SAT-IF amplifier
for 4 SAT levels + terrestrial
AMS 550 K ECOswitch
Specification
| Model | High Quality |
|---|---|
| SAT inputs | 1 |
| Outputs | None |
| Device type | SAT IF amplifier |
| Order number | 00360556 |
|---|---|
| EAN-Code | 4026187141257 |
Product Details
- locally fed SAT IF amplifier for 4 SAT levels + terrestrial
- separate level control and skew equalizer for each SAT input DC
- cascade amplifier
- stand-by function
- terrestrial input passive (5 - 862 MHz), or switchable FM active (87.5 - 108 MHz) for direct connection of an antenna
- energy-saving switching power supply, in stand-by only 0.5 W power consumption
- LED control lamp for output current monitoring (short-circuit proof)
- 5 terminating resistors FUR 75 DC prof included
- Operation exclusively in the AMS 5 Ecoswitch cascade
- Standby evaluation via V/L
Download Details
-
Anleitung AMS 5... DE pdf · 2mb
