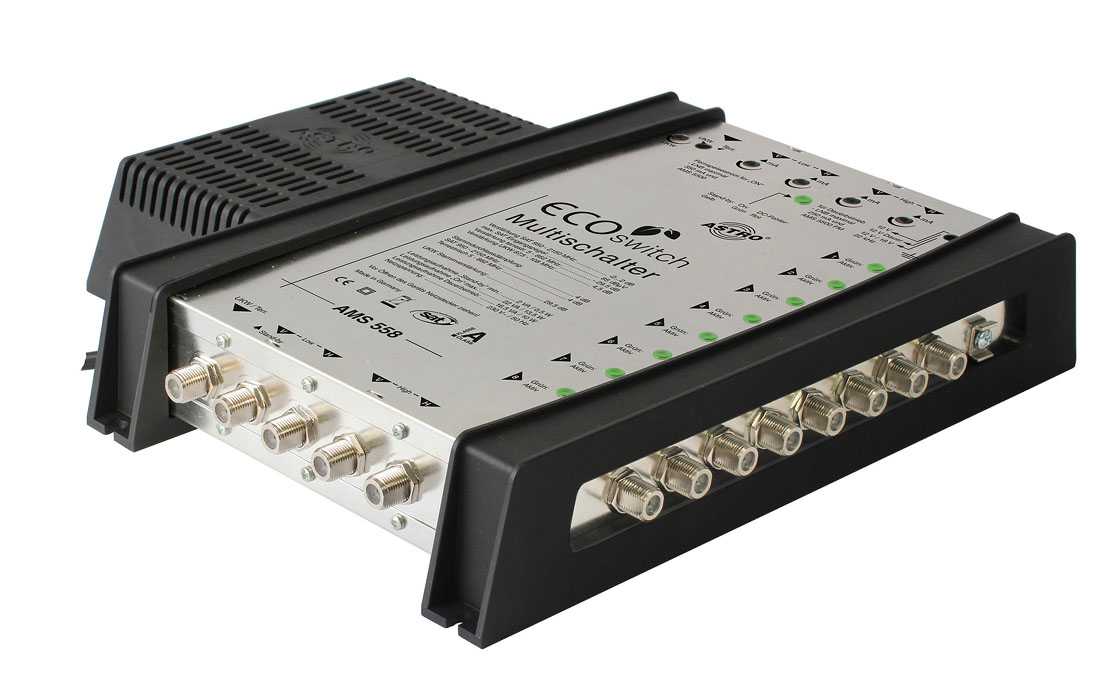

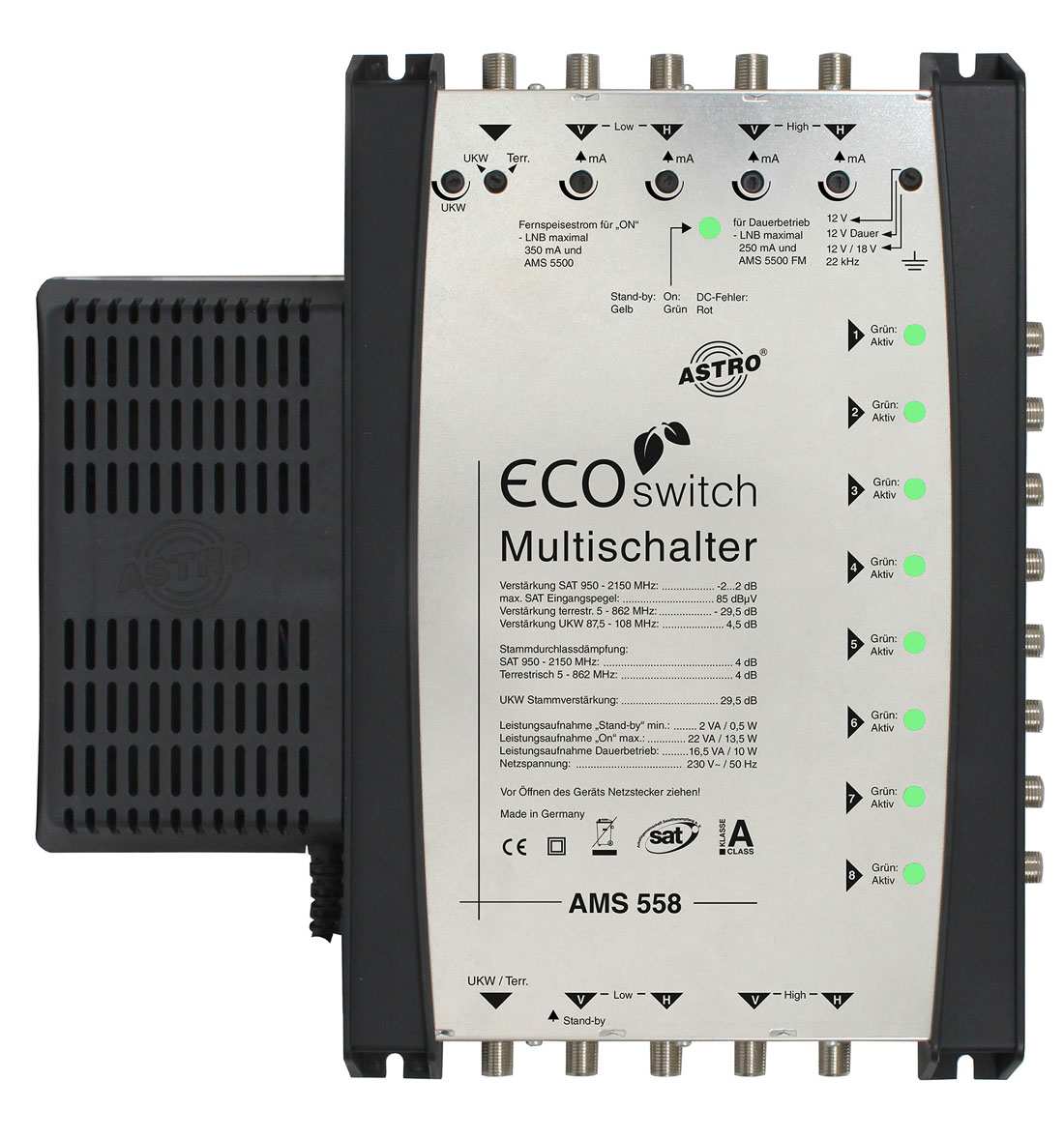

Premium cascade base unit
4 SAT levels + terrestrial, 8 receiver outputs
AMS 558 ECOswitch
Specification
| Model | High Quality |
|---|---|
| SAT inputs | 1 |
| Outputs | 8 |
| Device type | Cascade device |
| Order number | 00360581 |
|---|---|
| EAN-Code | 4026187131173 |
Product Details
- Cascade base unit for 4 SAT levels + terrestrial
- 8 receiver outputs
- terrestrial input passive (5 - 862 MHz), or switchable FM active (87.5 - 108 MHz) for direct connection of an antenna
- separate level control for each SAT input
- LNB supply selectable 12 V / 18 V / 22 kHz
- energy-saving switching power supply, in stand-by only 0.5 W power consumption
- LED indicator lamp per participant and for output current monitoring (short-circuit-proof)
- Stand-by function via V/L
- 5 terminating resistors FUR 75 DC prof included
Download Details
-
Anleitung AMS 5... DE pdf · 2mb
-
Datenblatt AMS 558 ECOswitch DE pdf · 2mb
