1:32 optical service combiner

AOSPLC-2x32-IP

Specification

Order number

00212707

EAN-Code

4026187240981

Product Details

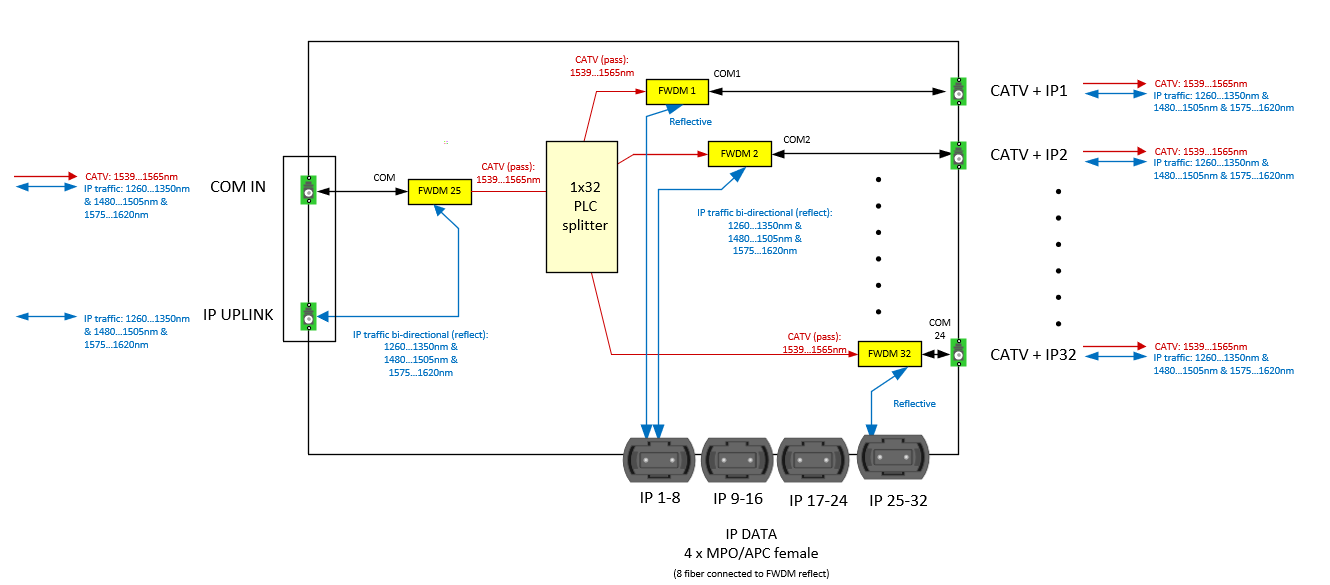

  • 2pcs in one box 1:32 optical service combiner for 1550nm CATV in combination with PtP Ethernet optical data traffic
  • each splitter 1x COM input for CATV, 1x IP uplink port before splitting for extracting WAN Up-link (LC/APC), 32x in/out CATV+Data (LC/APC), 32x in/out Data (4 x MPO/APC coupler / female 12 fiber - 8 inner fibers connected)
  • Wavelength: CATV:1539 ..1565 nm and IP: 1260…1350 nm & 1480…1505 nm & 1575…1620 nm
  • 19"-1HU
Download Details
