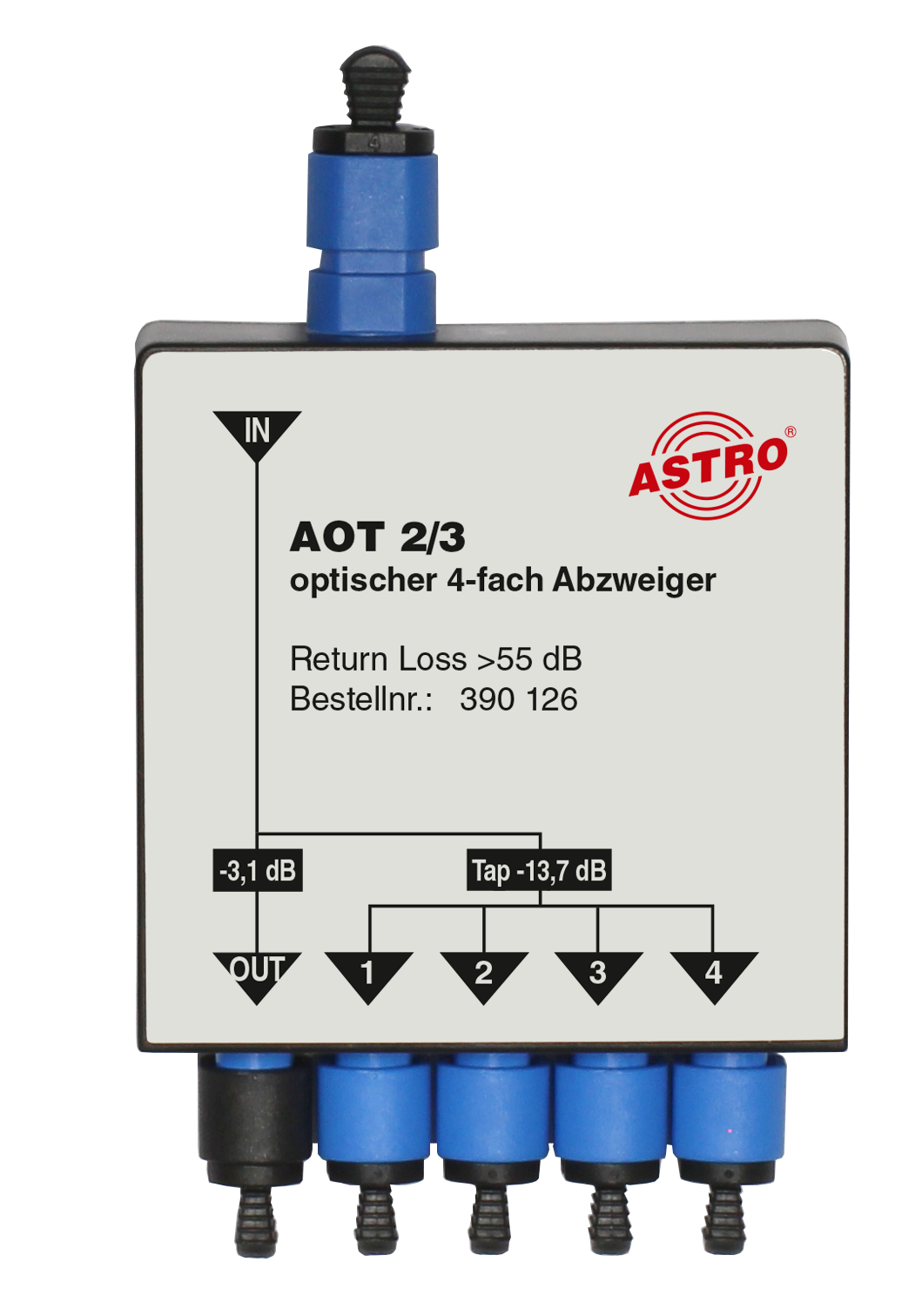

Optical 4-way tap

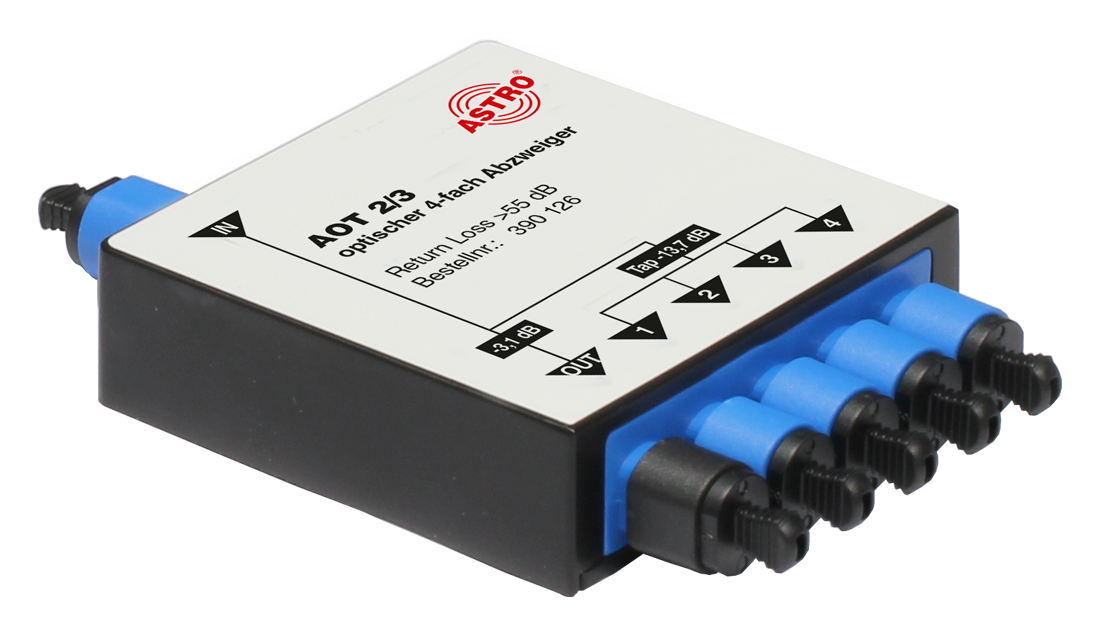

Optical 4-way tap - Image 2

Optical 4-way tap

Login to see prices

3.1 dB transmission loss

AOT 2/3

Specification

Type

Tap
Order number

00390126

EAN-Code

4026187192150

Product Details
  • 3.1 dB transmission loss
  • 4 x 13,7 dB Branch outputs
  • optical MINI connectors with 3 mm diameter
  • supports 1310 nm and 1550 nm wavelength
  • for use in optical SAT IF distribution systems
Download Details

Product is combinable with

Optical fibre

AOF 0005
5 m, incl. 3 mm MINI connectors

Optical fibre

AOF 0025

Optical fibre

AOF 0003
3 m, incl. 3 mm MINI connectors

Optical fibre

AOF 0010
10 m, incl. 3 mm MINI connectors

Optical receiver

AORX 4 MS
conversion of an optical input signal into 4 x SAT-IF

Similar Products

19“ Mounting-Kit

AOTX 19" Kit
for up to 5 x AOTX… optical transmitters

19“ Mounting-Kit

AORX 19" Kit
for up to 7 x AORX… optical receivers

Optical SAT IF transmitter 1550 nm

AOTX SEV 1550
combines four SAT-IF polarizations to one optical output signal

Optical transmitter

SBF TX 1310
combines two SAT IF bands of a wideband LNB into one optical output signal
