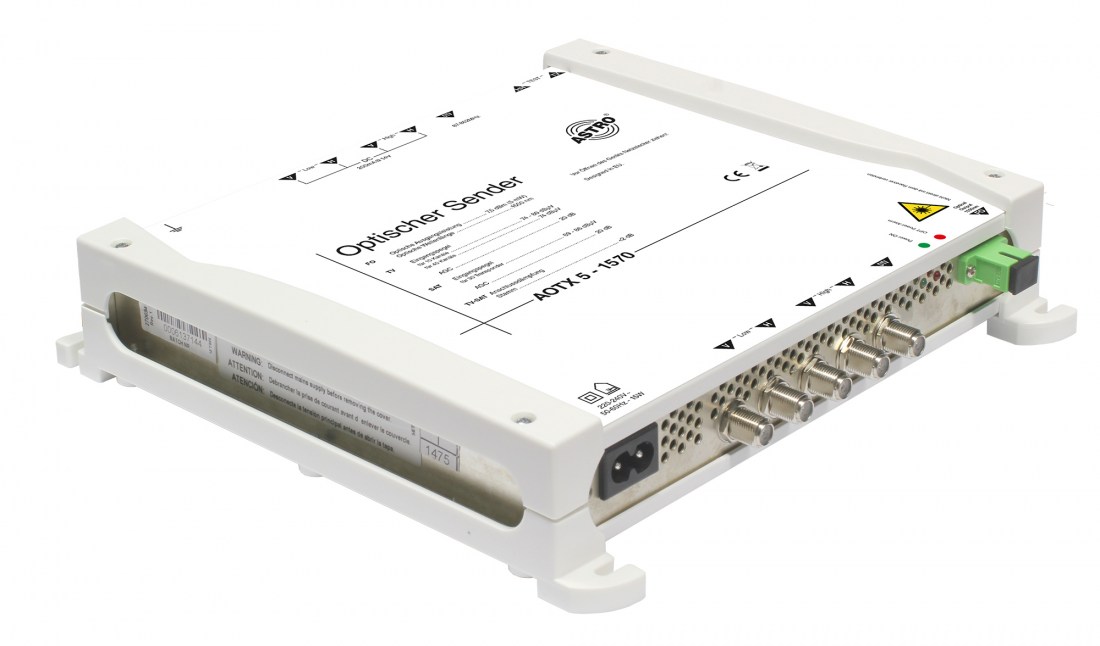

Optical SAT-IF transmitter

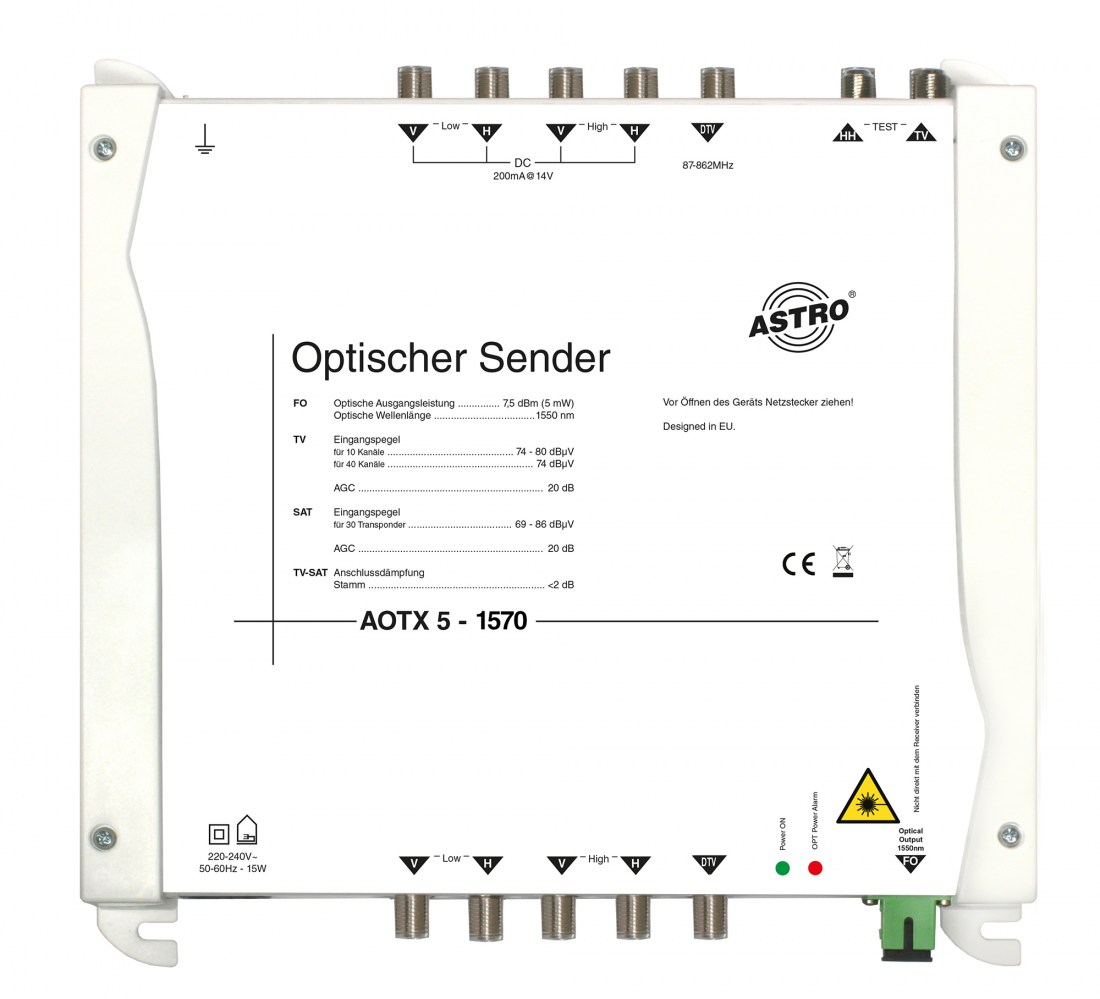

Optical SAT-IF transmitter - Image 2

Optical SAT-IF transmitter

Login to see prices

optical wavelength 1570 nm

AOTX 5-1570

Specification

Type

Transmitters
Order number

00390104

EAN-Code

4026187198893

Product Details
  • combines four SAT-IF polarizations to one optical output signal
  • every standard quatro LNB can be combined with the transmitter
  • integrated power supply for the transmitter and the LNB supply
  • standard SC/APC connector for optical connections
  • 7 dBm optical output level with AGC
  • optical wavelength 1570 nm
Download Details

Product is combinable with

19“ Mounting-Kit

AOTX 19" Kit
for up to 5 x AOTX… optical transmitters

Optical receiver

AORX 4 MS
conversion of an optical input signal into 4 x SAT-IF

Optical 4-way tap

AOT 80/20
1,5 dB transmission loss
