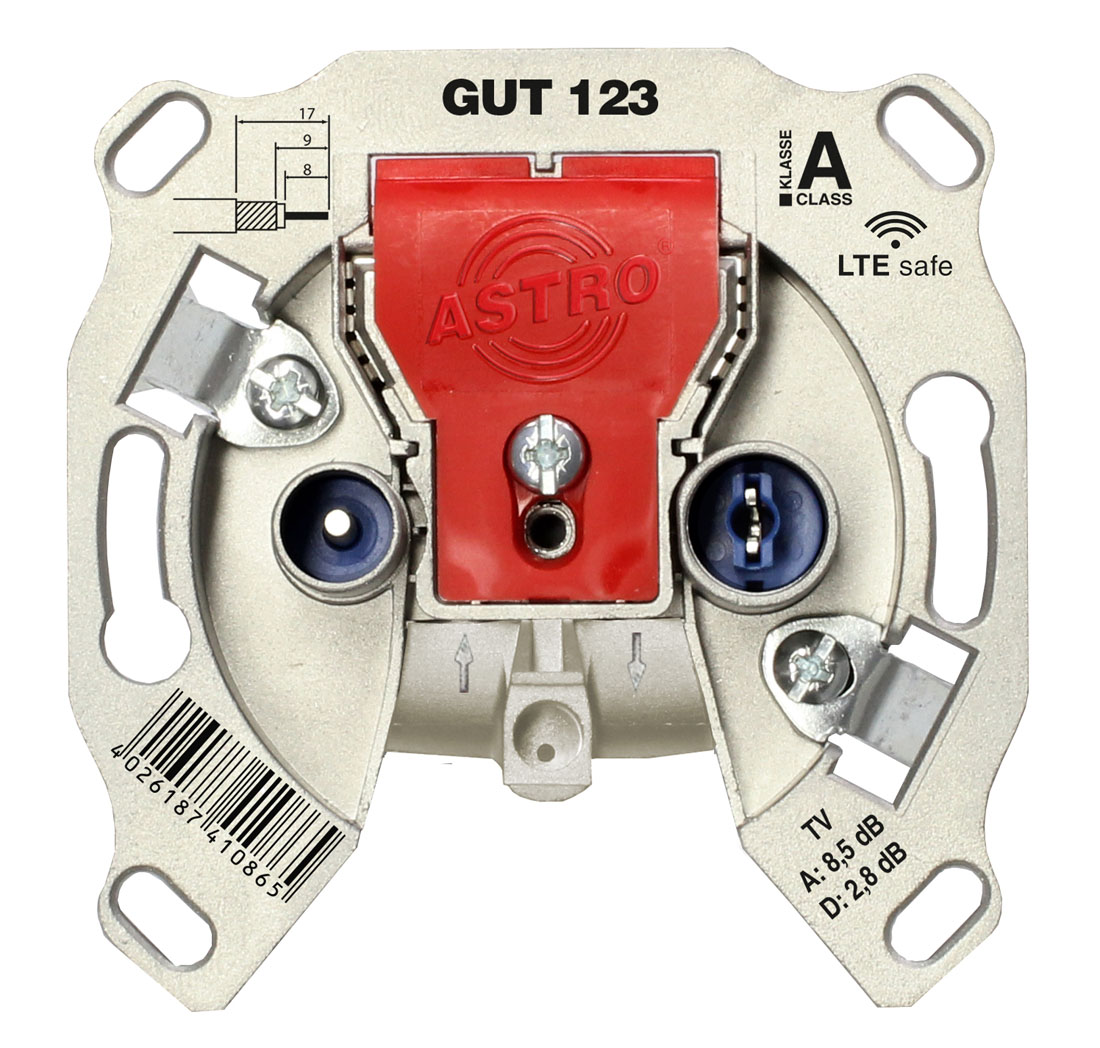

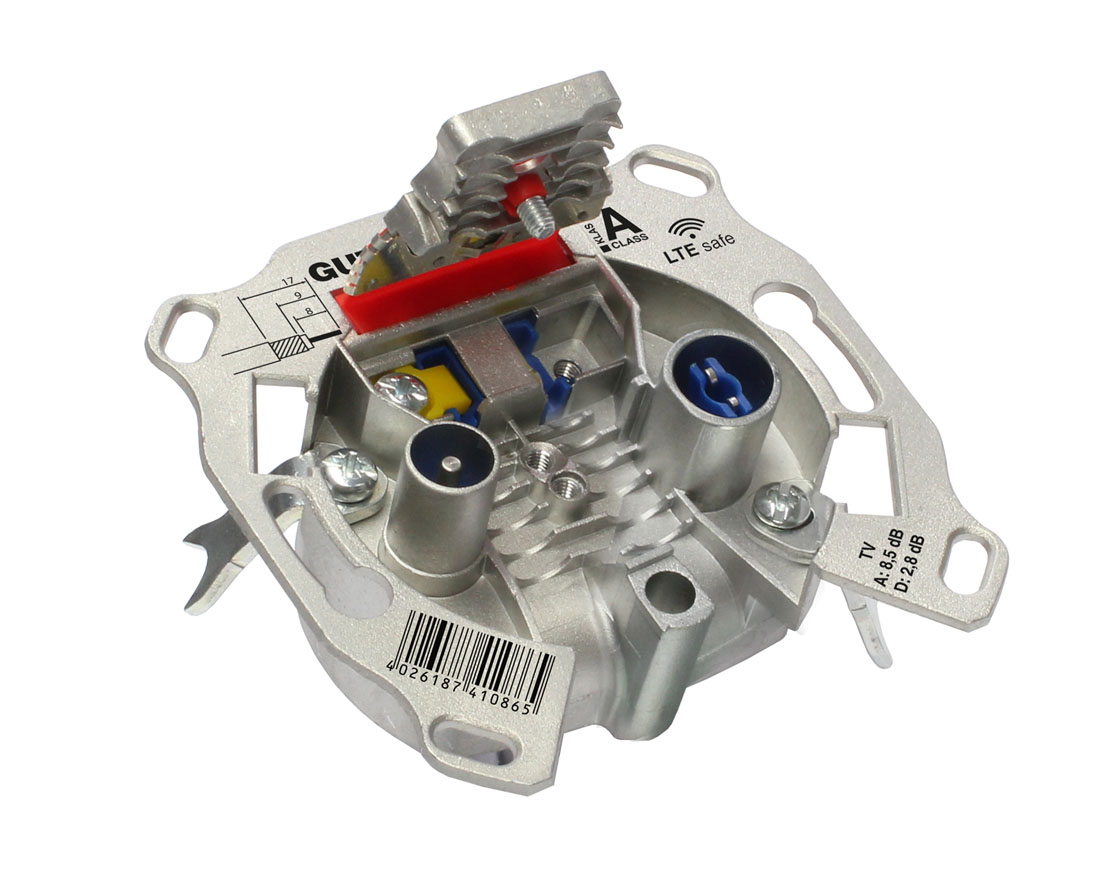

Trunkline wall outlet for CATV (10 pieces)

Login to see prices

TV connection attenuation approx. 8.5 dB

GUT 123

Specification

Application

BK outlet
Order number

00541231

EAN-Code

4026187410865

Product Details
  • for reception of terrestrial radio and TV programmes up to 1006 MHz
  • with 2 outputs and return path
  • Screw and claw fastening
  • Mounting in 55 mm wall sockets

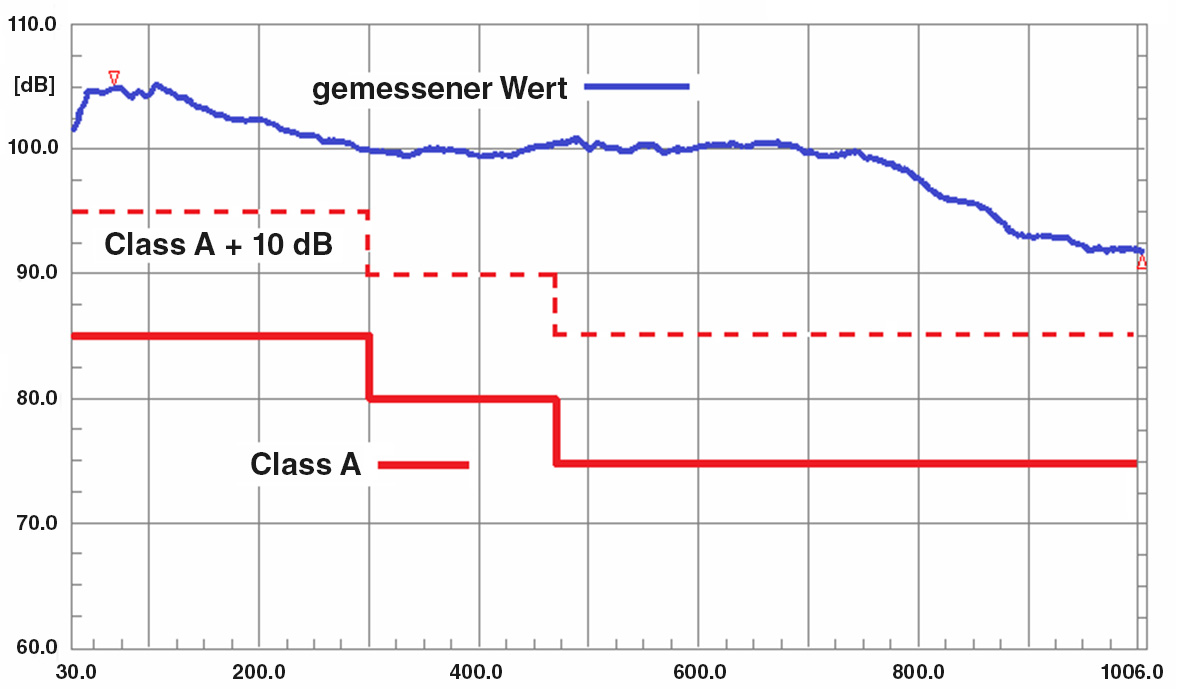

  • improved EMC properties through compliance with class A + 10 dB (LTE safe)
  • simple, fast and safe clamping technique (even with different Ø)
  • for standard coaxial and mini coaxial cables
  • Cable kink protection due to rounded housing shape
  • excellent electrical values
  • TV connection attenuation approx. 8.5 dB
  • Transmission loss approx. 3 dB
  • Vodafone certified
  • BK trunk line junction box
Download Details

Product is combinable with

Cover plate for 2 connector wall outlet (10 pieces)

GUZ 400
pure white

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring
