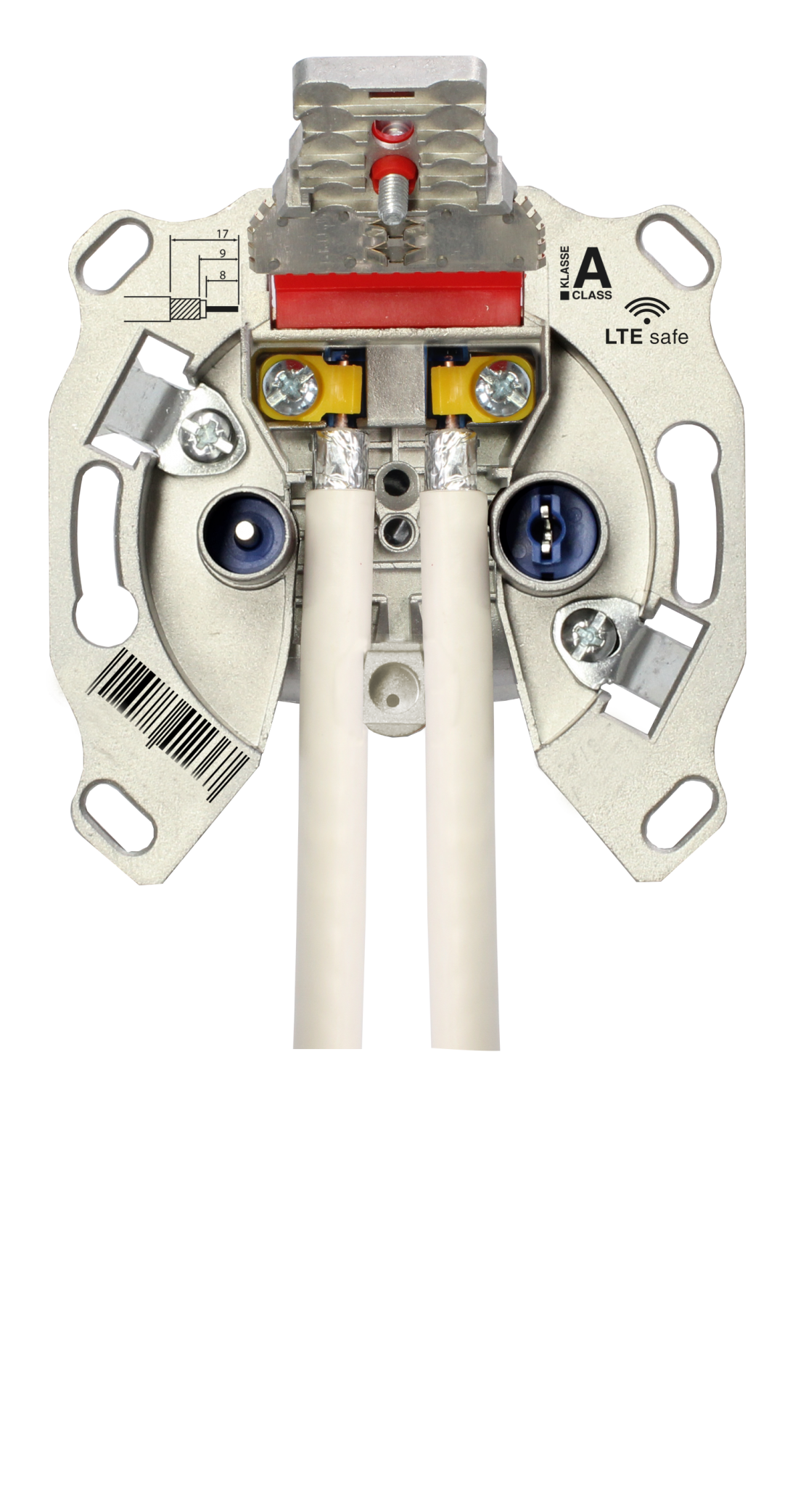

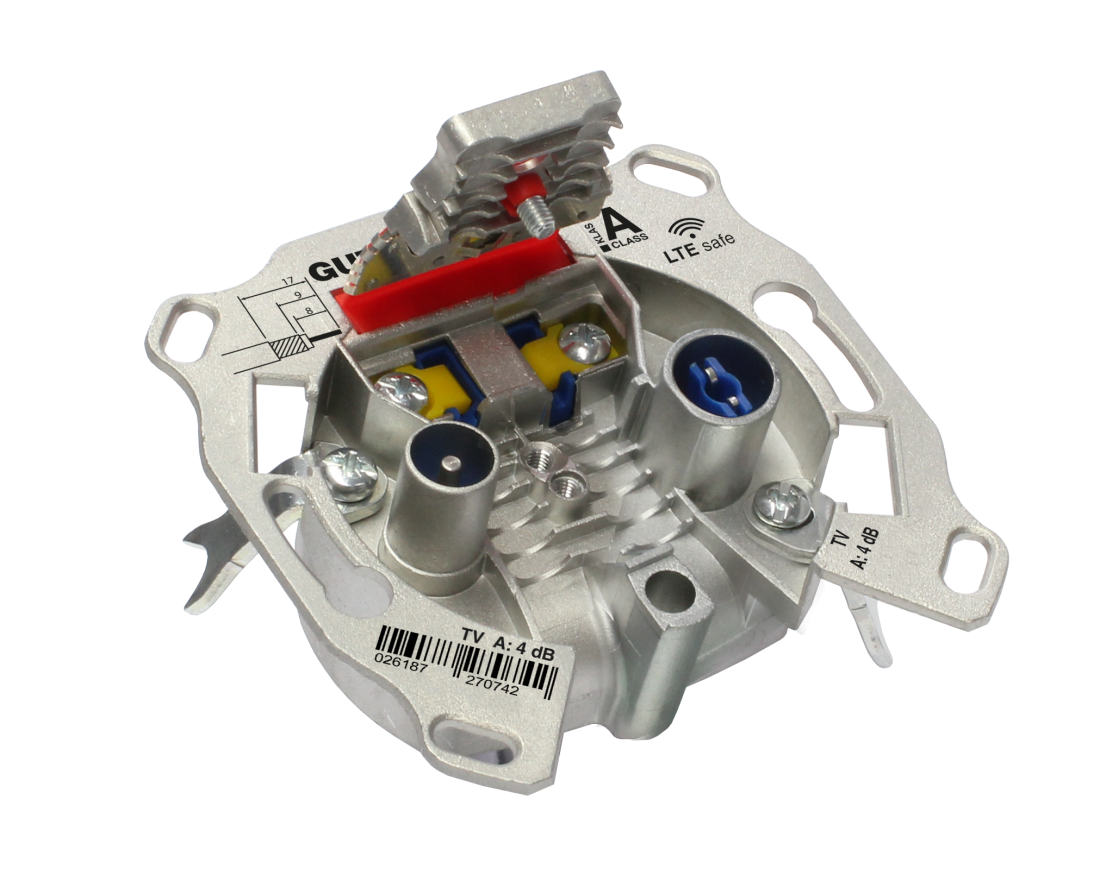

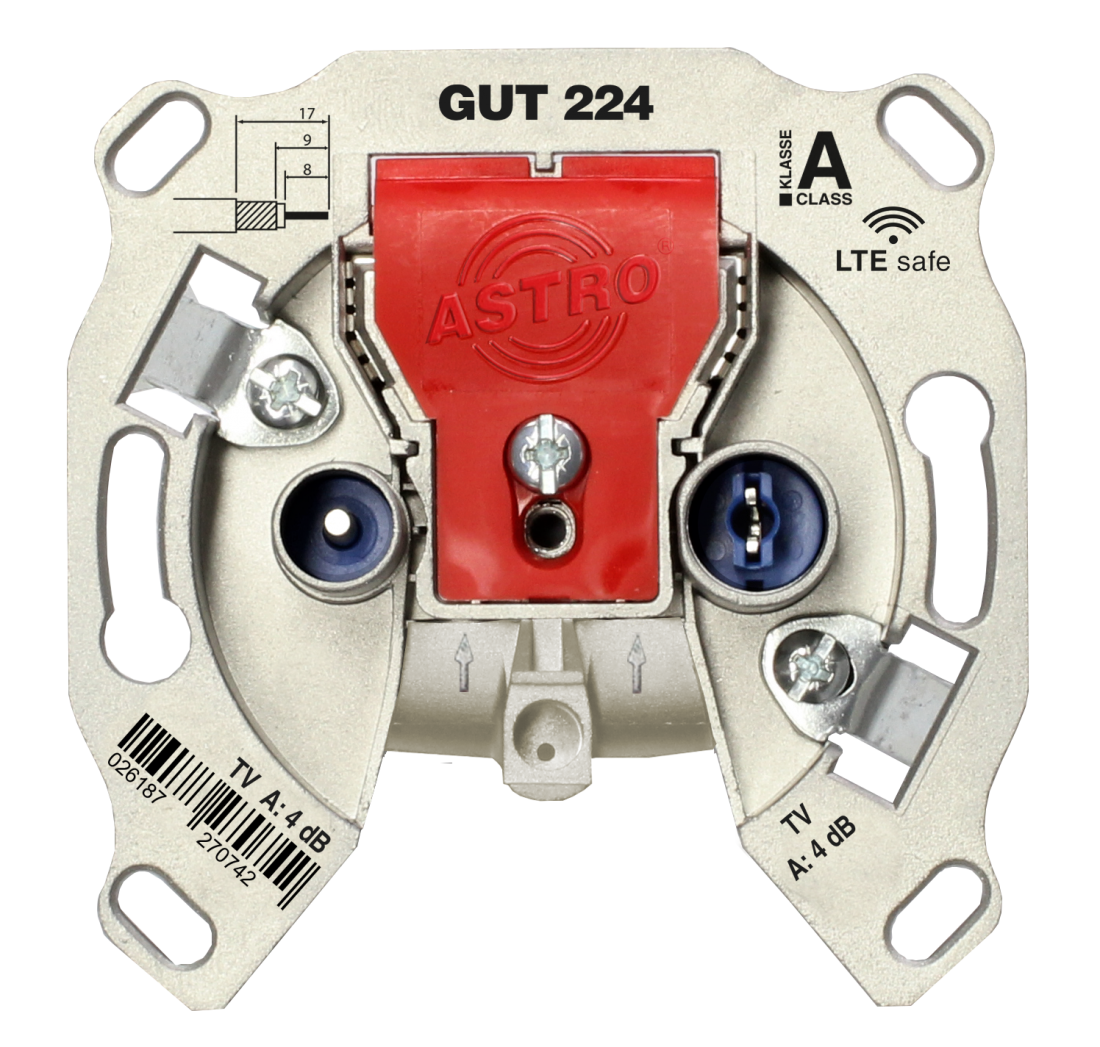

Twin Stubline wall outlet for CATV (10 pieces)
for reception of terrestrial radio and TV programmes up to 1006 MHz
GUT 224
Specification
| Application | SAT outlet |
|---|
| Order number | 00540101 |
|---|---|
| EAN-Code | 4026187270742 |
Product Details
- for reception of terrestrial radio and TV programmes up to 1006 MHz
- with 2 outputs and return path
- Screw and claw fastening
- Mounting in 55 mm wall sockets
- improved EMC properties by maintaining class A + 10 dB (LTE safe)
- special channel and return path suitable
- simple, fast and safe clamping technique (even with different Ø)
- for standard coaxial and mini coaxial cables
- Cable kink protection due to rounded housing shape
- excellent electrical values
- BK-Stub line junction box
- TV connection attenuation approx. 4 dB
Download Details
-
Beipackzettel GUT 224 DE pdf · 2mb
-
Datenblatt GUT 224 DE pdf · 2mb
