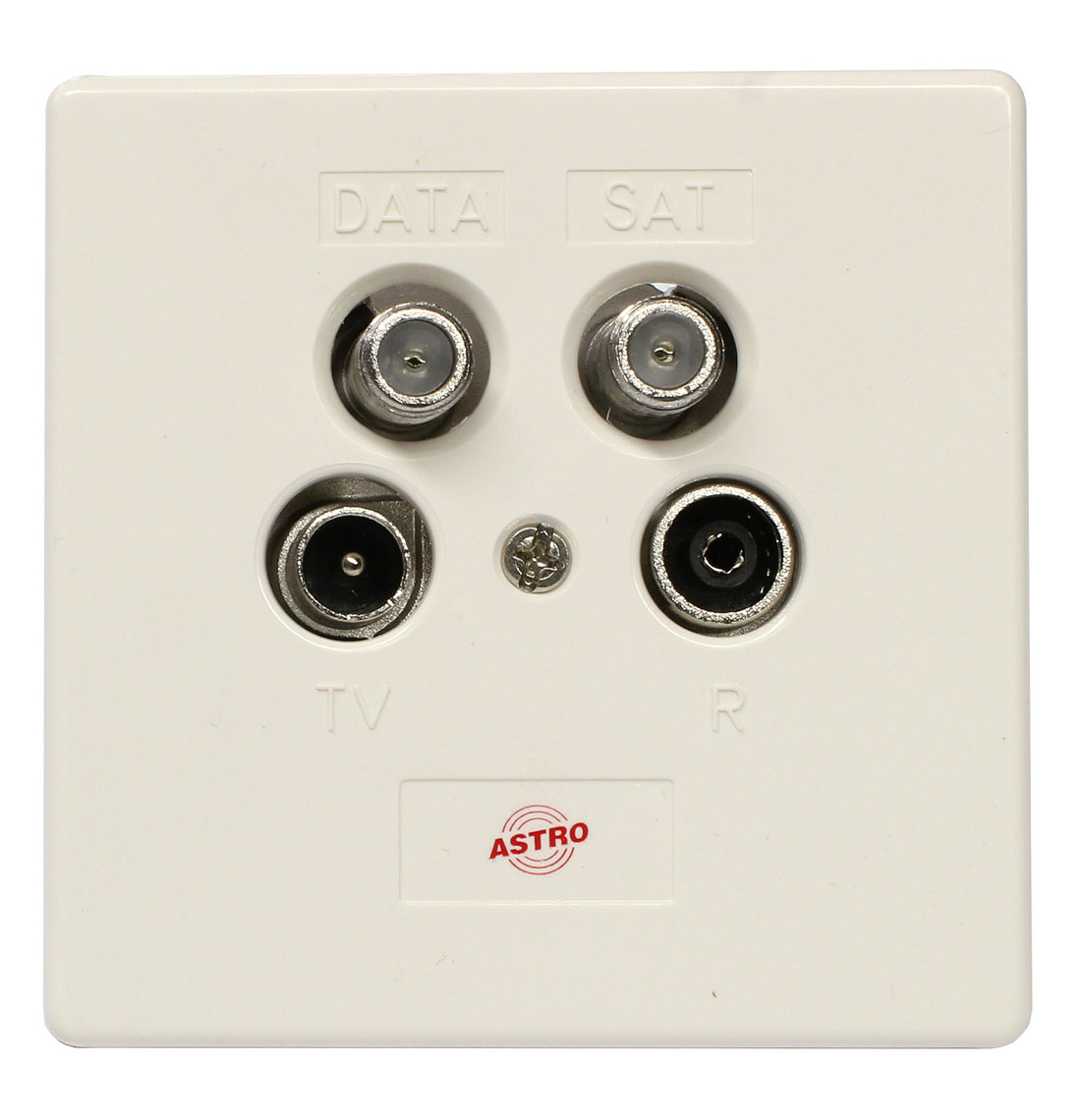

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces)

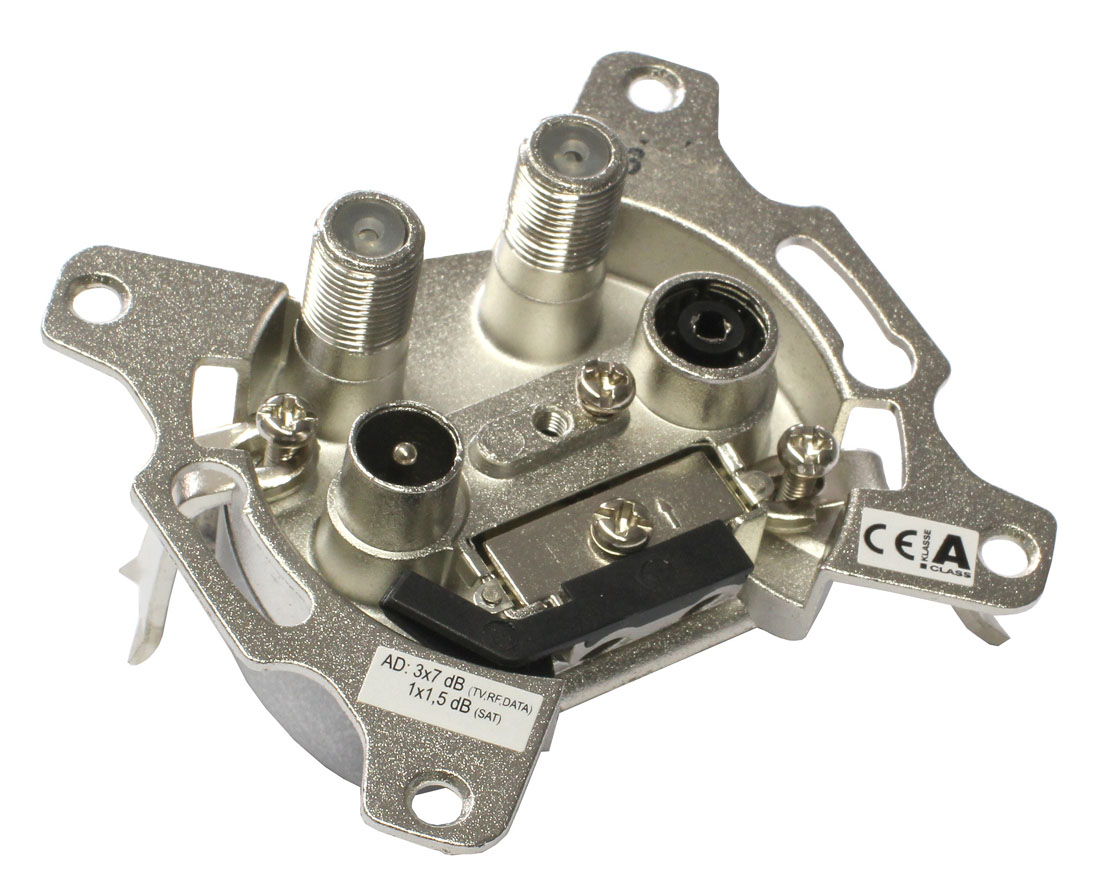

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces) - Image 2

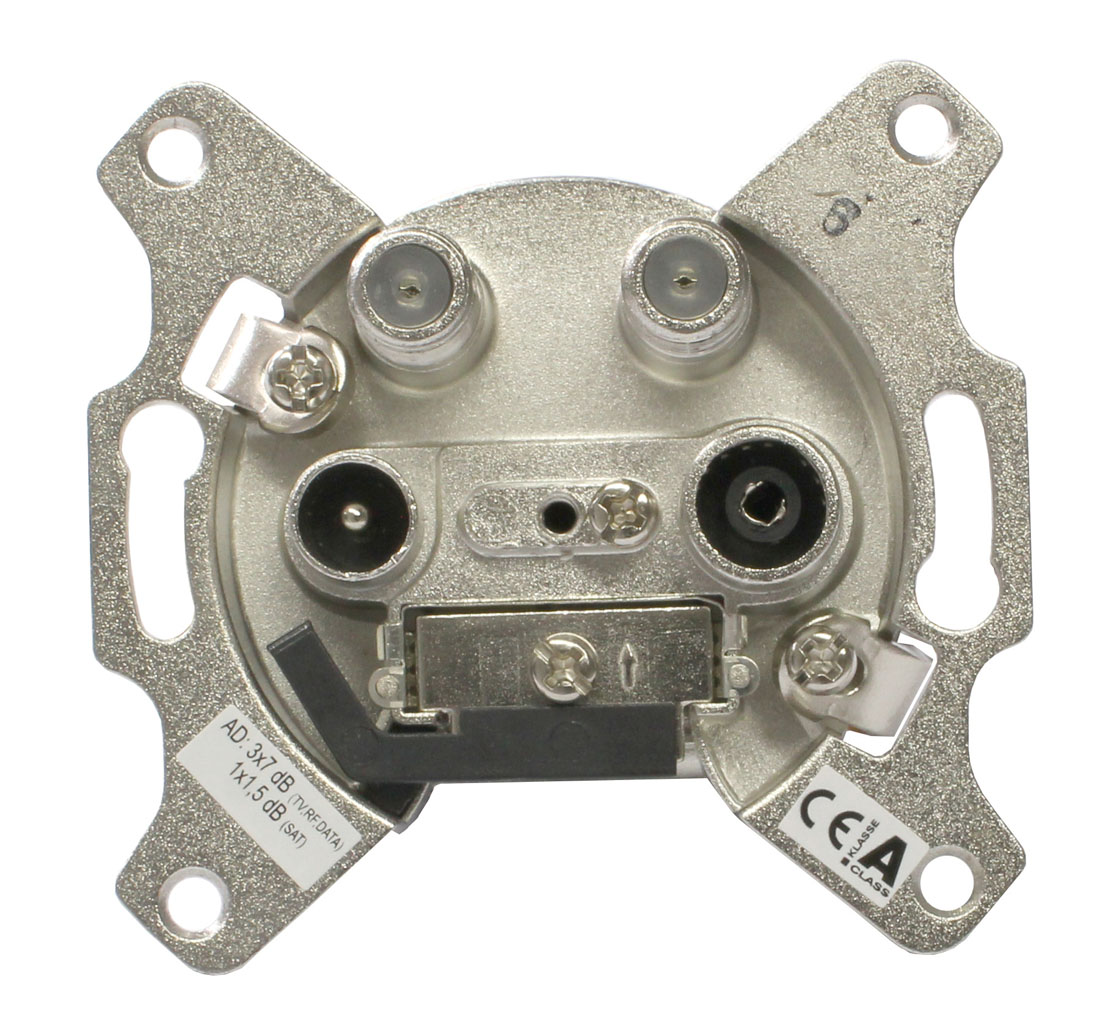

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces) - Image 3

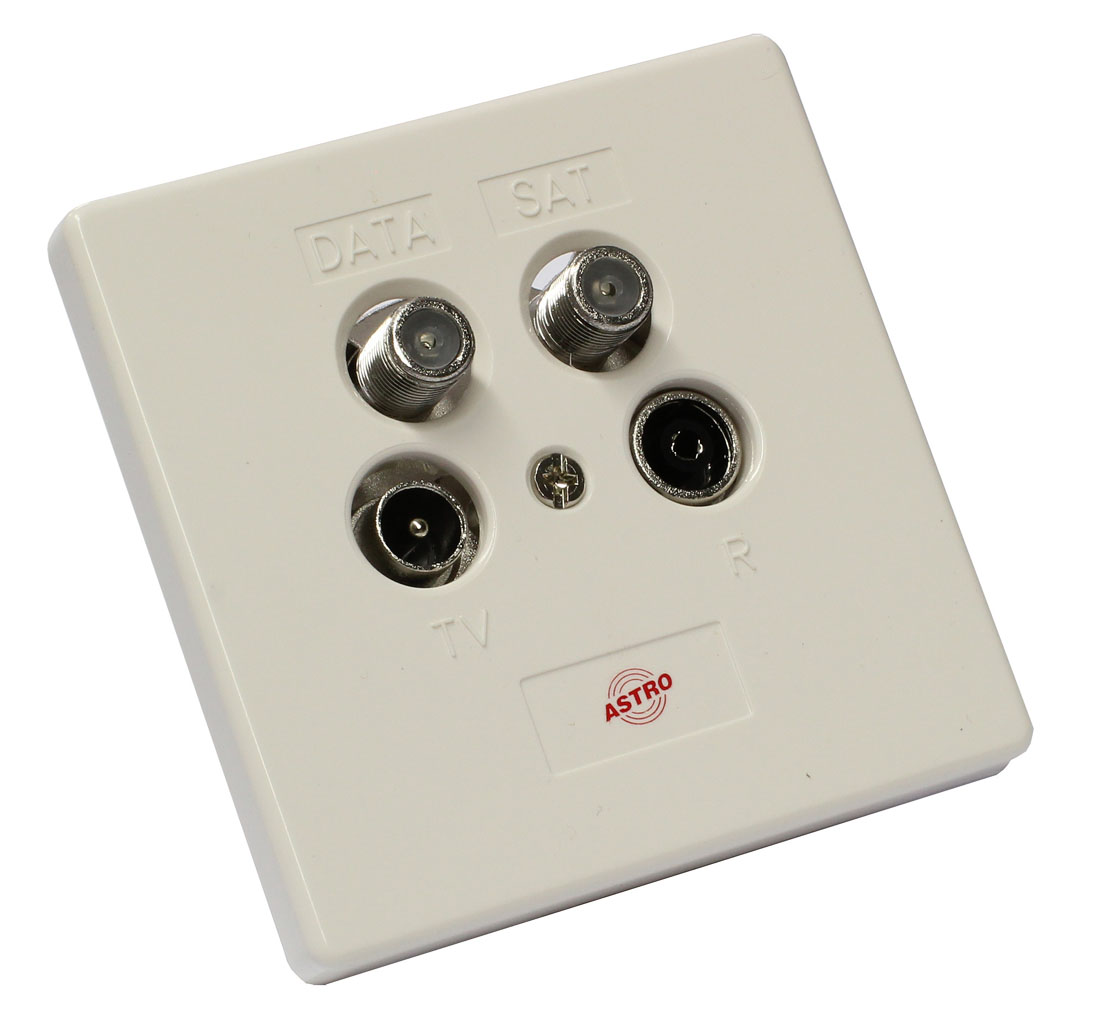

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces) - Image 4

Stubline wall outlet for SAT, multimedia, CATV and DATA, 4 outputs (10 pieces)

Login to see prices

TV & modem connection attenuation approx. 7 dB

GUT MMD 7 SAT

Specification

Application

SAT outlet
Order number

00540170

EAN-Code

4026187120627

Product Details
  • for use in SAT IF systems, combined with multimedia applications
  • separate SAT connector (F socket)
  • Direct current passage between SAT and input
  • separate data connection (F socket)
  • Extremely high decoupling between RF / TV and data port to avoid interference of the TV IF by the radiating return path signal
  • galvanic isolation of the inner conductor RF, TV and Data for protection against ripple voltages and equalizing currents
  • 5 - 2400 MHz
  • TV & modem connection attenuation approx. 7 dB
  • 2 F-connectors for connecting a modem and a SAT receiver
  • Vodafone certified
Download Details

Product is combinable with

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring

Antenna cable

AKF 305
2 x straight F-male connector, length 300 cm

Cover plate for 4 connector wall outlet (10 pieces)

GUZ 44
electric white
