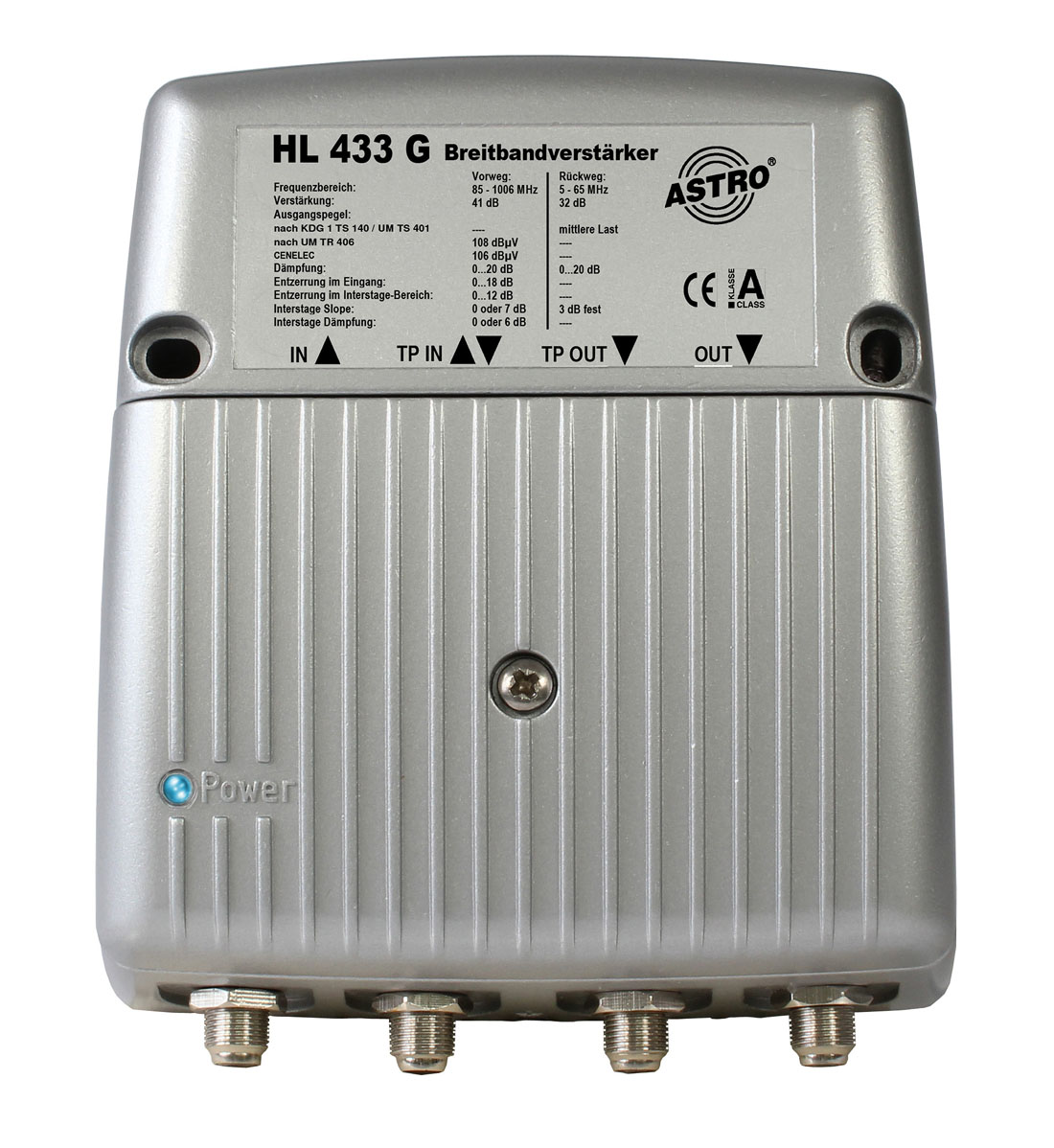

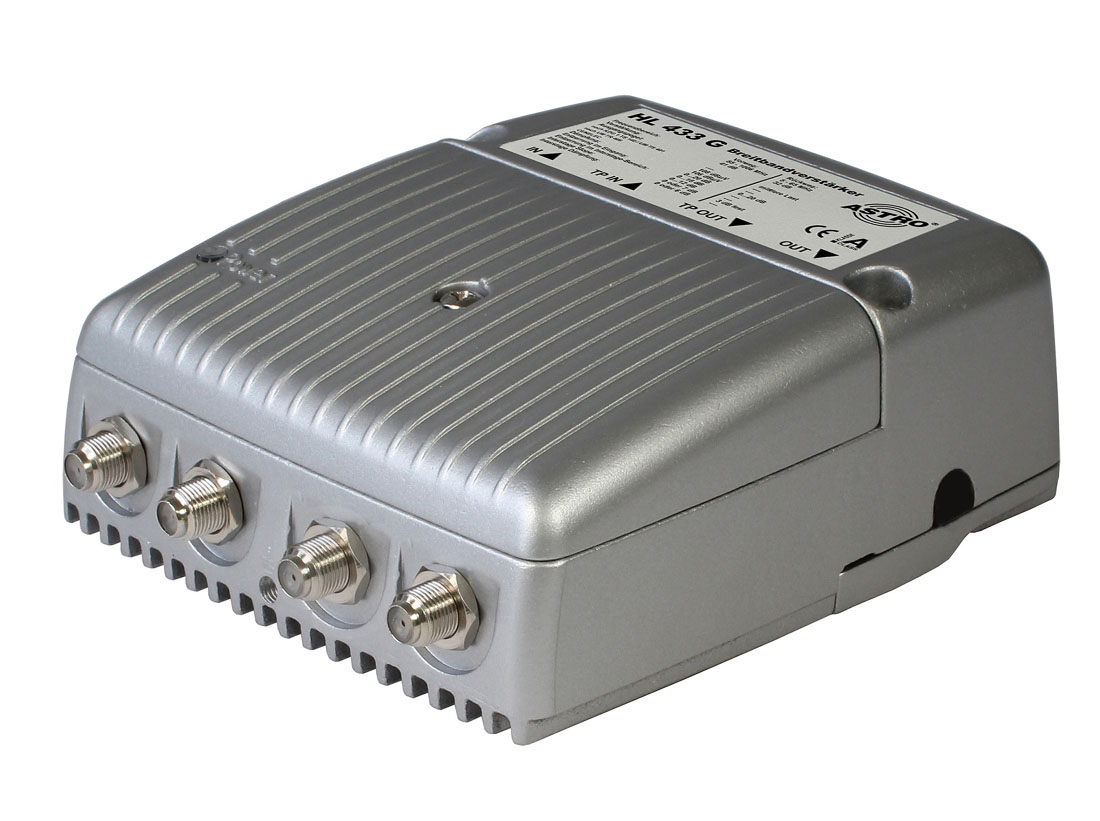

Universal broadband amplifier
HL 433 G
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Order number | 00217433 |
|---|---|
| EAN-Code | 4026187141202 |
No longer available
Product Details
- Universal broadband amplifier with 65 MHz return path
- High return path modulation for operational reliability even with multi-channel load

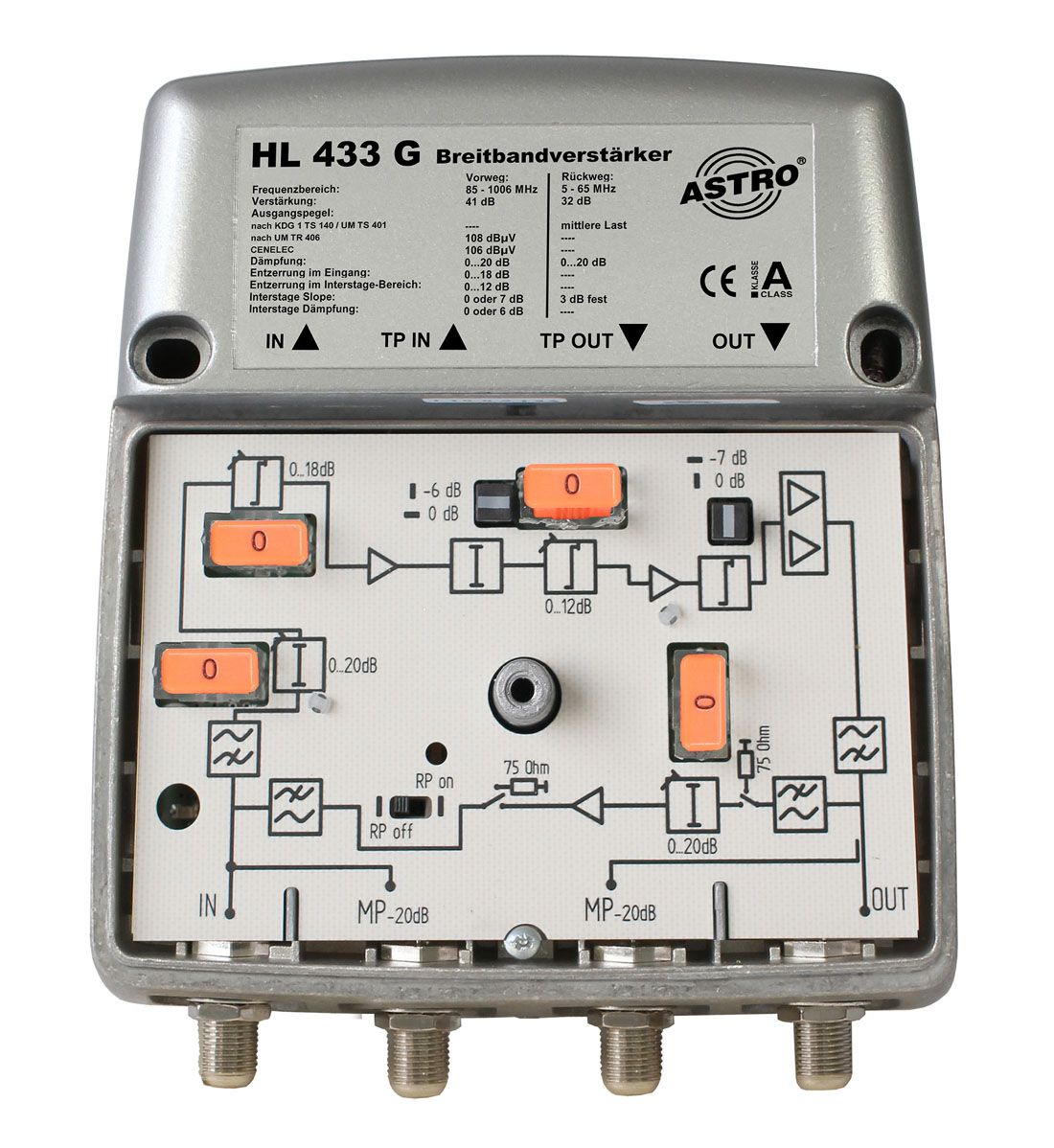

- Input attenuation adjustable via pad
- Input equaliser adjustable via pad
- Interstage equaliser adjustable via pad
- Interstage slope and interstage attenuation pluggable
- Attenuation in return path adjustable via pad
- Measuring points in input and output
- Pre-amplifier up to 1006 MHz
- Pre-amplifier gain 41 dB
- Pre-amplifier output level 107 dBµV
- Return path gain 32 dB
- Return path output level 112 / 116 dBµV (2 / 3 transmitters)
- Attenuation control, forward 0 - 20 dB
- Equaliser, forward input 0 - 18 dB
- Equaliser, forward interstage 0 - 12 dB
- Attenuation control, return path 0 - 20 dB
- 20 dB measuring point in input and output
Download Details
-
Manual HL 432 G und HL 433 G DE pdf · 2mb
-
Block diagram HL 432 G_HL 433 G DE pdf · 2mb
-
Data sheet HL 432 G_HL 433 G DE pdf · 2mb
