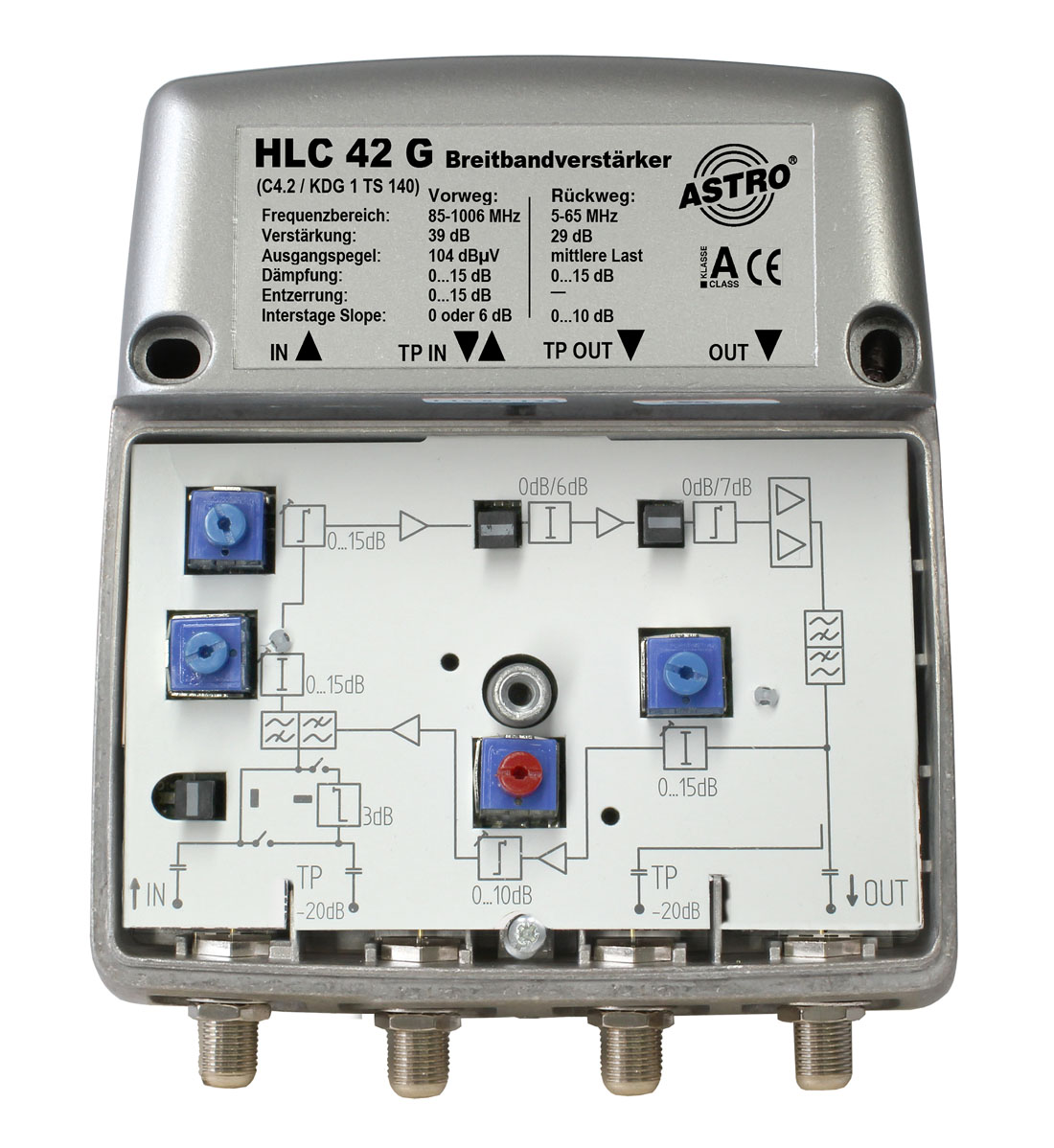

Universal broadband amplifier

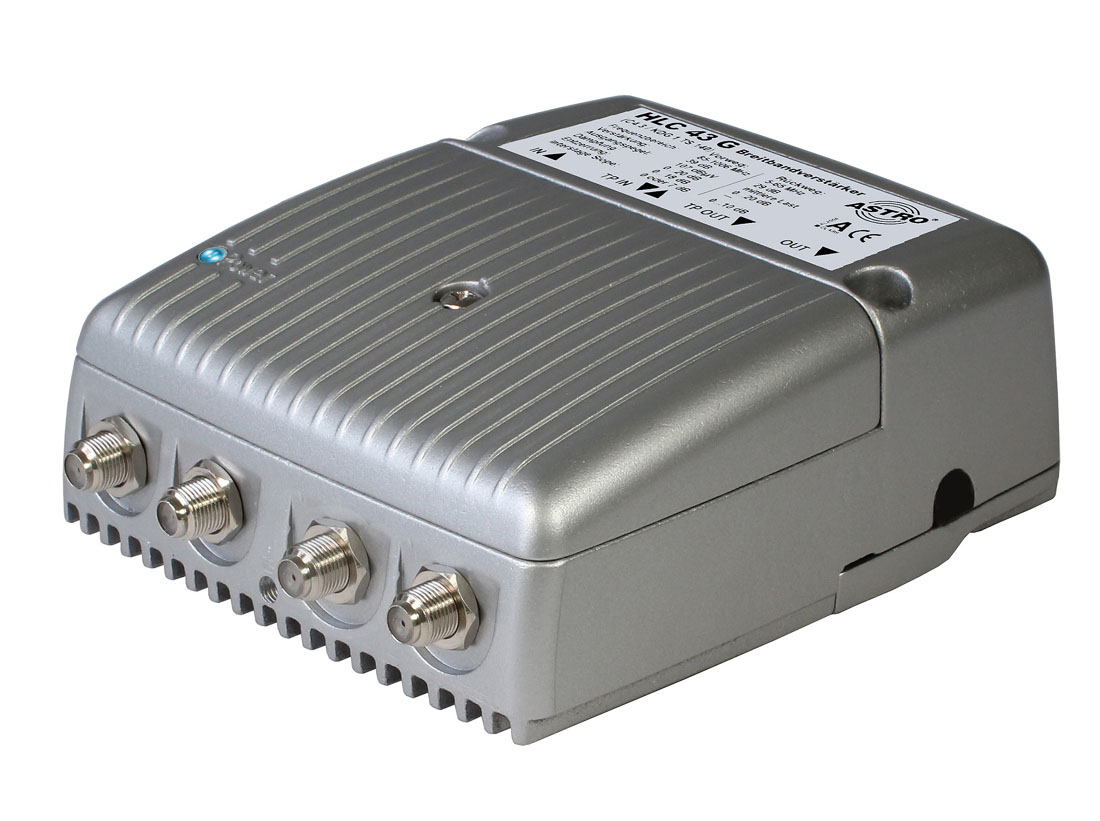

Universal broadband amplifier - Image 2
Universal broadband amplifier - Image 3

Universal broadband amplifier

HLC 42 G

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1006 MHz
Forward path gain

35-39 dB
Order number

00217422

EAN-Code

4026187191894

No longer available

Product Details
  • Broadband amplifier with active 65 MHz return path
  • High return path modulation for operational reliability even with multi-channel load
  • Input attenuation adjustable via pad
  • Input equaliser adjustable via pad
  • Cable simulator in input
  • Interstage slope pluggable in feed
  • Attenuation in the return path adjustable via pad
  • Interstage slope pluggable in the return path
  • Measuring points in input and output
  • Gain in the feed path 38 dB
  • Output level in the feed path 106 dBµV
  • Gain in the return path 29 dB
  • Output level in the return path 105 / 114 dBµV (2 / 3 transmitters)
  • Attenuation control on the input 0 - 20 dB
  • Equaliser on the input 0 - 18 dB
  • Attenuation control on the output 0 - 20 dB
  • 20 dB measuring point on the input and output
