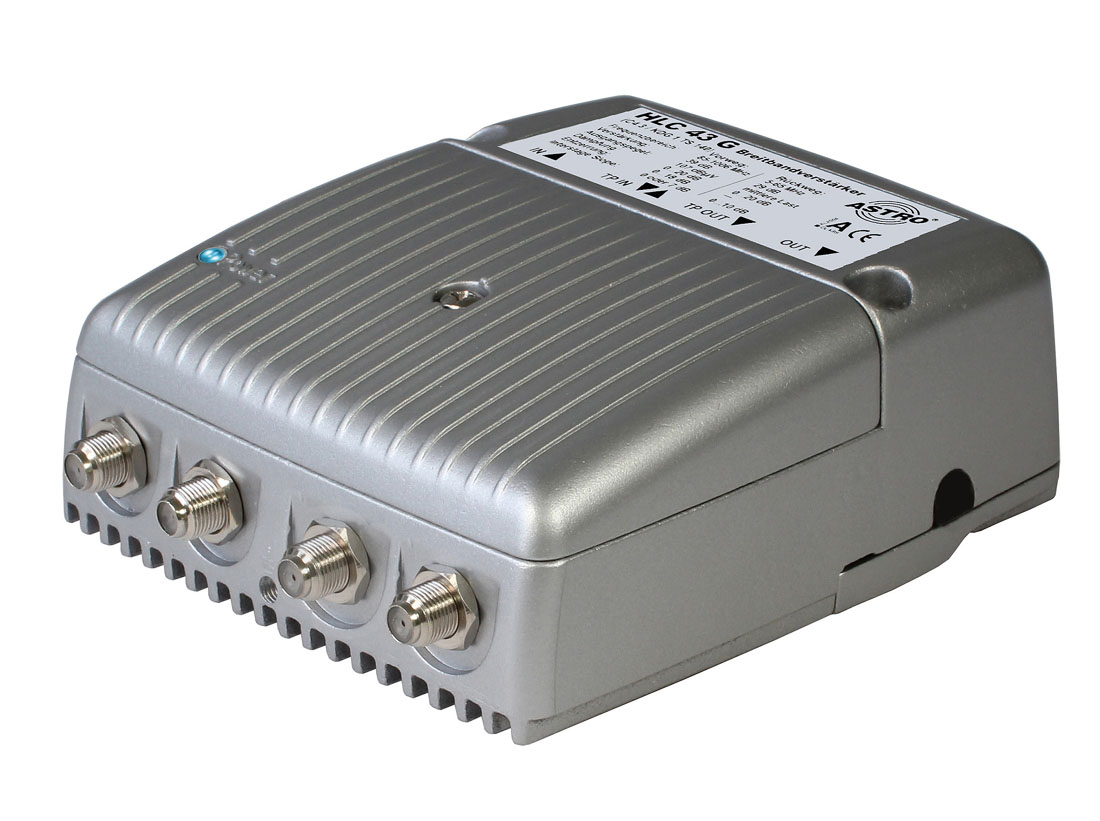

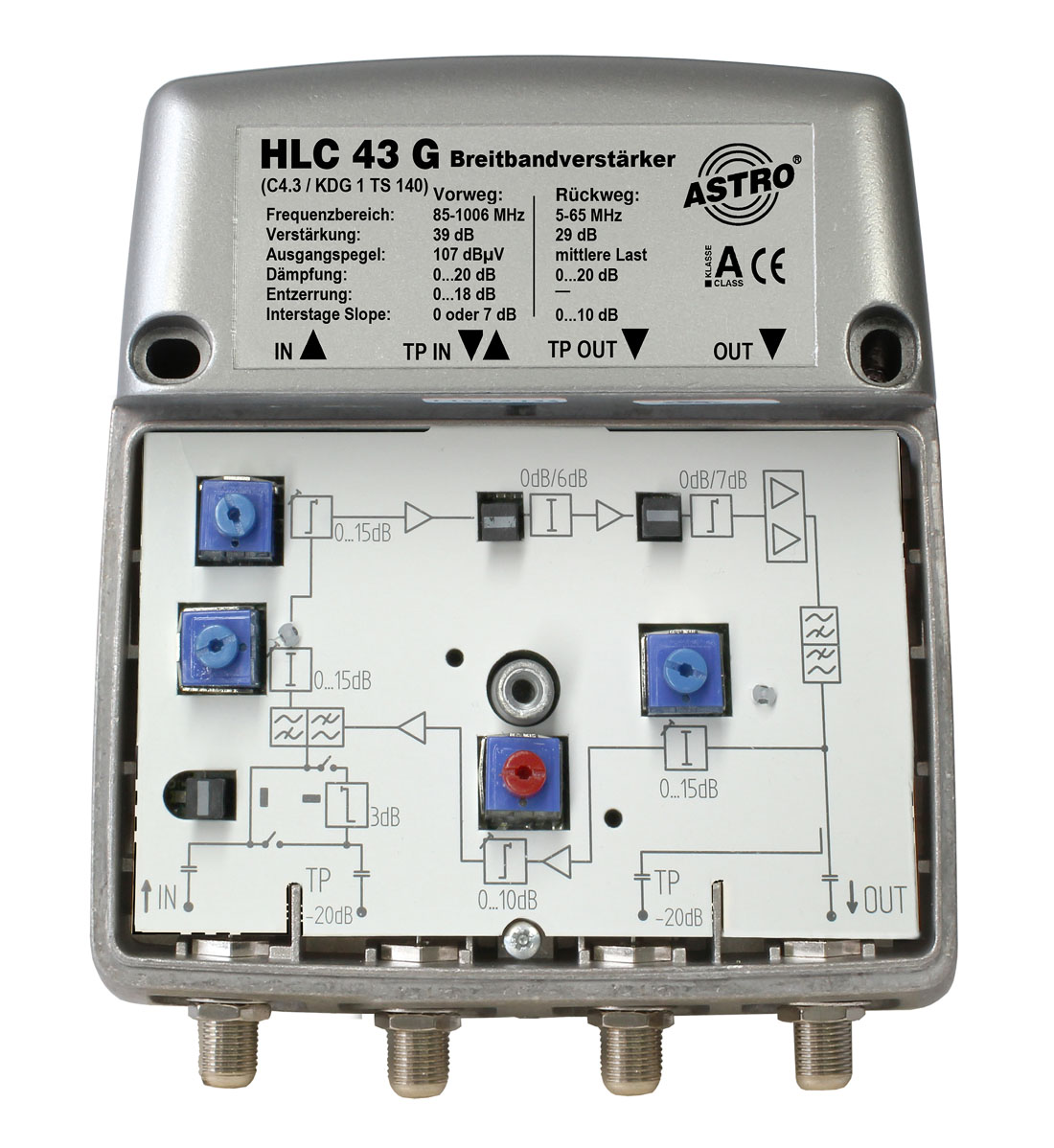

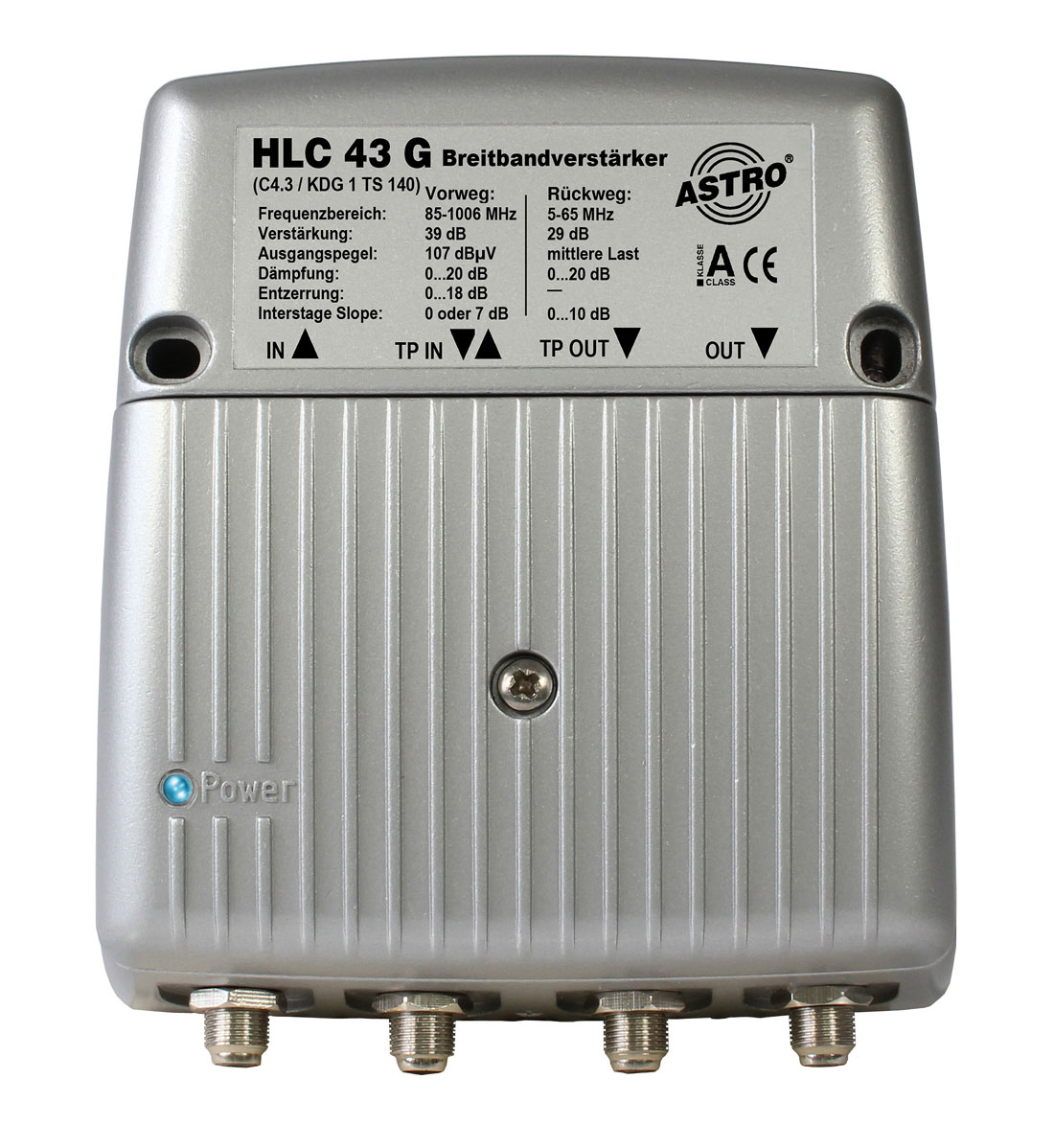

Universal broadband amplifier
HLC 43 G
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | 35-39 dB |
| Order number | 00217403 |
|---|---|
| EAN-Code | 4026187171216 |
No longer available
Product Details
- Broadband amplifier with active 65 MHz return path
- High return path modulation for operational reliability even with multi-channel load
- Input attenuation adjustable via pad
- Input equaliser adjustable via pad
- Cable simulator at input
- Interstage slope pluggable at input
- Attenuation in the return path adjustable via pad
- Interstage slope pluggable in the return path
- Measuring points in input and output
- Gain in the feed path 38 dB
- Output level in the feed path 107 dBµV
- Gain in the return path 28 dB
- Output level in the return path 105 / 114 dBµV (2 / 3 transmitters)
- Attenuation control, forward 0 - 20 dB
- Equaliser, forward 0 - 18 dB
- Attenuation control, return 0 - 20 dB
- 20 dB measuring point in input and output
- KDG type class C4.3
Download Details
-
Manual HLC 32 G und HLC 43 G DE pdf · 2mb
-
Block diagram HLC 32 G_HLC 43 G pdf · 2mb
-
Data sheet HLC 32 G_HLC 43 G DE pdf · 2mb
