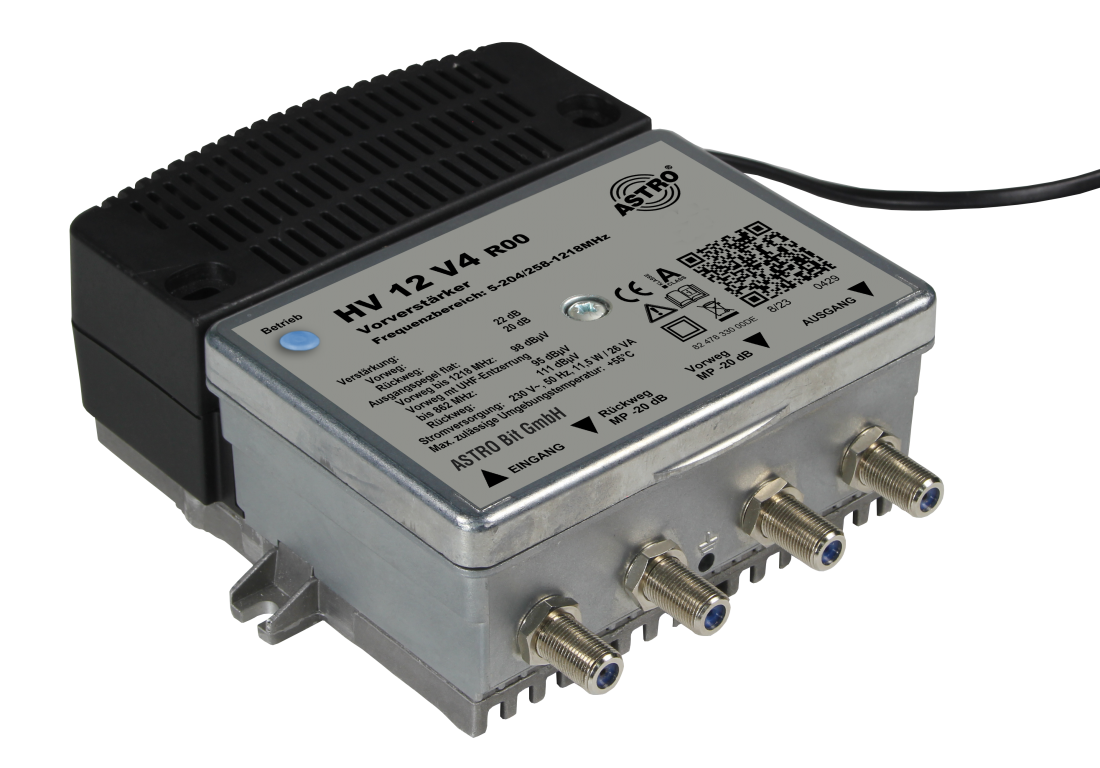

Return path booster

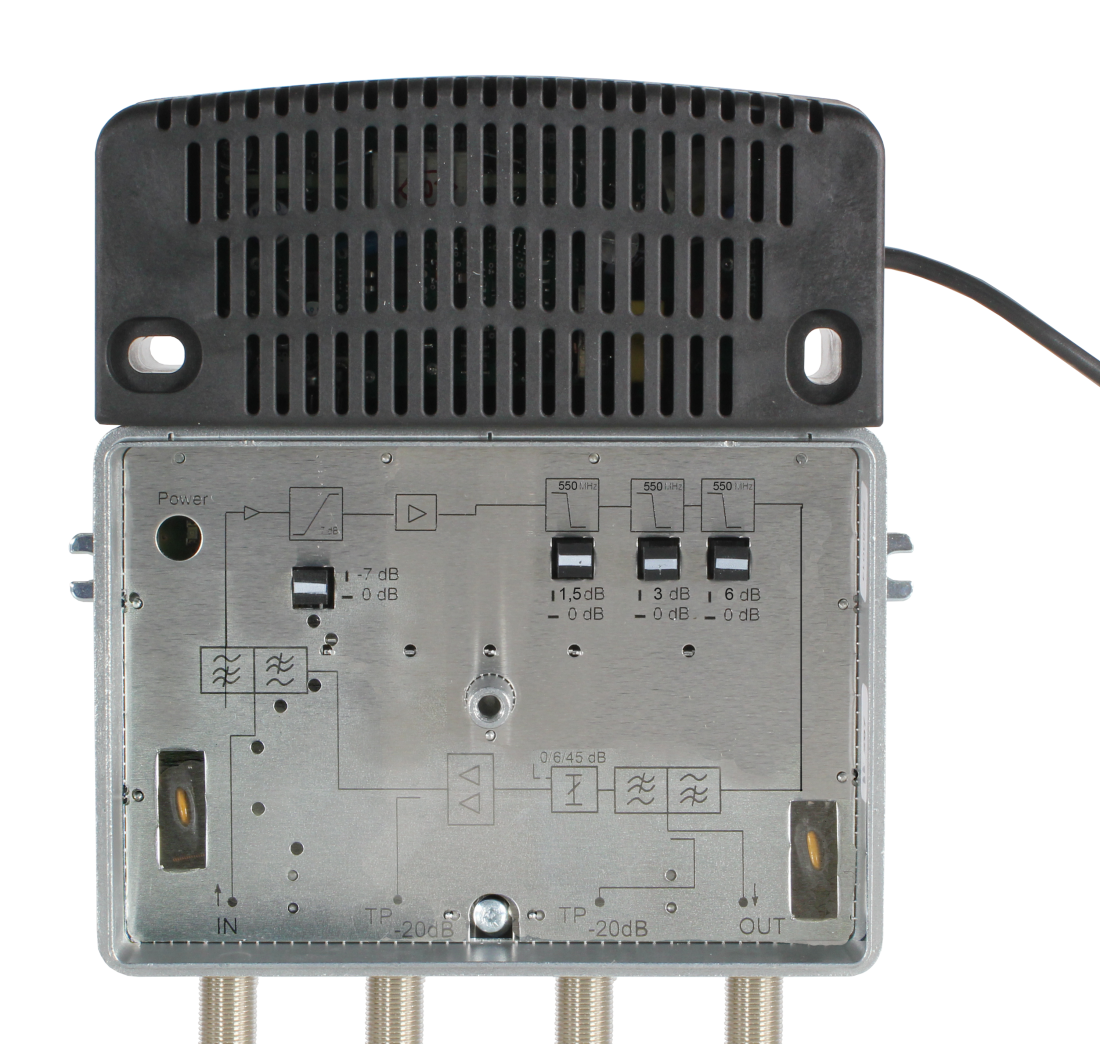

Return path booster - Image 2

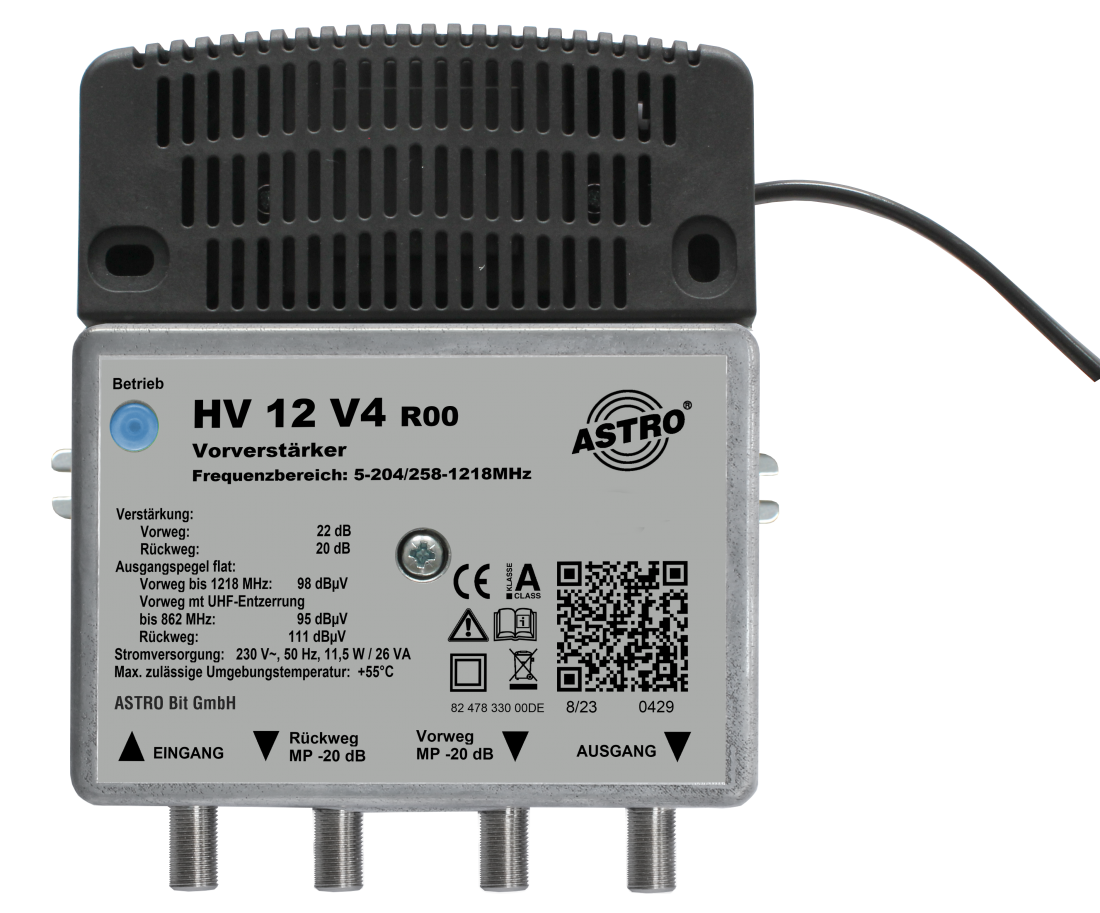

Return path booster - Image 3

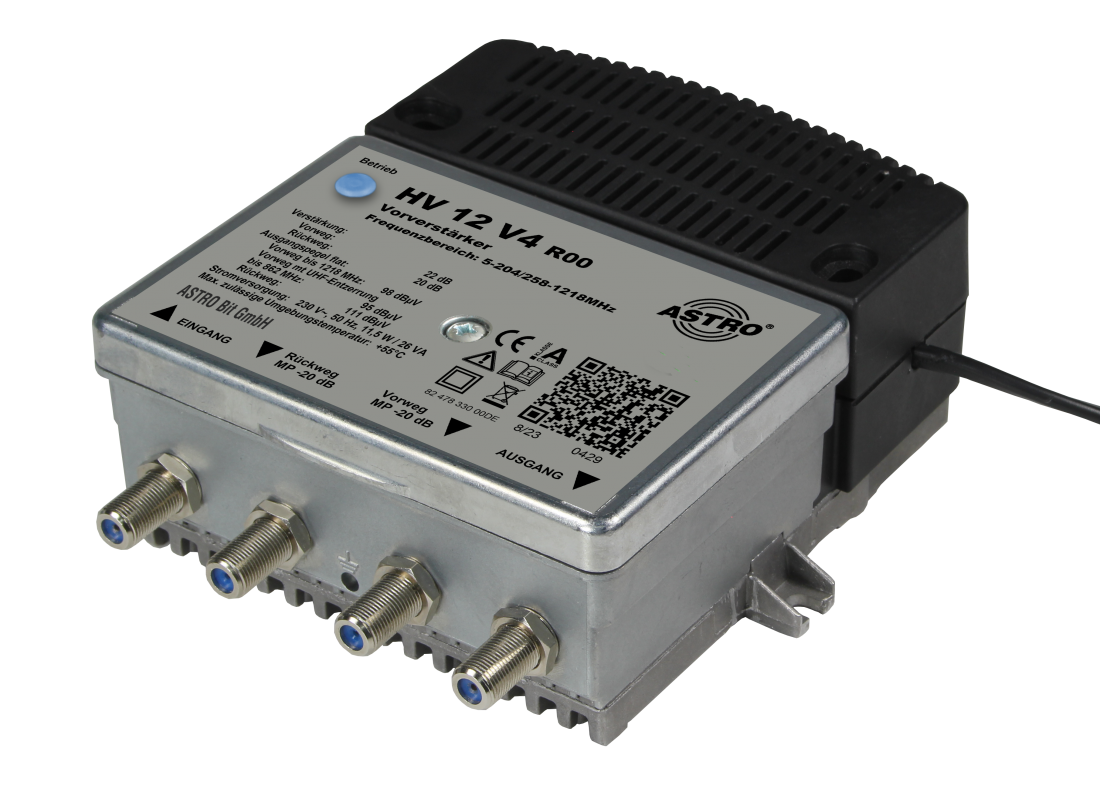

Return path booster - Image 4

Return path booster

Login to see prices

HV 12 V4

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1218 MHz
Forward path gain

20-24 dB
Order number

00217028

EAN-Code

4026187240936

Product Details
  • Broadband amplifier with 204 MHz return path
  • forward path to 1218 MHz
  • gain forward path 22 dB
  • output level forward path 98 dBµV
  • interstage slope in forward path (0 or 7 dB, pluggable)
  • system equaisation in forward path via jumpers (0-8 dB in 2 dB steps)
  • gain return path 20 dB
  • 20 dB test point at input and output
Download Details

Product is combinable with

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring

Grounding bracket

ESF 05
for connection of 5 coaxial cables and 1 earthing cable according to VDE regulations
