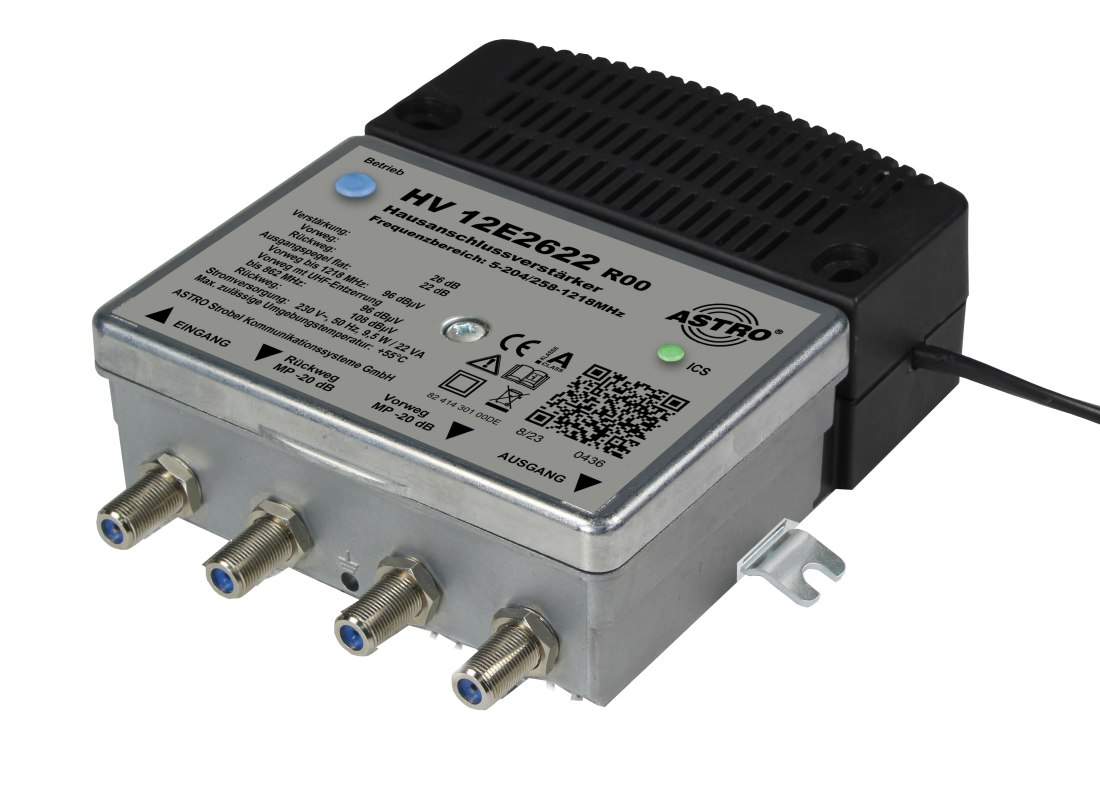

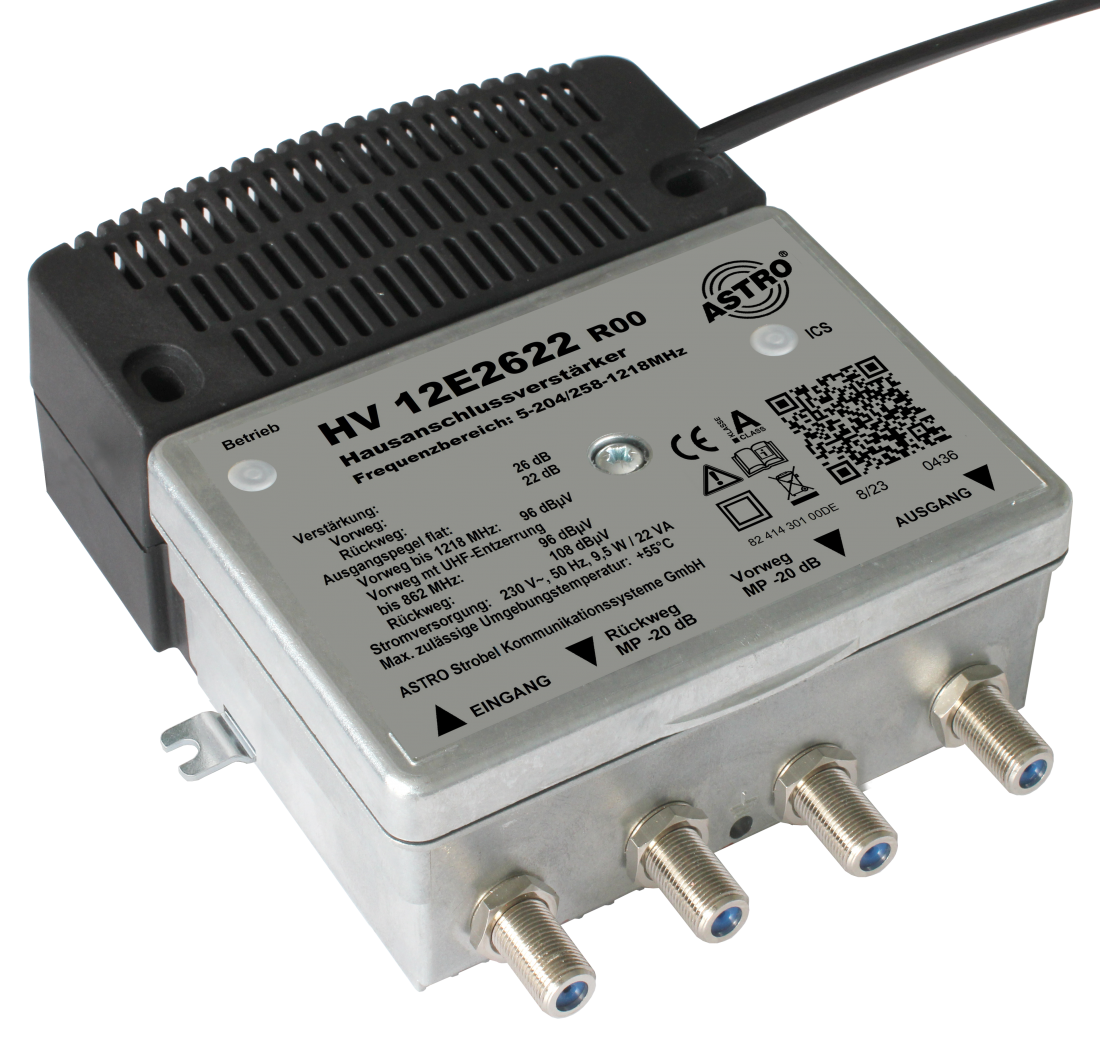

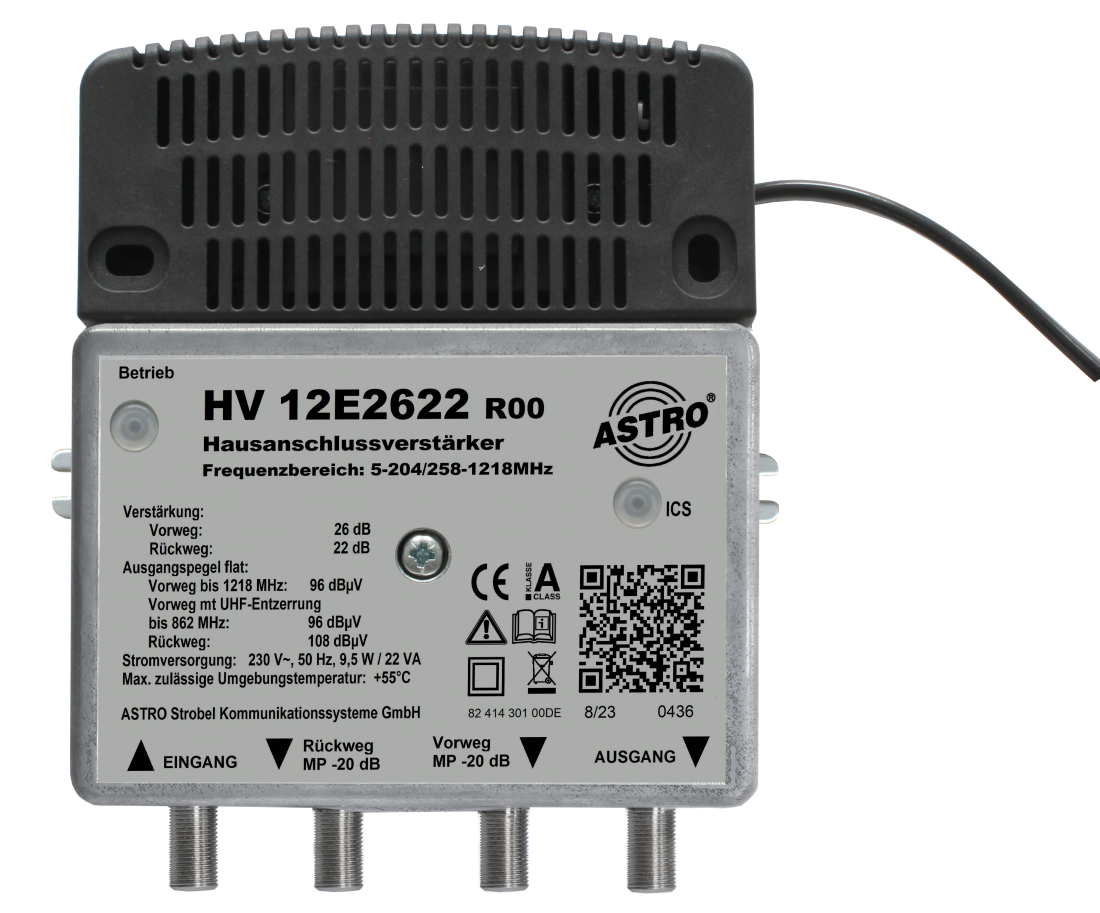

Universal broadband amplifier

with active 65 MHz return path

HV 12E2622

Device type	Compact
Power supply	Local
Frequency range	up to 1218 MHz
Forward path gain	25-29 dB
Approval by network operator	Vodafone GmbH

Order number	00217101
EAN-Code	4026187270759

On request

Product Details

Broadband amplifier with active 65 MHz return path
high modulation of the return path for operational safety even with multi-channel load

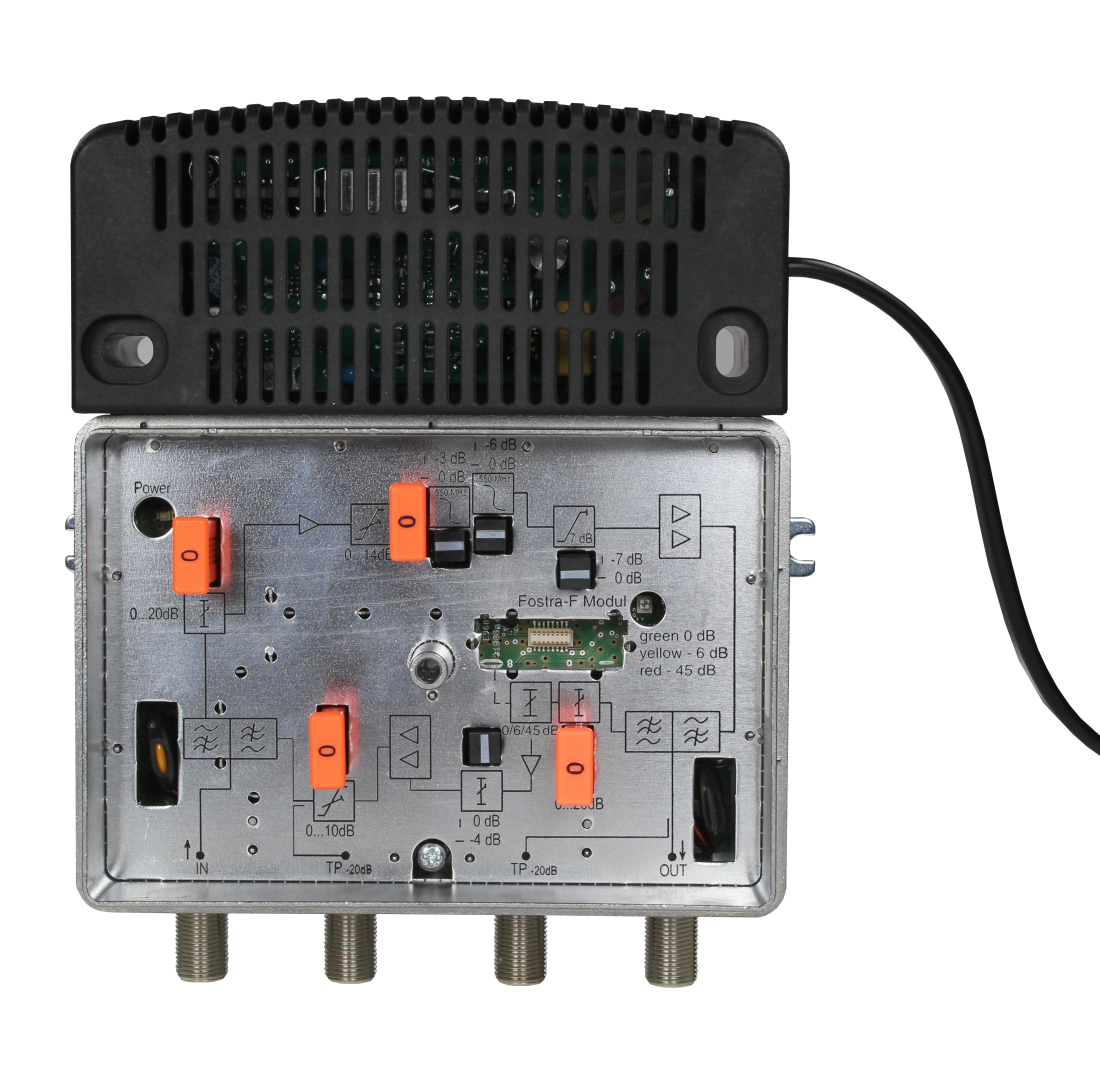

Input attenuation adjustable via pad
Equalizer in input adjustable via pad
Interstage Slope pluggable in advance
Damping in return path adjustable via pad
Interstage slope in the return path 3 dB fixed
Pre-gain 35 dB
Output level Pre-way 101 dBµV
Return path gain 25 dB
Output level return path 114 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
Attenuation pads Pre-attenuation 0 - 15 dB
Equalizer pads Pre-path 0 - 15 dB
Attenuation pads return path 0 - 15 dB
20 dB Measuring point in output
