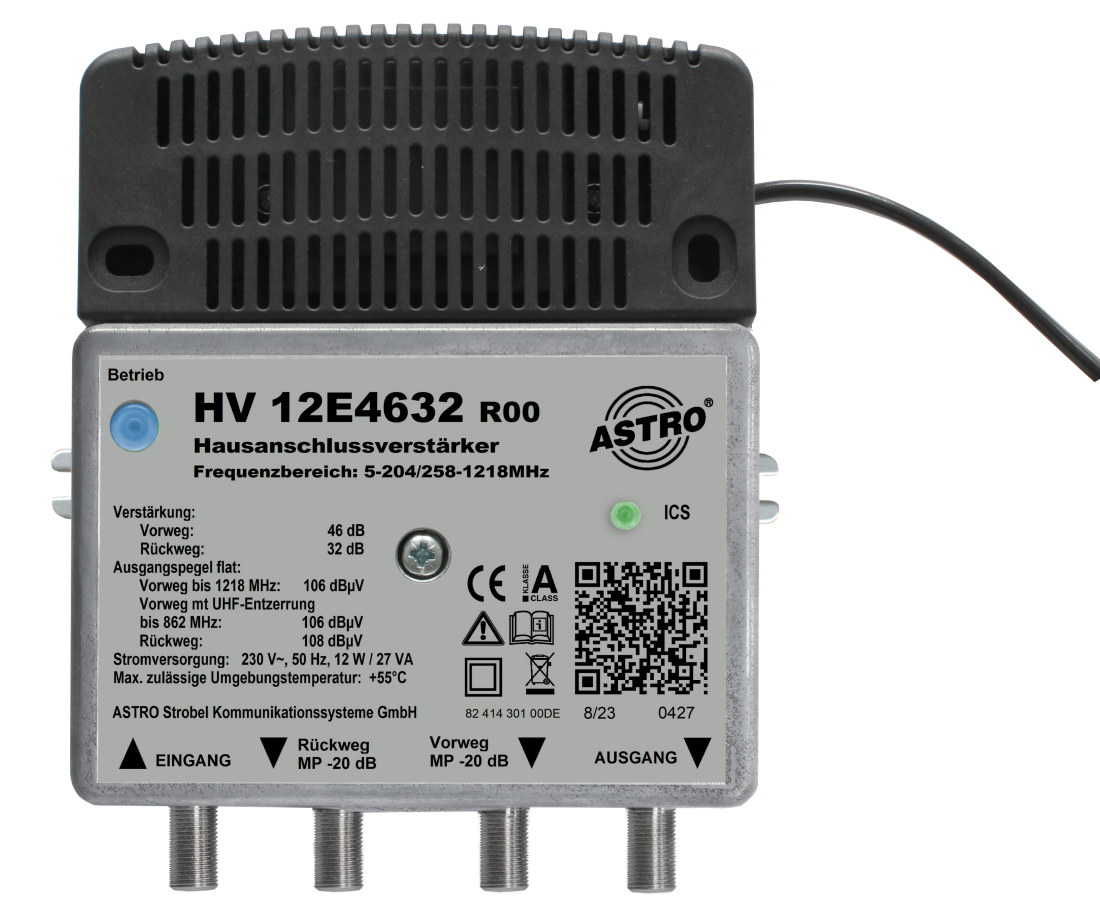

Universal broadband amplifier

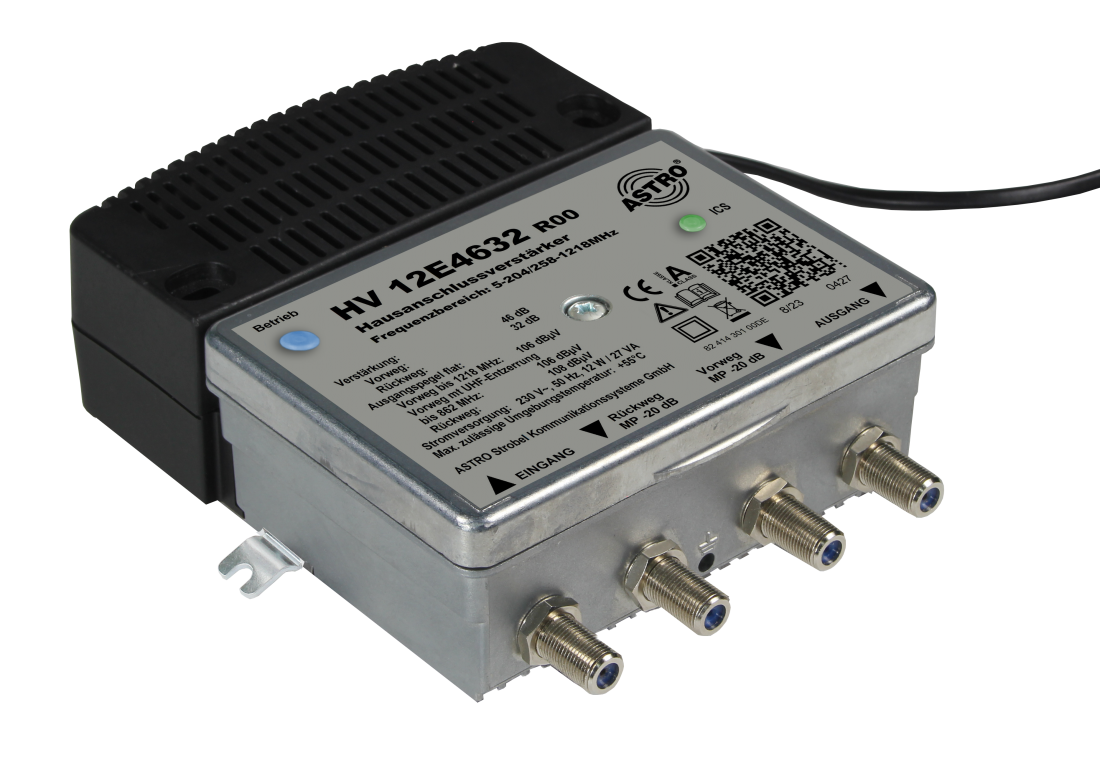

Universal broadband amplifier - Image 2

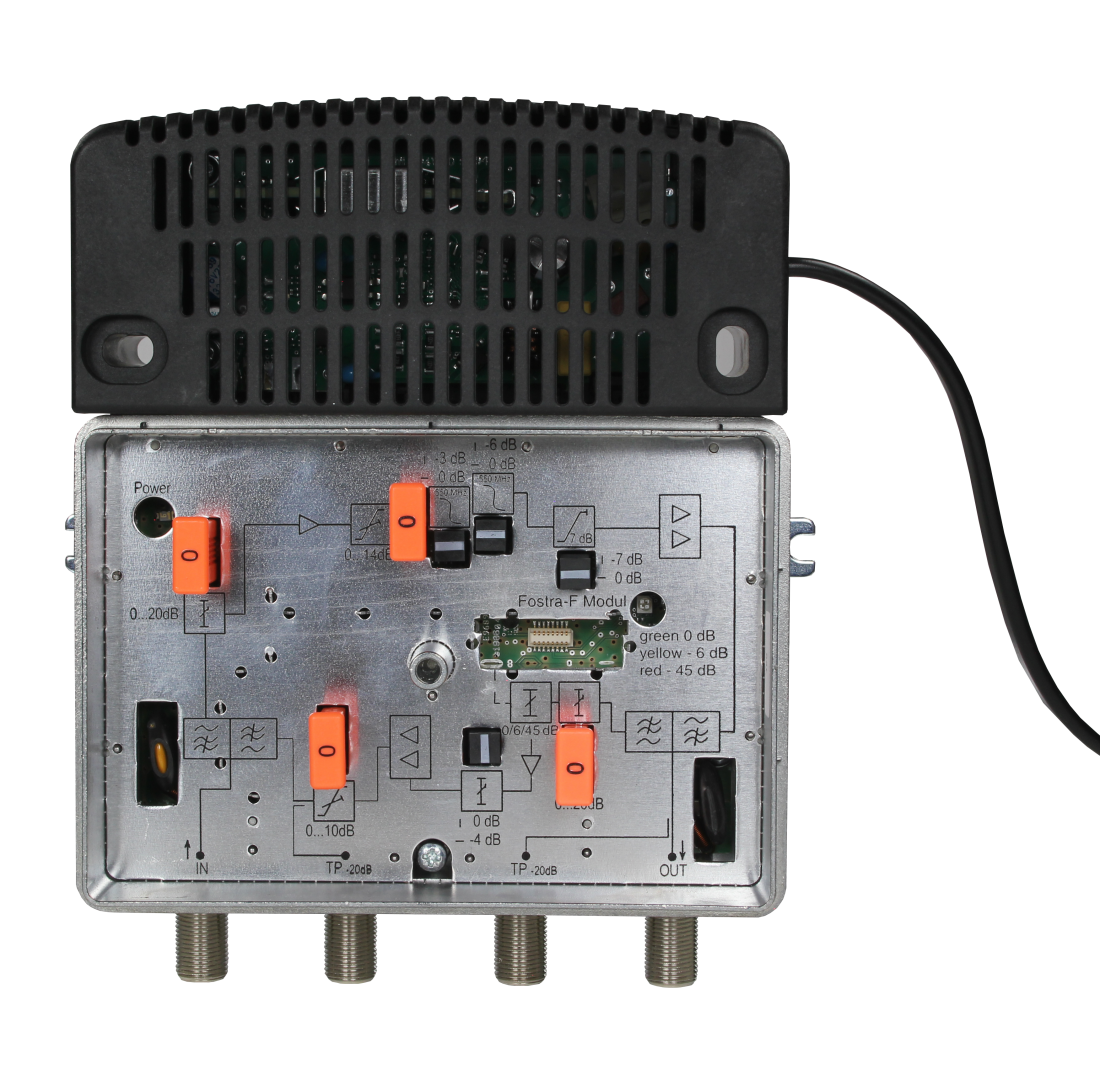

Universal broadband amplifier - Image 3

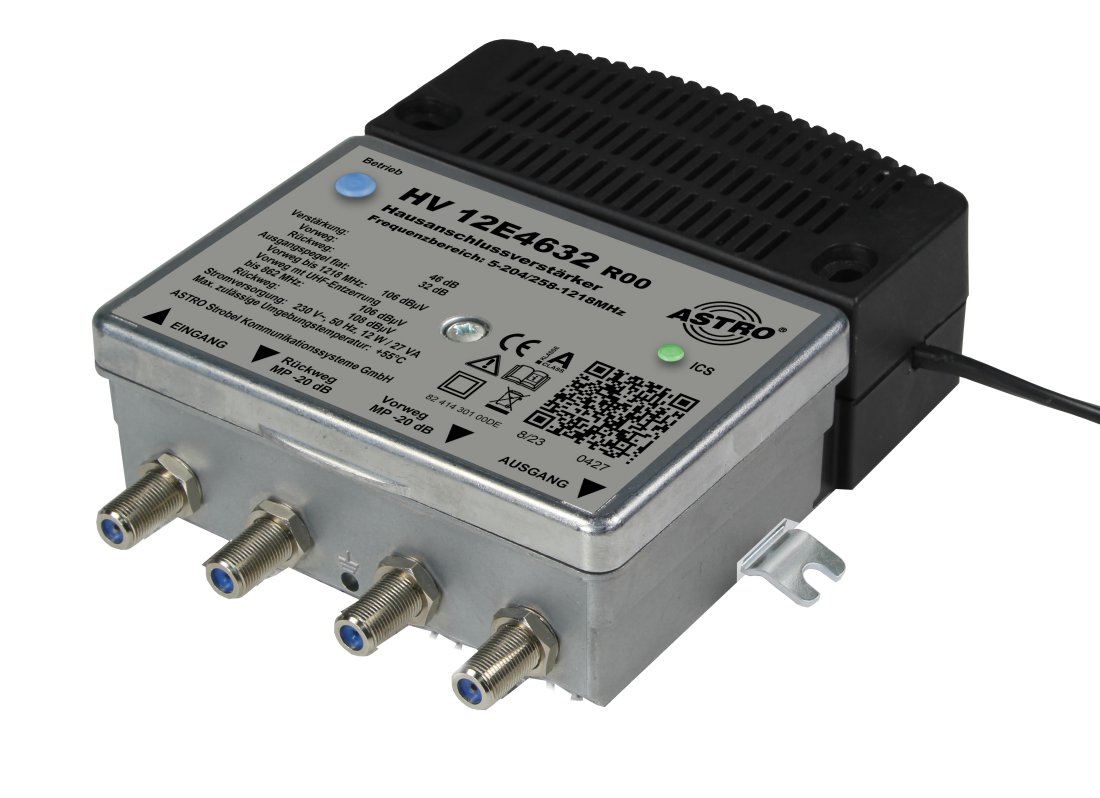

Universal broadband amplifier - Image 4

Universal broadband amplifier

with active 65 MHz return path

HV 12E4632

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1218 MHz
Approval by network operator

Vodafone GmbH
Forward path gain

>39 dB
Order number

00217104

EAN-Code

4026187270780

On request
Product Details
  • Forward gain 46 dB
  • Input attenuation adjustable via pad (0-20 dB)
  • Interstage equaliser in forward path adjustable via pad (0-15 dB)
  • Interstage slope in forward path pluggable (0 or 7 dB)
  • Preamp output level 106 dBµV
  • Feedback gain 32 dB
  • Feedback attenuation adjustable via pad (0-20 dB)
  • Interstage attenuation in feedback (0 or 6 dB pluggable)
  • Feedback output level 108 dBµV
  • 20 dB measuring point in output
Download Details

Product is combinable with

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring

Grounding bracket

ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations
