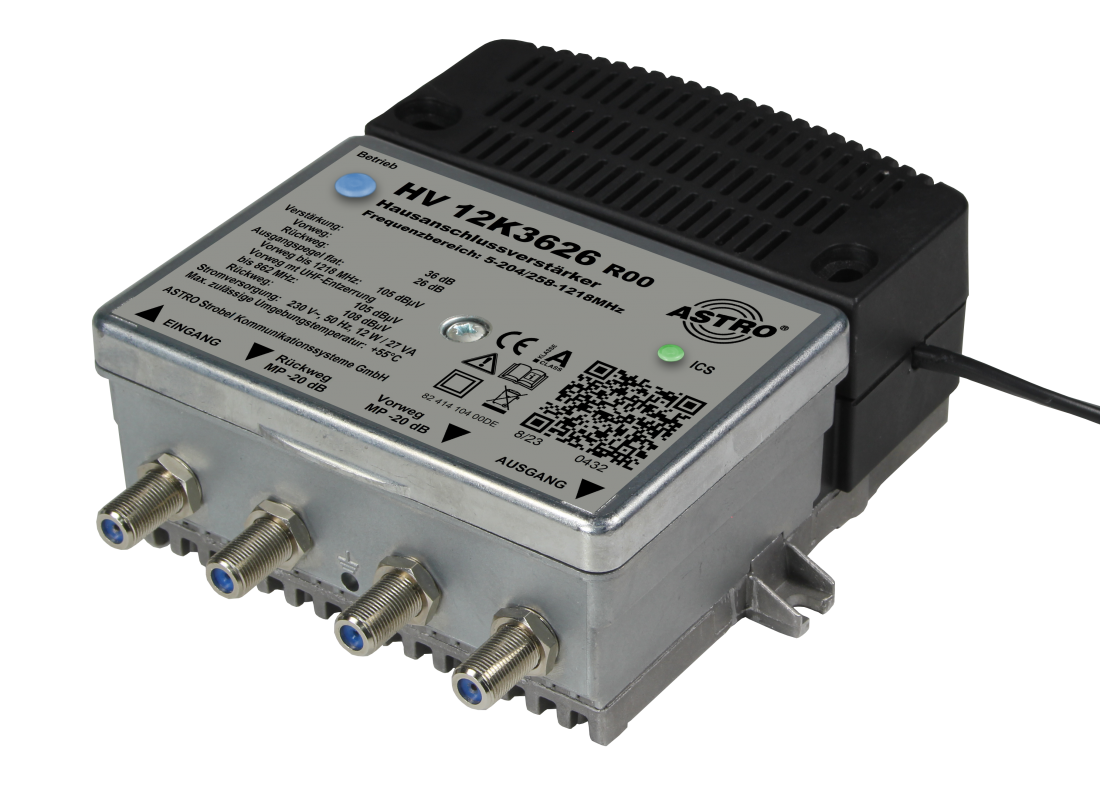

Universal broadband amplifier

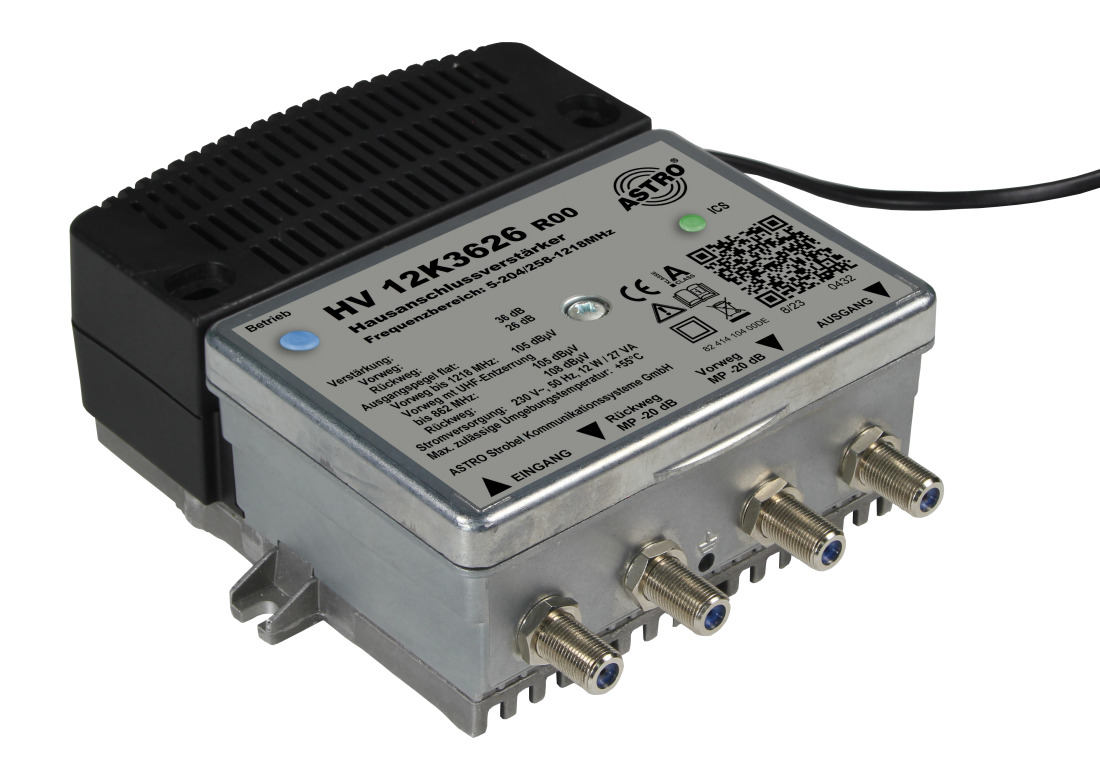

Universal broadband amplifier - Image 2

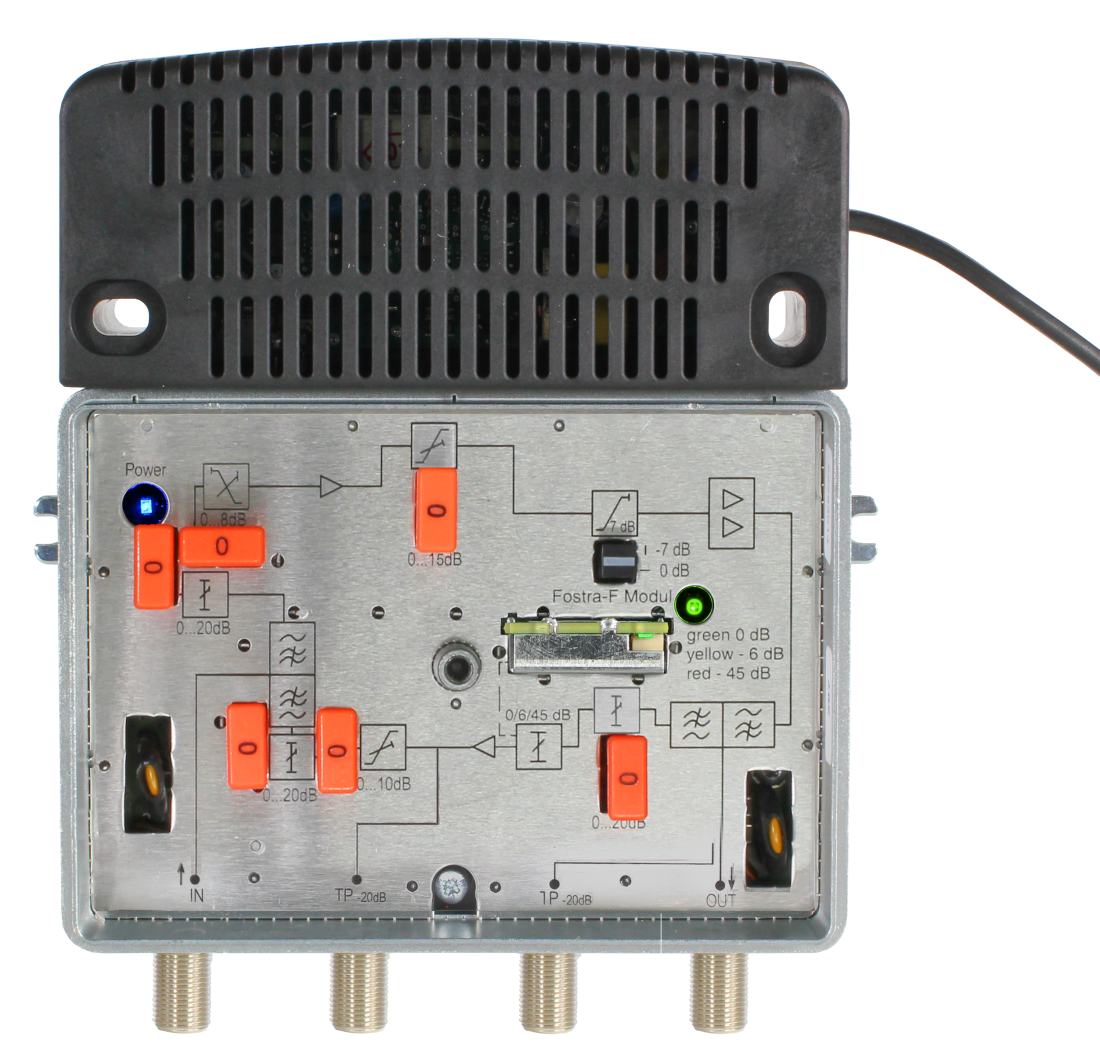

Universal broadband amplifier - Image 3

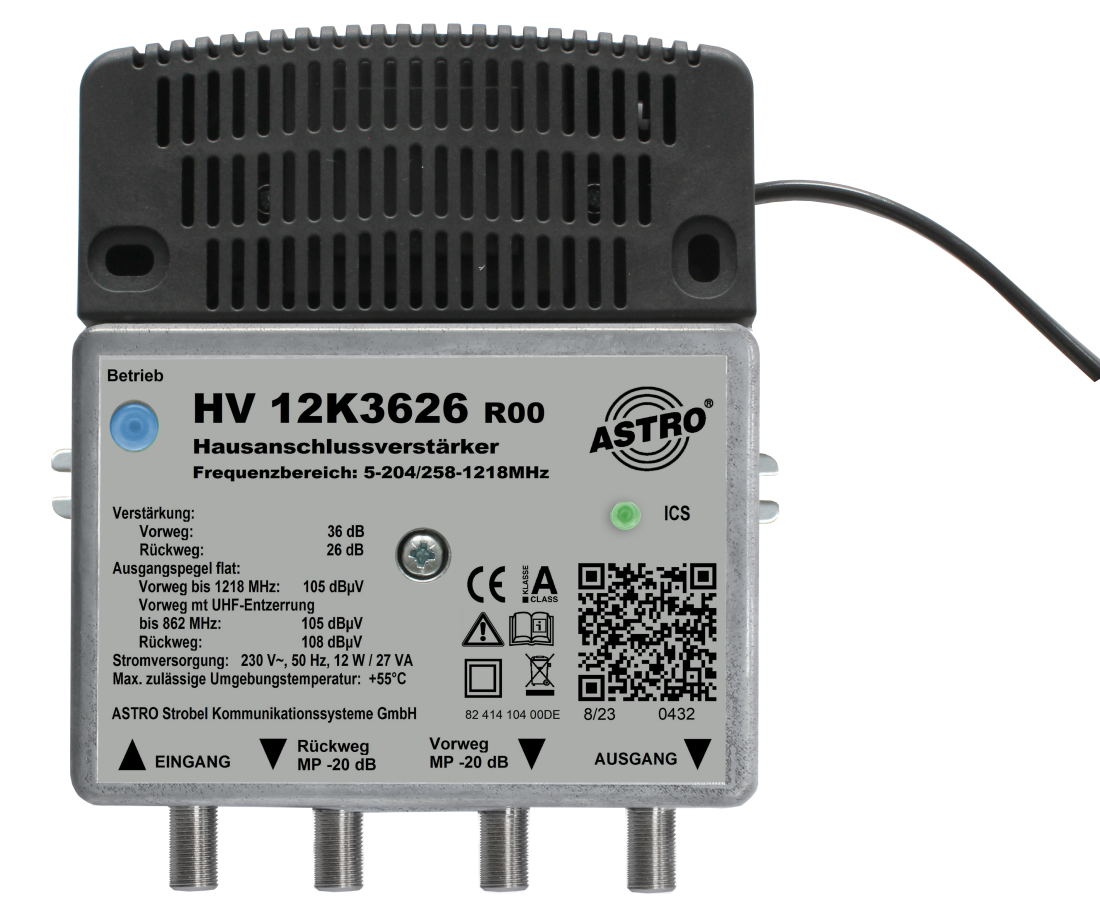

Universal broadband amplifier - Image 4

Universal broadband amplifier

with active 65 MHz return path

HV 12K3626

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1218 MHz
Forward path gain

35-39 dB
Approval by network operator

Vodafone GmbH
Order number

00217107

EAN-Code

4026187270810

On request
Product Details
  • Forward gain 36 dB
  • Input attenuation adjustable via pad (0-20 dB)
  • Interstage equaliser in forward path adjustable via pad (0-15 dB)
  • Interstage slope in forward path pluggable (0 or 7 dB)
  • Preamp output level 100 dBµV
  • Feedback gain 26 dB
  • Feedback attenuation adjustable via pad (0-20 dB)
  • Interstage attenuation in feedback (0 or 4 dB pluggable)
  • Feedback output level 108 dBµV
  • 20 dB measuring point in output
Download Details

Product is combinable with

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring

Grounding bracket

ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations
