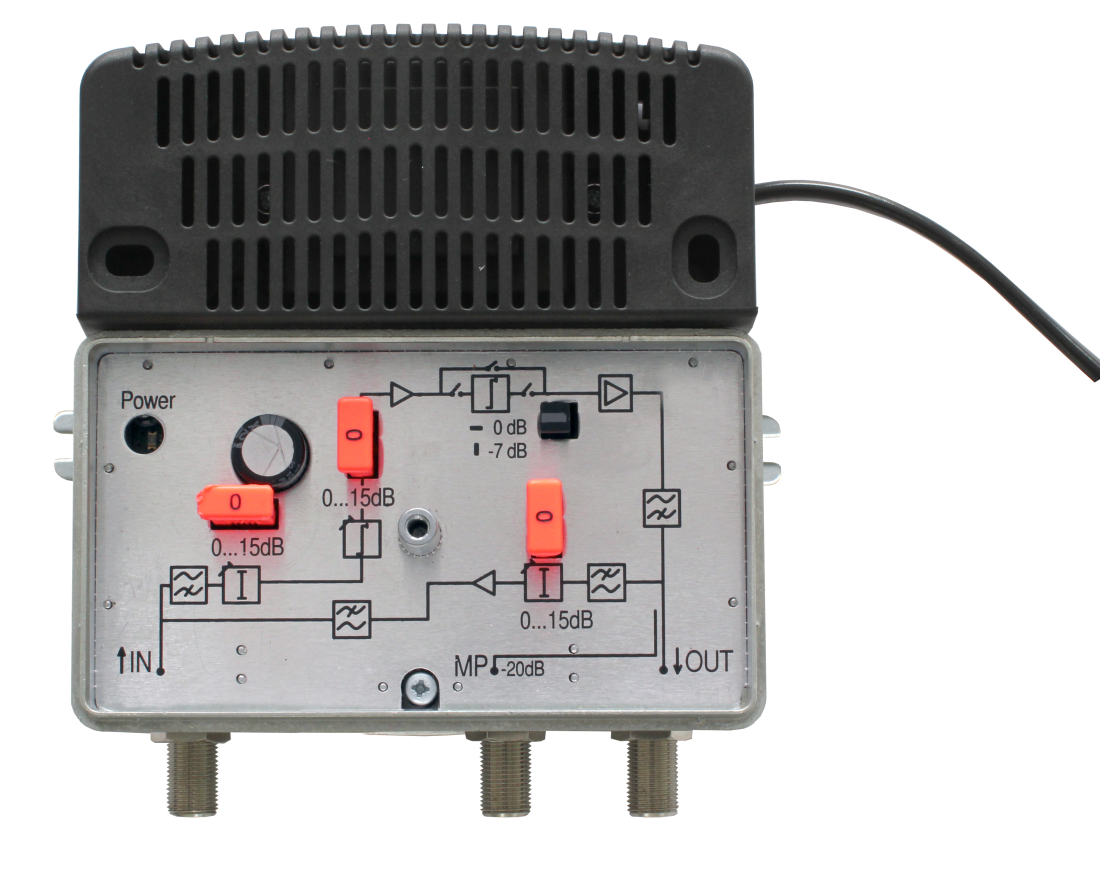

Universal broadband amplifier with 85 MHz return path

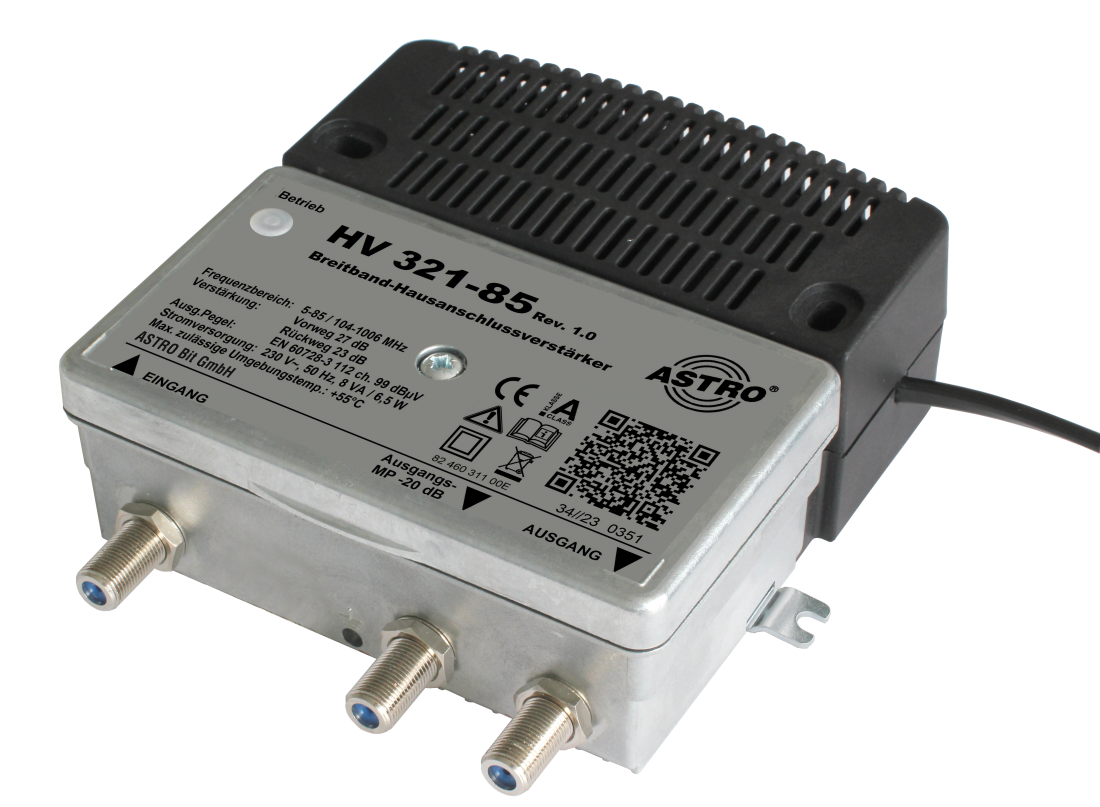

Universal broadband amplifier with 85 MHz return path - Image 2

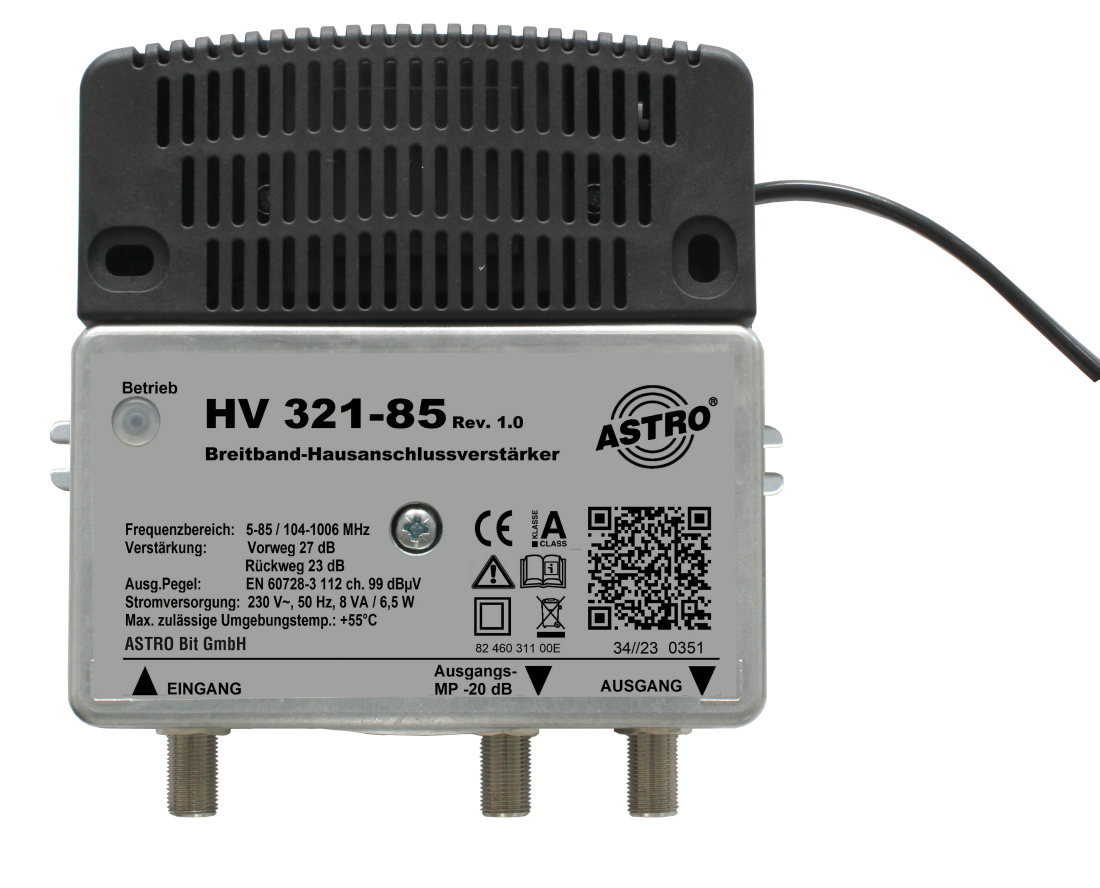

Universal broadband amplifier with 85 MHz return path - Image 3

Universal broadband amplifier with 85 MHz return path

Login to see prices

with 85 MHz return path

HV 321-85

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1218 MHz
Forward path gain

25-29 dB
Order number

00217314

EAN-Code

4026187271114

Product Details
  • Broadband amplifier with 85 MHz return path
  • Forward path: 104 - 1006 MHz
  • Return path: 5 - 85 MHz
  • Forward path gain 27 dB
  • Forward path output level 101 dBμV
  • Return path gain 23 dB
  • Return path output level (9 ch. / 256QAM) 109 dBμV
  • Forward path attenuation 0 - 20 dB (Pad)
  • Forward path equalizer at the input 0 - 18 dB (Pad)
  • Return path attenuation (input) 0 - 15 dB (Pad)
  • 20 dB testpoint at the output
