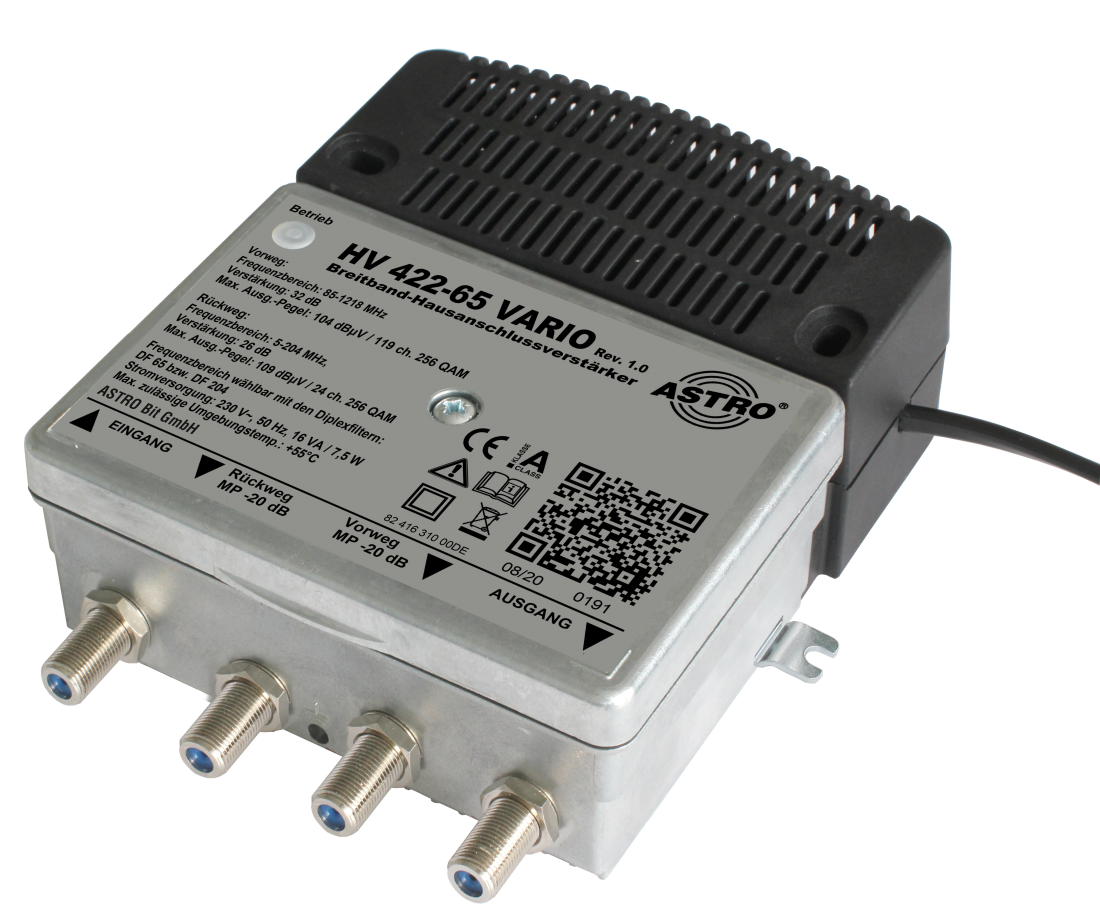

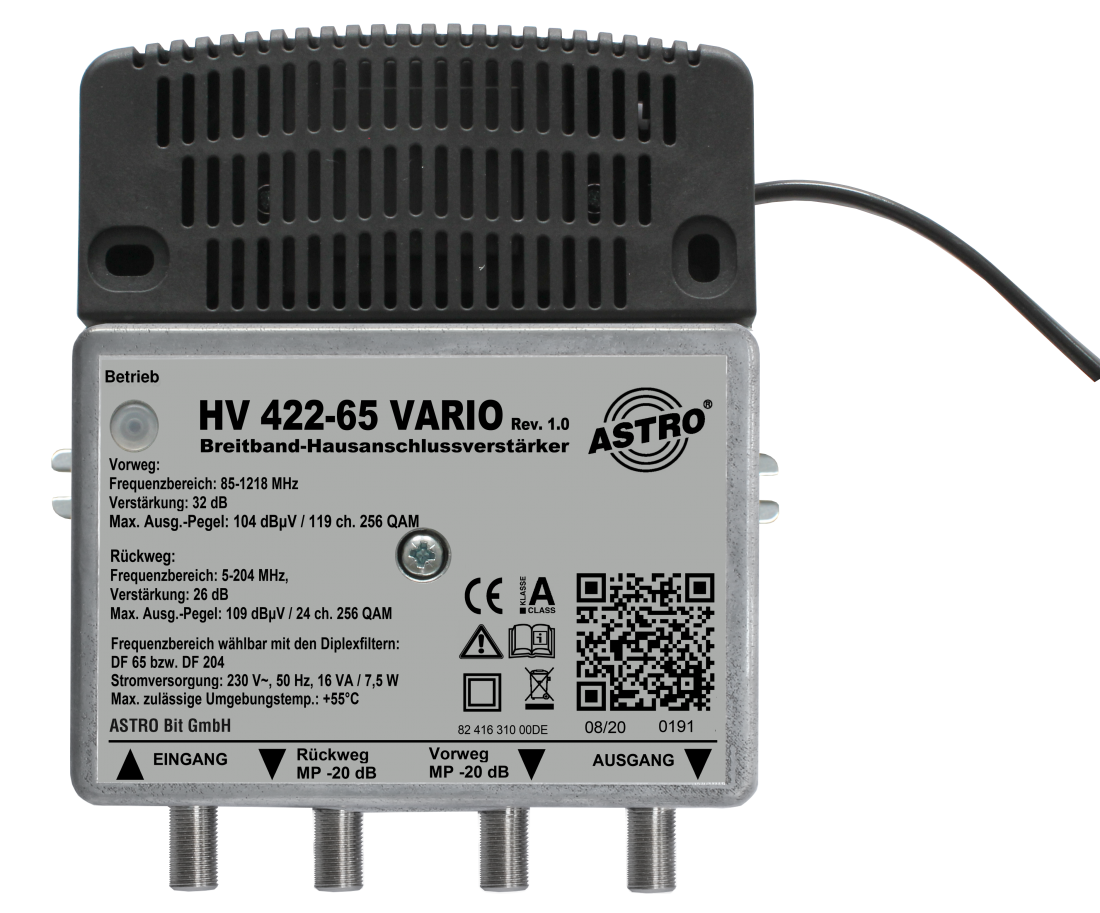

Universal broadband amplifier with push-pull-return path
with 65 or 204 MHz return path
HV 422-65 Vario
Specification
| Device type | Modular |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | 30-34 dB |
| Order number | 00217440 |
|---|---|
| EAN-Code | 4026187199326 |
Product Details
- Broadband amplifier with 65 or 204 MHz return path
- Forward path up to 1218 MHz
- Forward path gain 32 dB
- Forward path output level 102 dBμV
- Return path gain 30 dB
- Return path output level (204 MHz) 109 dBμV
- Forward path attenuation 0 - 20 dB (Pad)
- Forward path equalizer at the input 0 - 18 dB (Pad)
- Forward path equalizer interstage 0 or 7 dB (Jumper)
- Interstage attenuation in forward and return path 6 dB
- Interstage slope in return path 3 dB (up to 204 MHz + 3 dB extra pluggable)
- Return path attenuation (input) 0 - 20 dB (Pad)
- Return path attenuation (output) 0 - 20 dB (Pad)
- 20 dB testpoint at the in- and output (forward and return path)

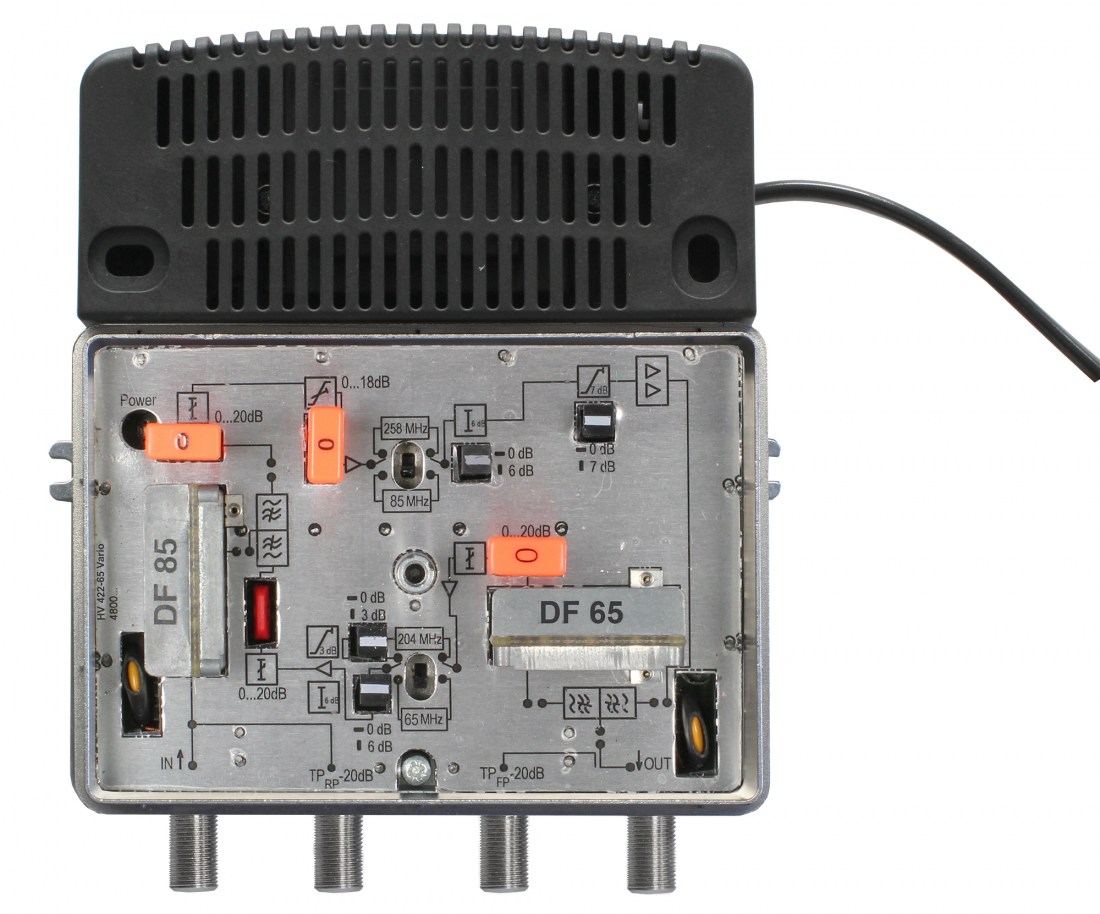

- Configuration via pads and jumpers
Download Details
-
Anleitung HV 422-65 Vario_HV 422-85 Vario DE pdf · 2mb
-
Anleitung HV 422-65 Vario_HV 422-85 Vario EN pdf · 2mb
-
Blockschaltbild HV 422-65 Vario pdf · 2mb
-
Datenblatt HV 422-65 Vario DE pdf · 2mb
-
Datenblatt HV 422-65 Vario EN pdf · 2mb
