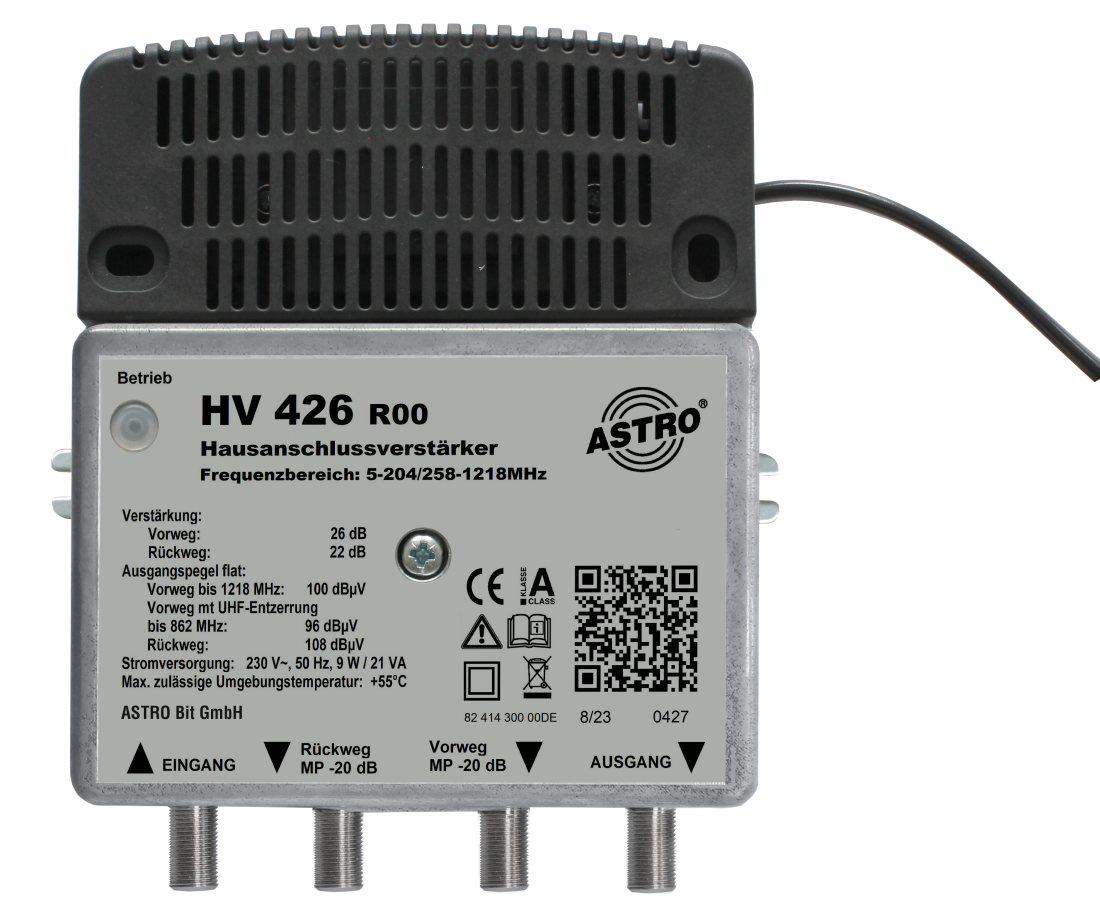

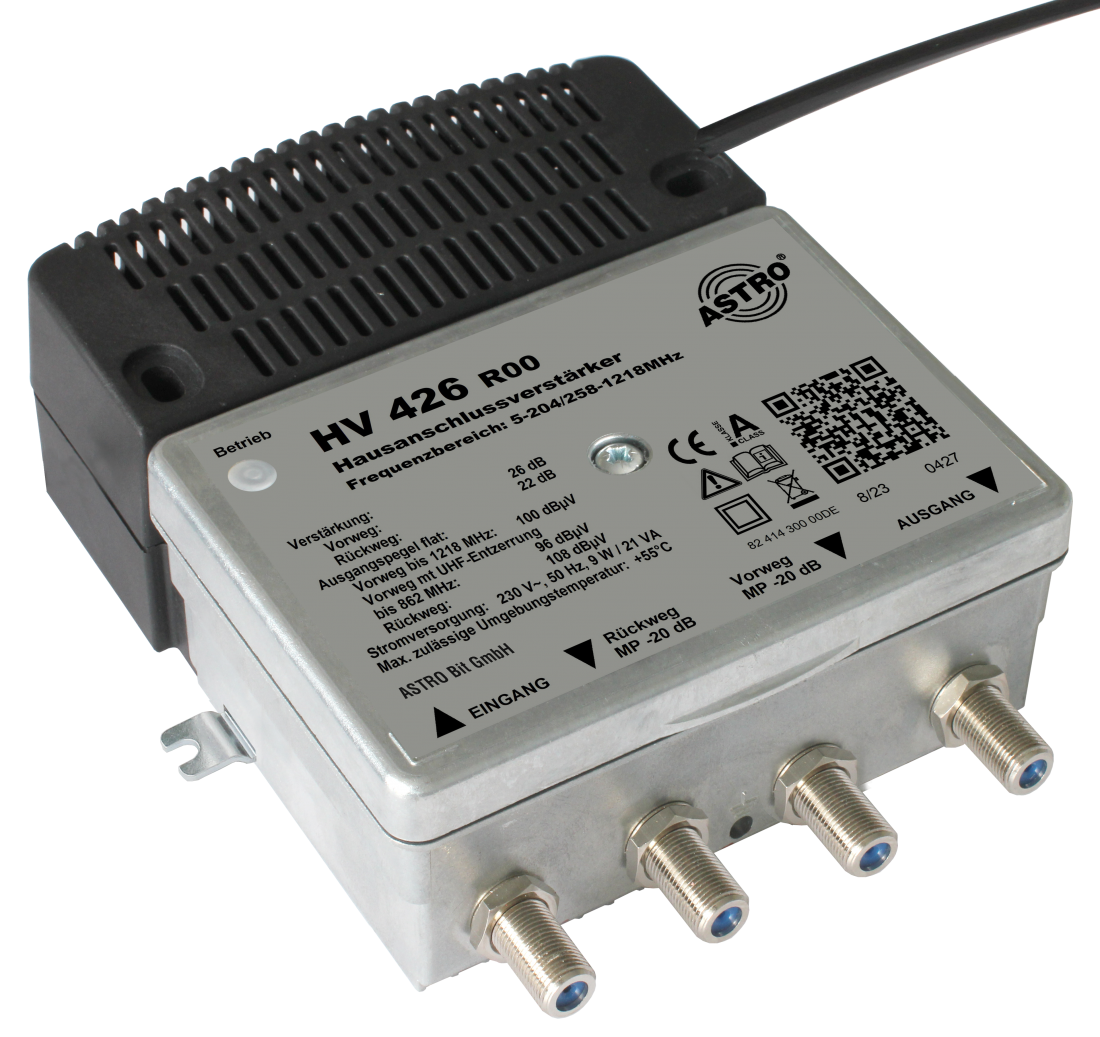

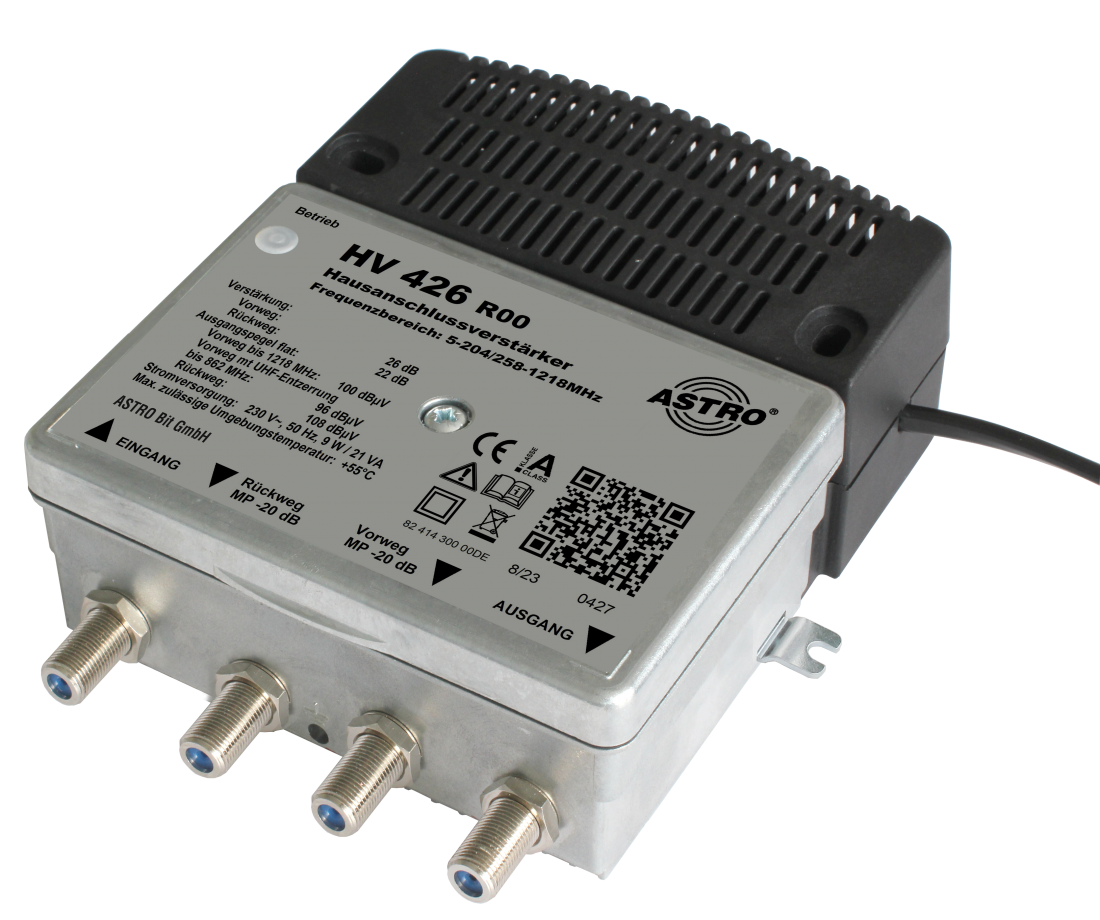

Universal broadband amplifier
with active 65 MHz return path
HV 426
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | 25-29 dB |
| Order number | 00217443 |
|---|---|
| EAN-Code | 4026187240899 |
Product Details

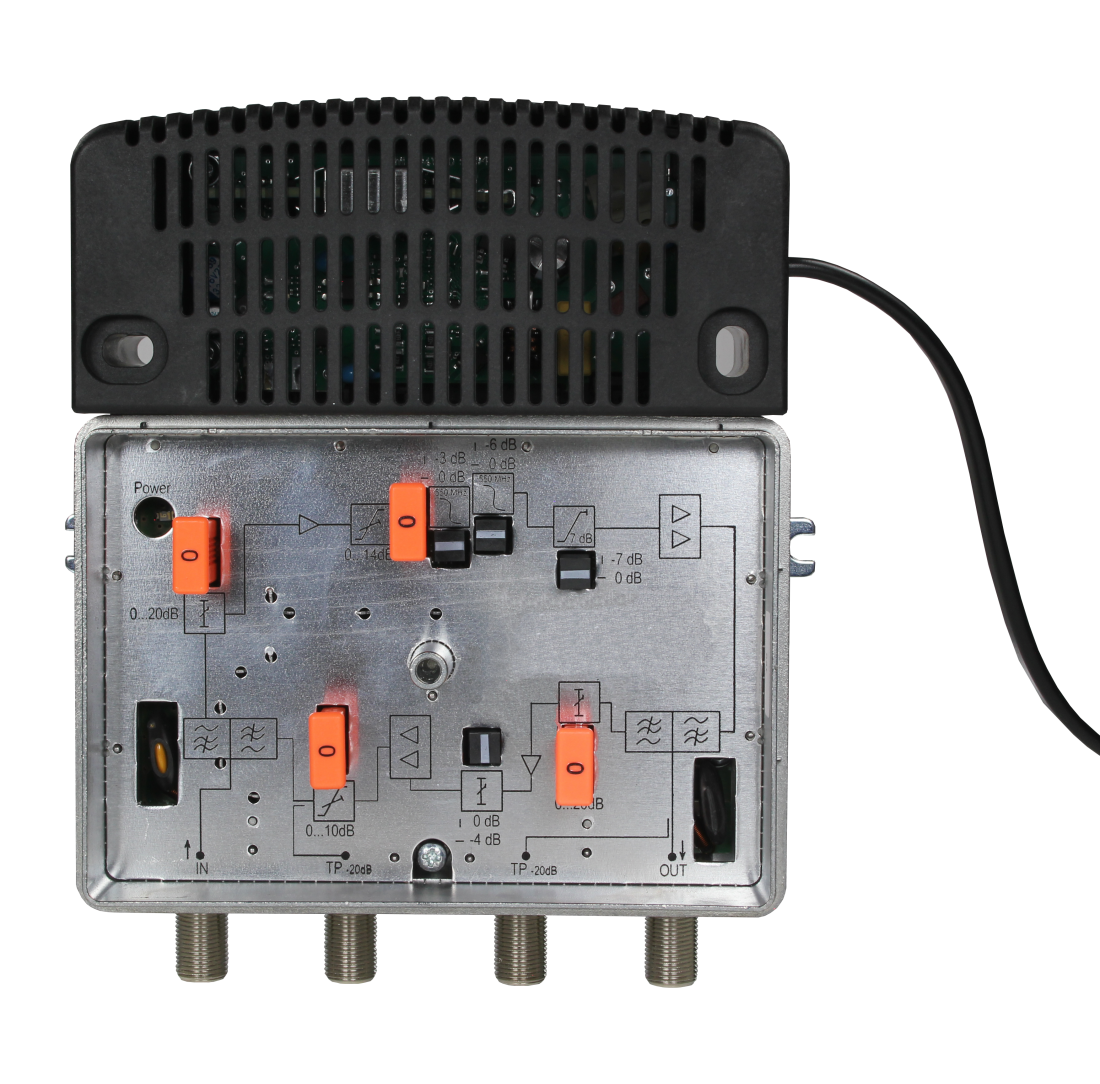

- Broadband amplifier with active 65 MHz return path
- high modulation of the return path for operational safety even with multi-channel load
- Input attenuation adjustable via pad
- Equalizer in input adjustable via pad
- Interstage Slope pluggable in advance
- Damping in return path adjustable via pad
- Interstage slope in the return path 3 dB fixed
- Pre-gain 26 dB
- Output level Pre-way 96 dBµV
- Return path gain 22 dB
- Output level return path 108 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
- Attenuation pads Pre-attenuation 0 - 15 dB
- Equalizer pads Pre-path 0 - 15 dB
- Attenuation pads return path 0 - 15 dB
- 20 dB Measuring point in output
Download Details
-
Anleitung HV 426_436_442_446_DE pdf · 2mb
-
Blockschaltbild HV 426 pdf · 2mb
-
Datenblatt HV 426_436_442_446_DE pdf · 2mb
