Universal broadband amplifier

with active 65 MHz return path

HV 433

Device type	Compact
Power supply	Local
Frequency range	up to 1006 MHz
Forward path gain	35-39 dB
Approval by network operator	Vodafone West GmbH

Order number	00217423
EAN-Code	4026187195779

Product Details

Broadband amplifier with active 65 MHz return path
high modulation of the return path for operational safety even with multi-channel load

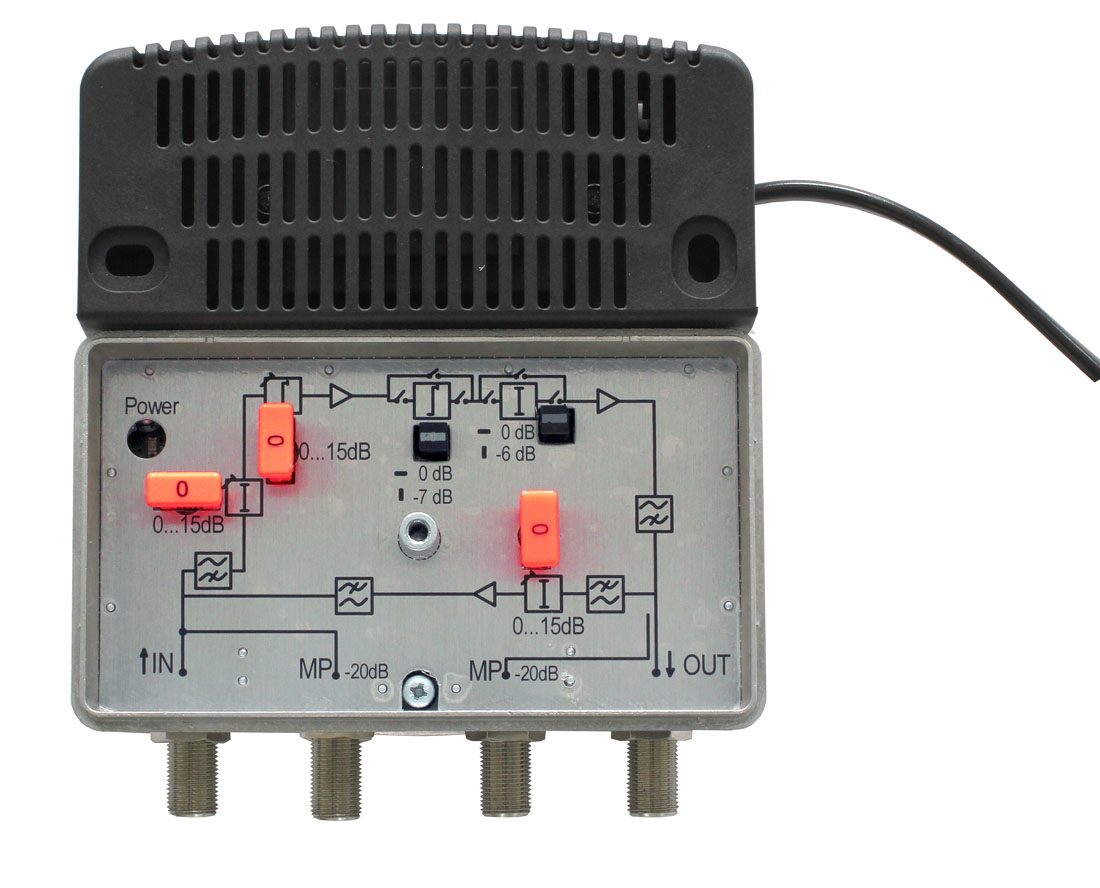

Input attenuation adjustable via pad
Equalizer in input adjustable via pad
Interstage Slope pluggable in advance
Interstage attenuation pluggable in advance
Damping in return path adjustable via pad
Interstage slope in the return path 3 dB fixed
Measuring points in input and output
Pre-amplification 41.5 dB
Output level Pre-way 108 dBµV
Gain return path 32 dB
Output level return path 114 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
Attenuation pads Pre-attenuation 0 - 15 dB
Equalizer pads Pre-path 0 - 15 dB
Attenuation pads return path 0 - 15 dB
20 dB Measuring points in input and output
Unitymedia certified, type class single amplifier 13-18 WE
