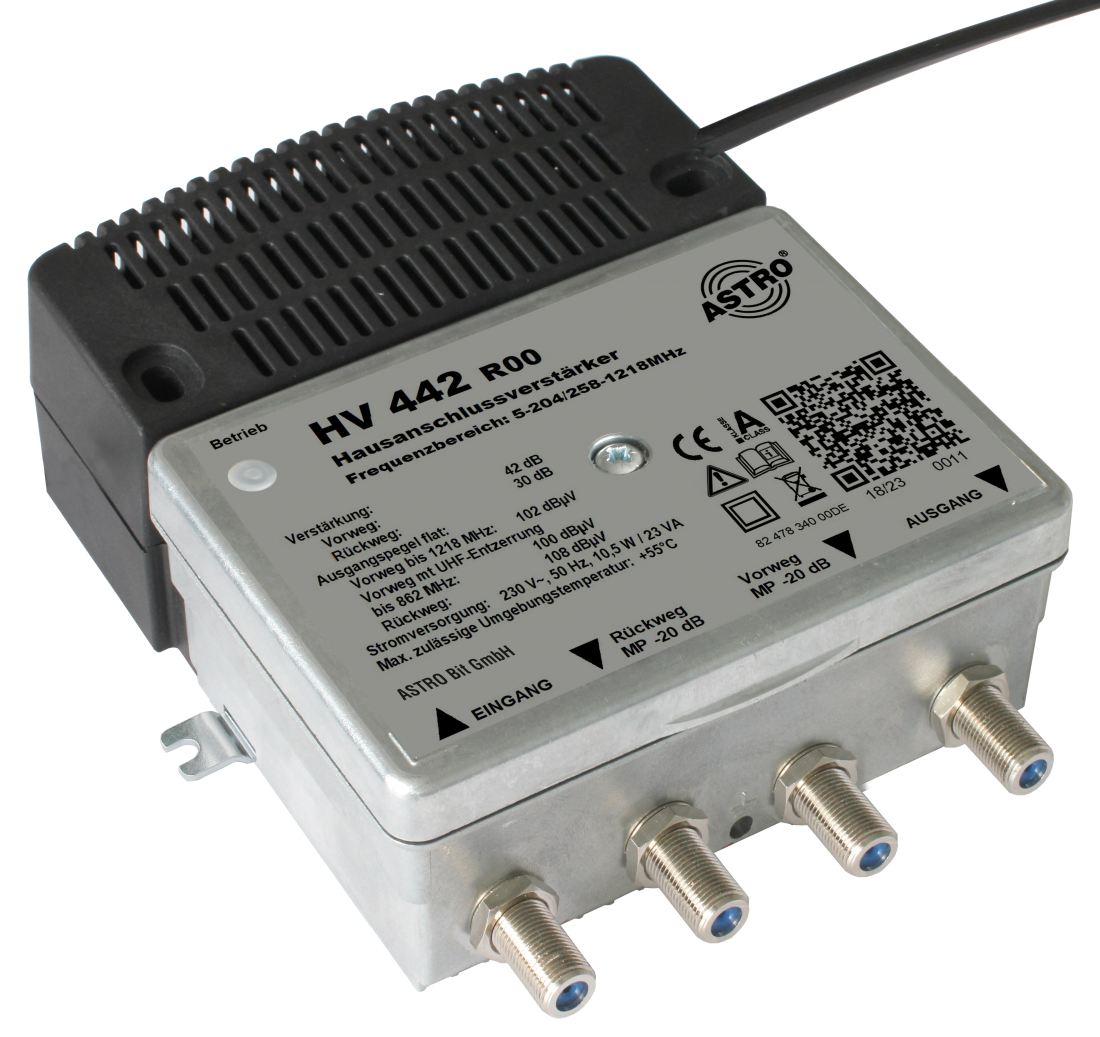

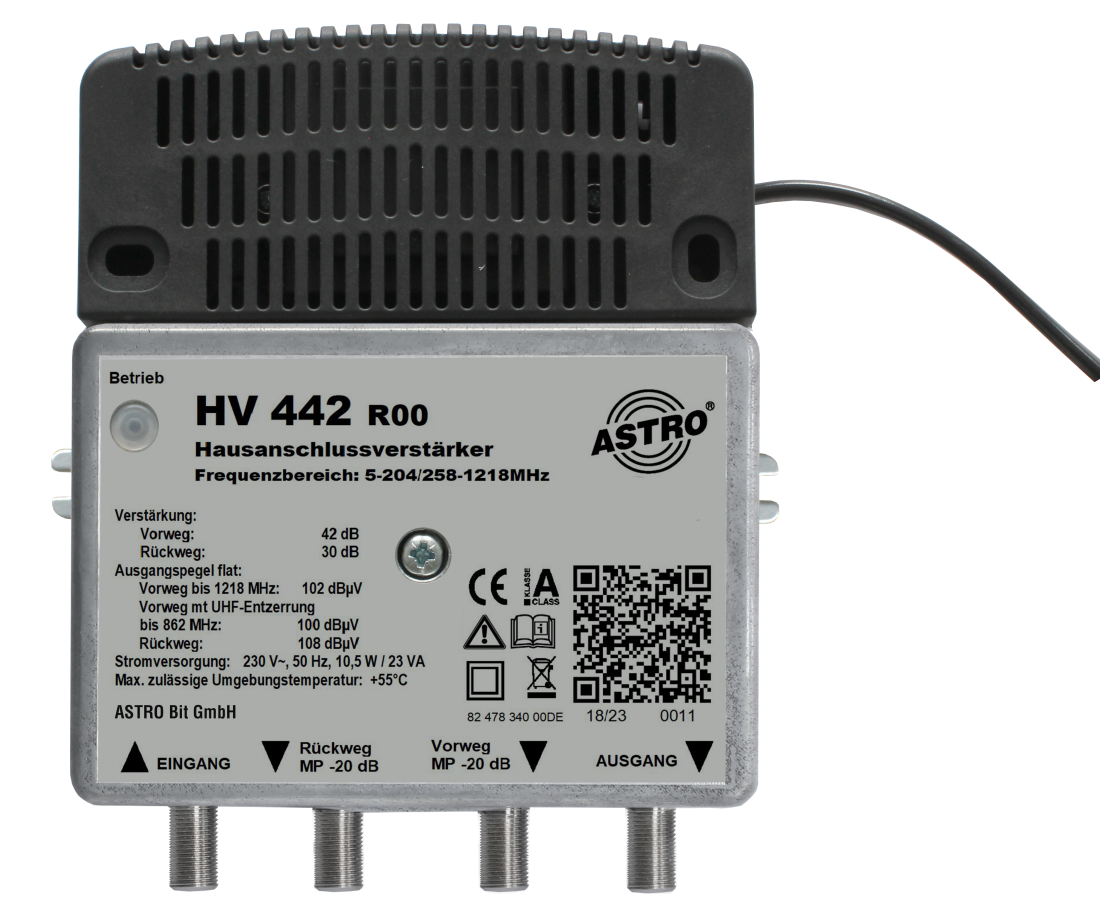

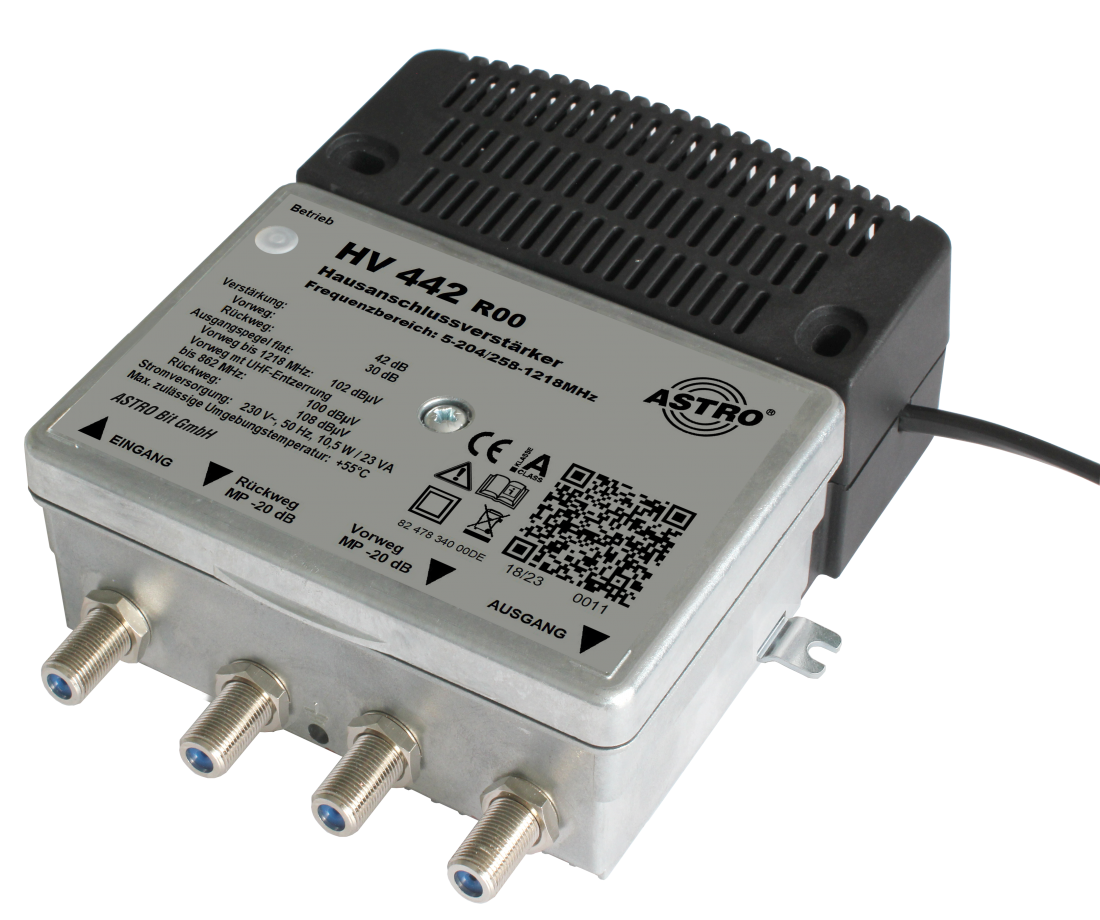

Universal broadband amplifier

with active 65 MHz return path

HV 442

Order number	00217445
EAN-Code	4026187240912

Product Details

Broadband amplifier with active 65 MHz return path
high modulation of the return path for operational safety even with multi-channel load

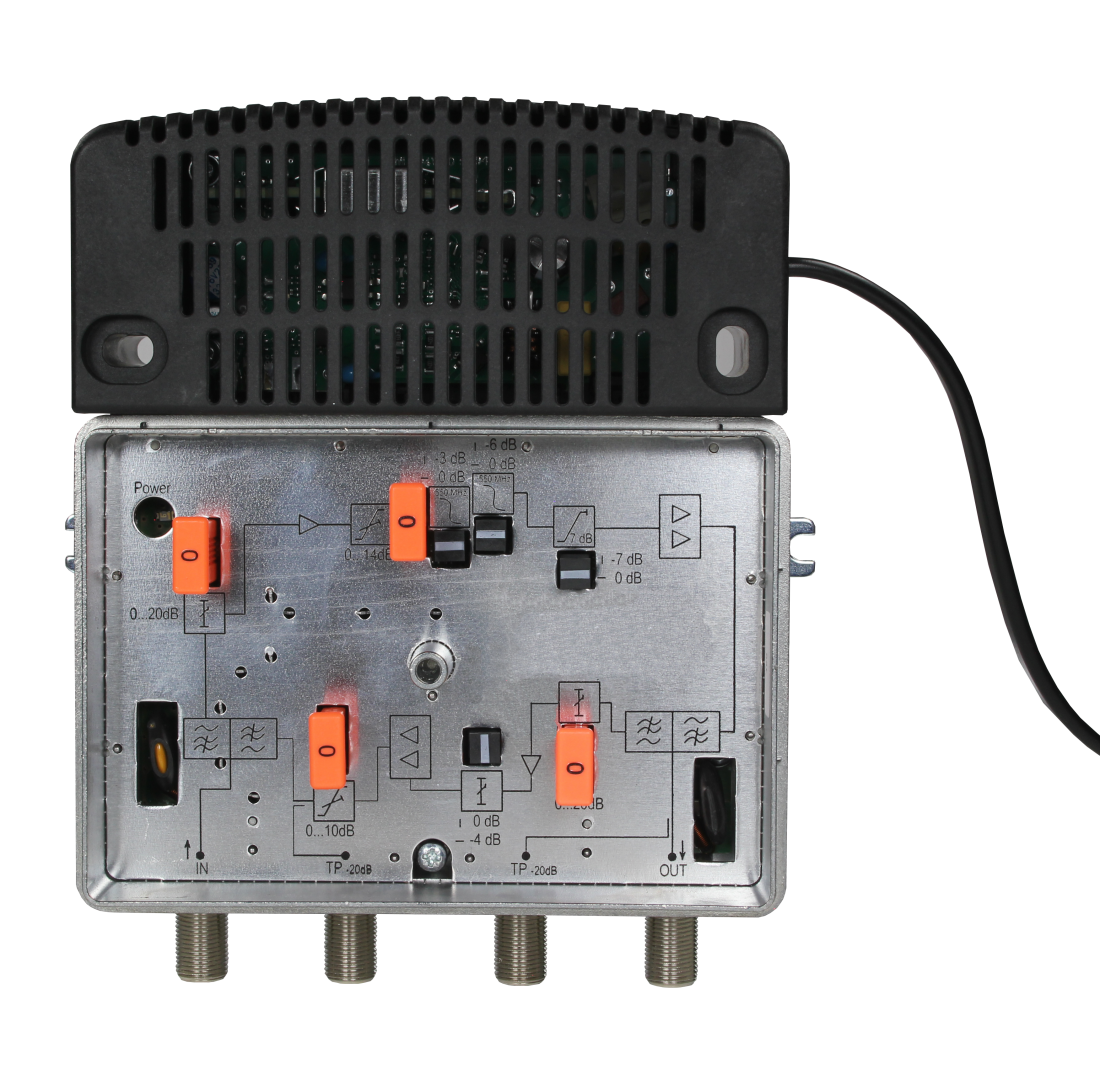

Input attenuation adjustable via pad
Equalizer in input adjustable via pad
Interstage Slope pluggable in advance
Damping in return path adjustable via pad
Interstage slope in the return path 3 dB fixed
Pre-gain 42 dB
Output level Pre-way 102 dBµV
Return path gain 30 dB
Output level return path 108 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
Attenuation pads Pre-attenuation 0 - 15 dB
Equalizer pads Pre-path 0 - 15 dB
Attenuation pads return path 0 - 15 dB
20 dB Measuring point in output
