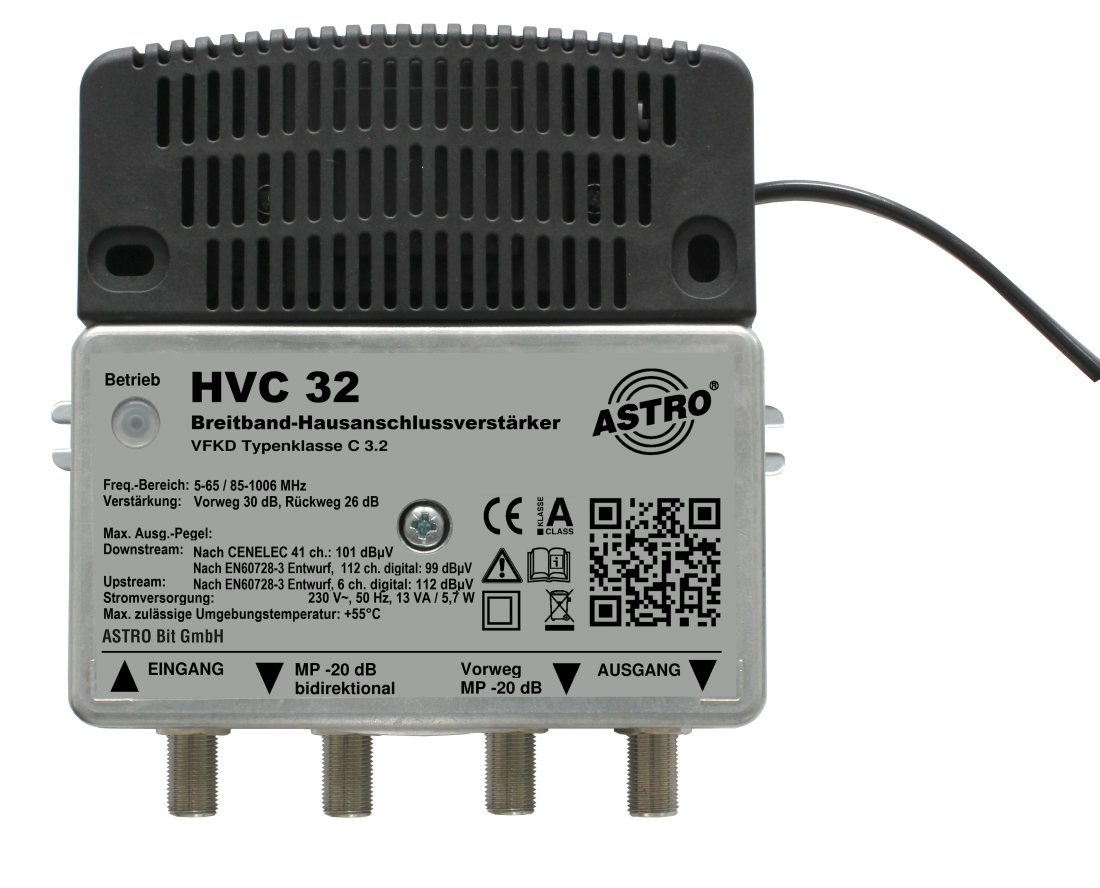

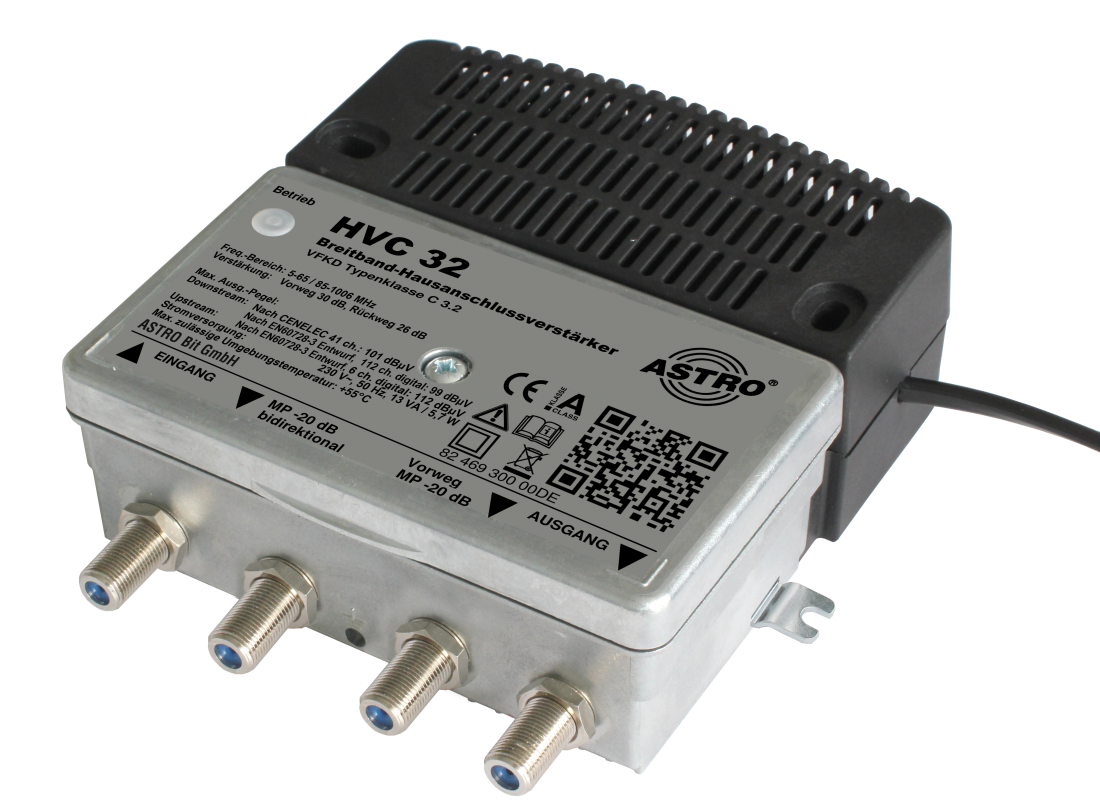

Universal broadband amplifier

with active 65 MHz return path

HVC 32

Device type	Compact
Power supply	Local
Frequency range	up to 1006 MHz
Forward path gain	30-34 dB
Approval by network operator	Vodafone GmbH

Order number	00217354
EAN-Code	4026187195403

Product Details

Broadband amplifier with active 65 MHz return path
high modulation of the return path for operational safety even with multi-channel load

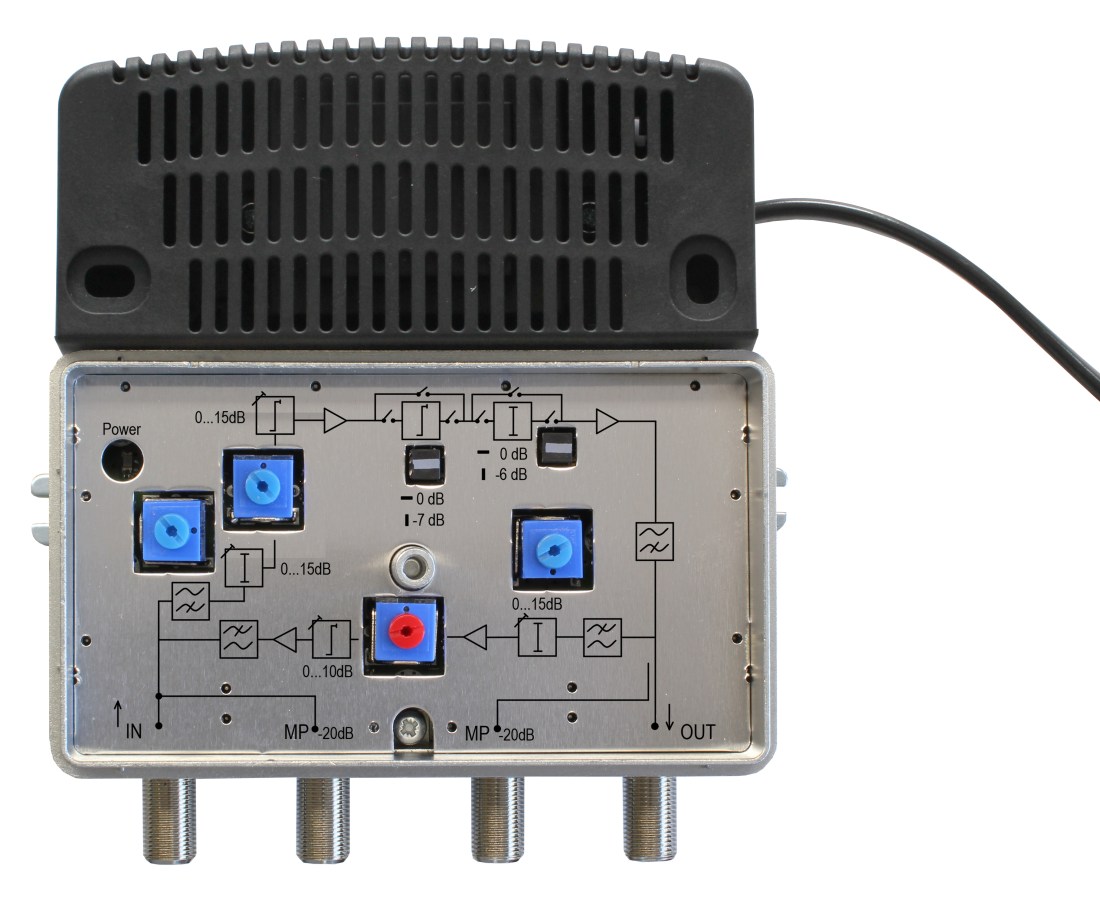

Attenuation Pre-way 0 - 15 dB in input, level control
Equalizer Pre-way 0 - 15 dB in input, level control
Interstage Slope in the pre-path 0 or 7 dB, pluggable
Interstage attenuation in advance 0 or 6 dB, pluggable
Attenuation return path 0 - 15 dB, level control
Interstage slope in the return path 0 - 10 dB, level control
Measuring points in input and output
Pre-gain 30 dB
Output level Pre-way 104 dBµV
Return path gain 29 dB
Output level return path 113 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
20 dB Measuring points in input and output
Vodafone GmbH certified, type class C(3.2)
