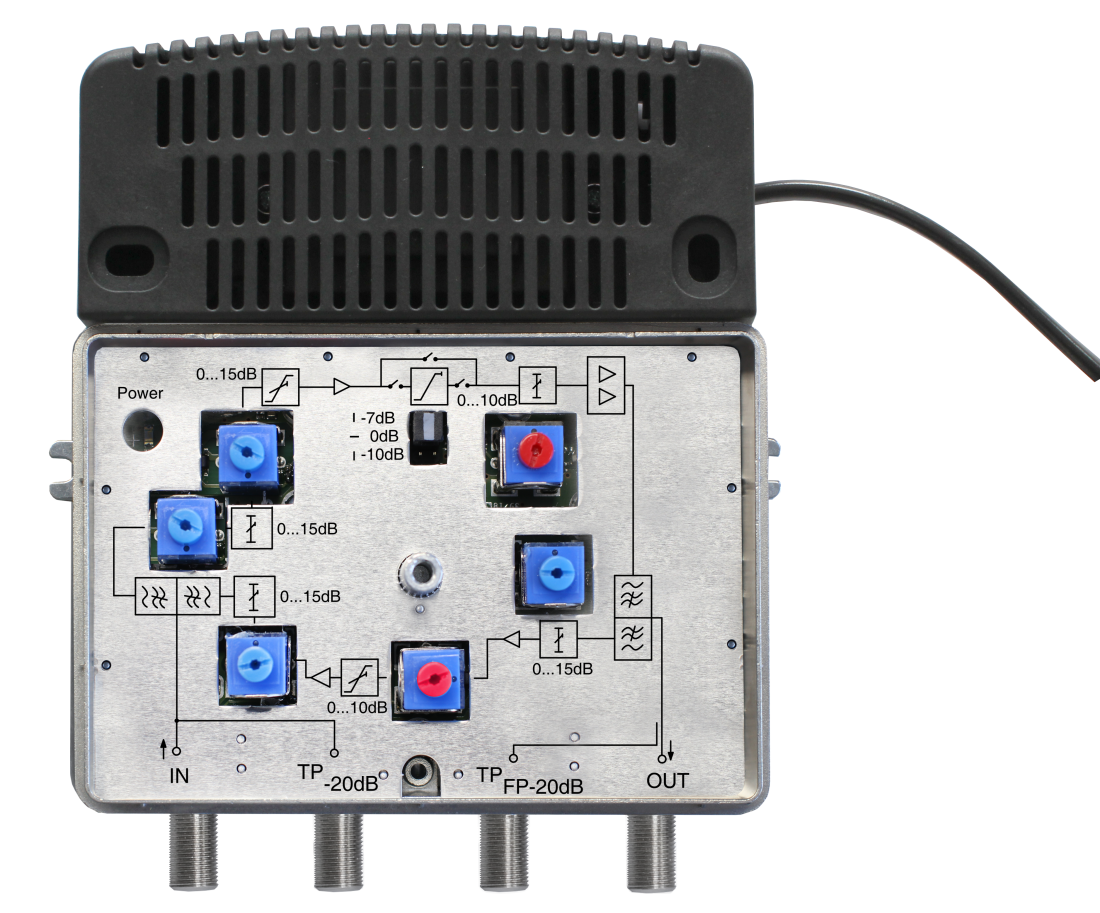

Universal broadband amplifier

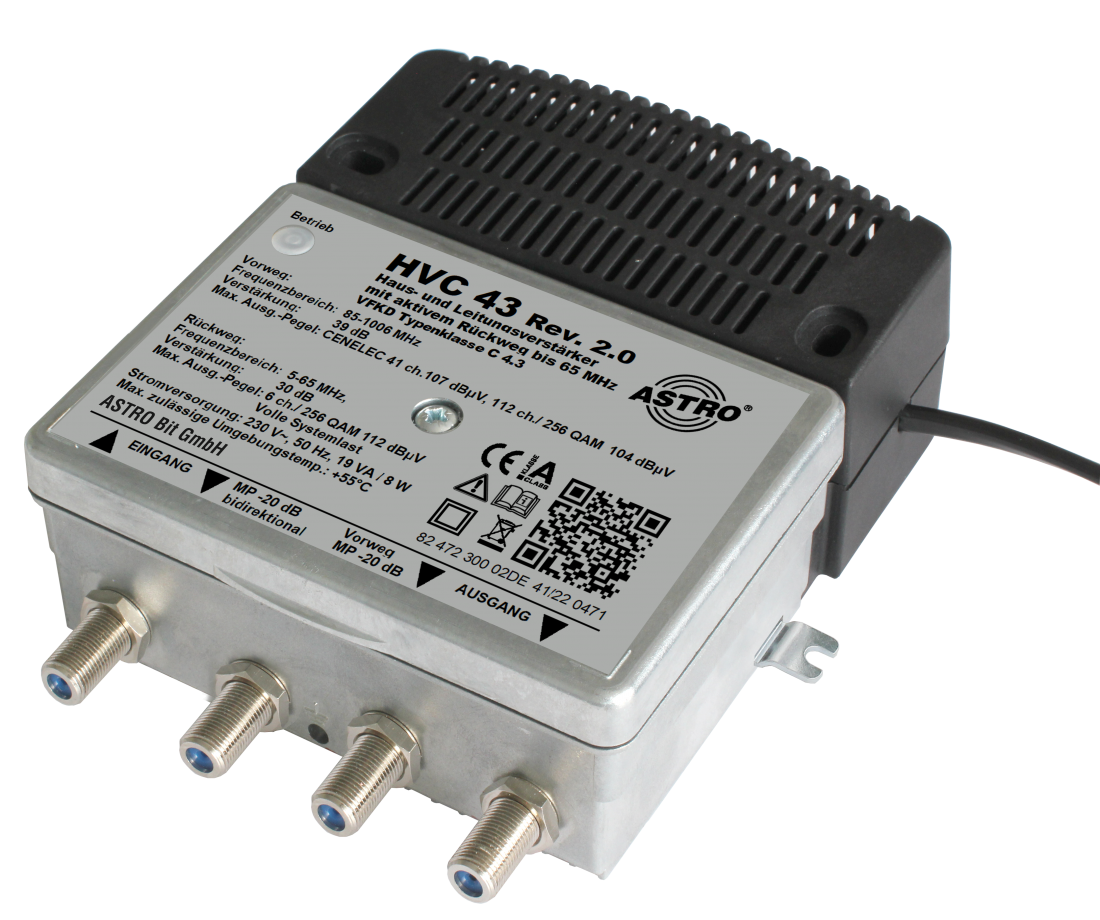

Universal broadband amplifier - Image 2

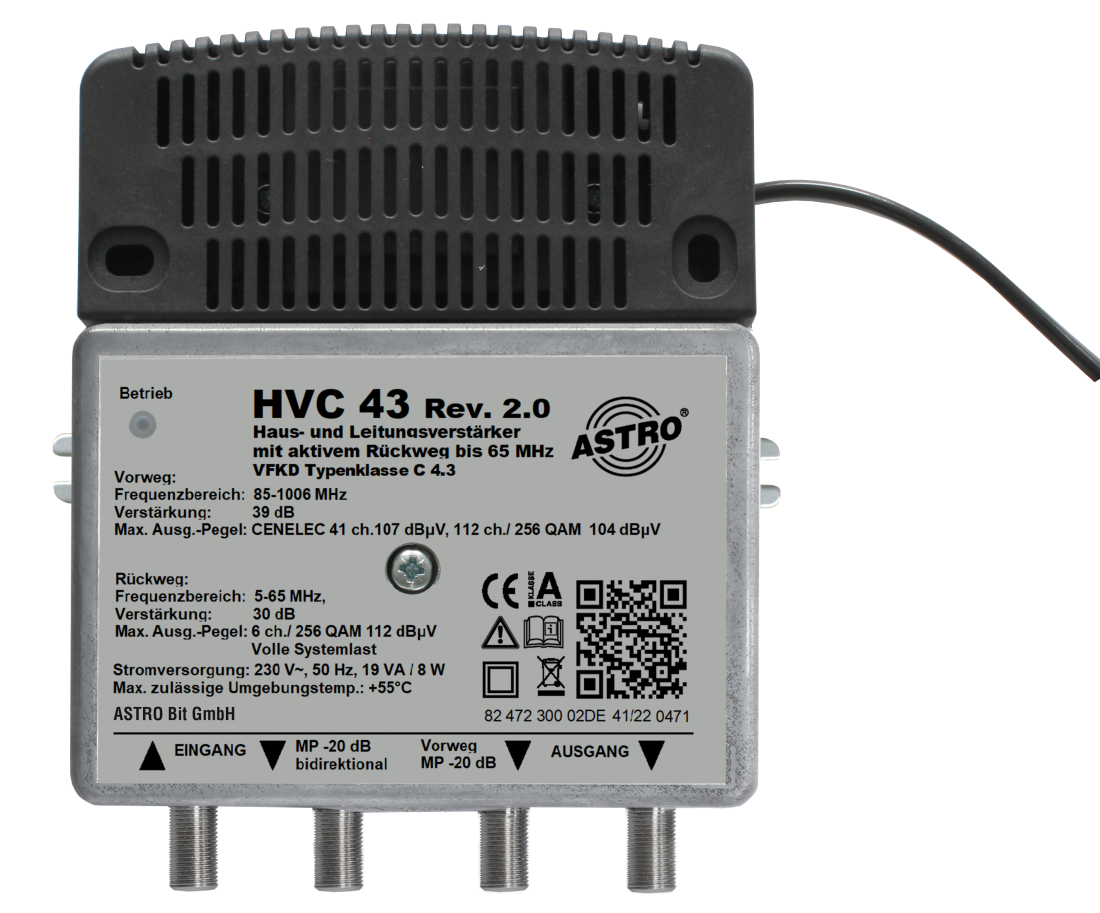

Universal broadband amplifier - Image 3

Universal broadband amplifier

Login to see prices

with 65 MHz return path

HVC 43

Specification

Device type

Compact
Power supply

Local
Frequency range

up to 1006 MHz
Forward path gain

>39 dB
Approval by network operator

Vodafone GmbH
Order number

00217356

EAN-Code

4026187196899

Product Details
  • Broadband amplifier with 65 MHz return path
  • In advance up to 1006 MHz
  • Pre-amplification 40 dB
  • Output level advance 107 dBµV
  • Interstage-Slope 0/7/10 dB pluggable in advance
  • Interstage attenuation 0-10 dB in advance
  • gain return path 30 dB
  • Output level return path 112 dBµV (6 Ch. 256 QAM / 8 MHz)
  • Attenuator control Pre-way 0-15 dB
  • Equalizer Pre-Ahead 0 - 15 dB
  • Attenuator return path 0 - 15 dB (each in input and output)
  • Equalizer return path 0 - 10 dB
  • Measuring points in input and output, 4 x F-connection sockets
  • Vodafone GmbH certified, type class C(4.3)
