Broadband amplifier remote powered

Broadband amplifier remote powered

Login to see prices

with 65 MHz return path

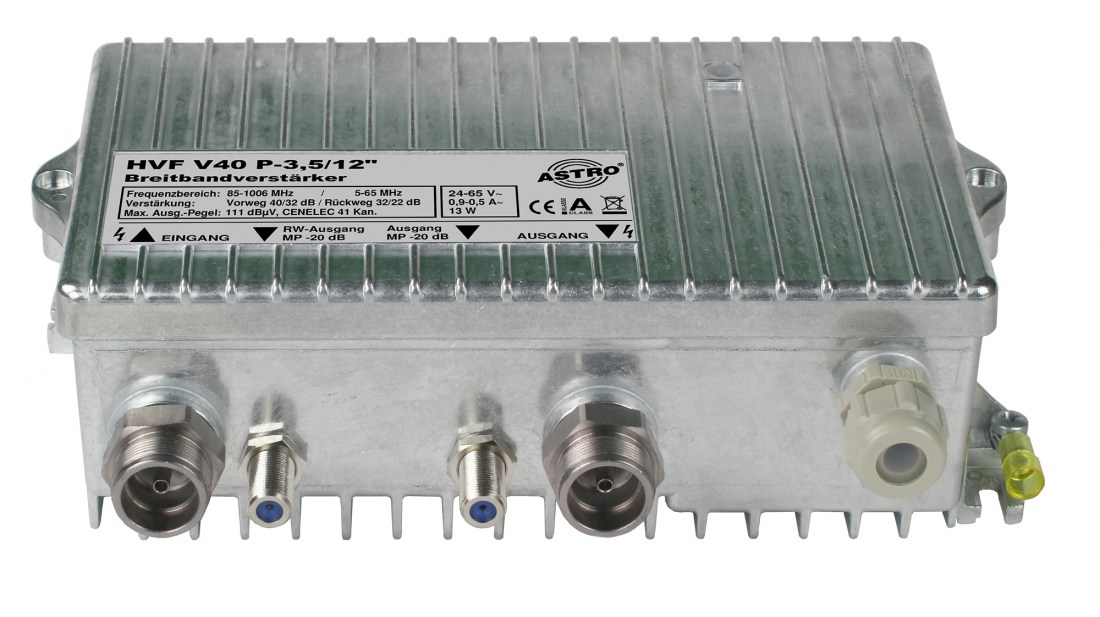

HVF V40 P 3,5/12"-F

Specification

Device type

Compact
Power supply

Remote
Frequency range

up to 1006 MHz
Forward path gain

>39 dB
Order number

00217411

EAN-Code

4026187191962

Product Details
  • Broadband amplifier with 65 MHz return path
  • remotely fed
  • Advance to 1006 MHz
  • Pre-gain 40 / 32 dB
  • Output level Pre-way 111 dBµV
  • Gain return path 32 / 22 dB
  • Output level return path 116 / 120 dBµV (2 / 3 transmitter)
  • various setting options using switches and pads for configuring the forward and return paths
  • Connections: 2 x 3.5/12"
  • 20 dB measuring points: 2 x F
Download Details

Product is combinable with

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring

Grounding bracket

ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations
