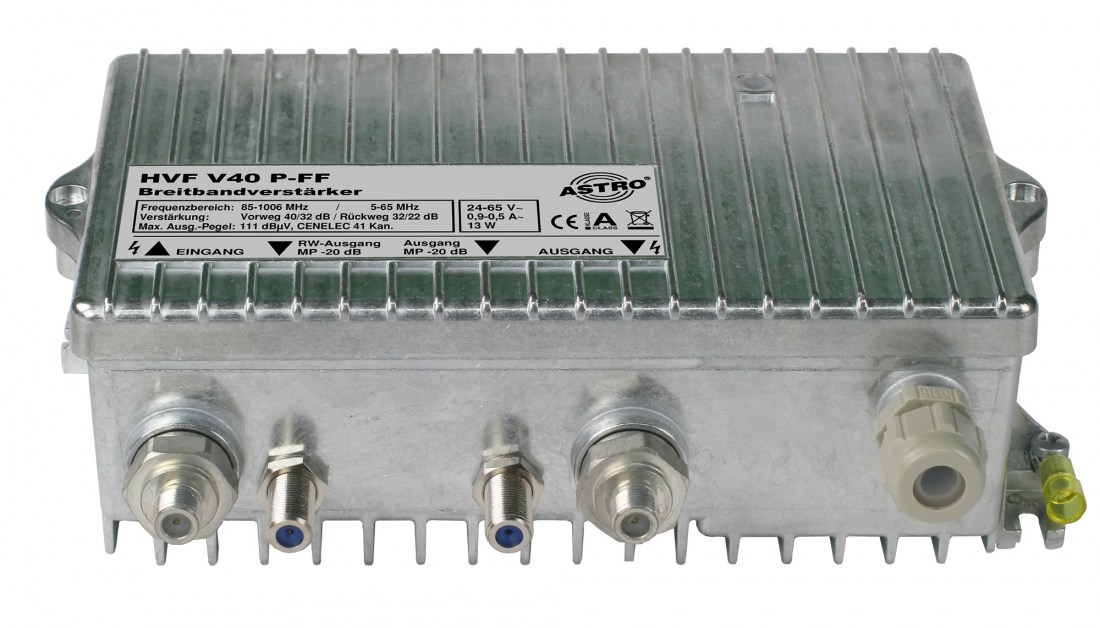

Remote feedable broadband amplifier

Remote feedable broadband amplifier

Login to see prices

with 65 MHz return path

HVF V40 P F-F

Specification

Device type

Compact
Power supply

Remote
Frequency range

up to 1006 MHz
Forward path gain

>39 dB
Order number

00217413

EAN-Code

4026187191993

Product Details
  • Broadband amplifier with 65 MHz return path
  • remotely powered
  • forward path up to 1006 MHz
  • gain forward 40 / 32 dB
  • output level forward path 111 dBµV
  • gain return path 32 / 22 dB
  • output level return path 116 / 120 dBµV (2 / 3 transmitters)
  • various setting options using switches and pads for configuring the forward and return paths
  • connections: 2 x F, 20 dB measuring points: 2 x F
Download Details

Product is combinable with

Grounding bracket

ESF 02
for connection of 2 coaxial cables and 1 earthing cable according to VDE regulations

House installation cable for terrestrial, cable TV and SAT

CSA 9511A/100
100 m ring
