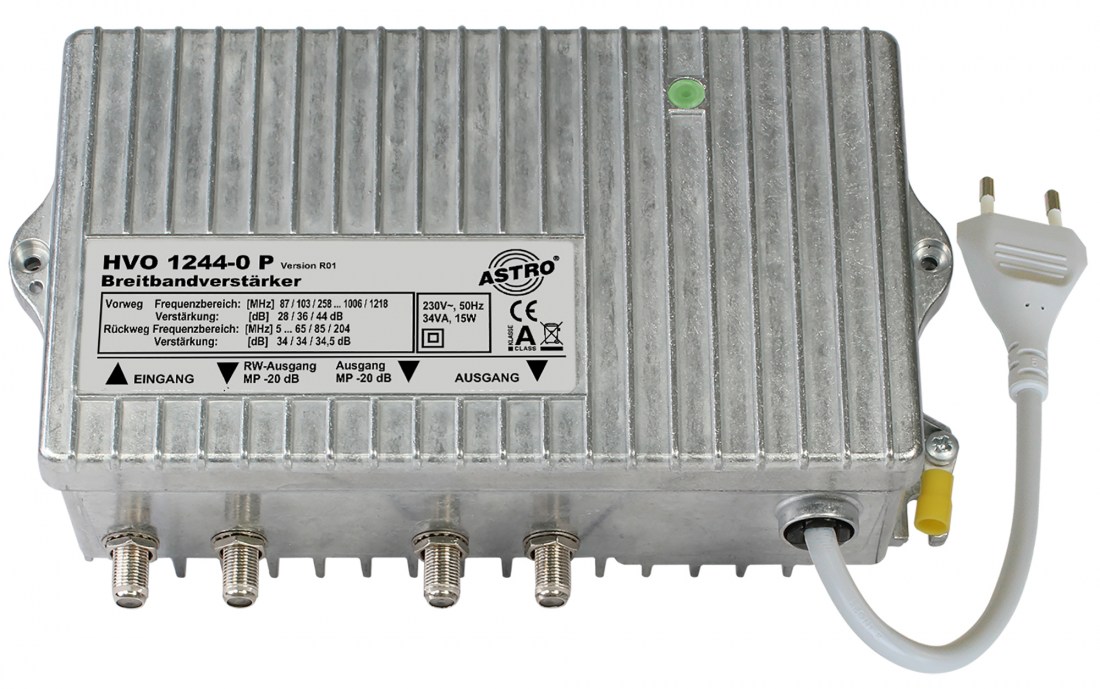

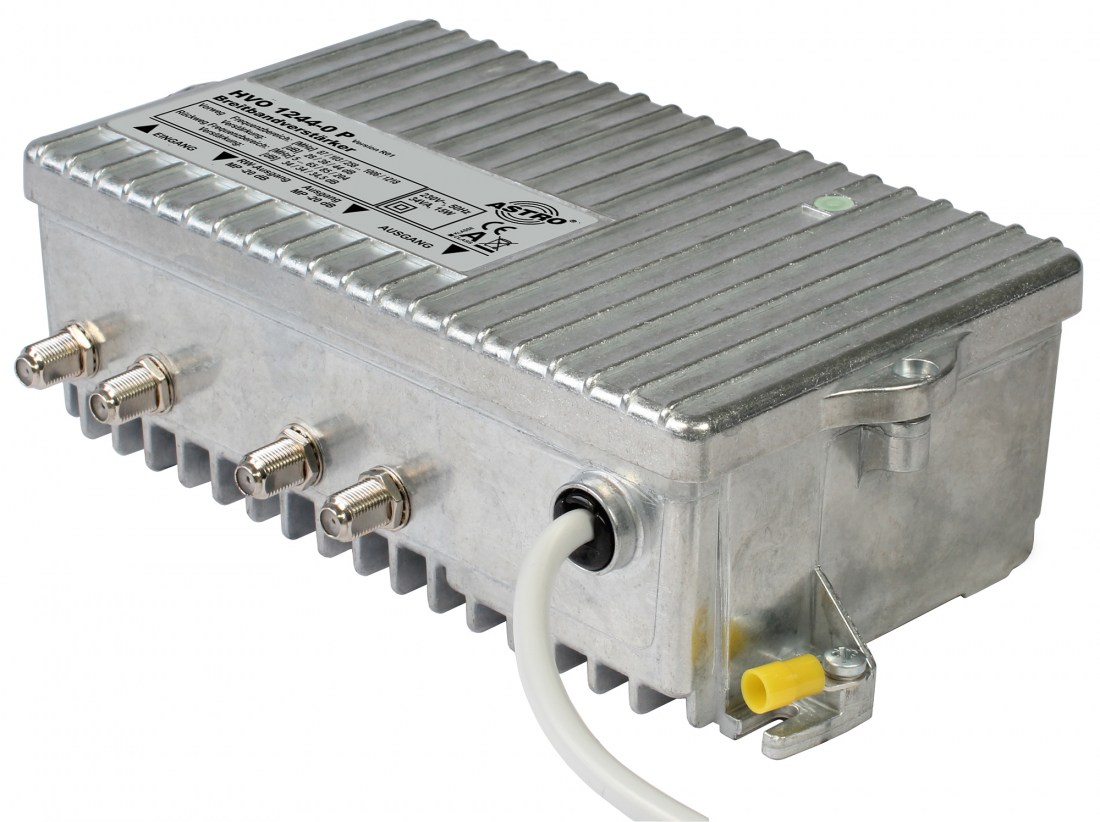

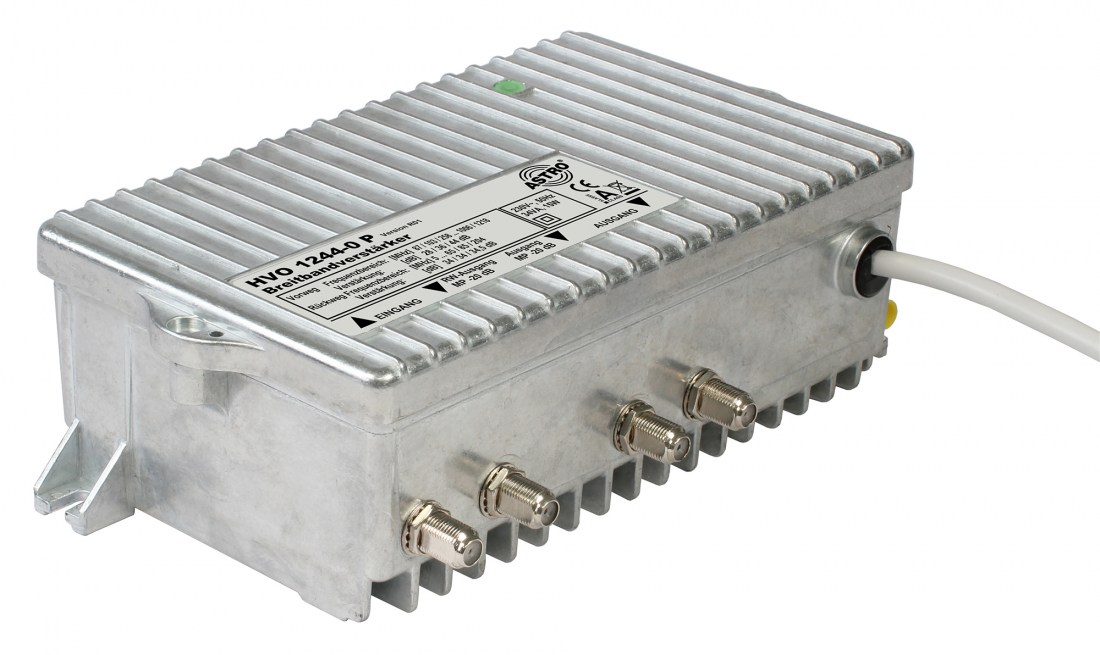

Modular DOCSIS 3.1 amplifier
with active return path
HVO 1244-0 P
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1218 MHz |
| Forward path gain | >39 dB |
| Order number | 00217127 |
|---|---|
| EAN-Code | 4026187270698 |
Product Details

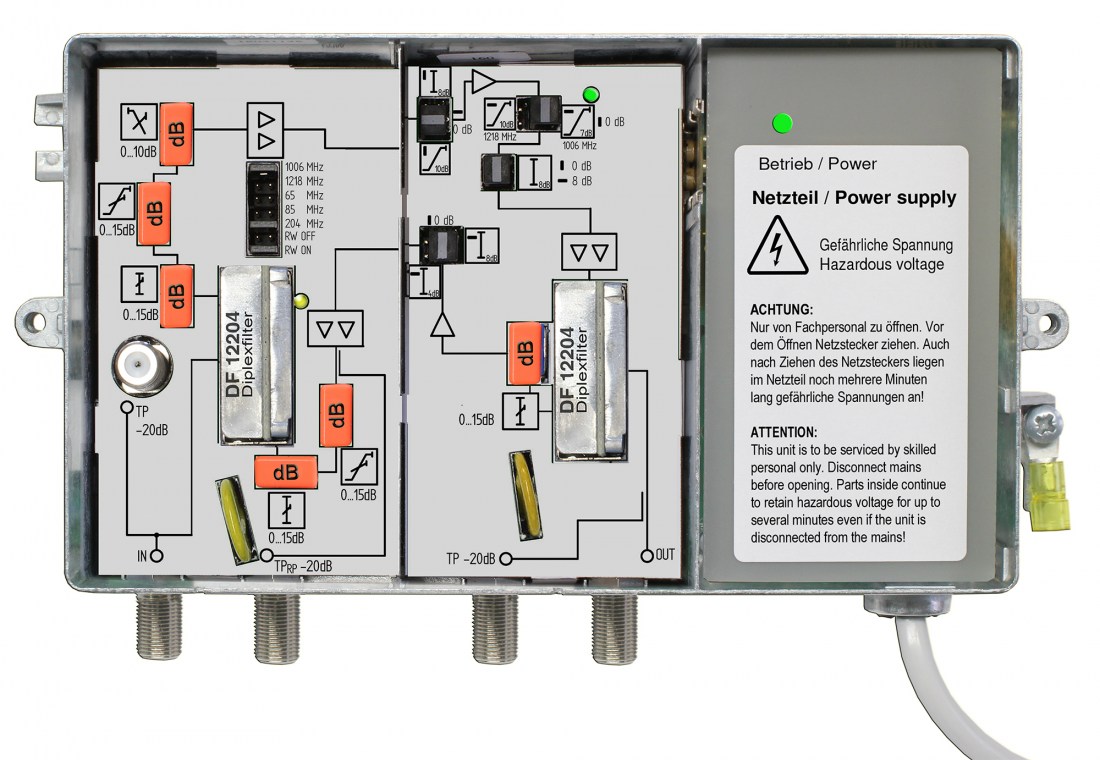

- Broadband amplifier with active return path
- high output level at high C/N by push-pull
- Diplex filter pluggable as required
- Return path amplifier on-board
- 28 / 36 / 44 dB gain in the downstream (pluggable via jumper)
- Gain in upstream, depending on configuration 26 / 30 / 34 dB
- Interstage attenuation in forward and return path
- Configuration via jumpers and pads
- Test points in input and output
- Downstream up to 1218 MHz
- Output level downstream max. 112 dBµV depending on configuration
- Output level upstream depending on configuration up to 113 dBµV
Download Details
-
Anelitung HVO 1244-0 P DE pdf · 2mb
-
Blockschaltbild HVO 1244-0 P pdf · 2mb
-
Datenblatt HVO 1244-0 P DE pdf · 2mb
