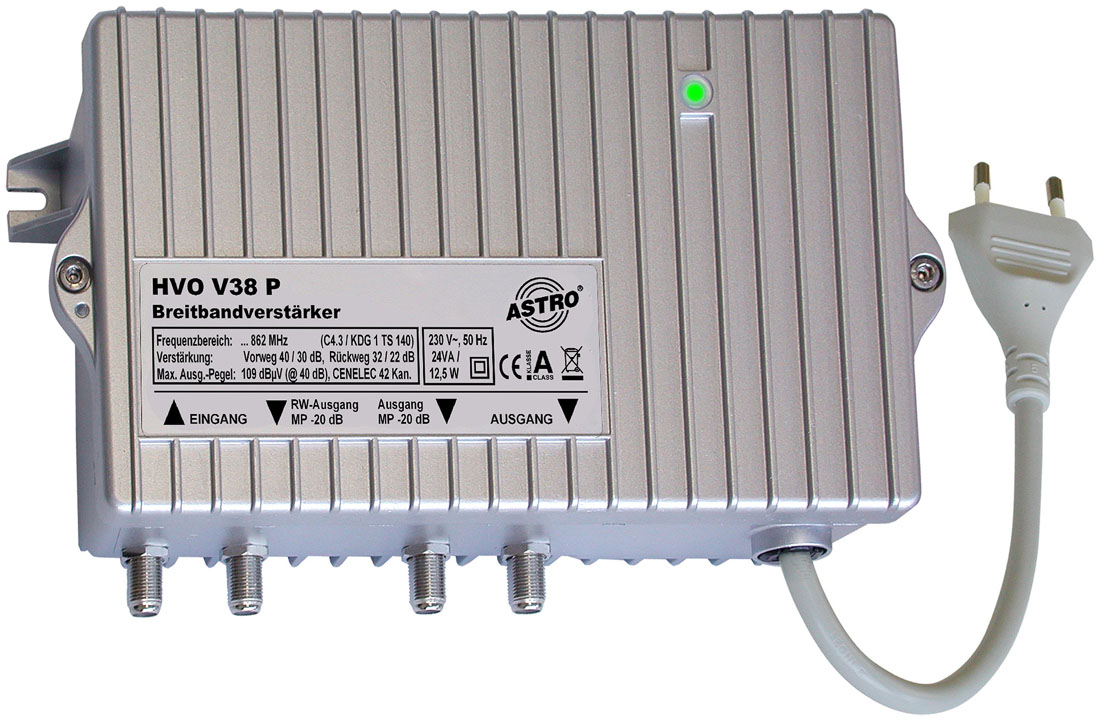

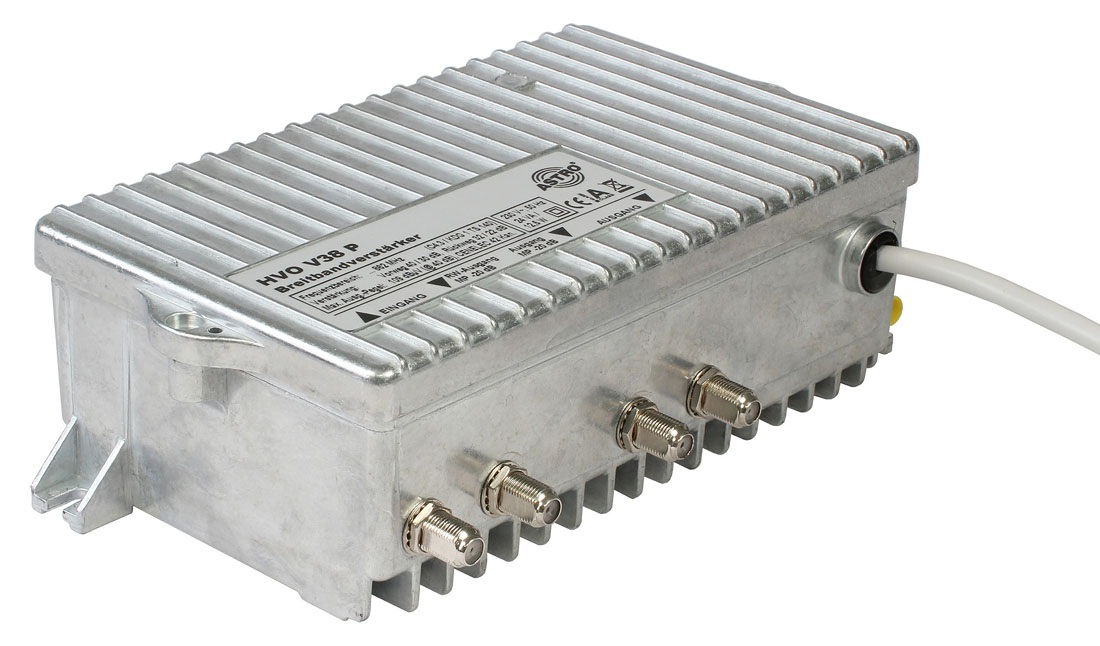

Broadband amplifier

HVO V38 P

Order number	00217390
EAN-Code	4026187140373

No longer available

Product Details

Broadband amplifier with 65 MHz return path
High output level with high C/N thanks to push-pull

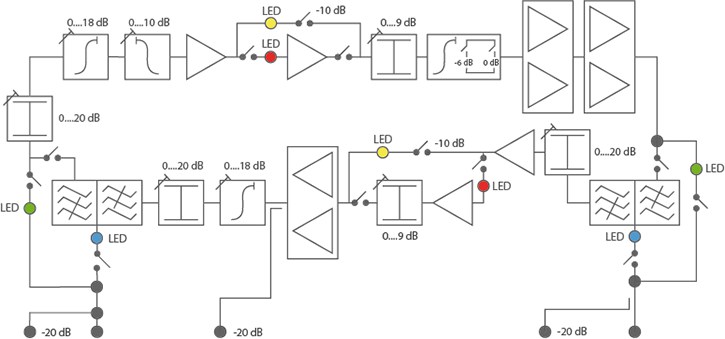

Diplexer and return path amplifier on-board
40/30 dB gain in forward path, switchable
32/22 dB gain in return path, switchable via jumper
Switched signal paths are indicated by LEDs
Measuring points in input and output

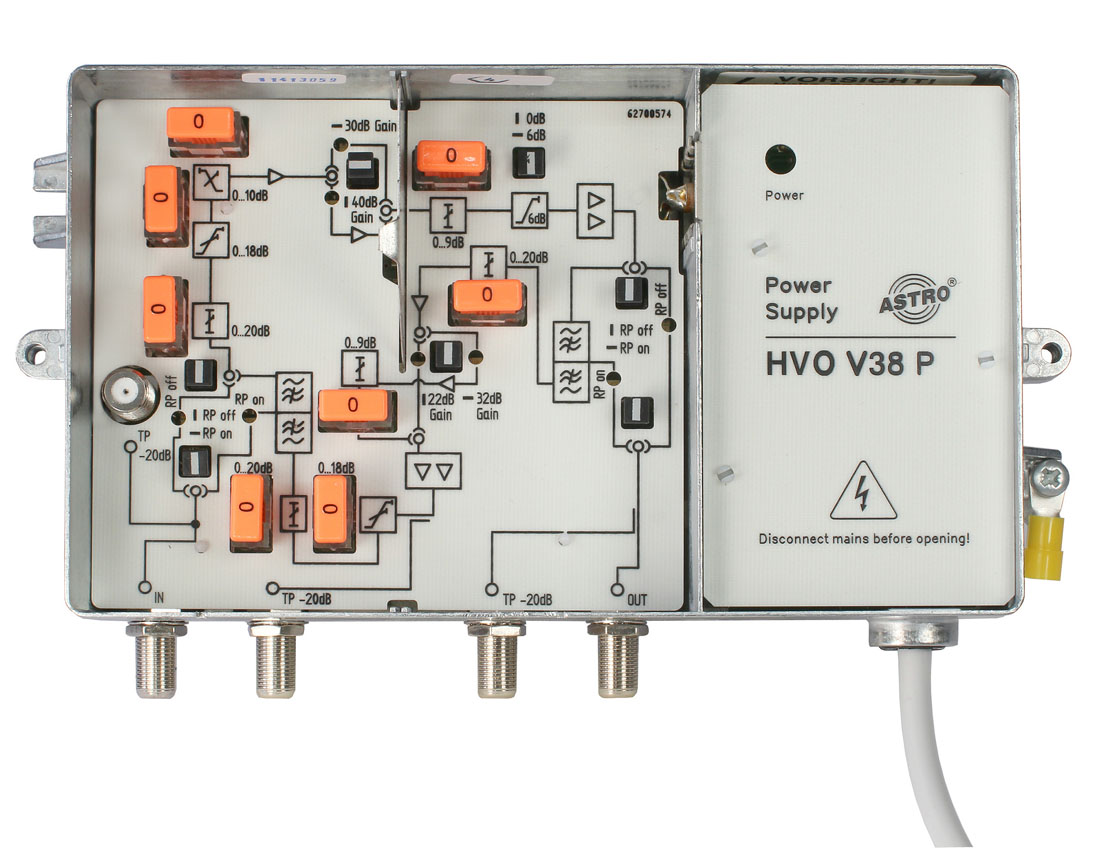

Configuration via jumpers and pads
Forward path up to 862 MHz
Forward output level 111 dBµV
Return output level 112 / 117 dBµV (2 / 3 transmitters)
Option of band 1 pass-through (from 47 MHz without return path or with return path up to 65 MHz and forward path from 80 MHz)
