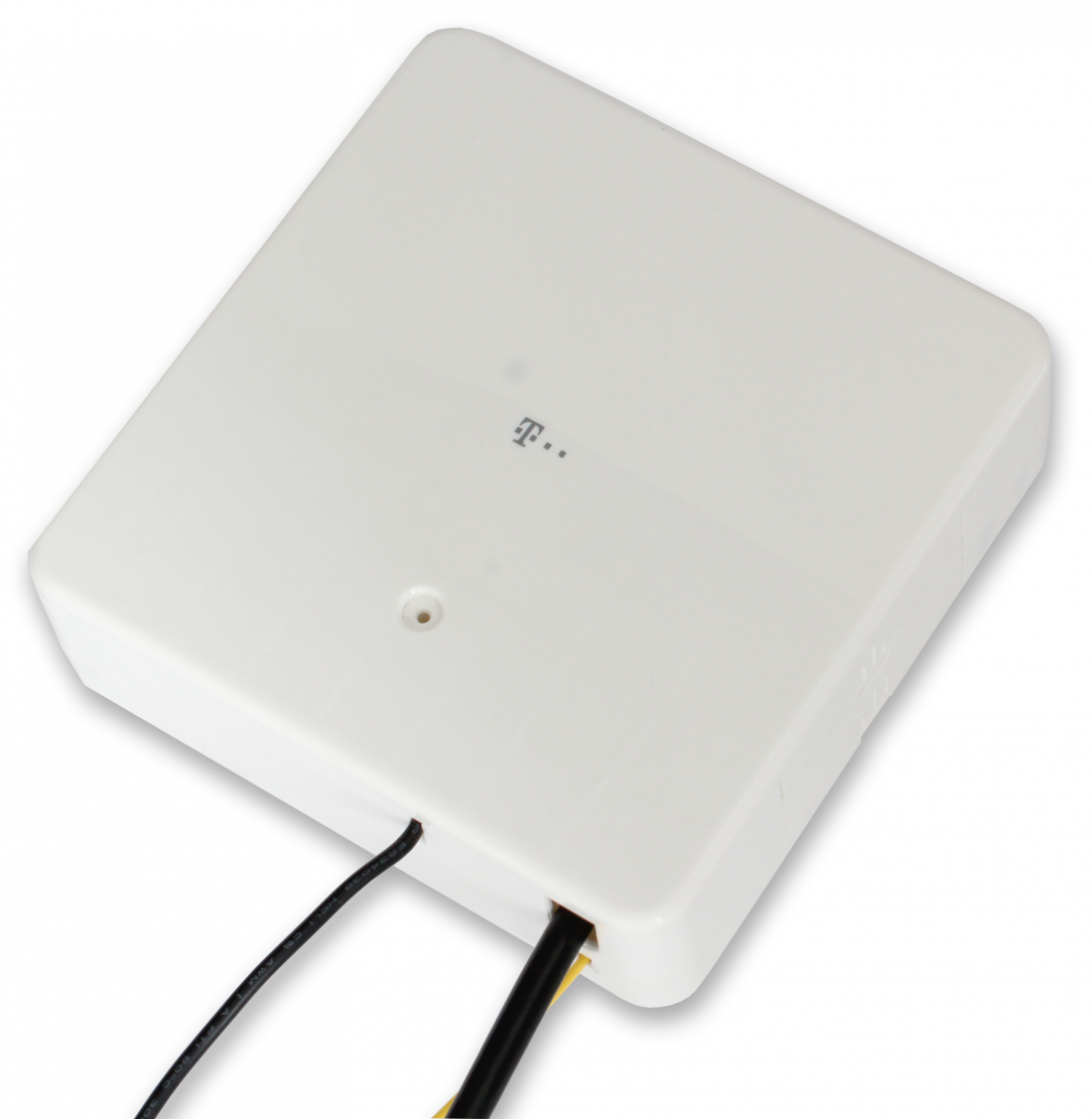

Mini Fibre Node

Mini Fibre Node

extended optical input range for AGC

MFN-TA

Specification

Type

Micro Node
Order number

00212162

EAN-Code

4026187194765

On request
Product Details
  • Optical forward path mini fibre node for CATV
  • extended optical input range for AGC -12 dBm to 0 dBm
  • Block filter (pass 1540 - 1560 nm)
  • RF frequency range 45 - 1006 MHz
  • external power supply unit with +12 VDC
  • low power consumption
Download Details
