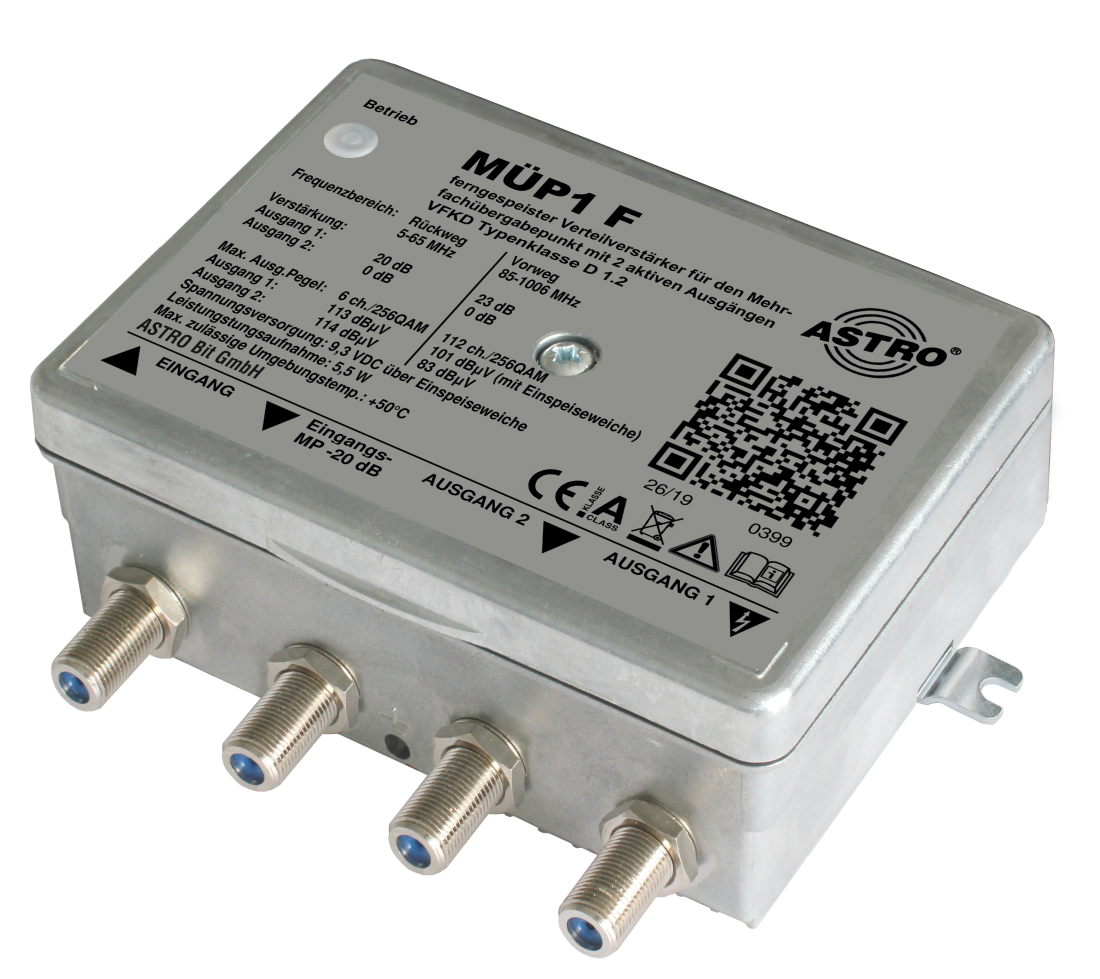

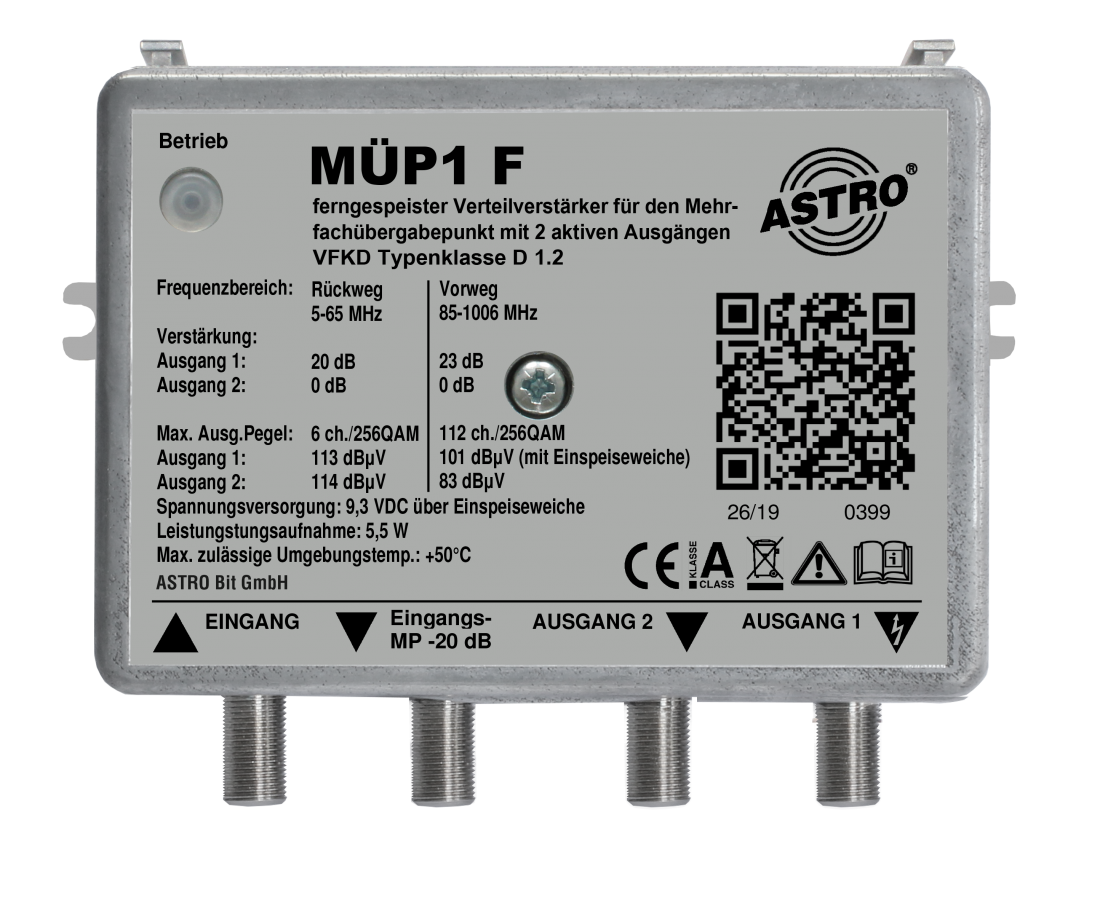

Universal broadband amplifier remotely fed

with active 65 MHz return path

MÜP1 F

Device type	Compact
Power supply	Remote
Frequency range	up to 1006 MHz
Forward path gain	20-24 dB
Approval by network operator	Vodafone GmbH

Order number	00217018
EAN-Code	4026187195052

Product Details

remotely fed media transfer point with active 65 MHz return path
high modulation of the return path for operational reliability even with multi-channel load

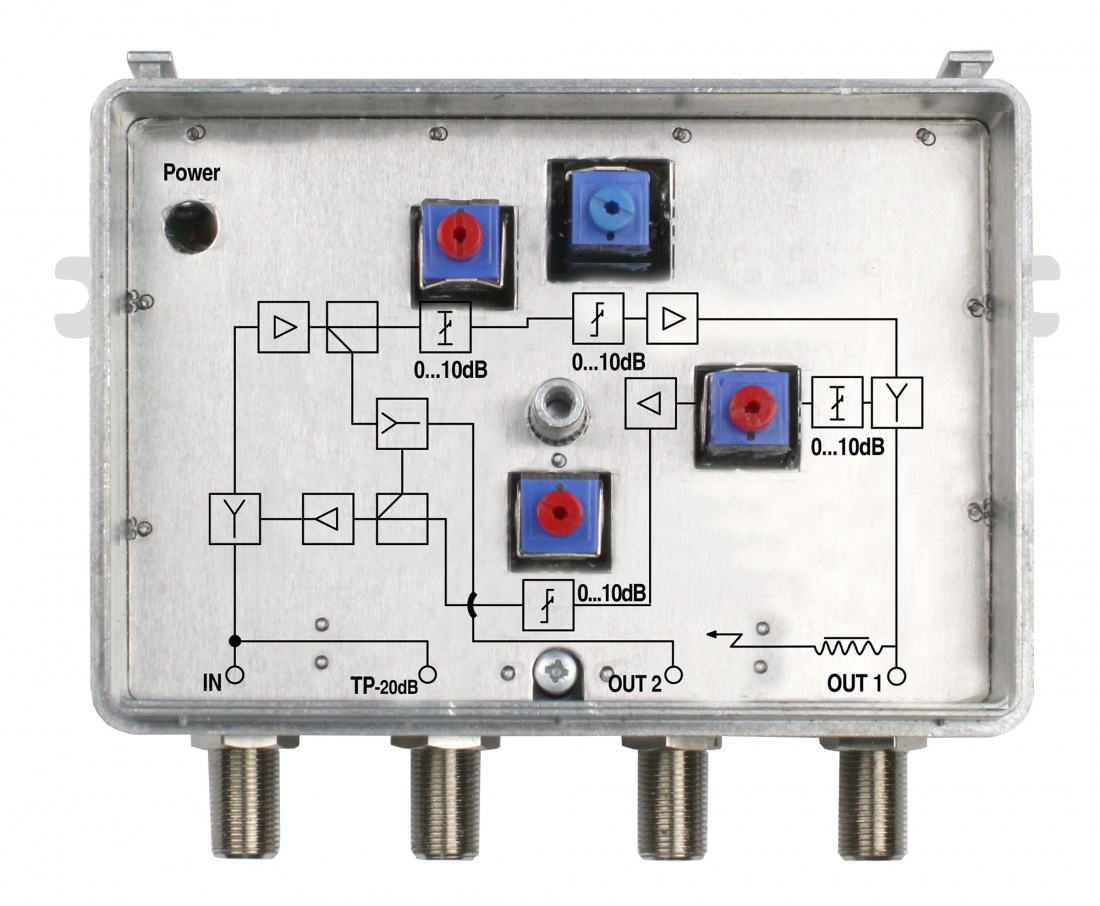

Input attenuation via level control
Equalizer in input adjustable via level control
Damping in the return path adjustable via level control
Measuring points in input and output
Pre-gain 23 dB (output 1 or 0 dB (output 2)
Output level Pre-way 104 dBµV
Return path gain 20 dB (output 1) or 0 dB (output 2)
Output level return path 114 dBµV (7 carriers in RW each 6 MHz / 64 QAM)
20 dB Measuring points in input and output

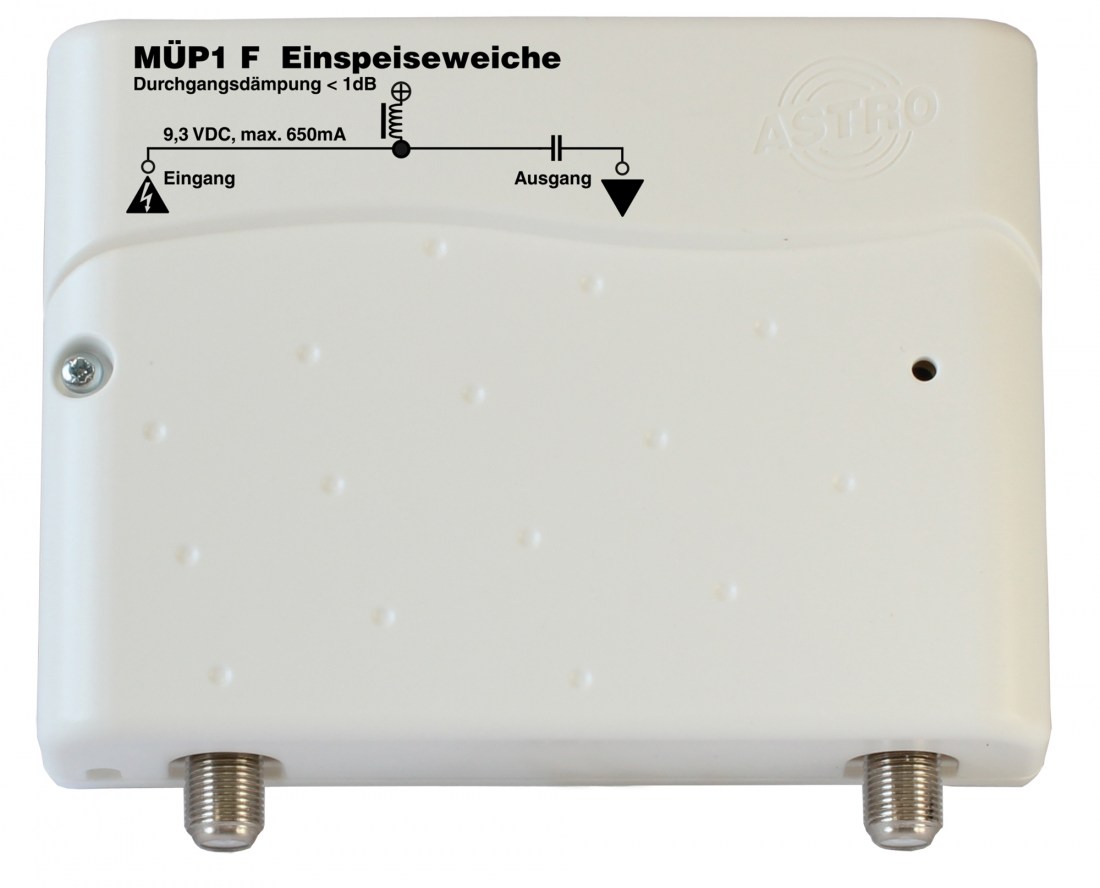

inclusive feed-in switch
Vodafone GmbH certified, type class D(1.2)
