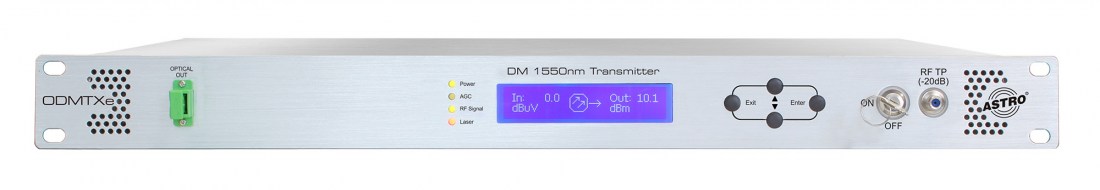

Directly modulated transmitter

Directly modulated transmitter

Login to see prices

1550 nm, 1 x 10 dBm

ODMTXe-1550-10 AC

Specification

Modulation type

Direct modulated
Wavelength

1550 nm
Output power

10 dBm
Number of optical outputs

1
Order number

00212055

EAN-Code

4026187195953

Product Details
  • Directly modulated optical transmitter
  • 1550 nm, 1 x 10 dBm
  • up to 1218 MHz, suitable for DOCSIS 3.1
  • optical connectors: SC/APC
  • RF input: F-female, test point -20dBm: F-female
  • 19" housing, one rack unit
  • redundant power supply (150 - 250 VAC)
Download Details

Product is combinable with

Compact optical CATV receiver

OFN80-FRL-1310-WF-04
1310 nm Upstream TX

Compact optical CATV receiver

OFN80-FRL-1610-1F-85
1610 nm upstream TX
