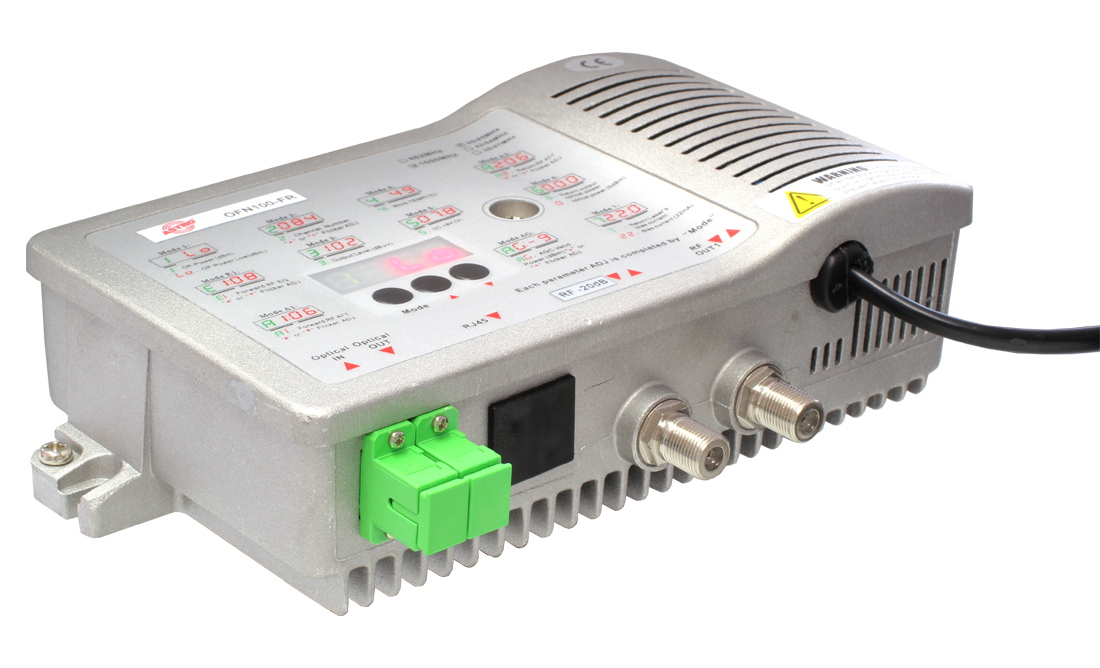

Optical CATV Node

Login to see prices

Downstream reception of CATV signals

OFN100-FR-1310

Specification

Type

Mini Node
Order number

00212119

EAN-Code

4026187192969

Product Details
  • FTTB/FTTC optical Node
  • Downstream reception of CATV signals
  • integrated 0 dBm / 1310 nm upstream transmitter
  • optical input power -9 ... +2 dBm
  • nominal output level >102 dBµV (@ OMI 3,5%)
  • electronically adjustable attenuation and equalizer
  • RF frequency range 5-65 MHz / 87-1006 MHz
  • operational voltage 150 - 265 VAC
  • optical connectors SC/APC
Download Details

Product is combinable with

Optical return path receiver

ORRX AC
4 ports, for termination of optical return path signals
