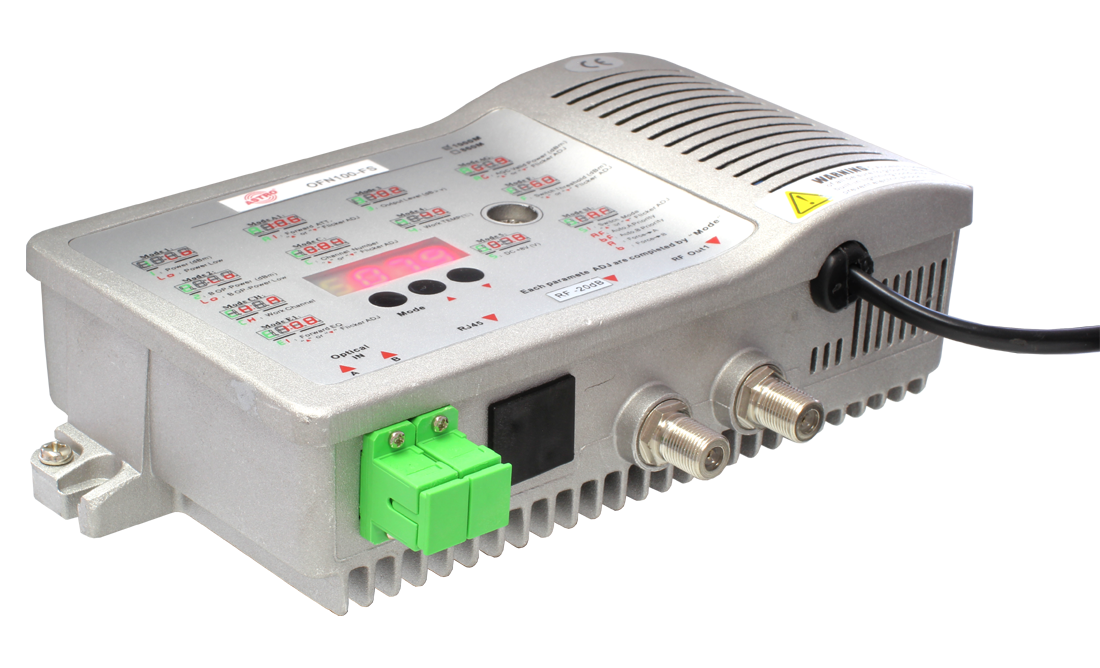

Optical CATV Node with redundant Forward path
Optical CATV Node with redundant Forward path - Image 2

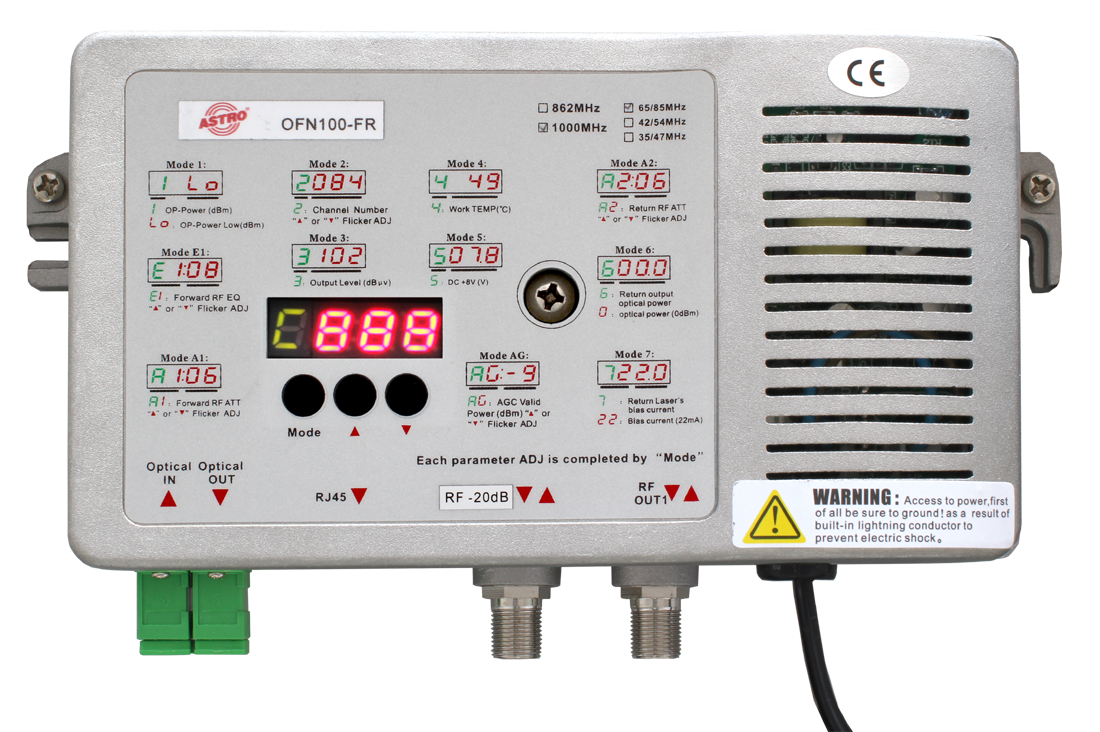

Optical CATV Node with redundant Forward path - Image 3

Optical CATV Node with redundant Forward path

Login to see prices

Forward path reception of CATV signals

OFN100-FS

Specification

Type

Redundant Node
Order number

00212118

EAN-Code

4026187192952

Product Details
  • Node for Deep-Fibre CATV, HFC and FTTH networks
  • Forward path reception of CATV signals
  • redundant optical forward path with RF switch
  • AGC for optical input signals
  • 15 dB electronic attenuator for RF level
  • integrated power supply
  • SC/APC connector
  • optical wavelength CATV: 1530…1610 nm
Download Details

Product is combinable with

Externally modulated optical transmitter

OEMTX-1550-07 AC
1550 nm, 2 x 7 dBm

Directly modulated optical transmitter

ODMTX-1310-13 AC
1310 nm, 1 x 13 dBm
