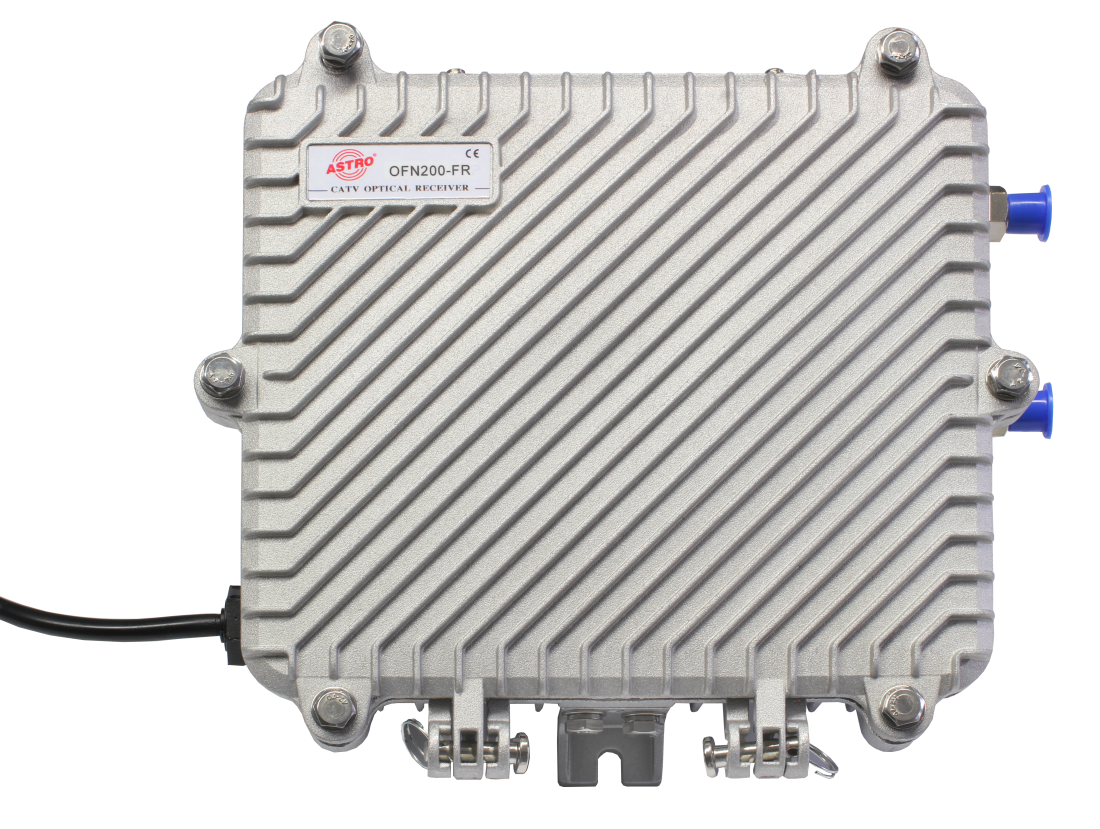

Modular optical CATV Node
Modular optical CATV Node - Image 2

Modular optical CATV Node

Login to see prices

Downstream reception of CATV signals

OFN200-FR-1610 AC

Specification

Type

Modular Node
Order number

00212133

EAN-Code

4026187193706

Product Details
  • FTTB/FTTC optical Node
  • Downstream reception of CATV signals
  • integrated 3 dBm / 1610 nm upstream transmitter
  • optical input power -7 ... +2 dBm
  • nominal output level >108 dBµV (@ OMI 3,5%)
  • electronically adjustable attenuation and equalizer
  • RF frequency range 5-65 MHz / 87-1006 MHz
  • operational voltage 150 - 265 VAC
  • optical connectors SC/APC
Download Details
