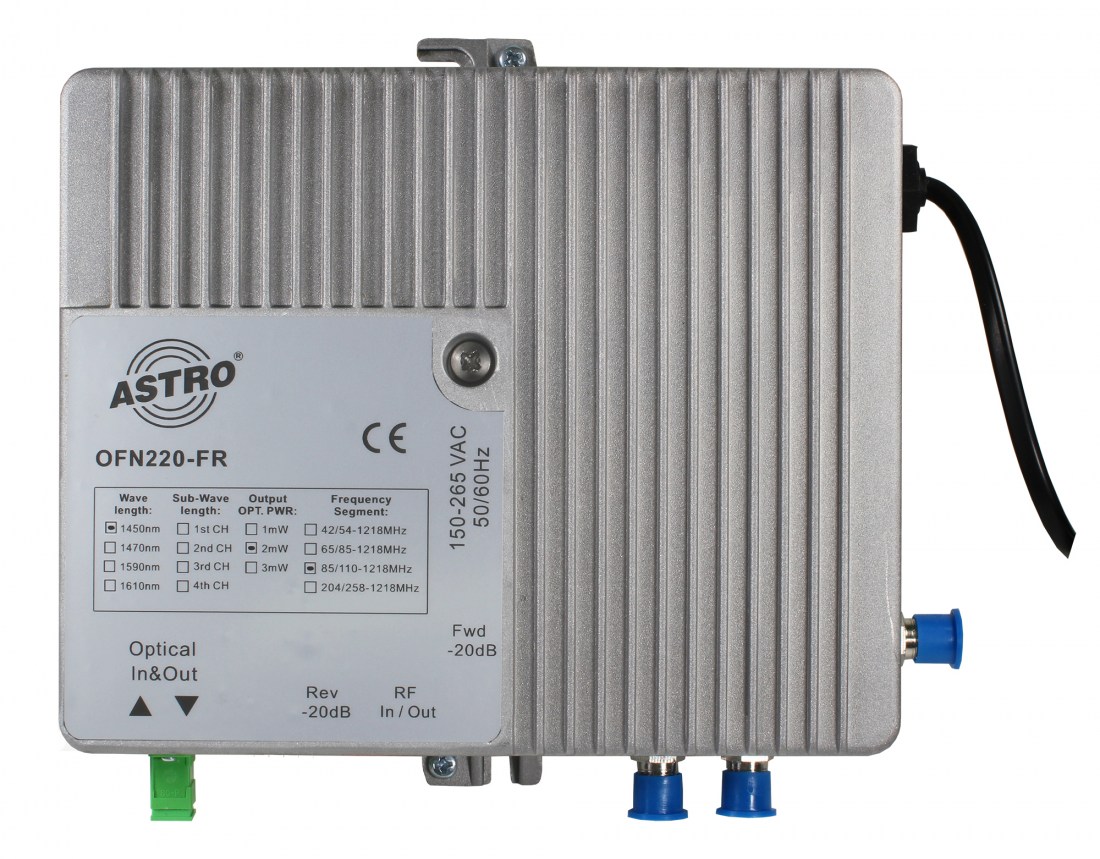

Modular optical CATV Node

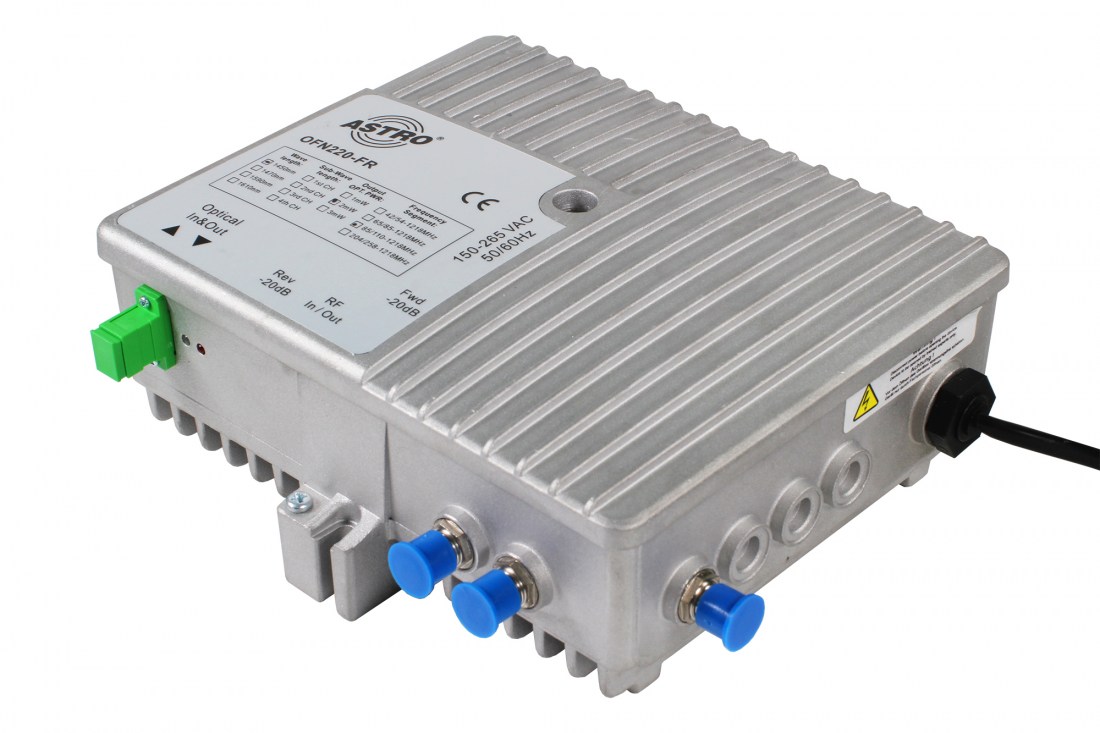

Modular optical CATV Node - Image 2

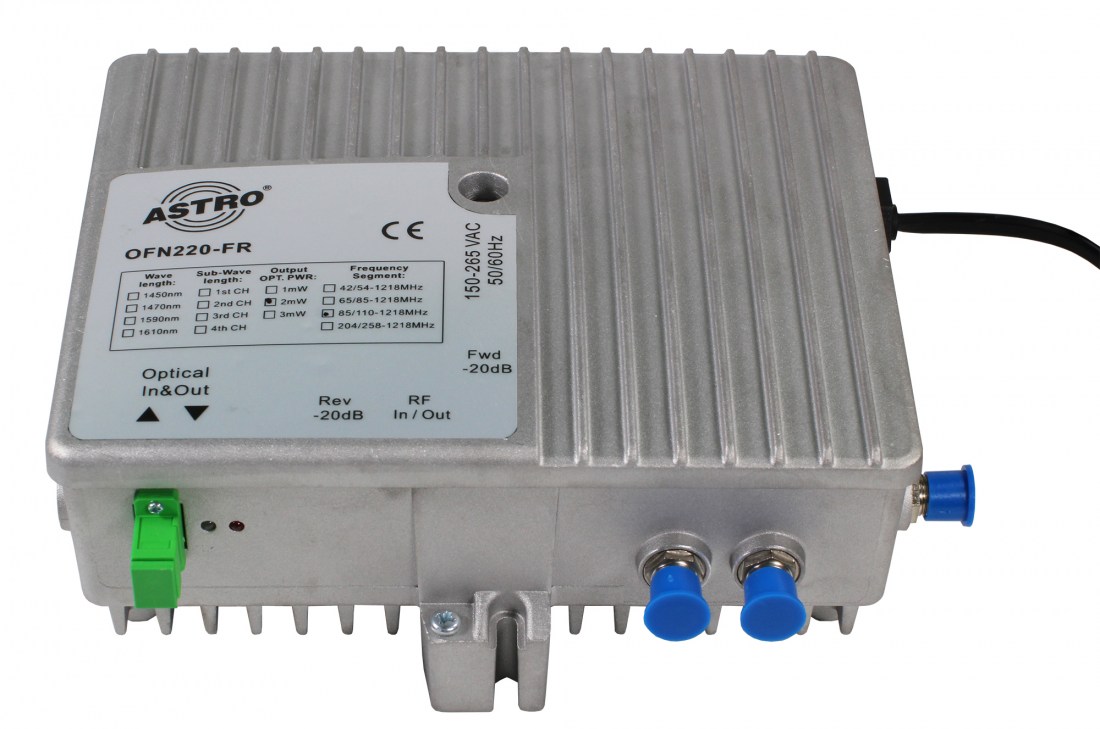

Modular optical CATV Node - Image 3

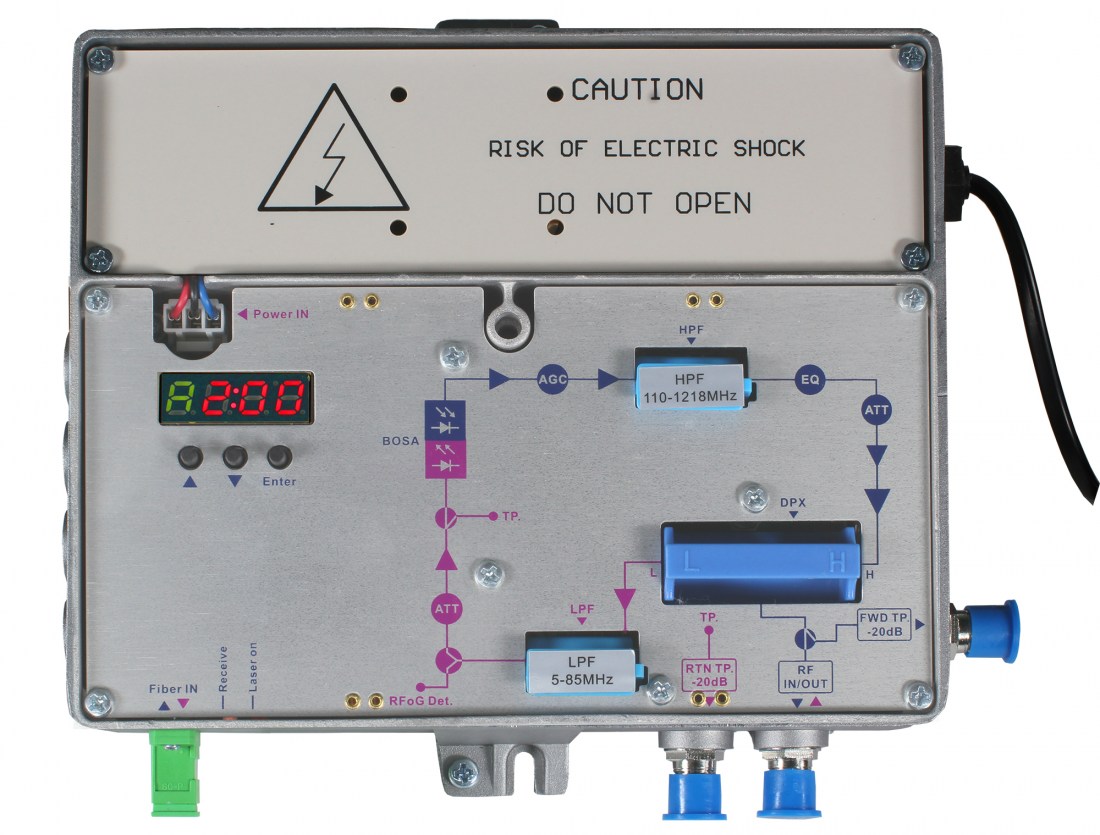

Modular optical CATV Node - Image 4

Modular optical CATV Node

Login to see prices

for Docsis 3.1 applications

OFN220-FR-1450-85 AC

Specification

Type

Modular Node
Order number

00212188

EAN-Code

4026187199197

Product Details
  • FTTB node for Docsis 3.1 applications
  • 1 Fibre
  • Forward RX 1540..1560 nm
  • 1x Return Path TX 1450 nm + 3 dBm
  • Return laser tunable to 4 channels
  • AGC
  • Optical In -8/-7/-6/-5 .. +0 dBm
  • 108 dBµV
  • EQ and ATT electronical setting
  • Forward path 110 MHz -1218 MHz
  • Return path 5 - 85 MHz
  • Optical Connector: 1x SC/APC
  • Mains Power 150 -250 VAC
Download Details

Product is combinable with

Directly modulated transmitter

ODMTXe-1550-10 AC
1550 nm, 1 x 10 dBm
