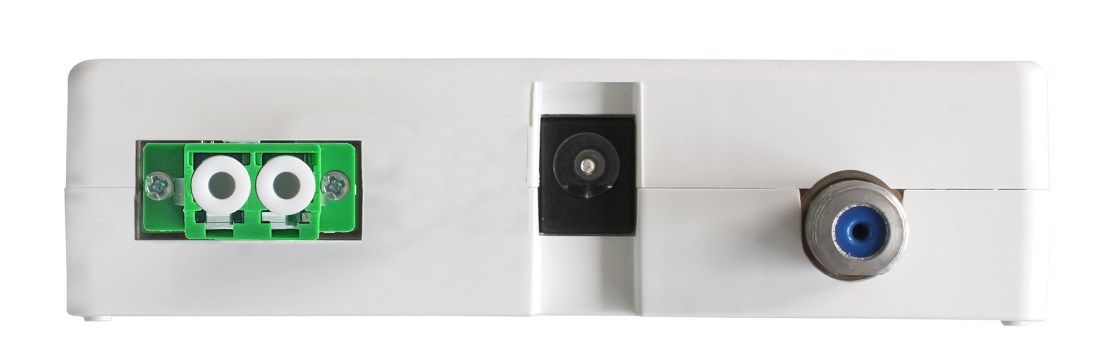

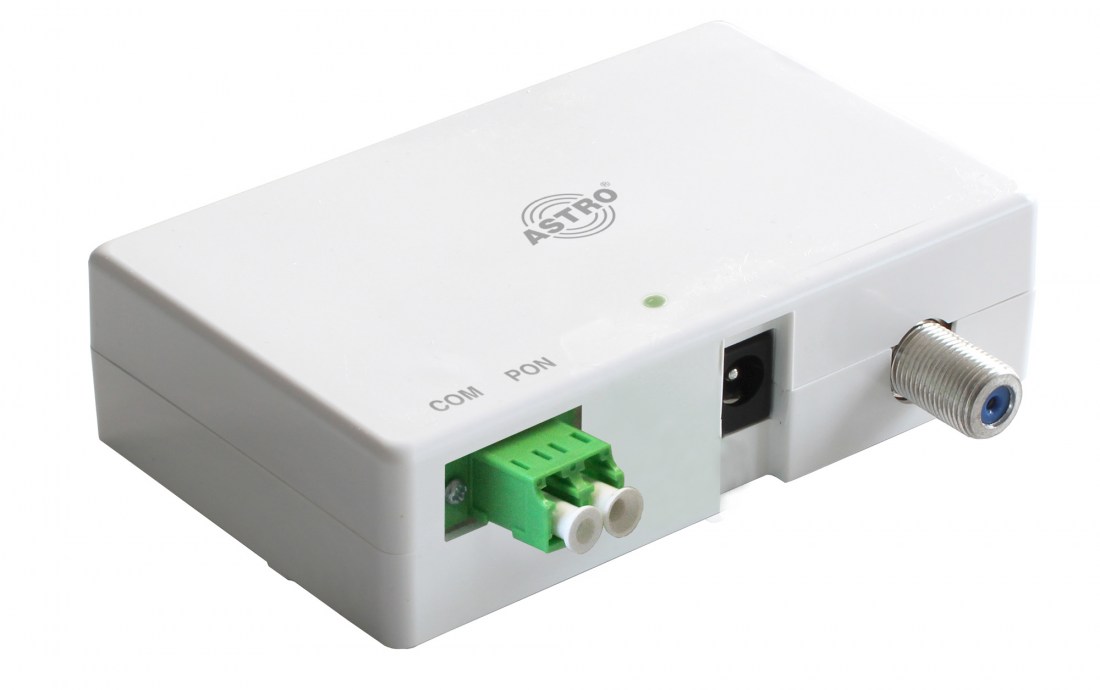

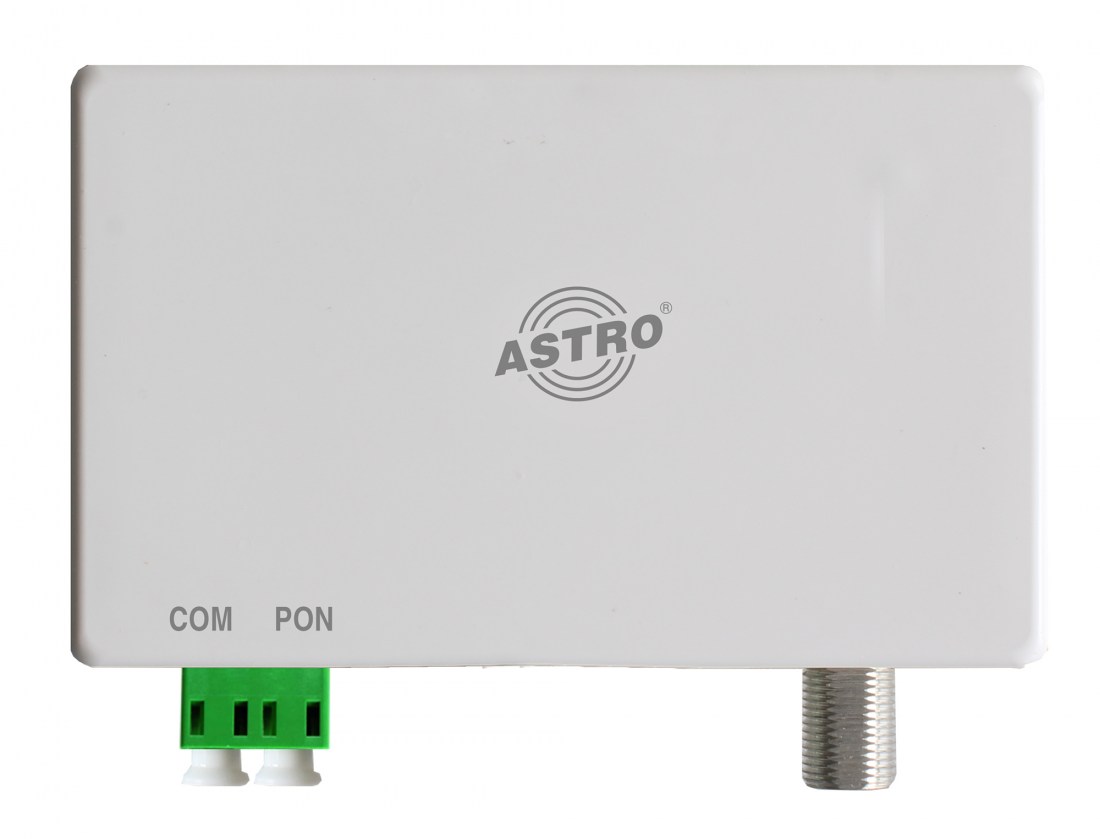

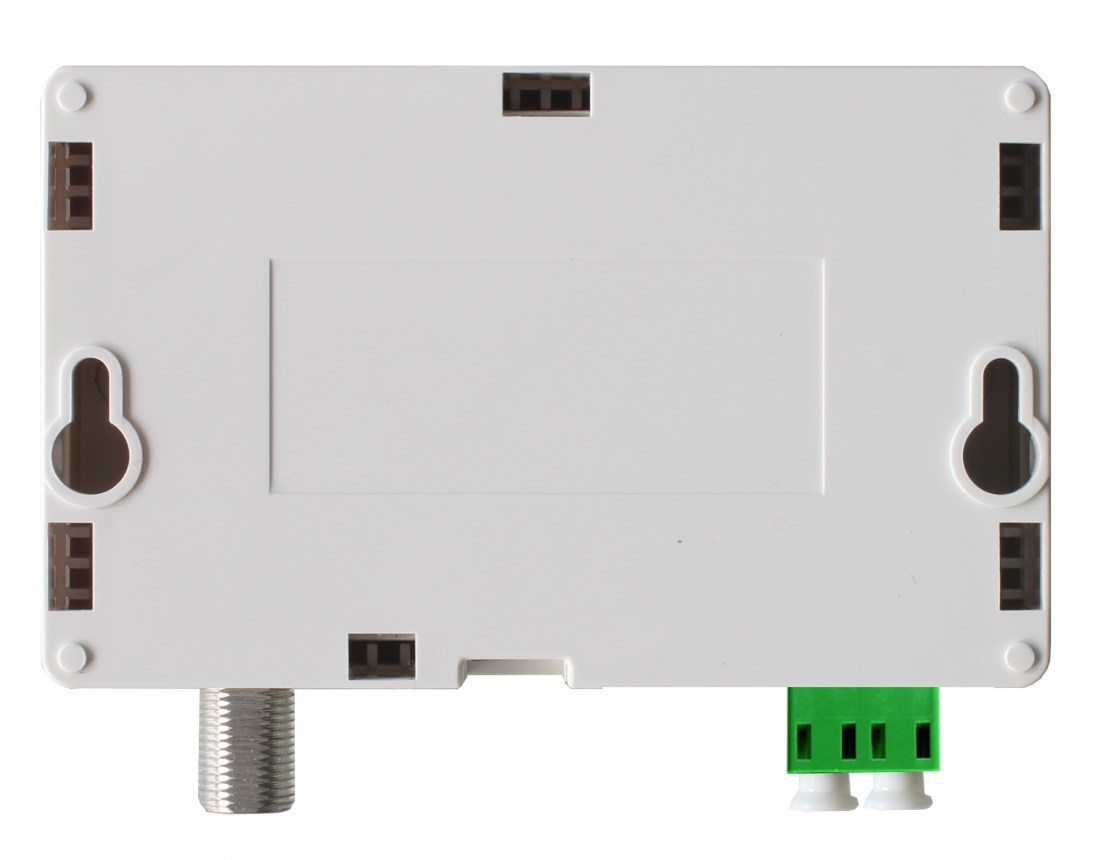

Compact optical CATV receiver

Forward path optical receiver for CATV

OFN45C-WD-ALC

Type	Micro Node

Order number	00212199
EAN-Code	4026187210939

Product Details

Forward path optical receiver for CATV with bypass port for GPON / XG(s)-PON / NG-PON2
reflectometer over second LC/APC loopthrough port
CATV wavelength (pass band): 1550 - 1560 nm
GPON / XG PON / XGS PON loop wavelength: 1260 - 1330 nm / 1480 - 1500 nm / 1524 - 1544 / 1575 - 1581 / 1596 - 1660 nm
RF frequency range 45 - 1218 MHz
RF Level: ≥ 76 dBµV with AGC control in range of optical input power of -8 dB- +2 dBm
Very high RF performance MER and BER
3 color LED indication for easy input power range detection
AC adapter plug in power supply 12 VDC / 0.5 A with ECO Certificate
6 KV surge protection / seperate fuse inside optical recveiver on DC port for maximum safety
Low power consumption ≤ 2W
Compact plastic housing
