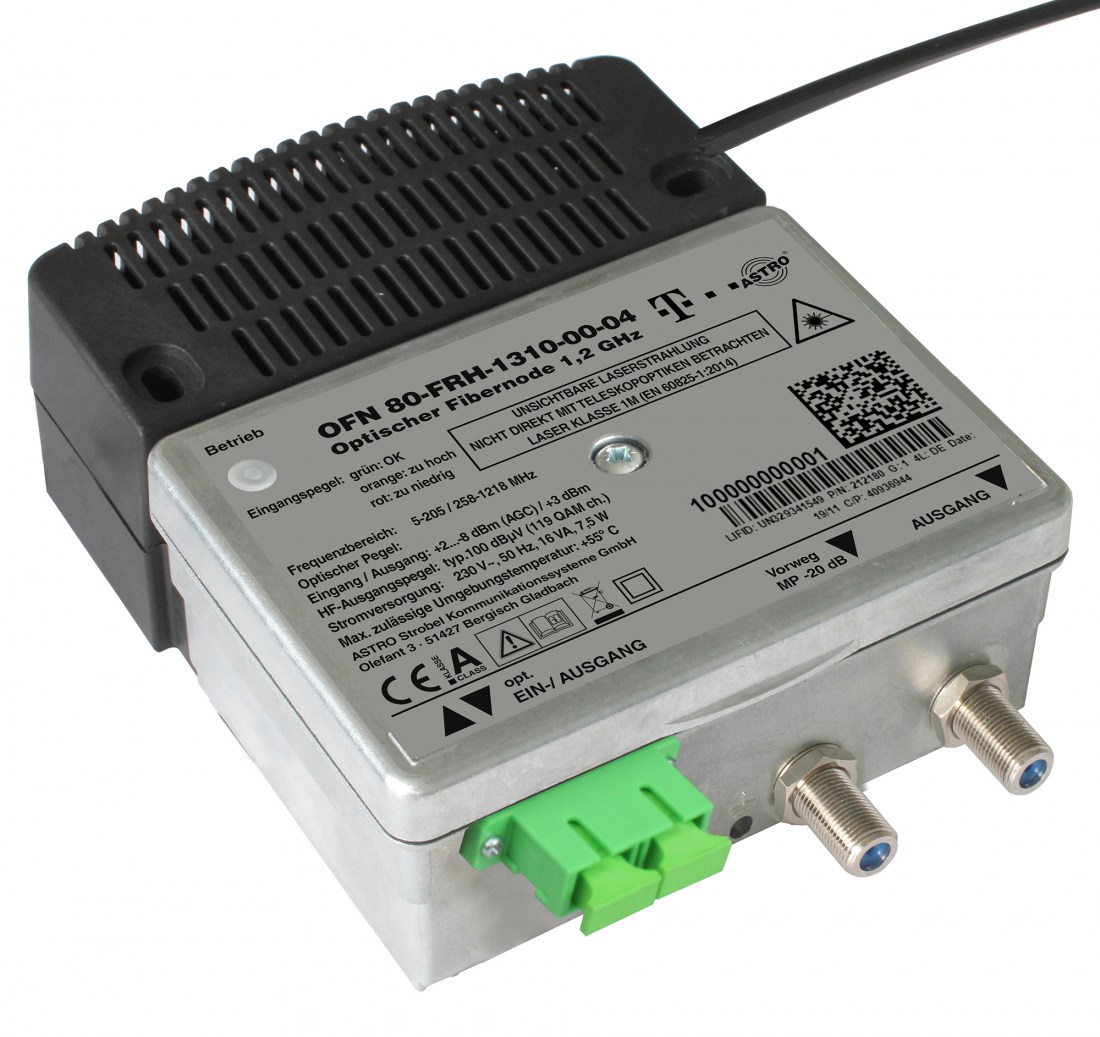

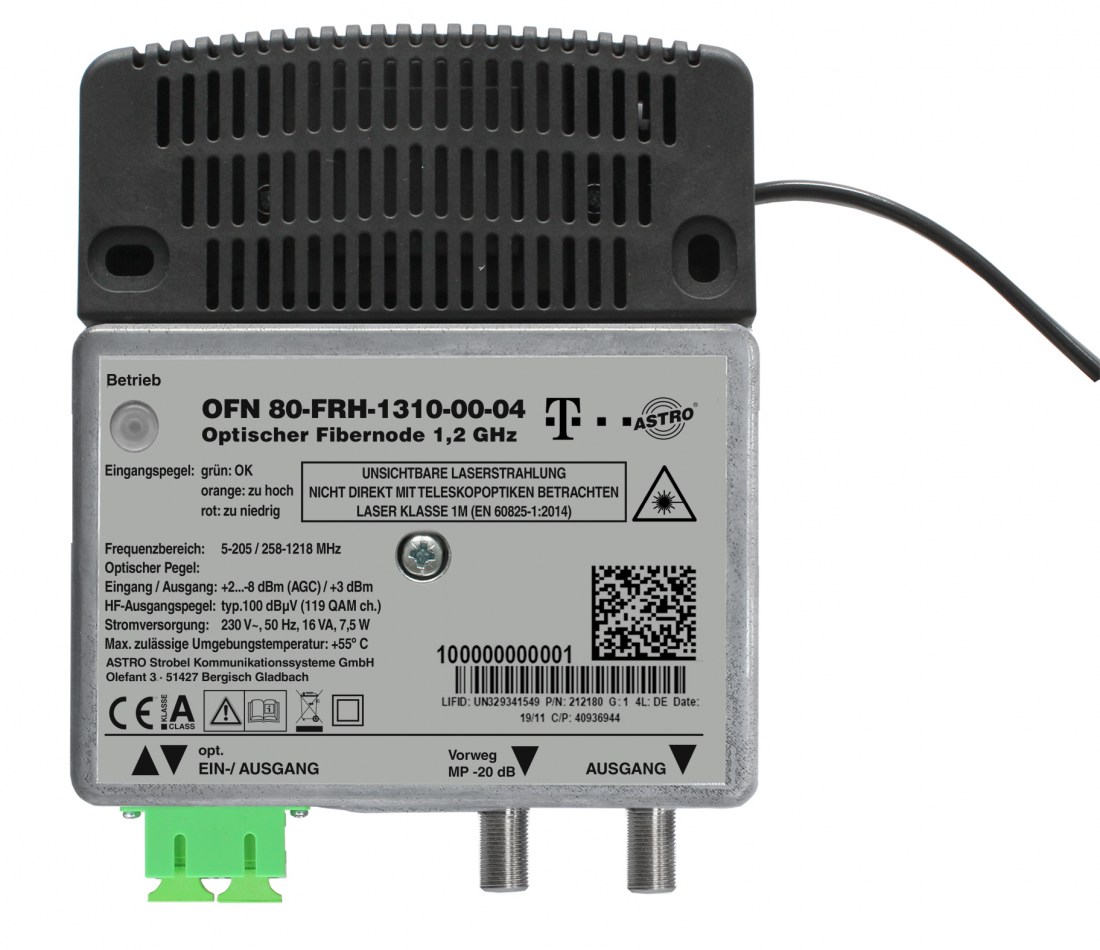

Compact optical CATV receiver

Login to see prices

1310 nm Upstream TX

OFN80-FRH-1310-00-04

Specification

Type

Mini Node
Order number

00212196

EAN-Code

4026187210489

Product Details

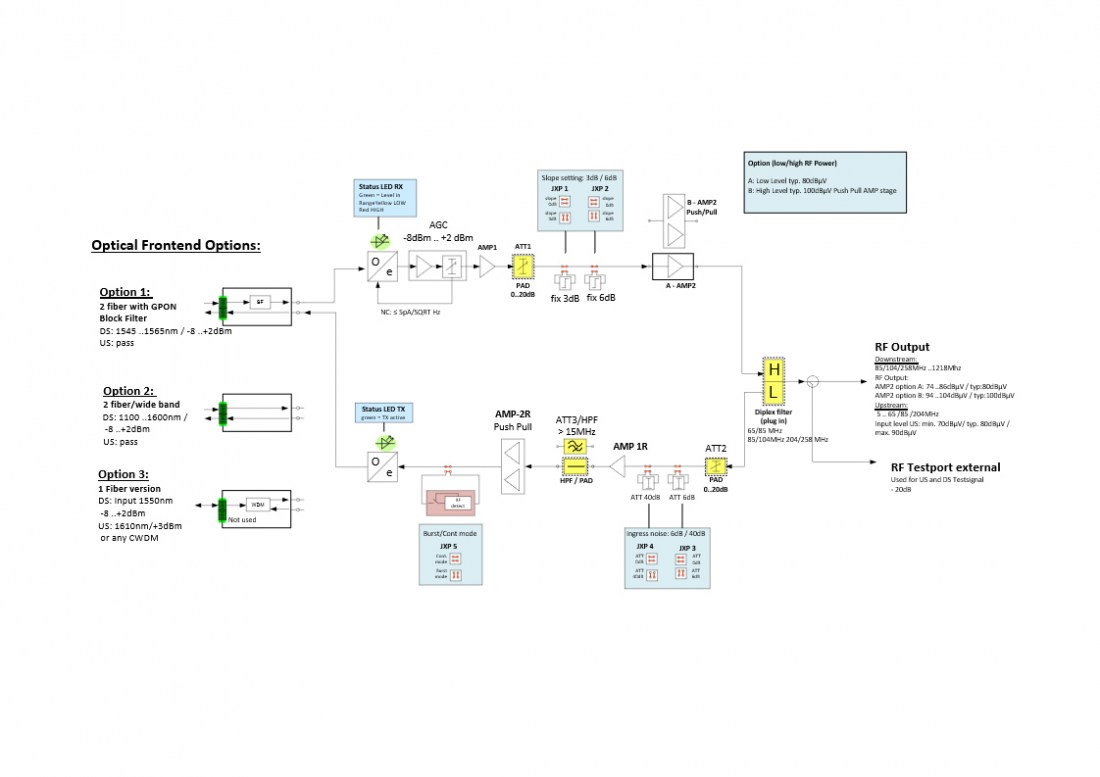

  • Fiber node with separate forward and return fiber
  • wavelength in forward path 1100 - 1600 nm
  • 1310 nm Upstream TX
  • Automatic Gain Control (AGC)
  • attenuation with PAD in forward path

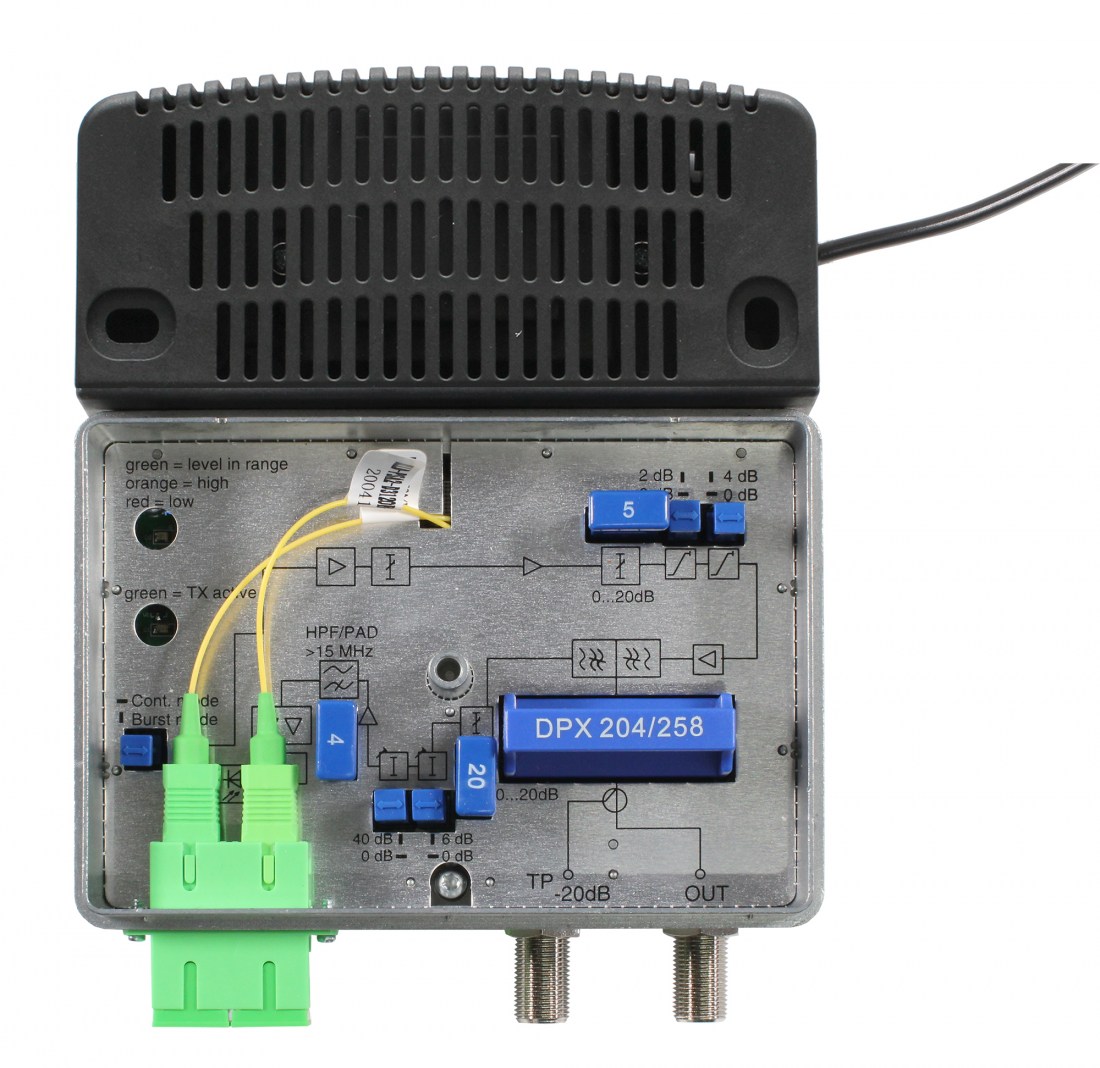

  • slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
  • return path with continuous or burst mode
  • attenuation in return path with PADs
  • ingress noise test/filter with jumpers (0dB / 6dB /40dB)
  • pluggable diplexer: 65/85 or 204/258
  • forward path frequency: 258 - 1218 MHz
  • return path range 5-205 MHz
  • separate forward and return path fibre
  • built-in power supply 230 VA

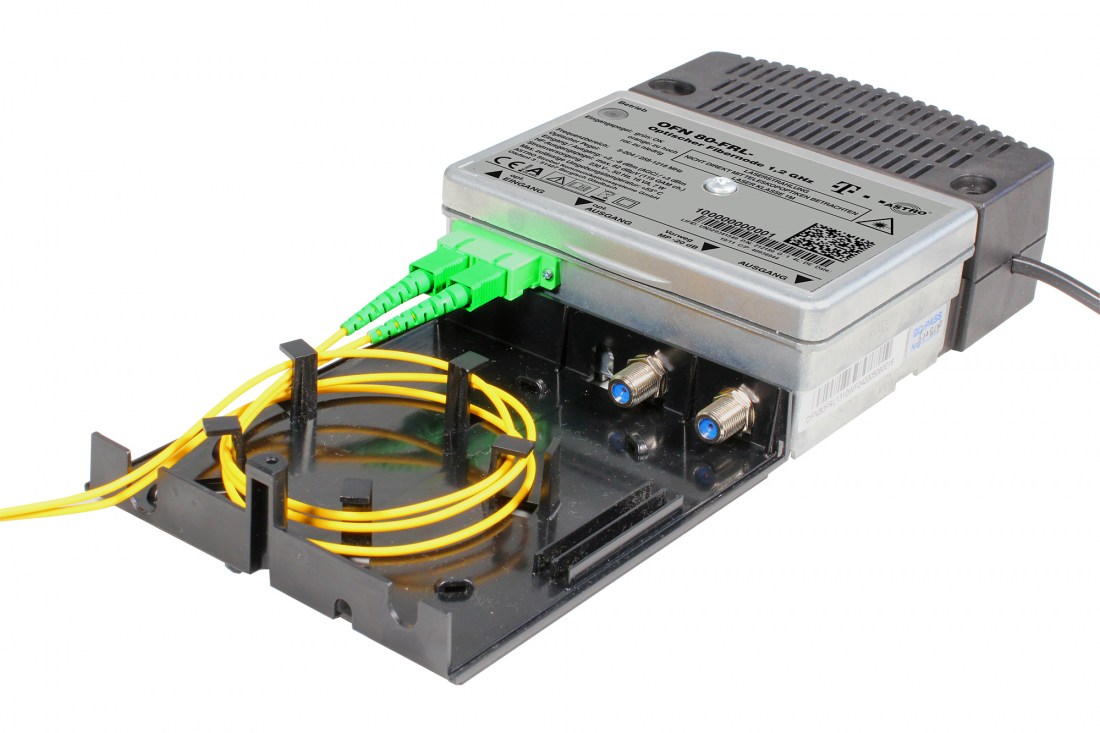

  • optional fibre tray available
Download Details

Product is combinable with

Directly modulated transmitter

ODMTXe-1550-10 AC
1550 nm, 1 x 10 dBm
