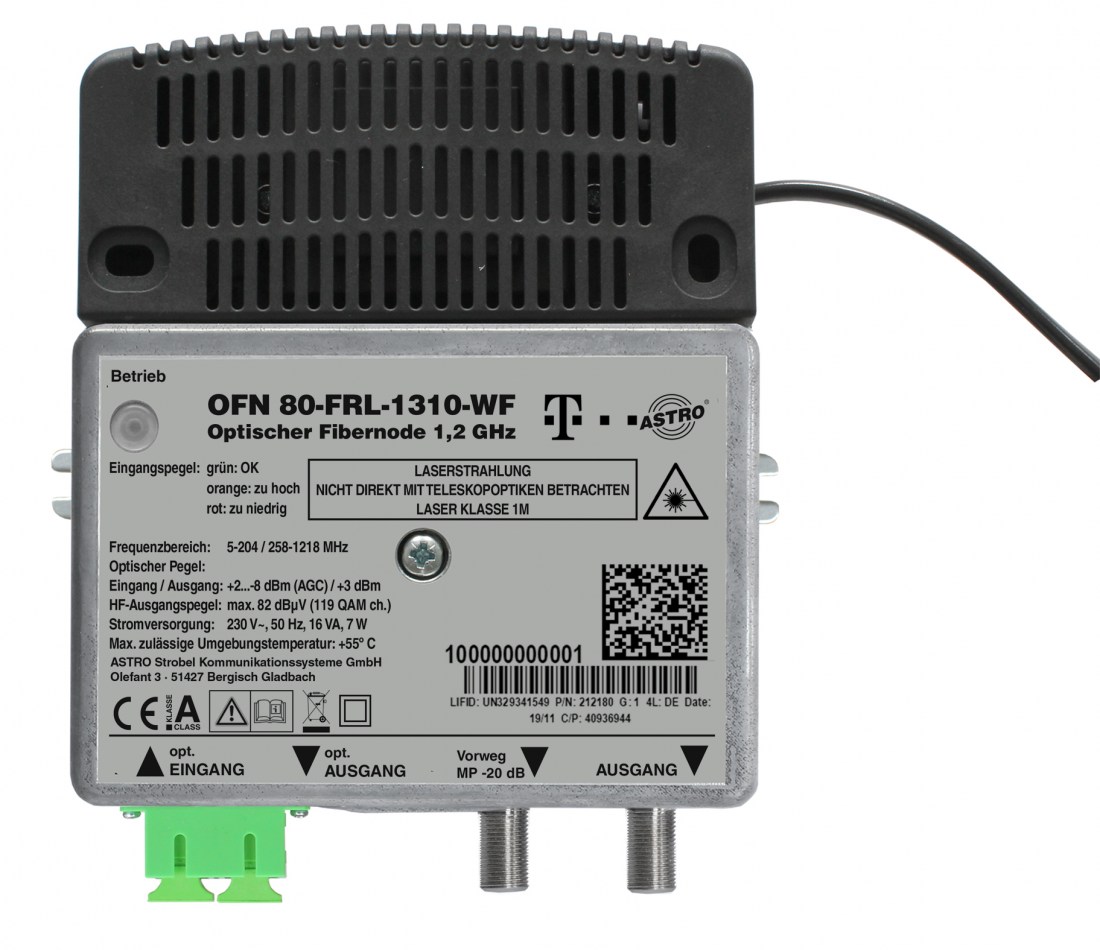

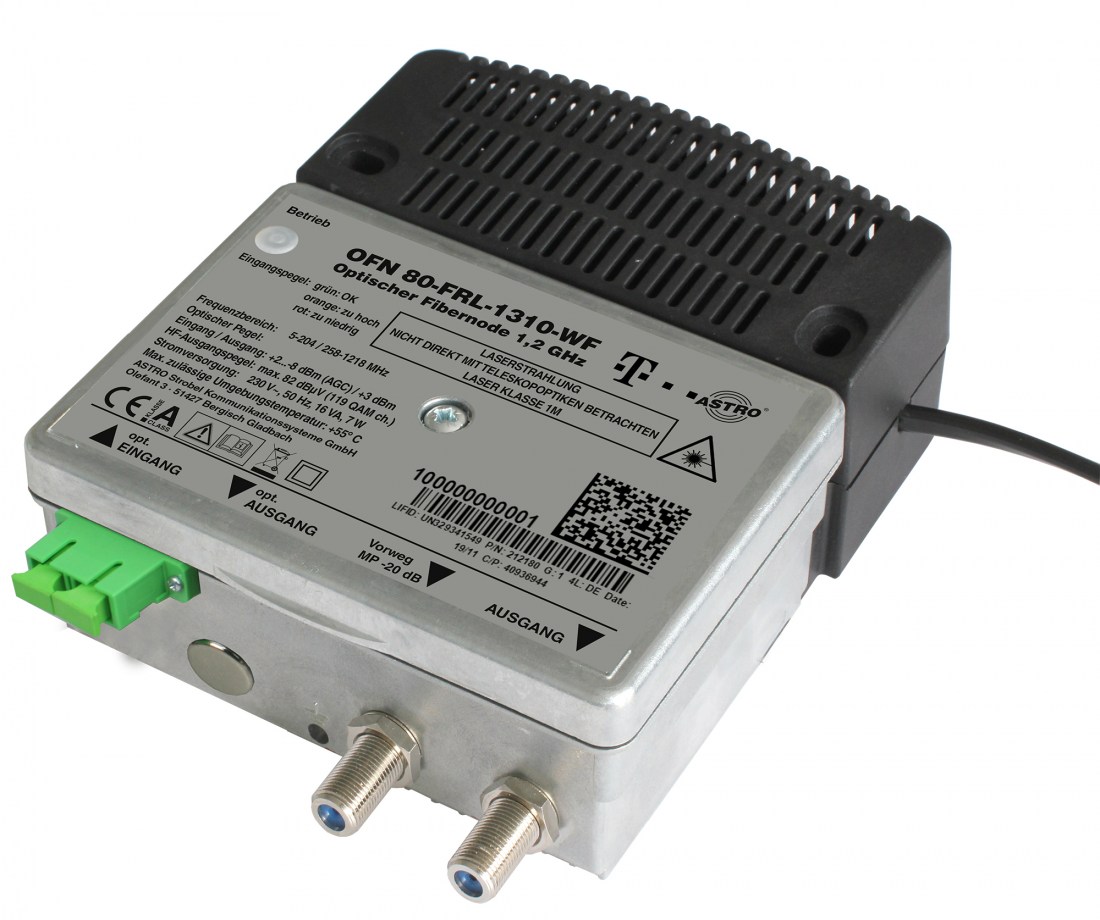

Compact optical CATV receiver
Compact optical CATV receiver - Image 2
Compact optical CATV receiver - Image 3
Compact optical CATV receiver - Image 4
Compact optical CATV receiver - Image 5

Compact optical CATV receiver

Login to see prices

1310 nm Upstream TX

OFN80-FRL-1310-WF-04

Specification

Type

Mini Node
Order number

00212180

EAN-Code

4026187198589

Product Details
  • Fibre node with separate forward and return fibre
  • wavelength in forward path 1545 - 1565 nm
  • 1310 nm Upstream TX
  • Automatic Gain Control (AGC)
  • attenuation with PAD in forward path

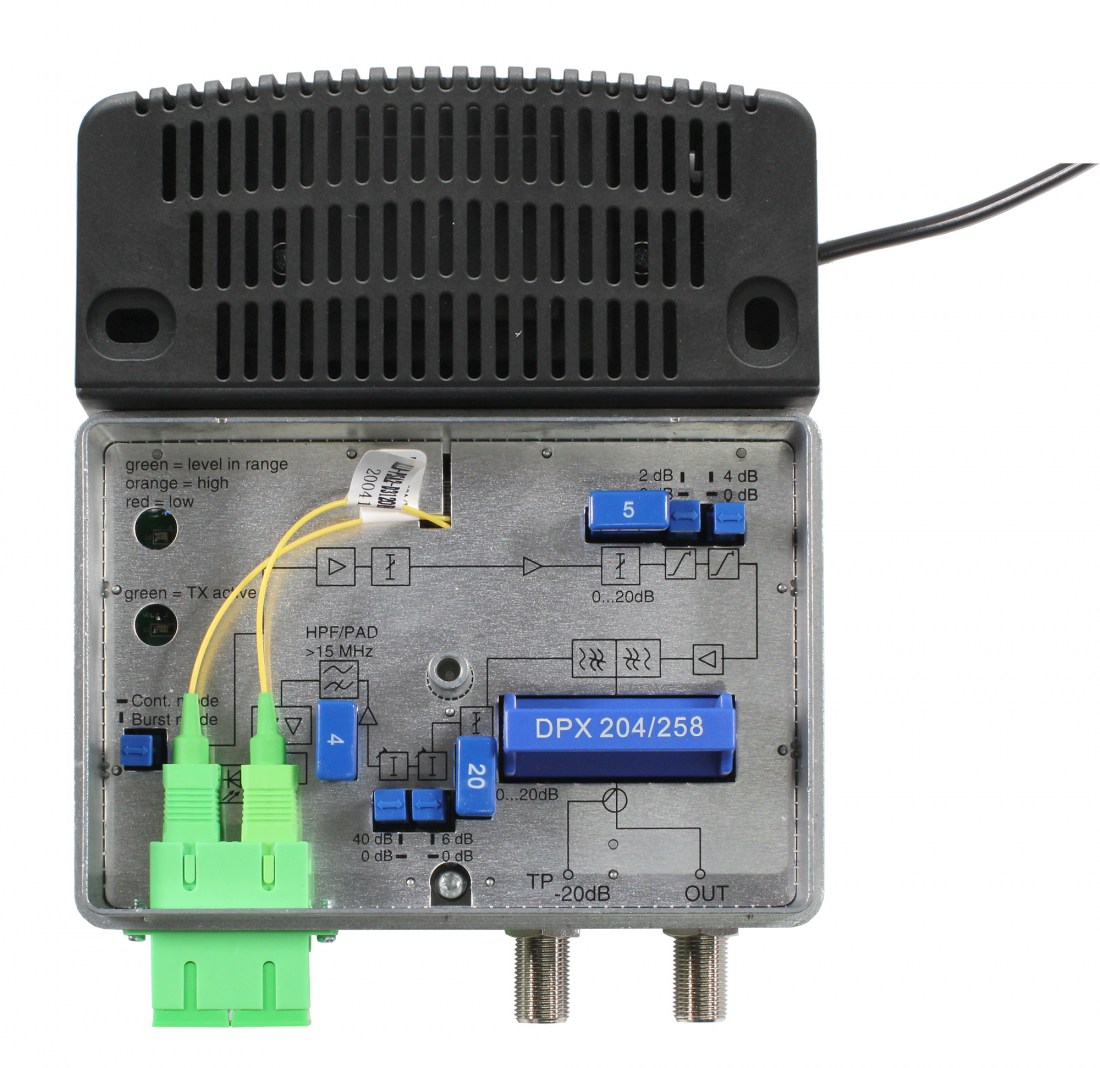

  • slope adjustment selectable with jumper 0db / 2dB / 4dB / 6dB
  • return path with continuous or burst mode
  • attenuation in return path with PADs
  • ingress noise test/filter with jumpers (0dB / 6dB /40dB)
  • pluggable diplexer: 65/85 or 204/258
  • forward path frequency: 1218 MHz
  • return path 5-205 MHz
  • separate forward and return path fibre
  • built-in power supply 230 VA

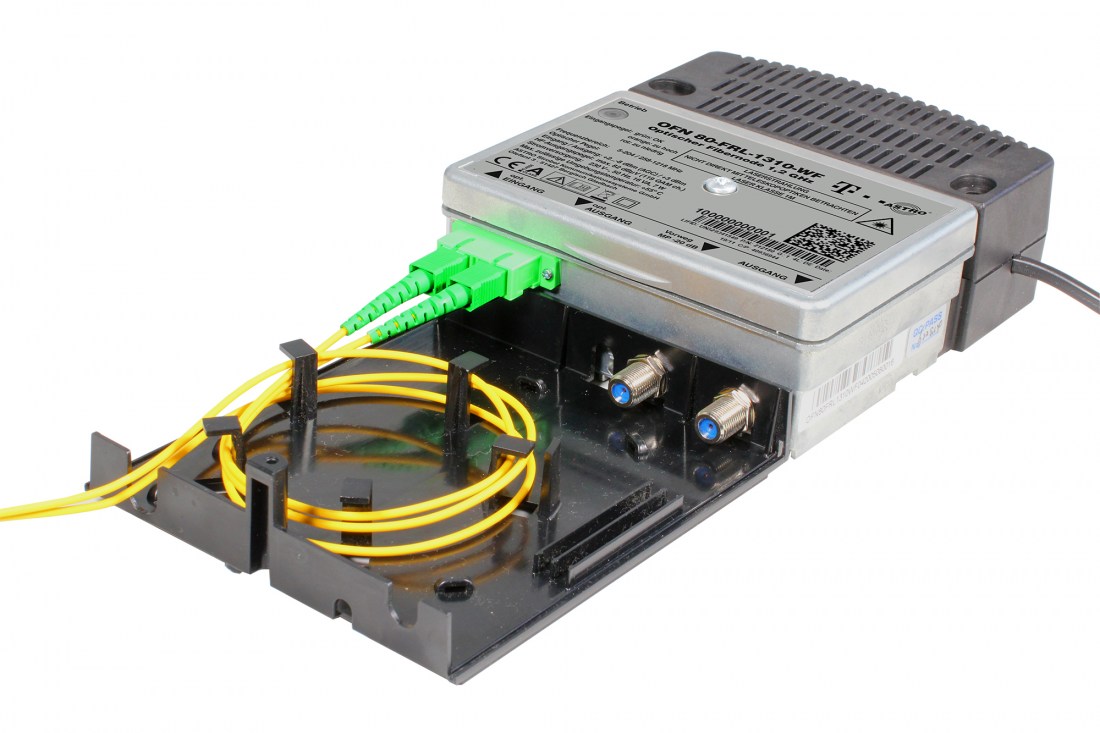

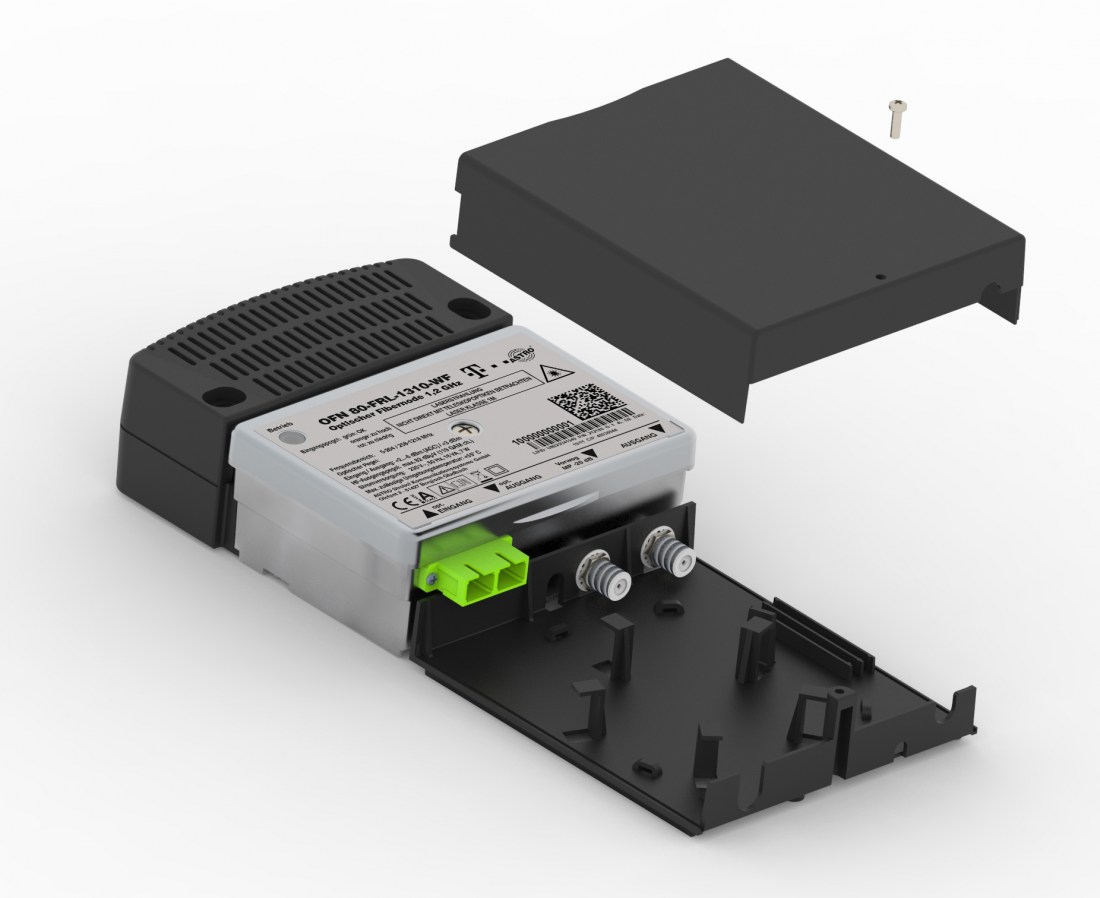

  • optional fibre tray available
Download Details

Product is combinable with

Directly modulated transmitter

ODMTXe-1550-10 AC
1550 nm, 1 x 10 dBm
