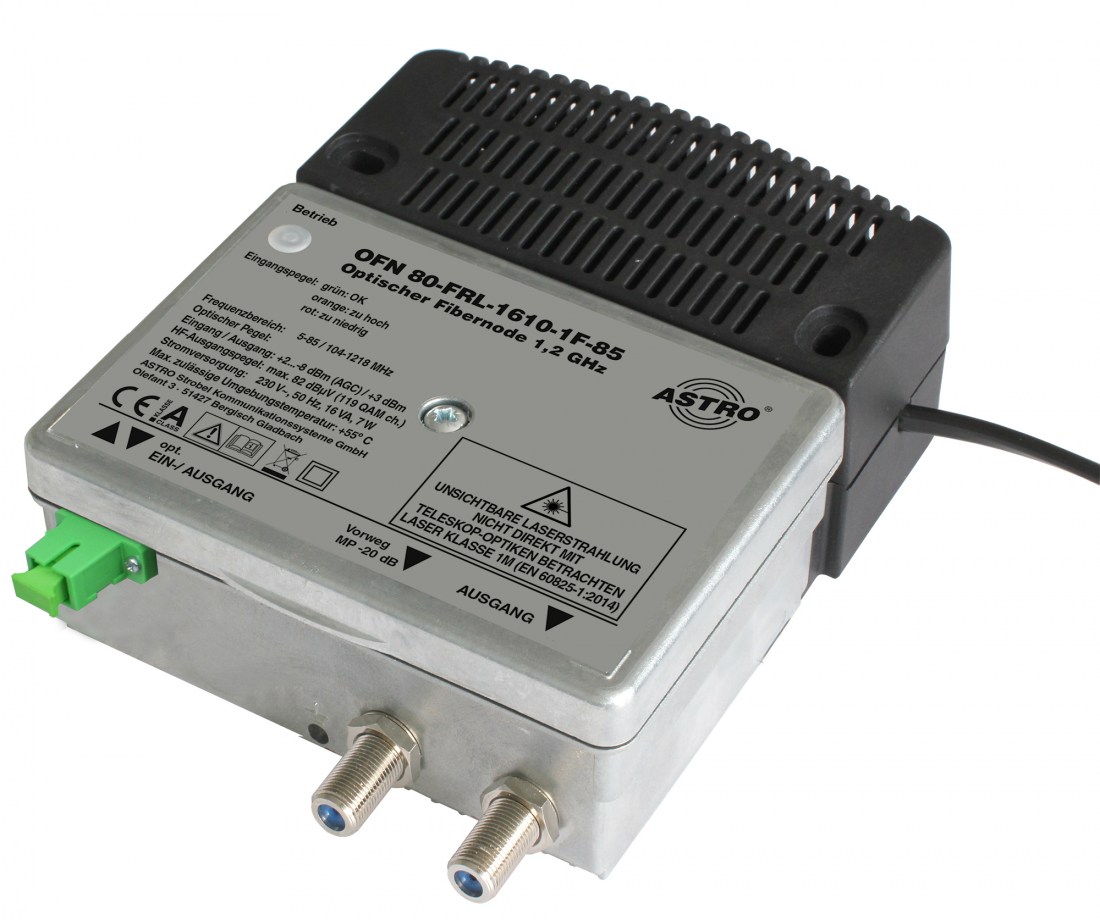

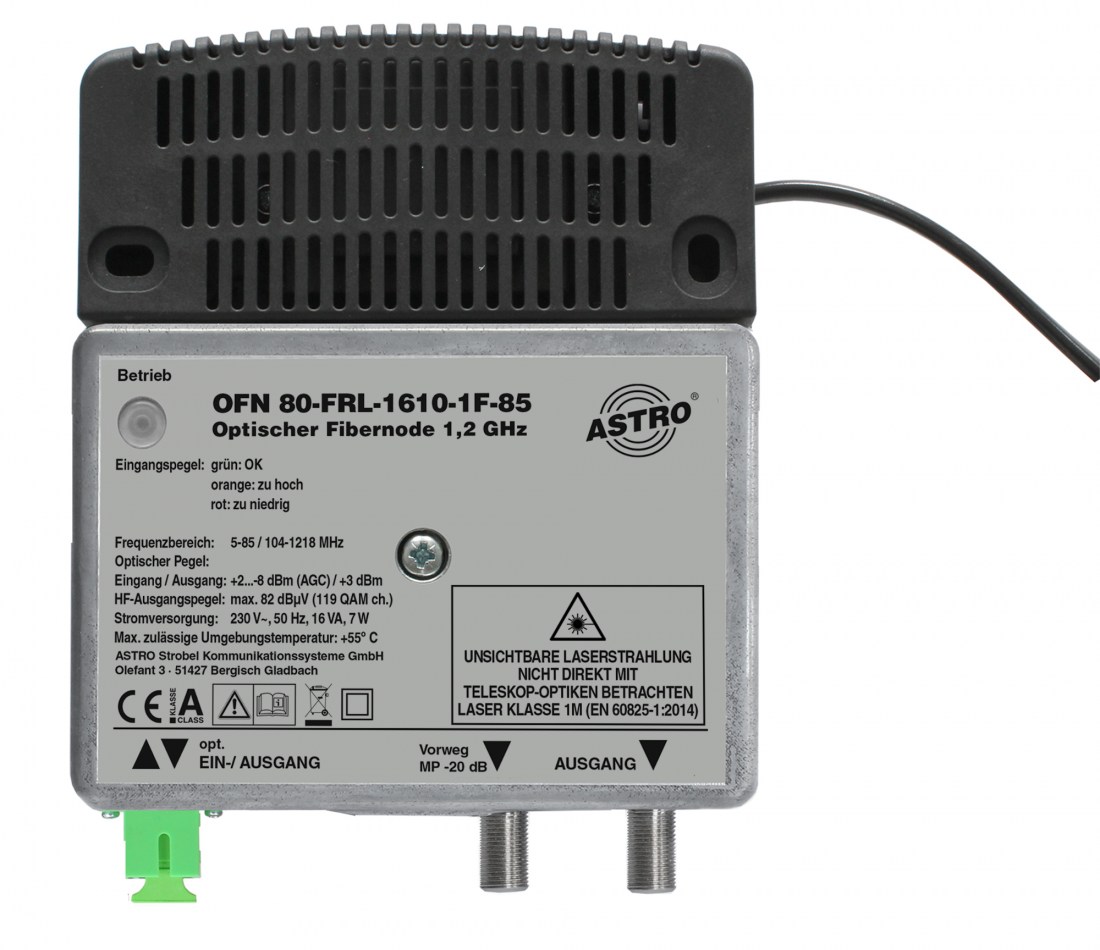

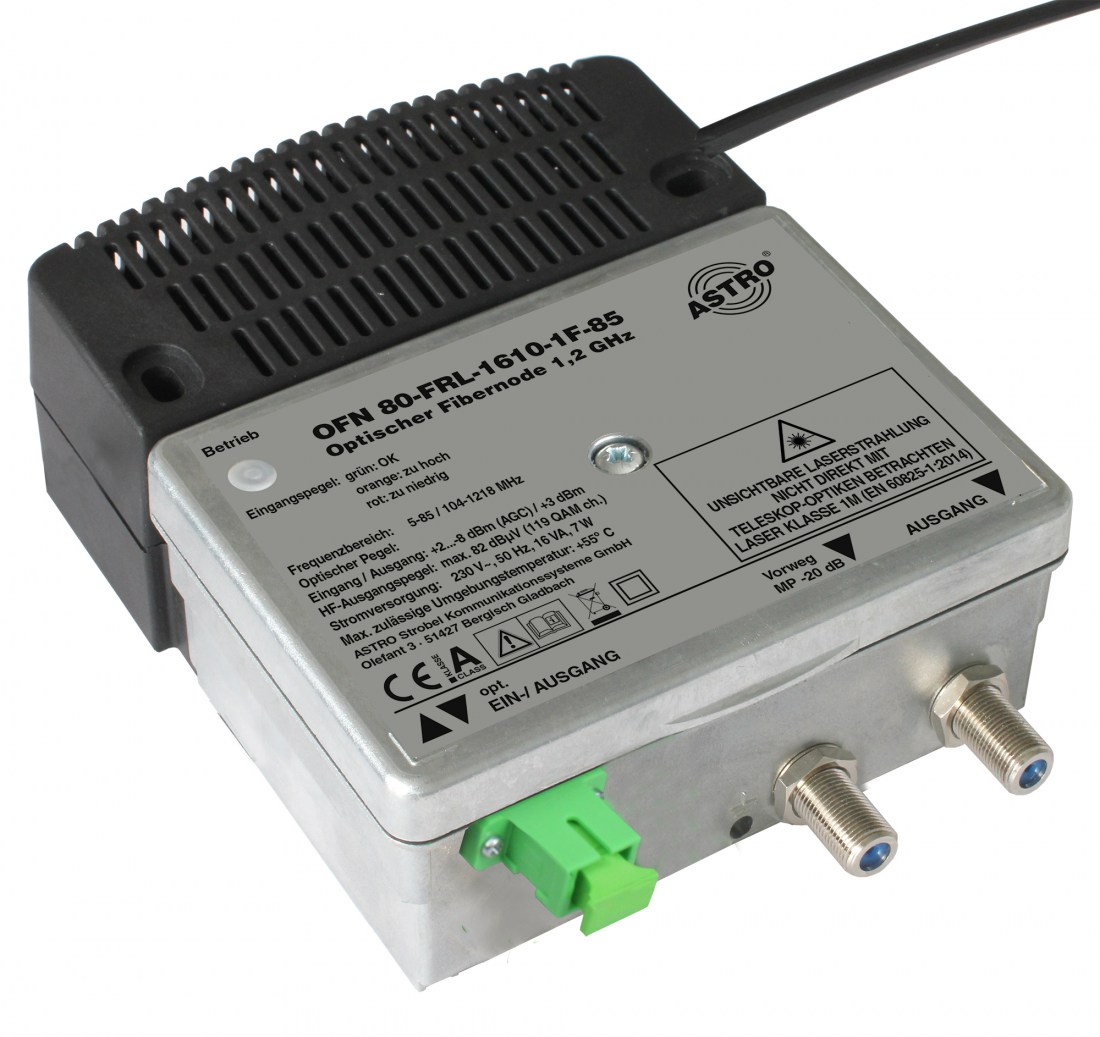

Compact optical CATV receiver

Login to see prices

1610 nm upstream TX

OFN80-FRL-1610-1F-85

Specification

Type

Mini Node
Order number

00212192

EAN-Code

4026187210212

Product Details
  • FTTB Node for Docsis 3.1 applications
  • 1 Fibre
  • wavelength in forward path 1545..1565 nm
  • EQ 0/2/4/6 dB
  • 1610 nm upstream TX
  • +3 dBm
  • continuous or burst mode
  • AGC
  • optical input -8 .. +2 dBm
  • RF level typ. 82 dBµV
  • forward path range 104 .. 1.218 MHz
  • return path range 5-85 MHz
  • diplex 85/104
  • ingress filter 0/6/40 dB
  • optical connectors: SC/APC Duplex
  • test port -20 dB
  • AC Power supply 150-265 VAC / 7,5W
Download Details

Product is combinable with

Directly modulated transmitter

ODMTXe-1550-10 AC
1550 nm, 1 x 10 dBm
