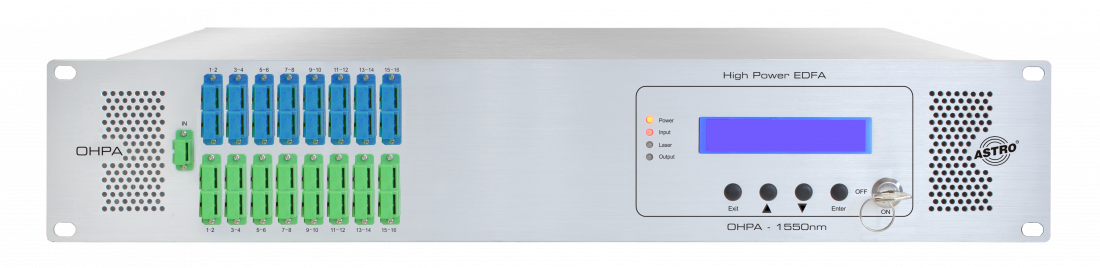

Optical amplifier with WDM

Optical amplifier with WDM

Login to see prices

1550 nm, 16 x 17 dBm optical output power

OHPA-16170-WDM AC

Specification

Type

WDM High Power EDFA
Order number

00212087

EAN-Code

4026187196363

Product Details
  • optical high-power amplifier for FttH RF overlay networks
  • 1550 nm, 16 x 17 dBm optical output power
  • WDM filter 1260-1360 nm / 1480-1500 nm / 1575-1581 nm / 1610-1660 nm integrated
  • optical connectors SC/APC (input), LC/APC (COM output) and LC/PC (GPON)
  • 19" housing, two rack units
  • redundant power supply (150 - 250 VAC)
Download Details

Product is combinable with

Externally modulated optical transmitter

OEMTX-1550-10 AC
1550 nm, 2 x 10 dBm
