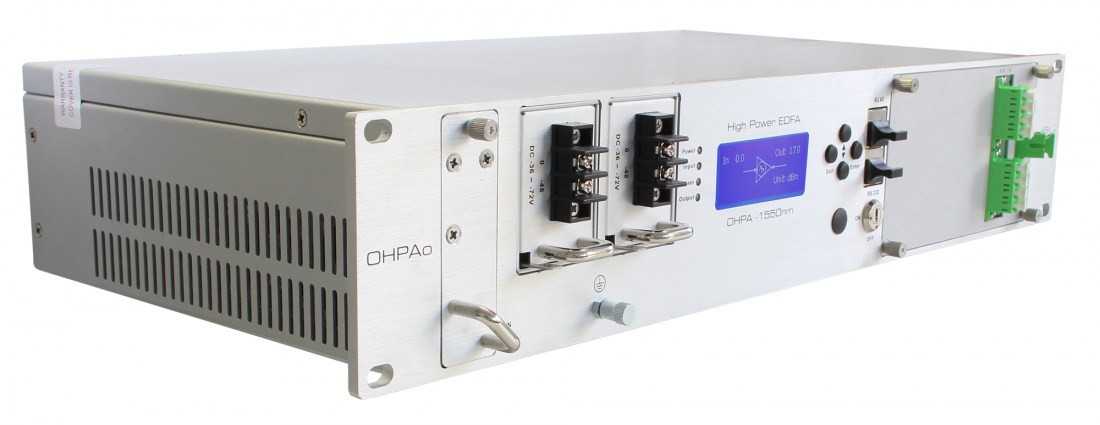

Optical high power amplifier 16 x 17 dBm

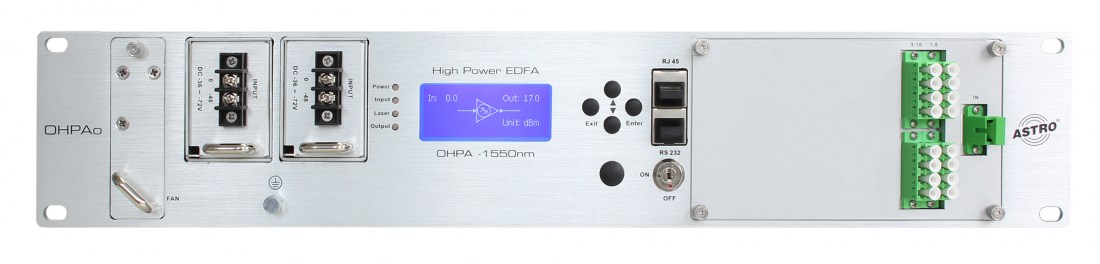

Optical high power amplifier 16 x 17 dBm - Image 2

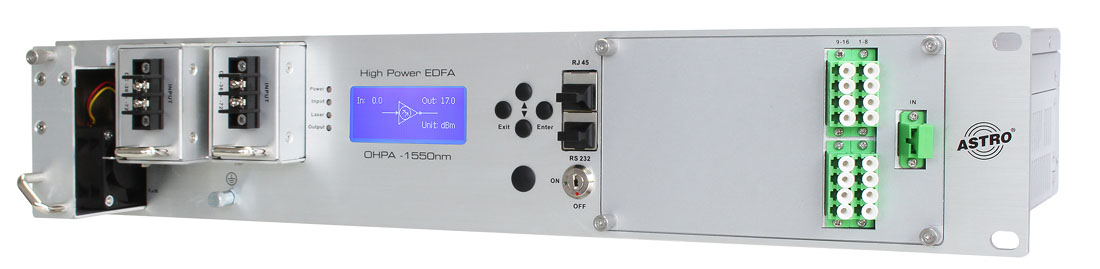

Optical high power amplifier 16 x 17 dBm - Image 3

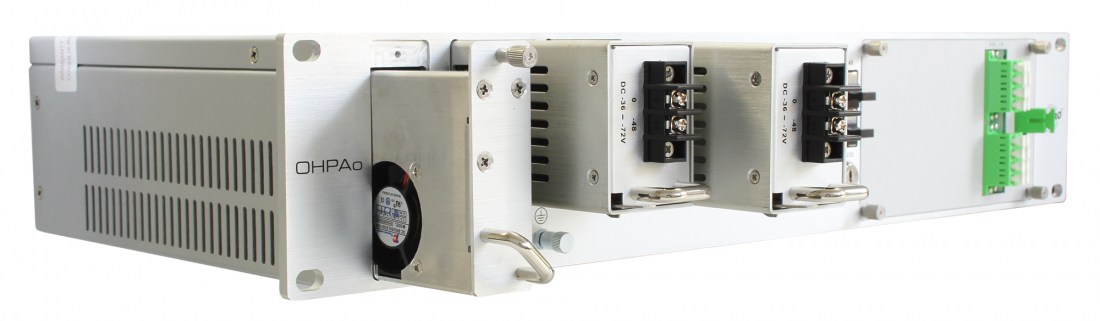

Optical high power amplifier 16 x 17 dBm - Image 4
Optical high power amplifier 16 x 17 dBm - Image 5

Optical high power amplifier 16 x 17 dBm

Login to see prices

16 x 17 dBm

OHPAo-16170 DC

Specification

Type

High Power EDFA
Order number

00212084

EAN-Code

4026187196233

Product Details

  • Optical high-power amplifier for HFC and FTTH networks
  • Extended temperature range for outdoor installation housing
  • 1550 nm optical wavelength
  • ErYb doped double-clad technology
  • 16 optical outputs with 17 dBm optical output power each
  • 19" housing, two RU
  • Settings via front panel or web interface
  • SNMP
  • low power input
  • redundant DC power supplies
  • all connections accessible via the front panel
  • Fans exchangeable via front panel

Download Details

Product is combinable with

Externally modulated transmitter

OEMTX-1550-10 DC
1550 nm, 2 x 10 dBm
