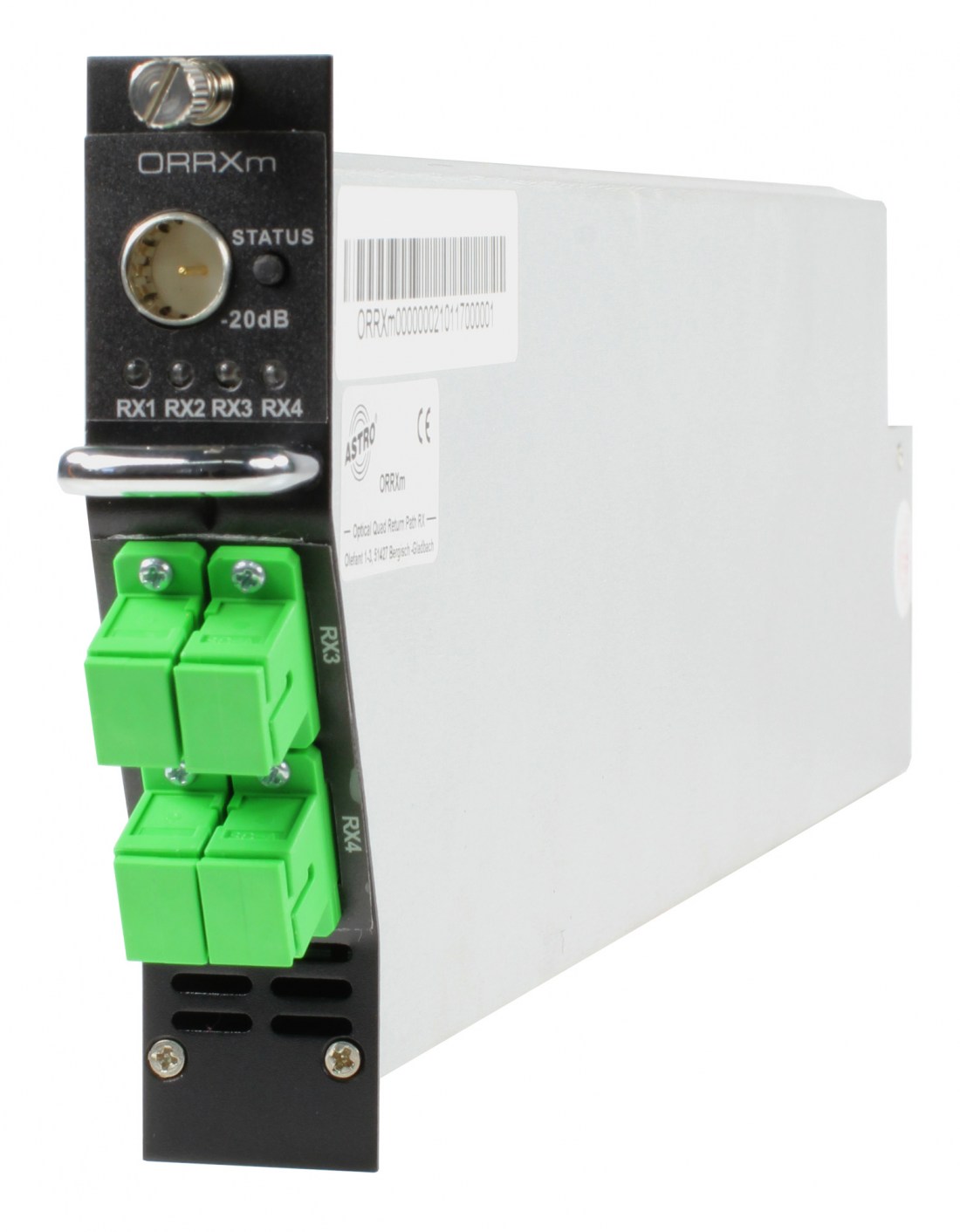

Optical return path receiver

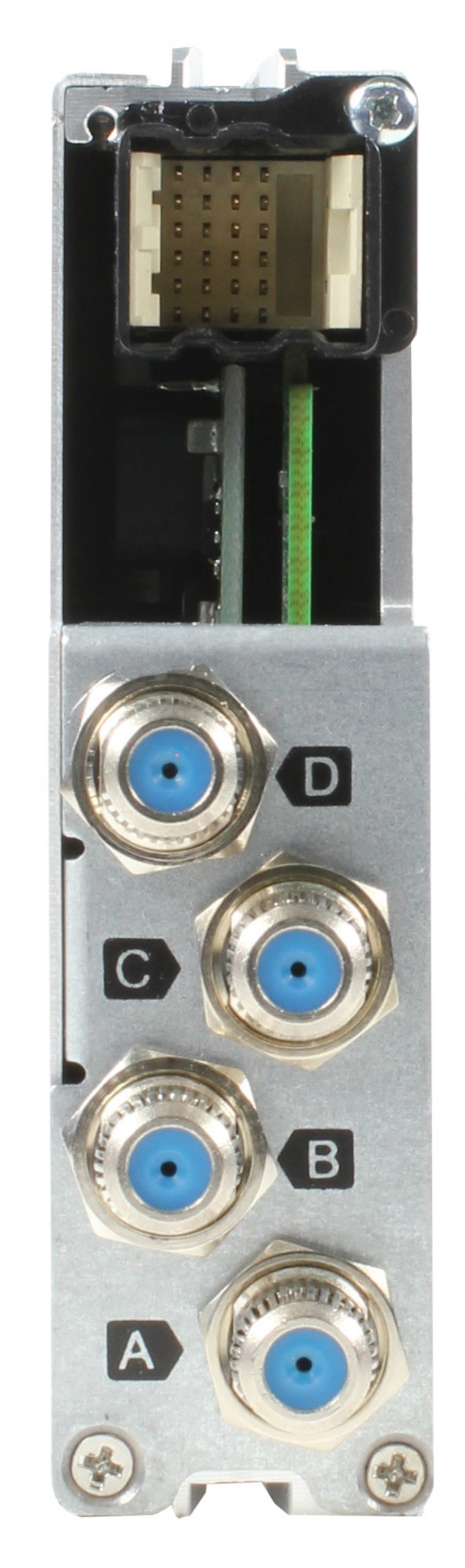

Optical return path receiver - Image 2

Optical return path receiver

Login to see prices

for AOCS base units

ORRXm

Specification

Module type

Return path receiver
Power supply unit

No power supply unit
Order number

00212191

EAN-Code

4026187199142

Product Details
  • optical return path receiver for DOCSIS 3.1 applications, 4 ports
  • 1260 nm - 1610 nm
  • Normal or RFoG Mode
  • AGC range 0 .. -10 dBm
  • RF Level > 100 dBµV in AGC range
  • 5 ..200 MHz
  • 4 x 4 or 4 x 1 RF combination, switchable per electronical setting
  • for the termination of optical return path signals
  • four independent upstream receivers
  • each RF port is equipped with 20 dB test point
  • optical input power range 0 ... -27 dBm
  • SNMP
  • attenuation and slope adjustment via onboard display
  • 1 slot module for chassis
Download Details
