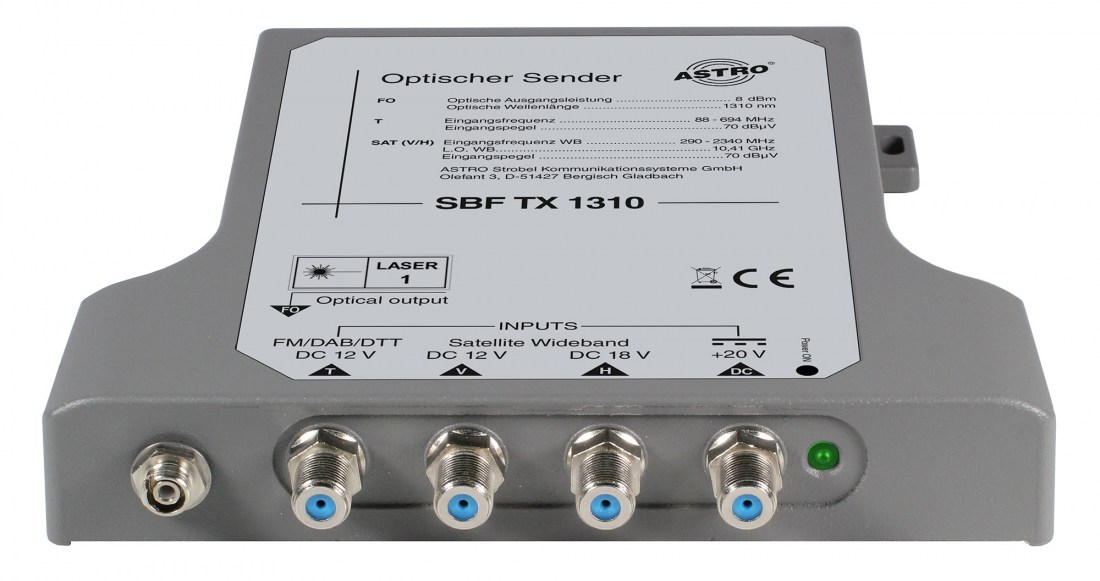

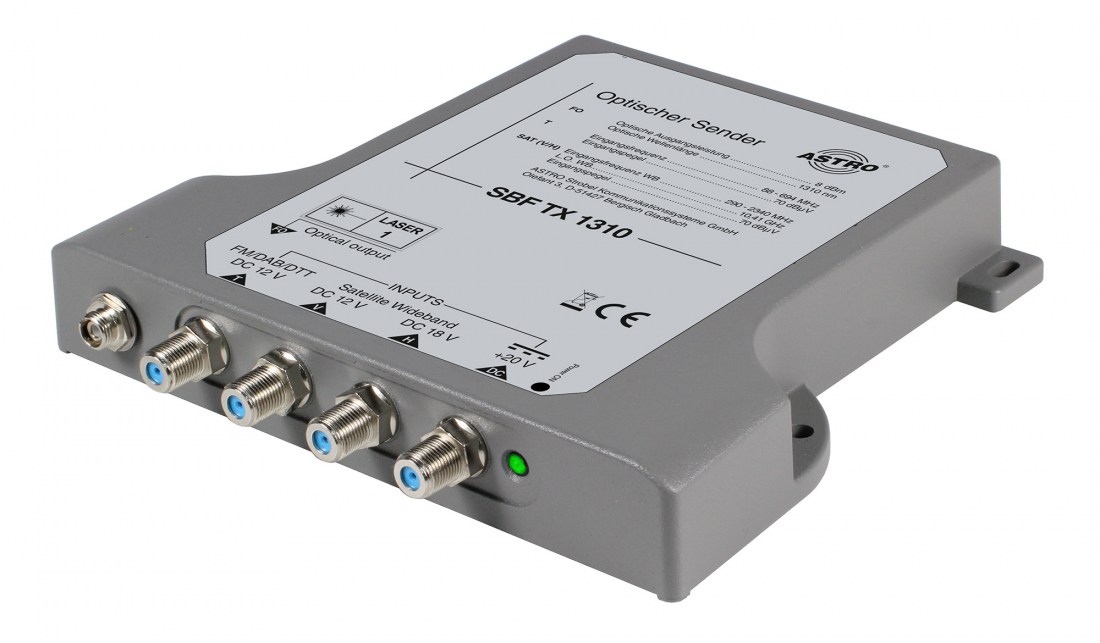

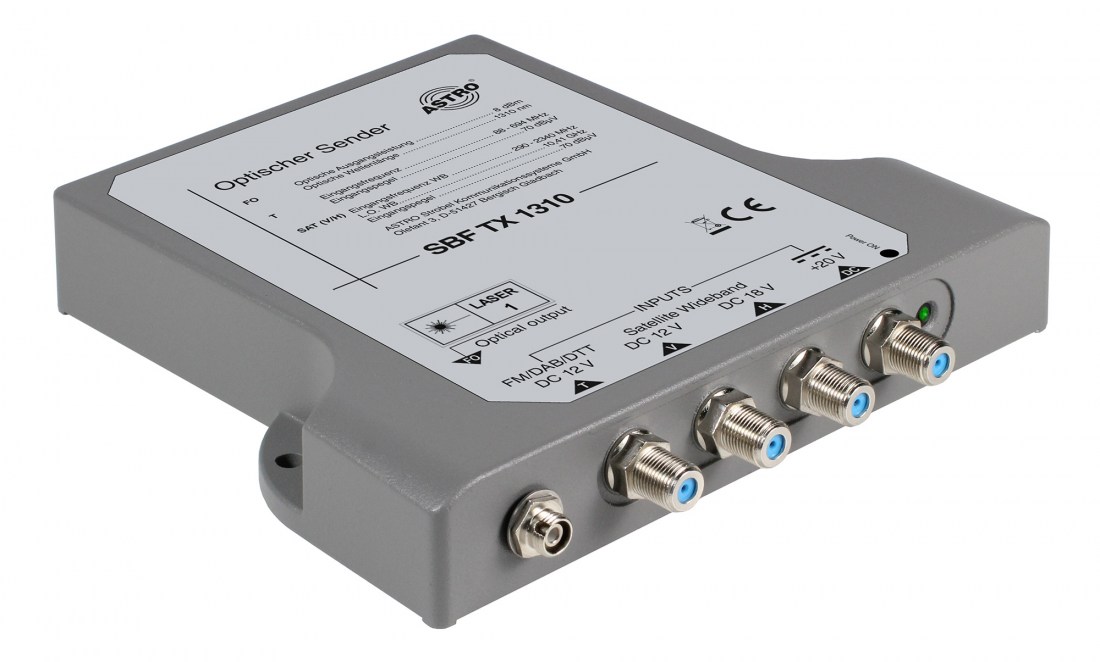

Optical transmitter

Login to see prices

combines two SAT IF bands of a wideband LNB into one optical output signal

SBF TX 1310

Specification

Type

Transmitters
Order number

00390006

EAN-Code

4026187210922

Product Details
  • combines two SAT IF bands of a wideband LNB with L.O. 10.41 GHz into one optical output signal (950 MHz - 5.45 GHz)
  • Wavelength 1310 nm
  • Optical output power +8 dBm
  • supplies up to 32 splitters with optical signals (radius up to 10 km)
  • Standard FC/PC connector for connecting optical cables
  • Power supply via F connection

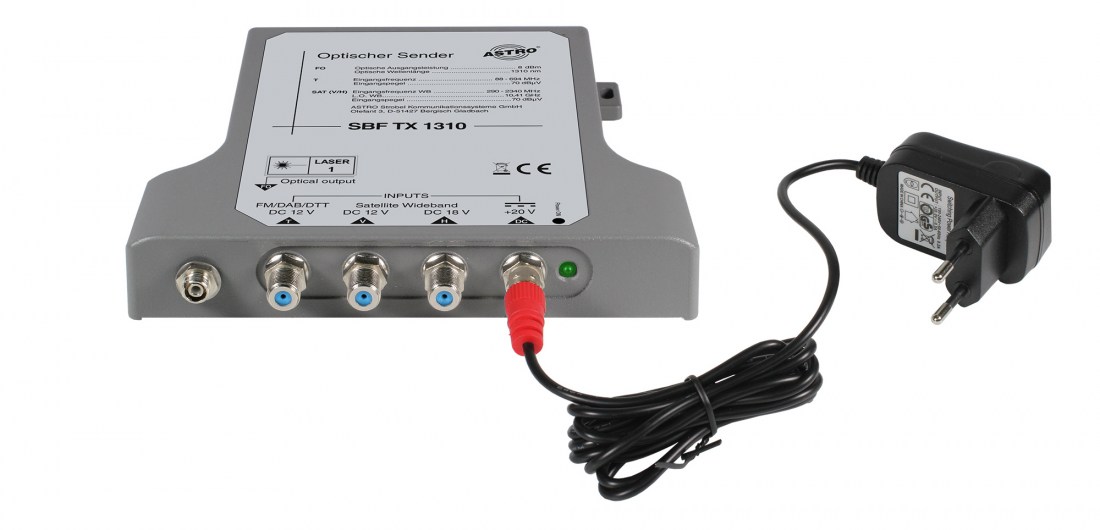

  • Power supply unit included in delivery
Download Details

Product is combinable with

Mounting cabinet

LGH 30
22 x 17 x 8 cm

Optical splitter

AOV 2
2-way

Optical 8-way splitter

AOV 8
app. 10,5 dB splitting attenuation
