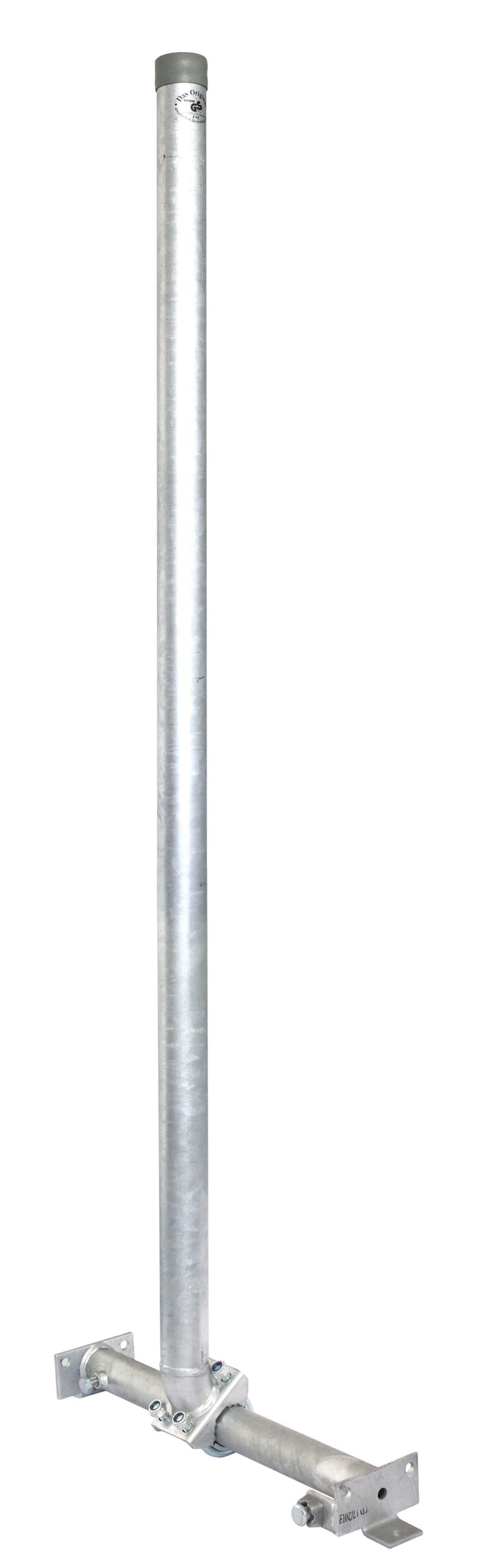

Chevron holder

for rafter spacings of 520 – 850 mm

SDH 130 BS

Mounting type	Pole mounting
Accessory type	Mast accessories

Order number	00370132
EAN-Code	4026187592103

Product Details

especially for roofs covered with plain tiles
patented roof holder for parabolic antennas

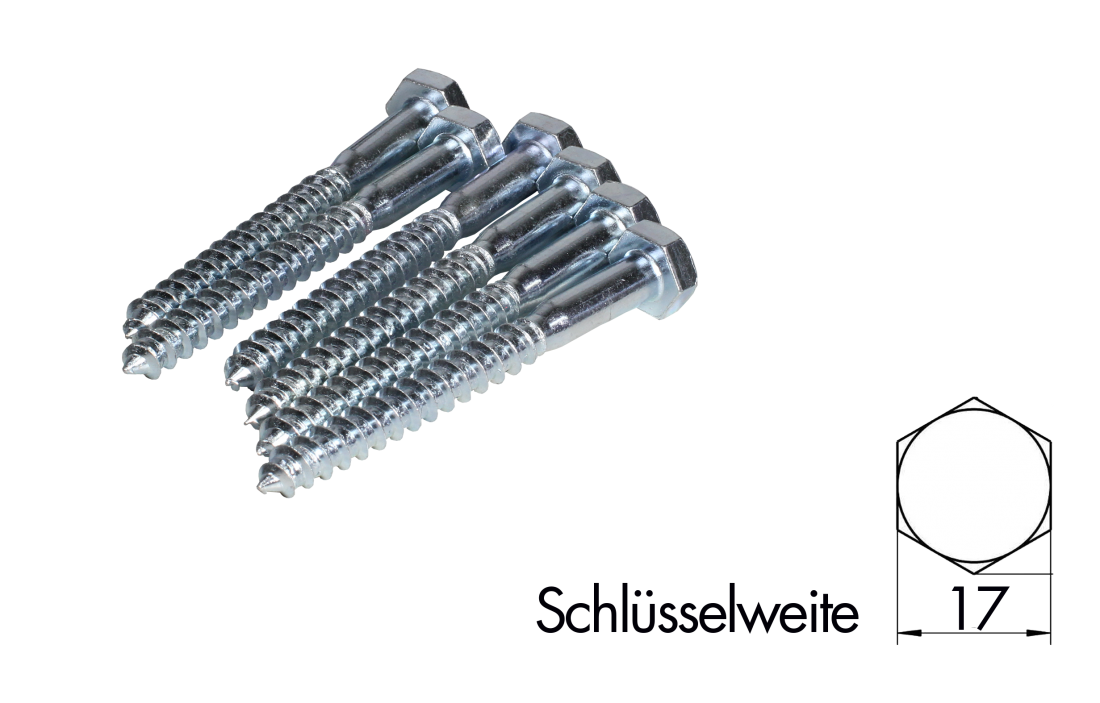

inclusive mast cap , 6 wood screws (10 x 100 mm)

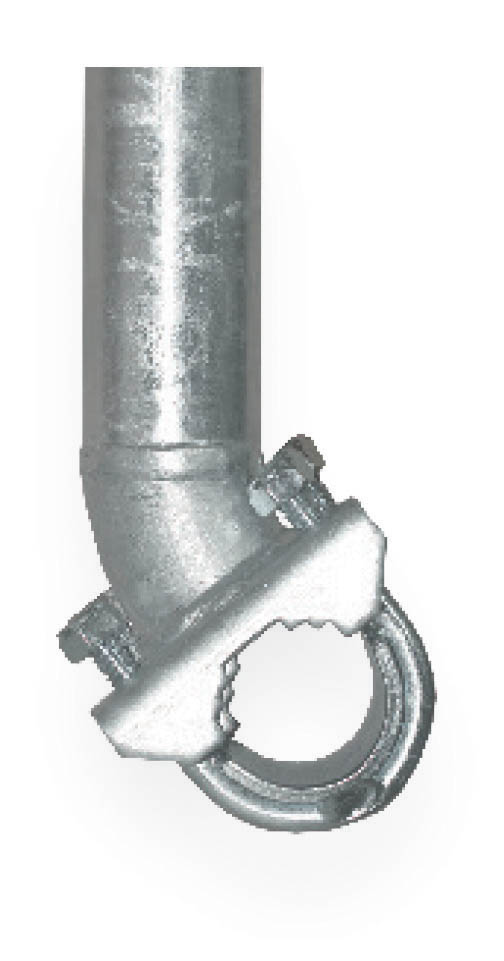

cranked mast foot (mast protrudes a little further out of the roof and therefore does not hit the roof batten above)

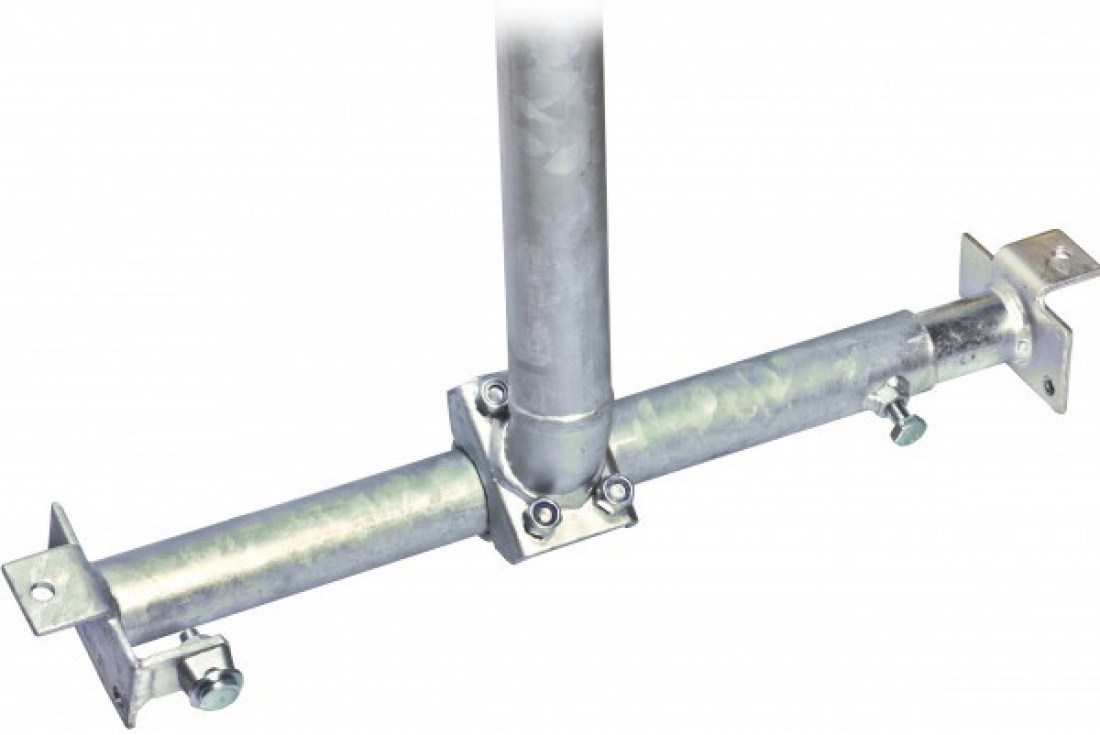

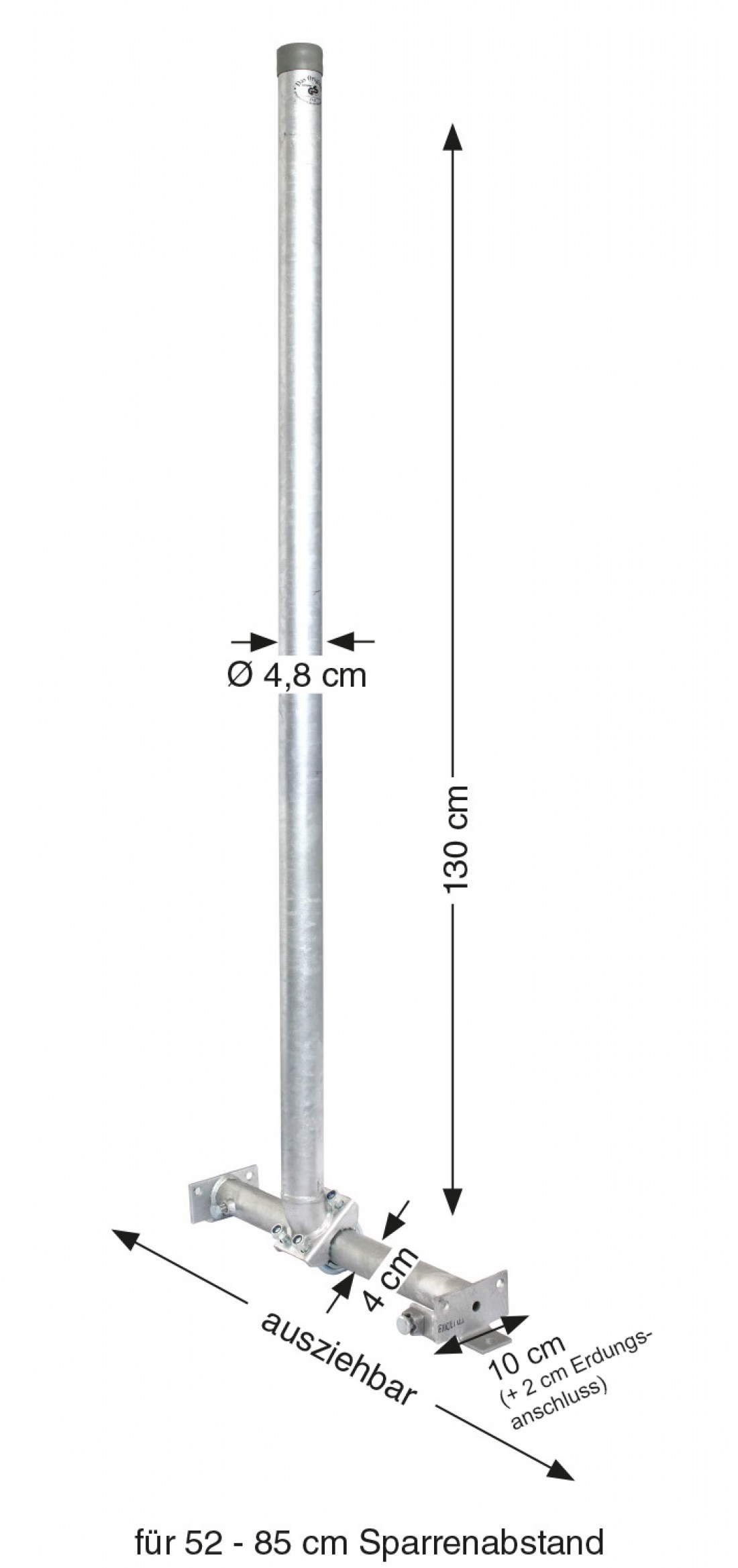

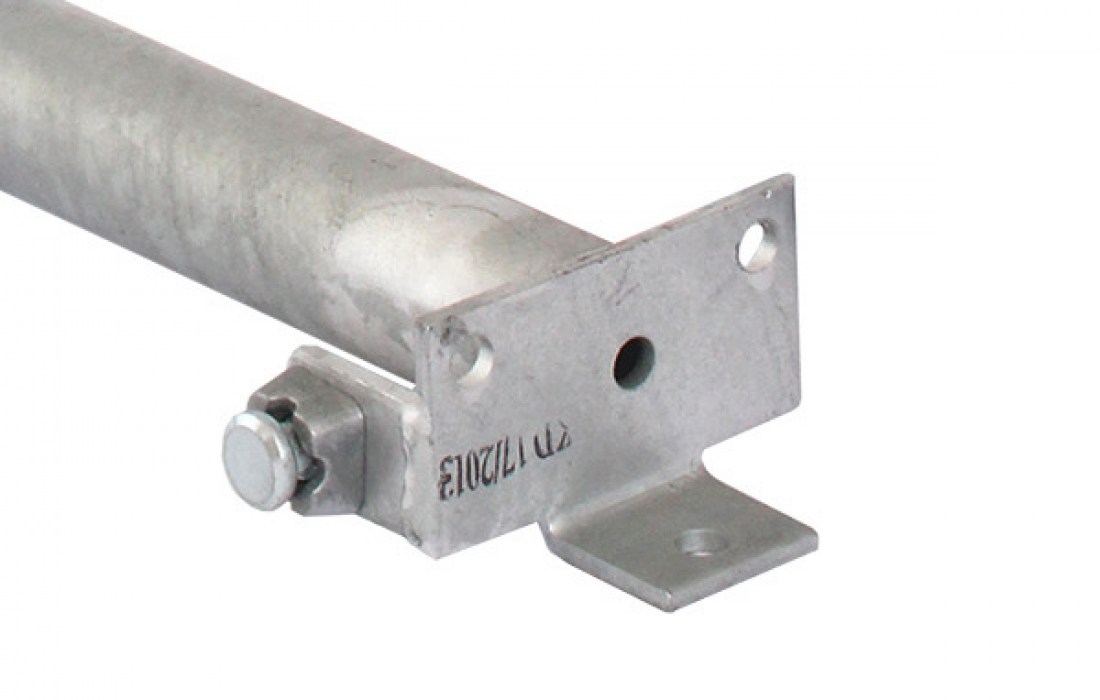

notched lateral support legs fit ideally between the narrow batten spacings typical of a plain tile roof adjustable in width (flexibly extendable) for rafter spacings of 520 - 850 mm
infinitely variable for any roof pitch
Steel, hot-dip galvanised

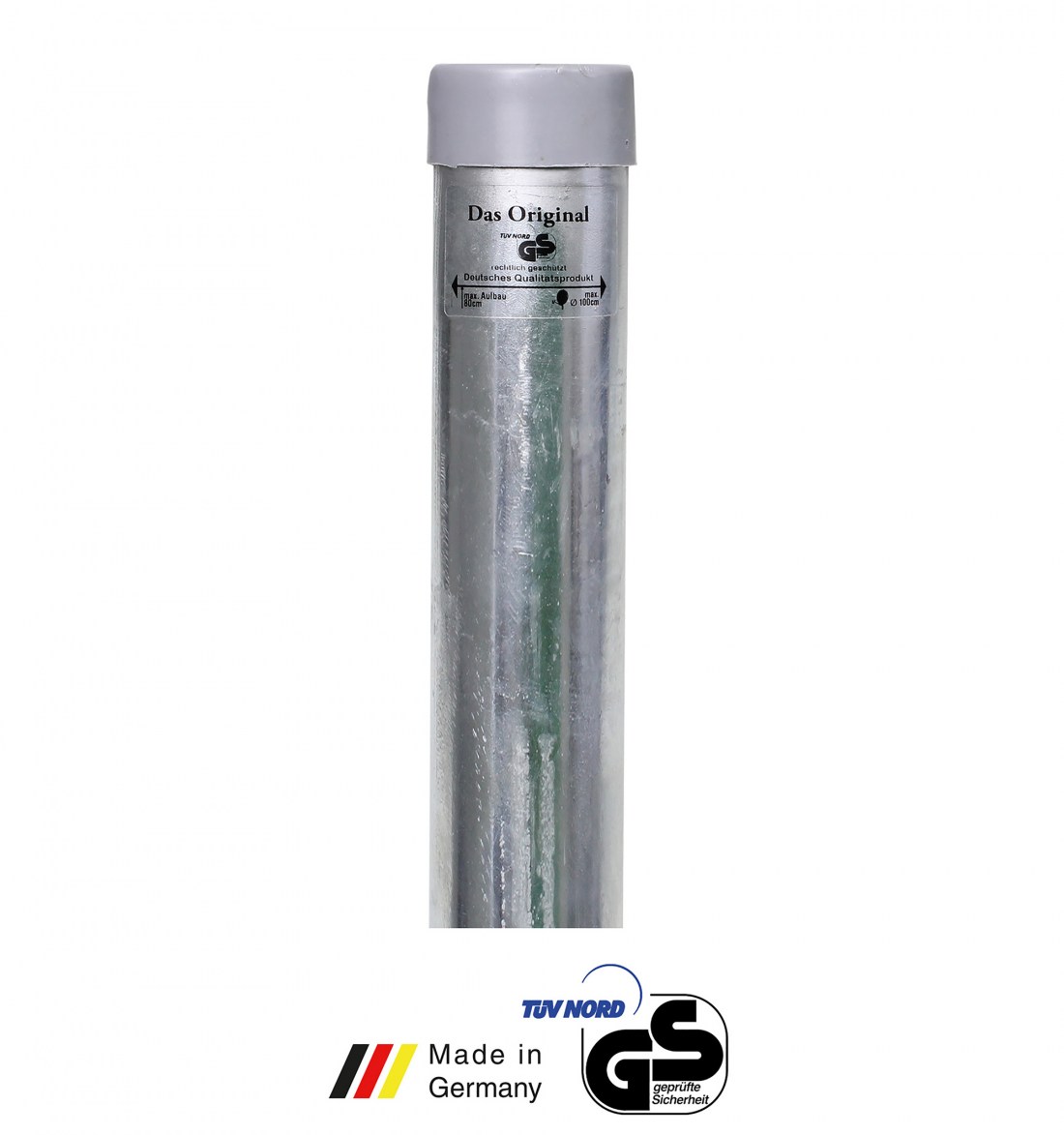

Mast length 130 cm
