Chevron holder
Rafter spacing 870 – 1100 mm flexible extendable
SDH 85 XL
Specification
| Mounting type | Pole mounting |
|---|---|
| Accessory type | Mast accessories |
| Order number | 00370083 |
|---|---|
| EAN-Code | 4026187592141 |
Product Details
- patented roof holder for parabolic antennas, material: steel, hot-dip galvanized

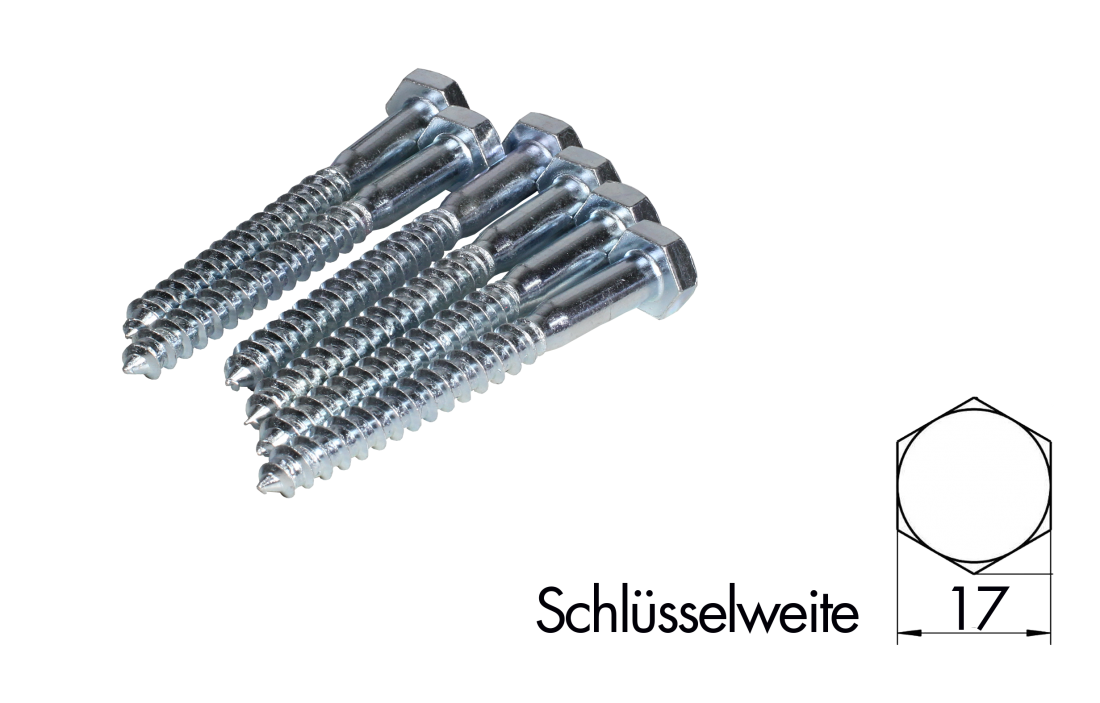

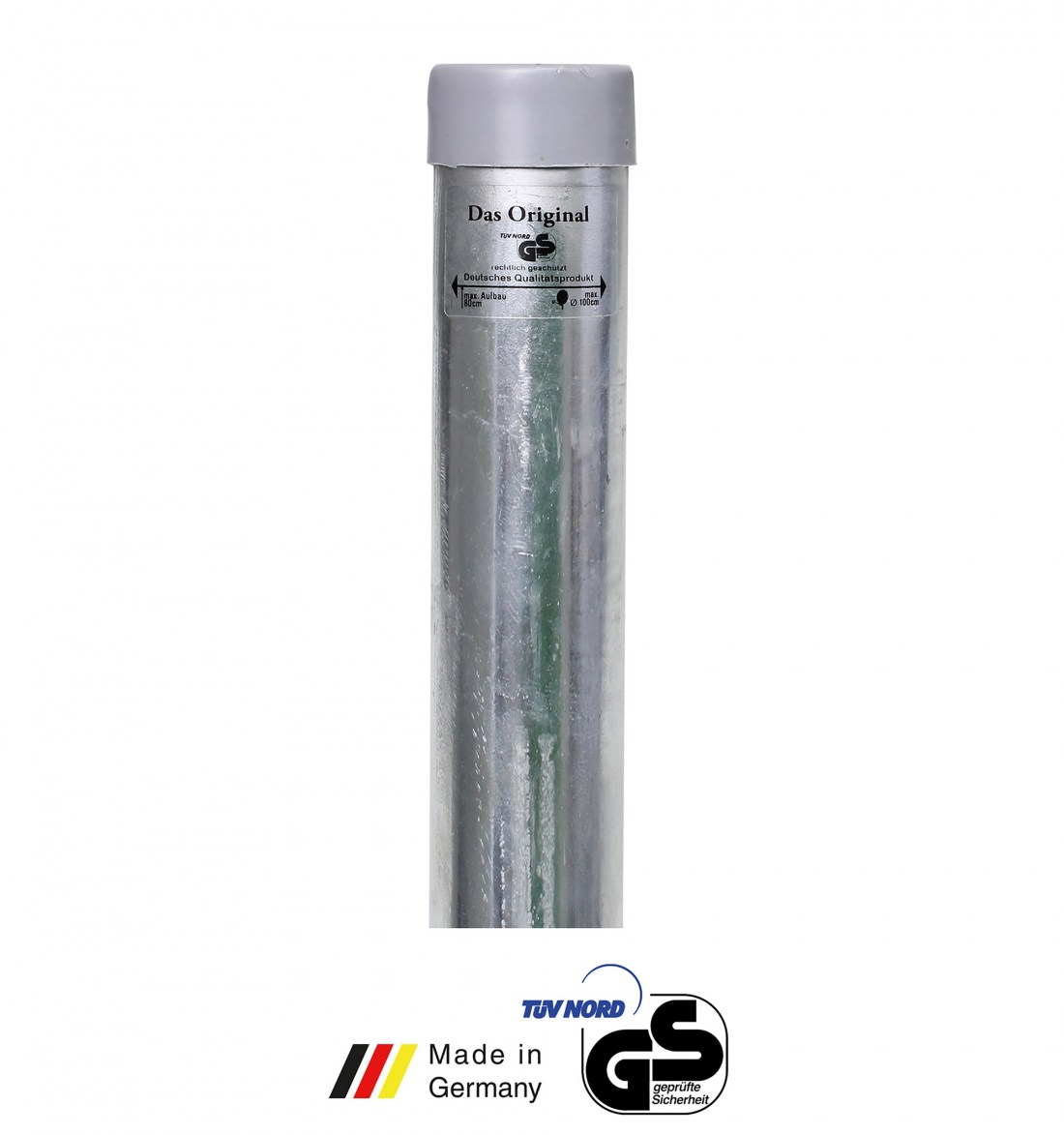

- including mast cap, 6 wood screws (10 x 100 mm)
- adjustable in width (flexibly extendable)
- Cable bushing in combination with mast cap MHD 48/60
- Can be mounted anywhere on the roof
- simple assembly, as it is only worked from the outside
- Fixed calculable assembly costs
- for parabolic antennas up to 100 cm Ø

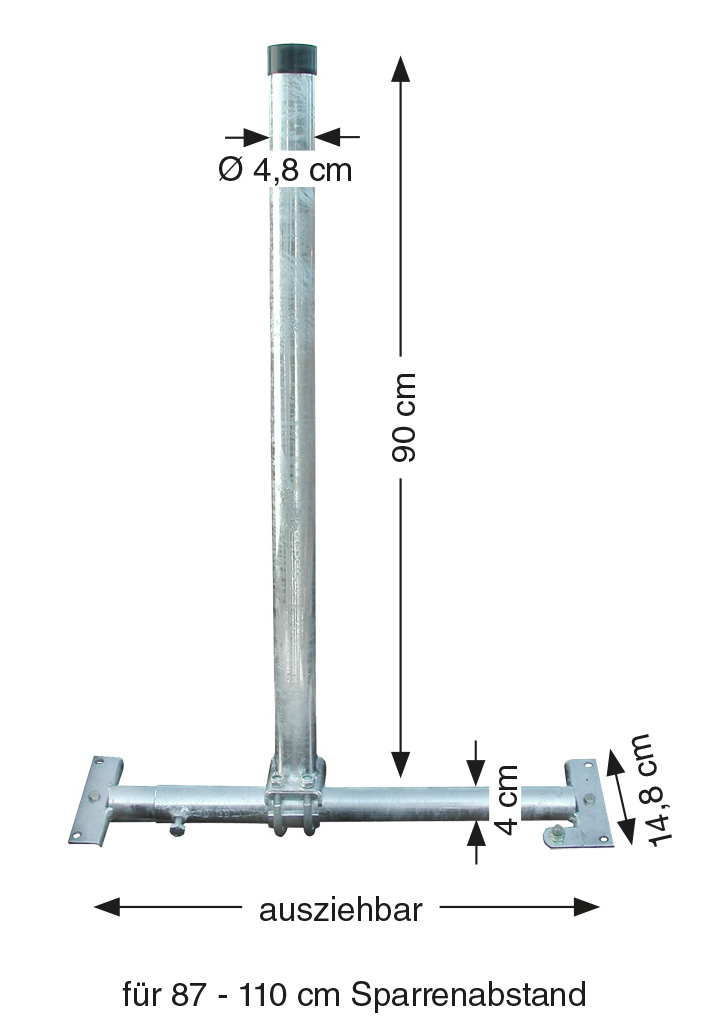

- Mast length 85 cm
- Mast diameter 48 mm
- Rafter spacing 870 - 1100 mm flexible extendable
Download Details
-
Beipackzettel SDH Serie DE pdf · 2mb
-
Datenblatt SDH DE pdf · 2mb
