Chevron holder

for parabolic antennas

SDH 85 XS

Mounting type	Pole mounting
Accessory type	Mast accessories

Order number	00370082
EAN-Code	4026187592134

Product Details

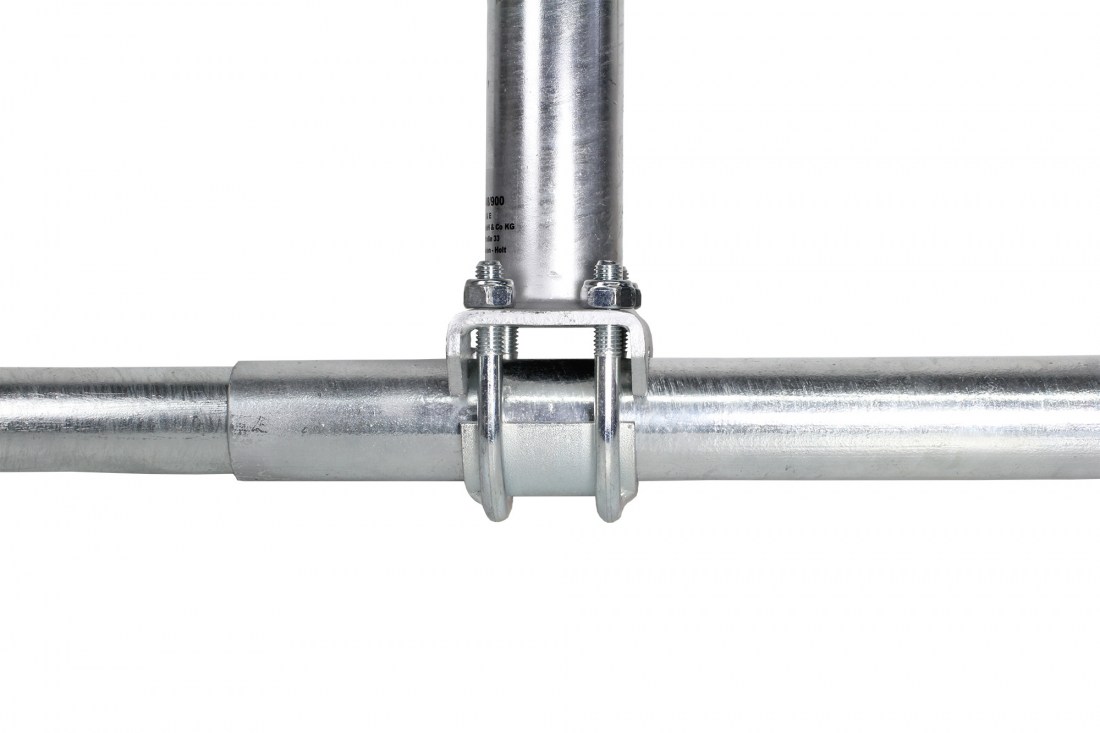

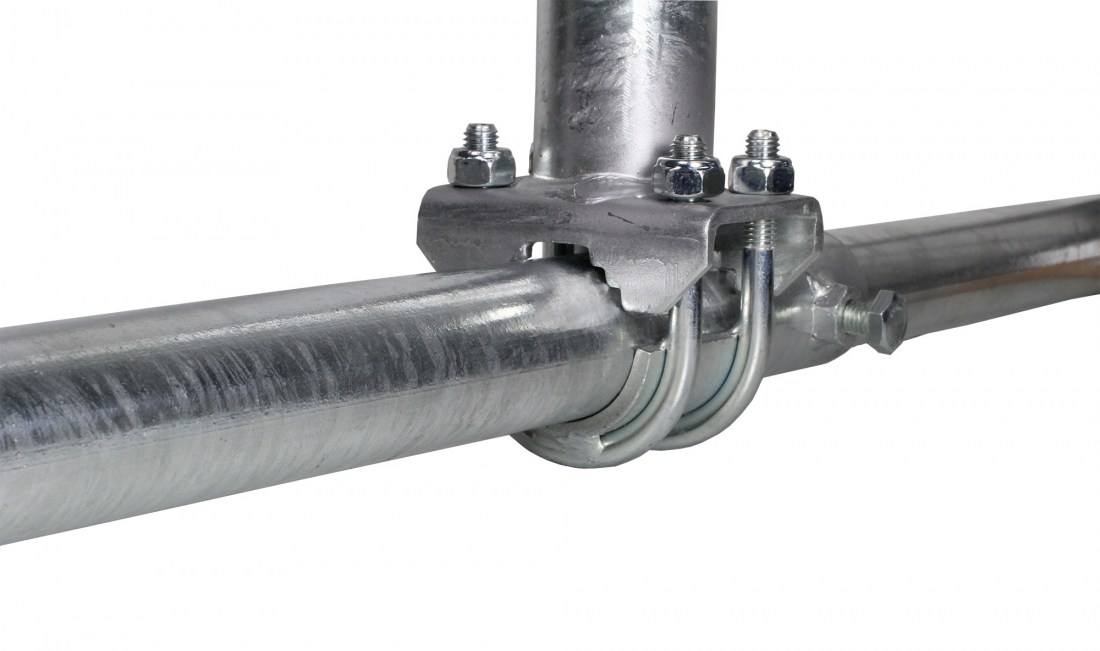

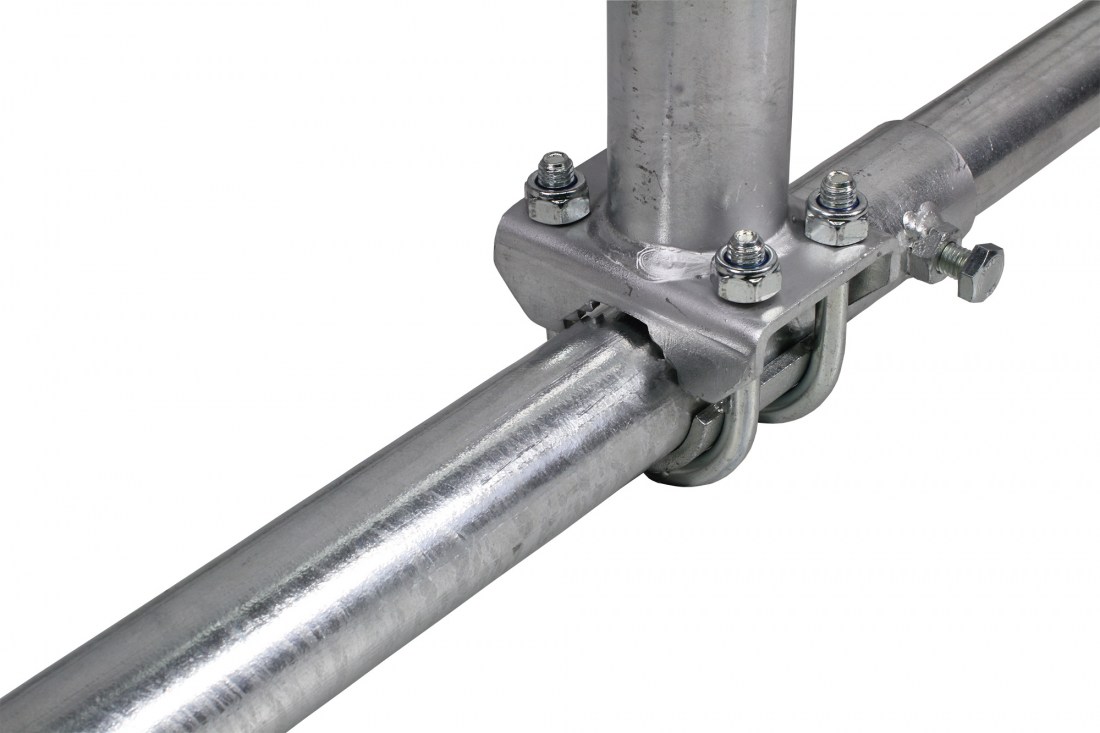

patented roof holder for parabolic antennas, material: steel, hot-dip galvanized

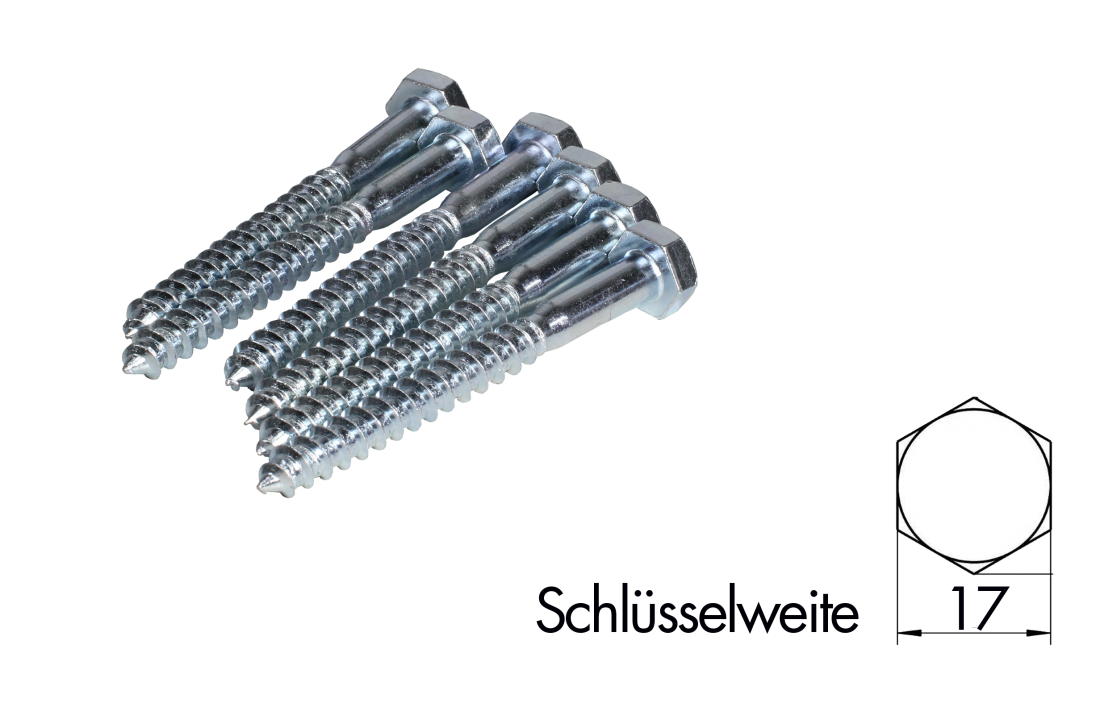

including mast cap, 6 wood screws (10 x 100 mm)

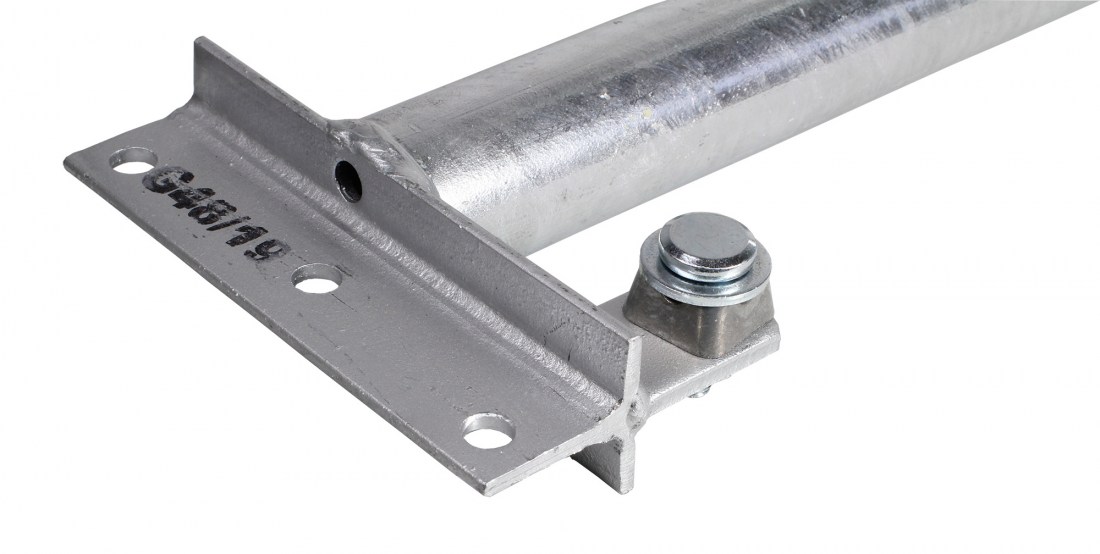

adjustable in width (flexibly extendable)
Cable bushing in combination with mast cap MHD 48/60

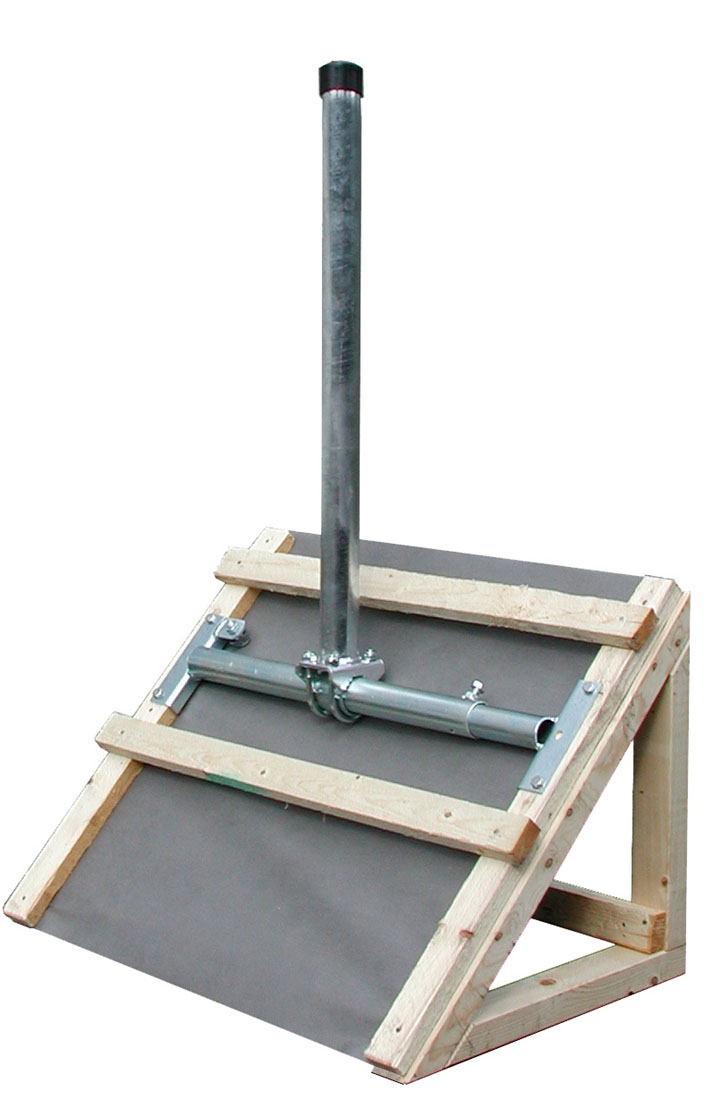

Can be mounted anywhere on the roof
simple assembly, as it is only worked from the outside
Fixed calculable assembly costs
for parabolic antennas up to 100 cm Ø

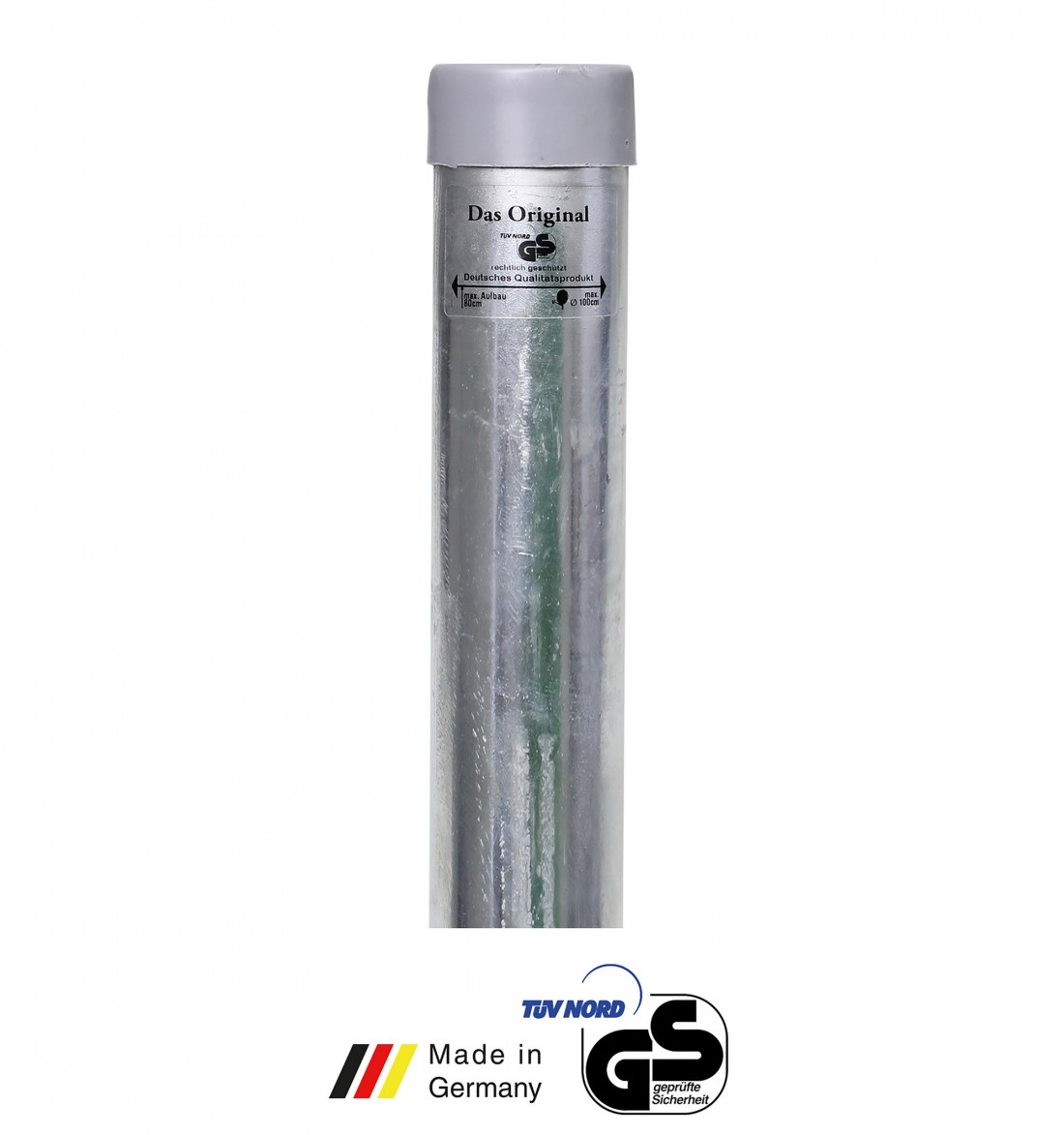

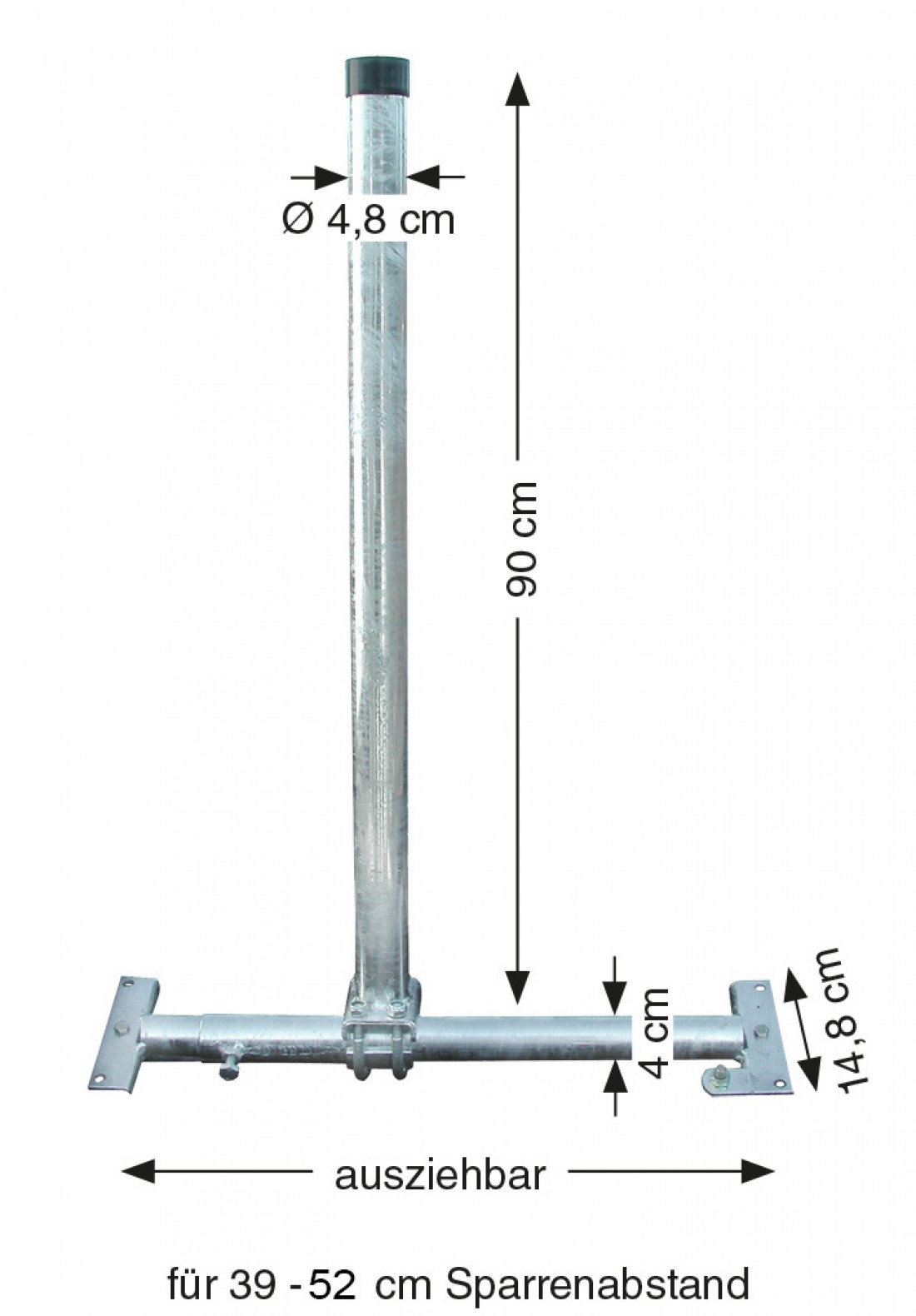

Mast length 85 cm
Mast diameter 48 mm
Rafter spacing 390 - 520 mm flexibly extendable
