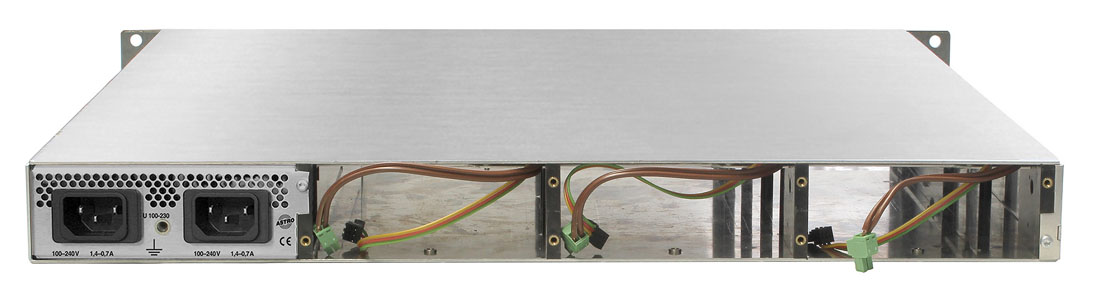

Base unit

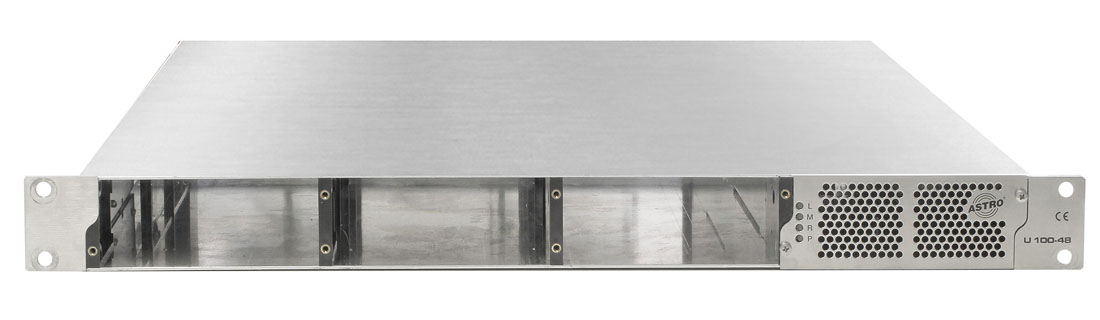

Base unit - Image 2

Base unit

230 V version, for mounting up to 3 plugin modules of the U 100 series

U 100-230

Specification

Module type

Base unit
Order number

00380101

EAN-Code

4026187611149

On request
Product Details
  • power and signal supply for up to 3 modules of the U 100 series
  • can carry up to 3 modules of the U 100 series
  • output signals are seperately led out via F-jacks
  • optional redundant power supply available
  • status indication for signal converters and power supply units
  • horizontal air flow allows compact installation
  • 230 V version
It is mandatory to use guide rails in the 19 inch rack. As these guide rails are different for each 19 inch rack supplier, they are not in the scope of delivery of U 100 base units.
