Signal converter IP to PAL / NTSC

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes

U 115

Specification

Module type

IP in PAL converter
Order number

00380115

EAN-Code

4026187131609

No longer available

Product Details

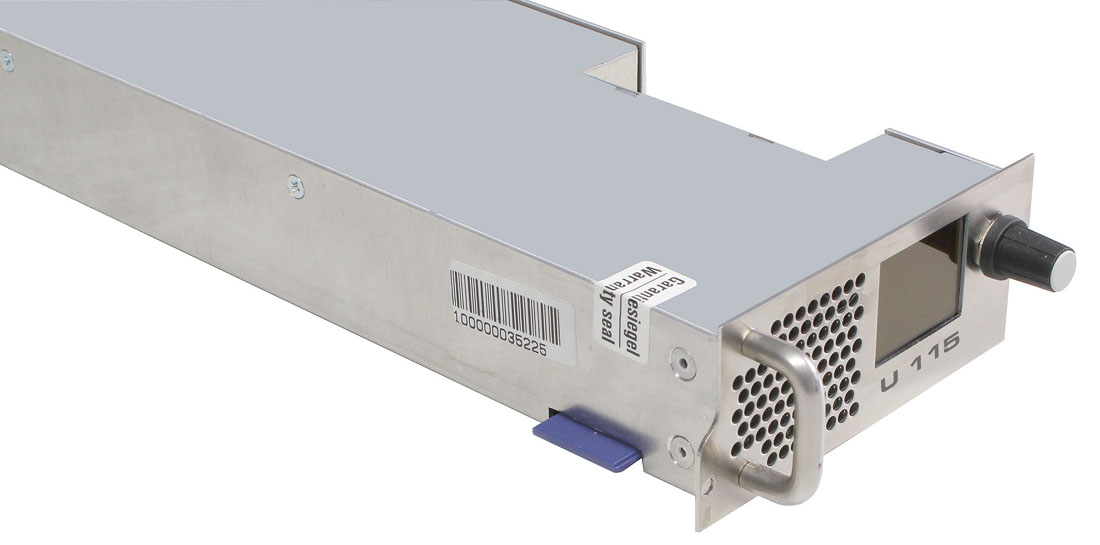

  • Plug-in module for U 100 base unit

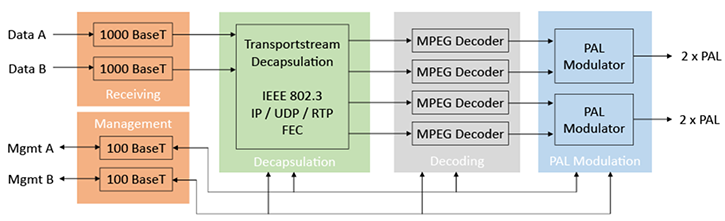

  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes
  • PAL programmes are led through as two pairs of adjacent channels
  • outstanding signal parameters by Direct Digital technology (Video-S/N: typ. 66 dB; residual carrier accuracy: 1 %)
  • optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
  • WSS, Teletext, VPS, programmable ticker,
  • RTP, FEC, IGMPv3, MPEG4 H.264 MP @ L30 (SD)
  • user friendly configuration via web browser
  • monitored fan
Download Details

Product is combinable with

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262

Channel selective pluggable output filter

U-KF 111-174 MHz
for U 1xx signal converters

Management controller

U 100-C
for U 1xx devices

Channel selective pluggable output channel filter

U-KF 47-68 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 174-398 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 398-860 MHz
for U 1xx signal converters

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series
