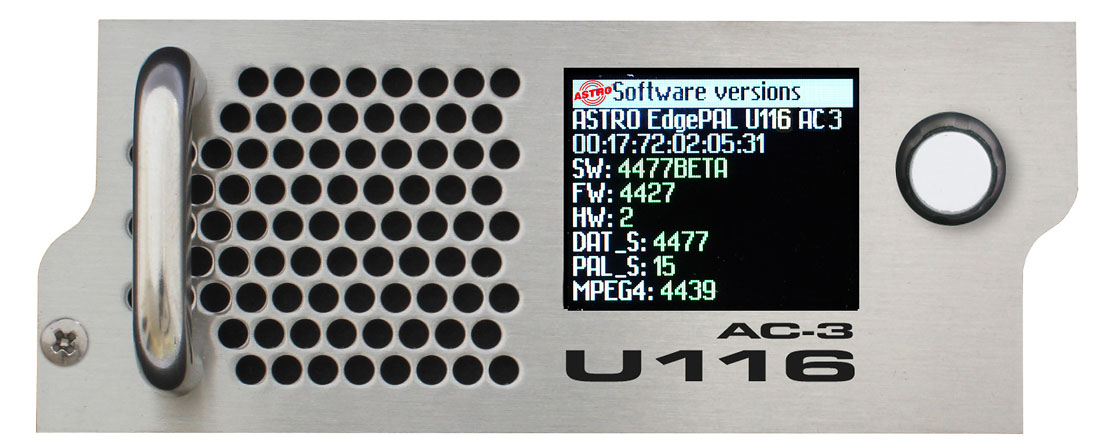

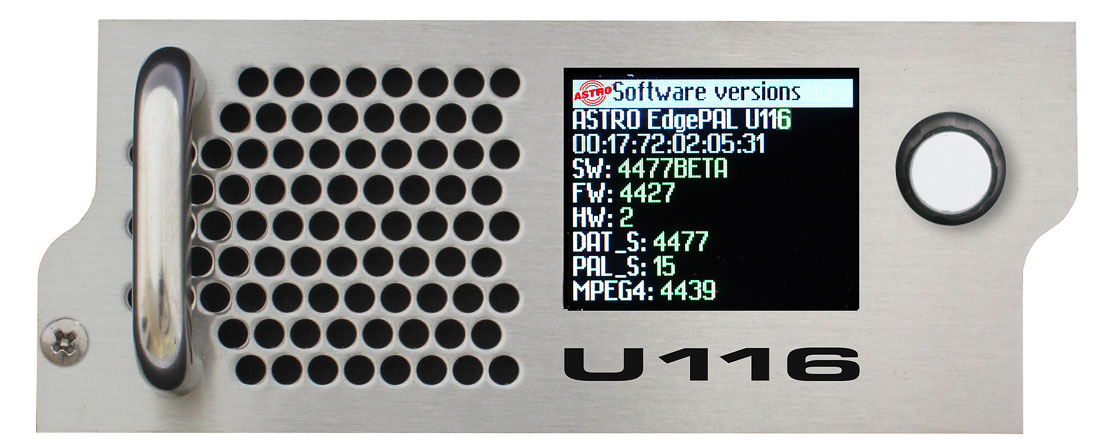

Signal converter IP to PAL / NTSC

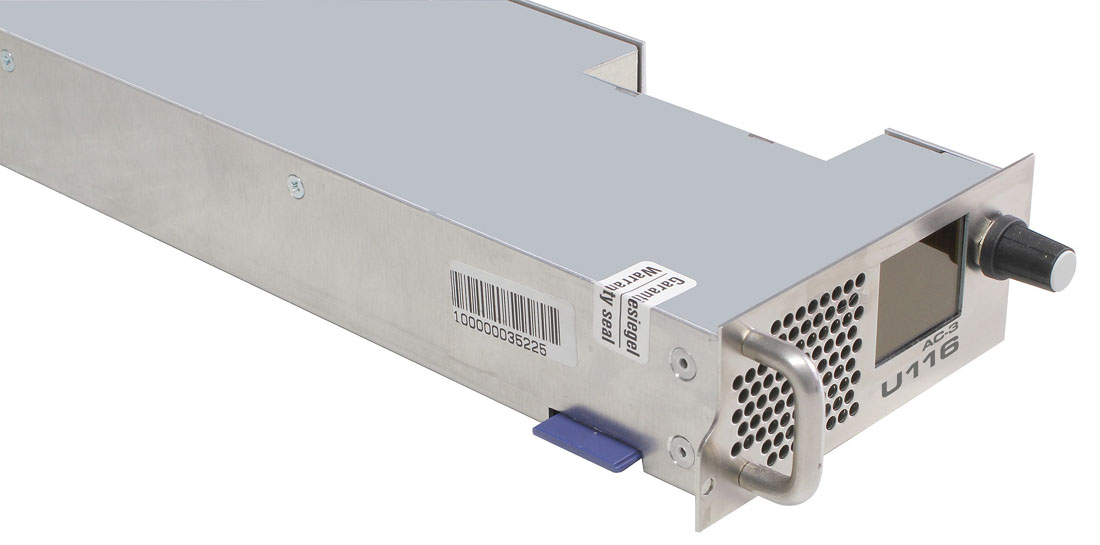

Signal converter IP to PAL / NTSC - Image 2
Signal converter IP to PAL / NTSC - Image 3
Signal converter IP to PAL / NTSC - Image 4

Signal converter IP to PAL / NTSC

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes

U 116 (AC3)

Specification

Module type

IP in PAL converter
Order number

00380118

EAN-Code

4026187170882

No longer available

Product Details
  • plug-in module for U 100 base unit

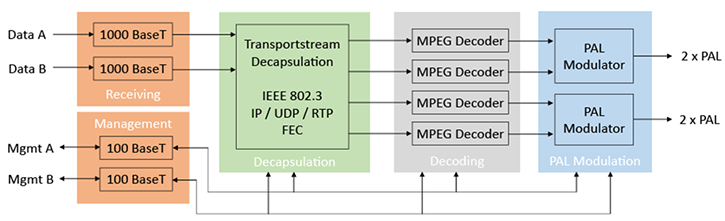

  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes
  • PAL programmes are led through as two pairs of adjacent channels
  • outstanding signal parameters by Direct Digital technology (Video-S/N: typ. 66 dB; residual carrier accuracy: 1 %)
  • WSS, Teletext, VPS, programmable ticker
  • RTP, FEC, IGMPv3, full MPEG4 support
  • HD to SD downscaling, AAC sound
  • AC-3 support
  • optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
  • user friendly configuration via web browser
  • monitored fan
Download Details

Product is combinable with

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262

Channel selective pluggable output channel filter

U-KF 47-68 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 111-174 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 398-860 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 174-398 MHz
for U 1xx signal converters

Management controller

U 100-C
for U 1xx devices
