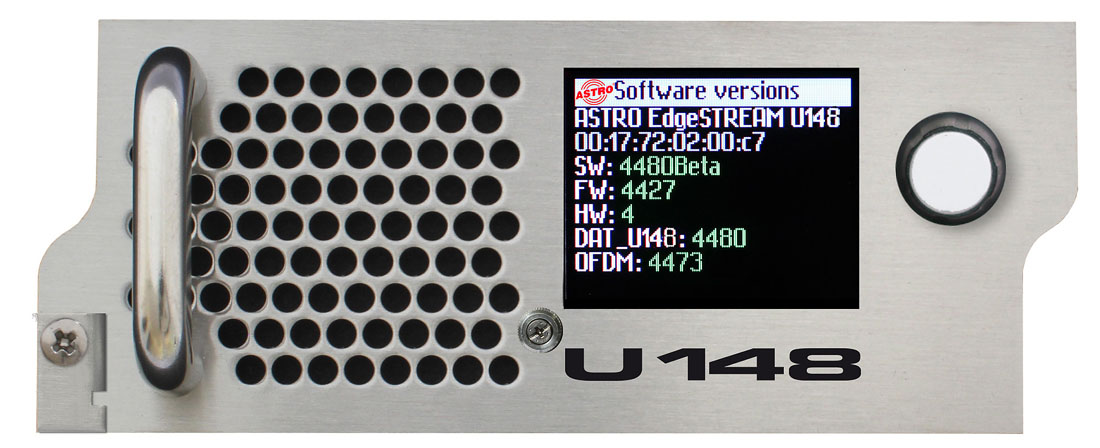

DVB-S2 to IP streamer

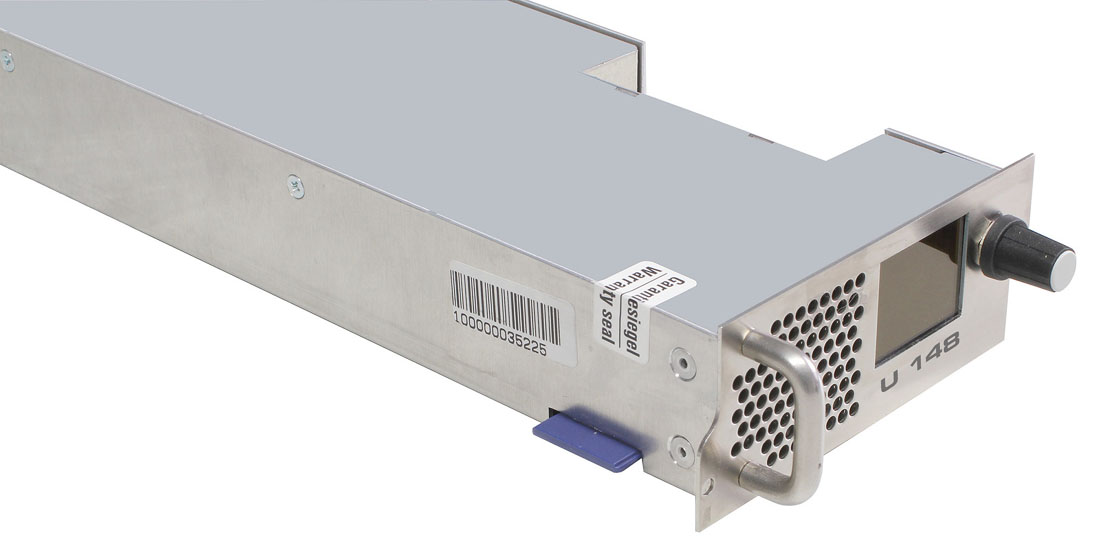

DVB-S2 to IP streamer - Image 2
DVB-S2 to IP streamer - Image 3
DVB-S2 to IP streamer - Image 4

DVB-S2 to IP streamer

8 DVB-S2 signals into IP

U 148

Specification

Module type

DVB-S in IP streamer
Order number

00380148

EAN-Code

4026187170752

No longer available

Product Details
  • plug-in modules for U 100 base unit

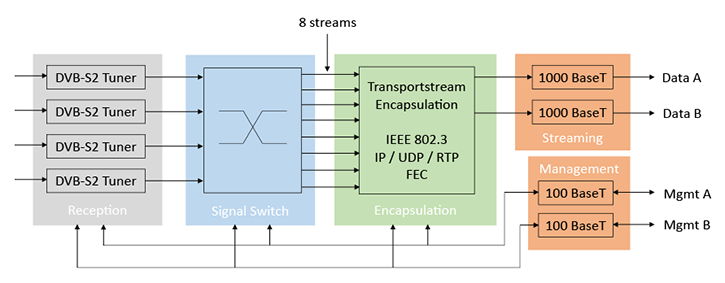

  • 4 physical signal input jacks for processing of 8 DVB-S2 signals into IP multicast groups; 8 MPTS, 504 SPTS (SPTS license afforded)
  • up to 24 streams per rack unit
  • tuners with DiSEqC control
  • monitored fan
Download Details

Product is combinable with

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

Management controller

U 100-C
for U 1xx devices
